| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

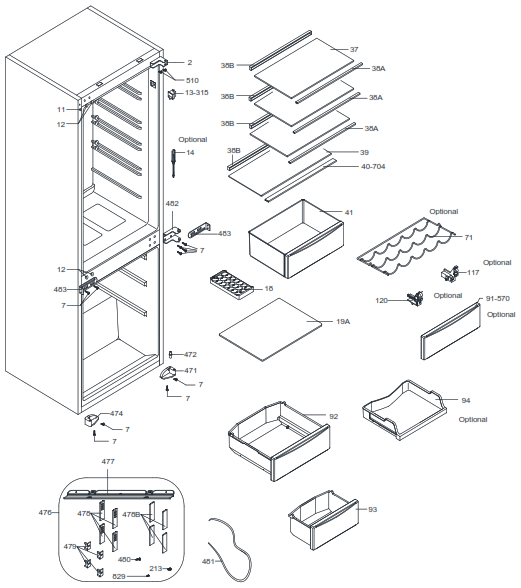

| Drawing 1 | ||||
| 2 | 37060899
UPPER/LOWER HINGE BRACKET | Not Available | ||
| 11 | 42290855
SCREW CAP (SMALL) | In Stock | 1.00 | |
| 12 | 42395247
SCREW CAP | Not Available | ||
| 13 | 32031240
LAMP SWITCH | In Stock | 12.99 | |
| 14 | 42283234
DRAIN TUBE TOOL | In Stock | 3.99 | |
| 18 | 42310075
ACCESSORY - ICE CUBE TRAY | In Stock | 1.99 | |
| 37 | 47014890
REFRIGERATOR GLASS SHELF | In Stock | 12.99 | |
| 38-A | 42153785
REFRIGERATOR GLASS SHELF FRONT TRIM | In Stock | 4.99 | |
| 38-B | 42147146
REFRIGERATOR GLASS SHELF REAR TRIM | In Stock | 4.99 | |
| 39 | 47014813
REFRIGERATOR GLASS SHELF (BOTTOM) | In Stock | 12.99 | |
| 40-704 | 42351779
REFRIGERATOR GLASS SHELF HUMIDITY CONTROLLER | Low Stock | 3.99 | |
| 41 | 42157049
REFRIGERATOR CRISPER DRAWER | In Stock | 19.99 | |
| 92 | 42306900
FREEZER DRAWER UPPER/MIDDLE | In Stock | 19.99 | |
| 93 | 42157051
FREEZER DRAWER LOWER | In Stock | 3.99 | |
| 94-A | 42186249
FREEZER PULL-OUT TRAY | Low Stock | 11.99 | |
| 94-B | 42195560
FREEZER PULL-OUT TRAY (WITH SERIGRAPHY) | Not Available | ||
| 471 | 42305747
LOWER HINGE RECEIVER (RH) | In Stock | 3.99 | |
| 472 | 37028128
LOWER HINGE PIN | In Stock | 3.99 | |
| 474 | 42305746
LOWER HINGE RECEIVER (LH) | In Stock | 3.99 | |
| 476 | 42209616
DCOR DOOR SLIDER KIT | In Stock | 9.99 | |
| 477 | 22021982
TOP COVER PANEL | On Order | 13.99 | |
| 478 | 42147208
DCOR DOOR SLIDER EXTERNAL SIDE | In Stock | 3.99 | |
| 478B | 42180204
DCOR DOOR SLIDER COVER | In Stock | 3.99 | |
| 479 | 42033307
DCOR DOOR SLIDER GUIDE | In Stock | 4.99 | |
| 481 | 42379101
APPLIANCE-TO-CABINET GAP SEAL STRIP | Not Available | ||
| 482 | 37060887
MIDDLE HINGE (L/R) | Not Available | ||
| 483 | 37032978
MIDDLE BRACKET (L/R) | In Stock | 3.99 | |

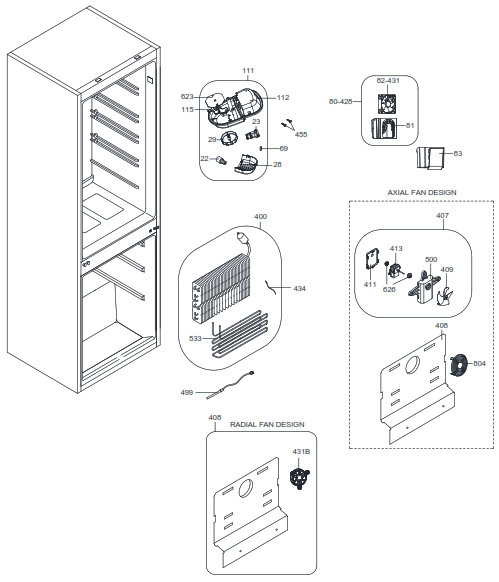

| Drawing 2 | ||||
| 21 | 32060236
LAMP/THERMOSTAT ASSEMBLY (WITH PCB) | Not Available | ||
| 22 | 32028706
LED LAMP (E14/6500K) | In Stock | 12.99 | |
| 23 | 30007907
LAMP HOLDER (E14) | In Stock | 3.99 | |
| 28 | 42201464
LAMP COVER | In Stock | 3.99 | |
| 29 | 42147116
THERMOSTAT KNOB | In Stock | 3.99 | |
| 69 | 42033673
THERMOSTAT BOX CAP | Low Stock | 7.53 | |
| 80 | 32058798
FAN MOTOR + HOUSING | Not Available | ||
| 81 | 42257001
FAN HOUSING | Low Stock | 3.99 | |
| 82-431 | 32051261
REFRIGERATOR AIR CIRCULATION FAN | Not Available | ||
| 83 | 42258566
FAN COVER | Low Stock | 9.36 | |
| 112 | 42250829
THERMOSTAT HOUSING | In Stock | 3.99 | |
| 115 | 42211521
THERMOSTAT BRACKET $$$ | Low Stock | 3.99 | |
| 408 | 42272579
FREEZER FAN ASSEMBLY | Not Available | ||
| 431B | 32035962
FREEZER AIR CIRCULATION FAN | In Stock | 11.99 | |
| 499 | 32029717
THERMAL FUSE | In Stock | 4.99 | |
| 533 | 32030658
EVAPORATOR HEATER | In Stock | 19.99 | |

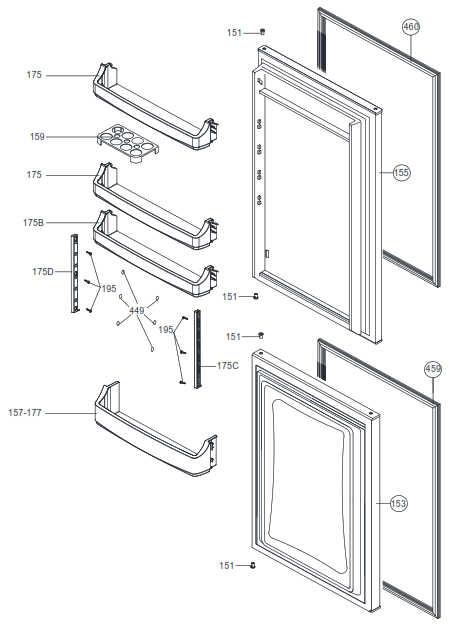

| Drawing 3 | ||||
| 151 | 42004499
DOOR HINGE PIN SLEEVE | In Stock | 3.99 | |
| 153 | 20912762
FREEZER DOOR | In Stock | 49.99 | |
| 155 | 20912758
REFRIGERATOR DOOR | In Stock | 49.99 | |
| 159 | 42163485
ACCESSORY - EGG HOLDER | In Stock | 3.99 | |
| 175 | 42161064
REFRIGERATOR DOOR SHELF UPPER/MIDDLE | In Stock | 19.99 | |
| 177 | 42161010
REFRIGERATOR DOOR SHELF BOTTOM | In Stock | 17.49 | |
| 459 | 42159333
FREEZER DOOR GASKET (70/30) | In Stock | 15.99 | |
| 460 | 42159332
REFRIGERATOR DOOR GASKET (70/30) | In Stock | 18.99 | |

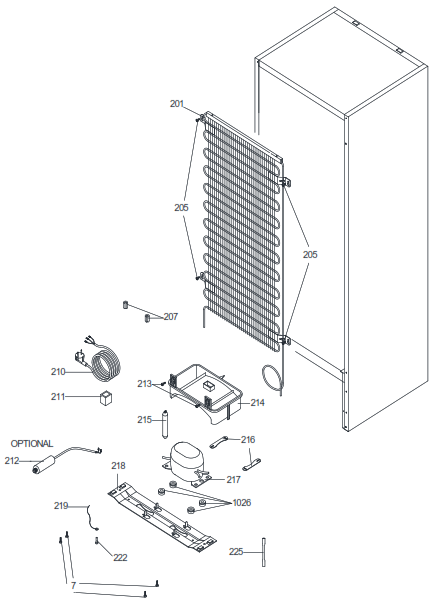

| Drawing 4 | ||||
| 201 | 37029479
SYS - CONDENSER | Low Stock | 29.68 | |
| 210 | 32052008
POWER CORD - 2.5M TYPE G PLUG | Not Available | ||
| 211 | 32047327
COMPRESSOR RELAY | In Stock | 19.99 | |
| 211B | 42340922
COMPRESSOR TERMINAL COVER | Not Available | ||
| 212 | 32051820
CAPACITOR - 3.5uF | Not Available | ||
| 214 | 42291449
EVAPORATOR DRIP TRAY | In Stock | 4.25 | |
| 215 | 37029499
DRYER FILTER (XH9 0.40MM 5.5GR) | In Stock | 6.99 | |
| 217 | 32053402
SYS - COMPRESSOR | Low Stock | 89.99 | |
| 219 | 32036742
EARTH BONDING | Not Available | ||
| 227 | 42202714
FOOT | Low Stock | 3.99 | |
| 400 | 37028188
SYS - EVAPORATOR ASSEMBLY (INC 32030658 HEATER) | Low Stock | 39.99 | |
| 1026 | 42176268
COMPRESSOR RUBBER | Not Available | ||
| Manufacturer Model Number | CLBI7030UK |
| EAN | 5059340820040 |
| Brand | Cooke and Lewis |
| Description | C&L 7030 BI FRIDGE FREEZER UK |
