Cooke and Lewis CLBIMW25LUK 25L BUILT-IN MICROWAVE
| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

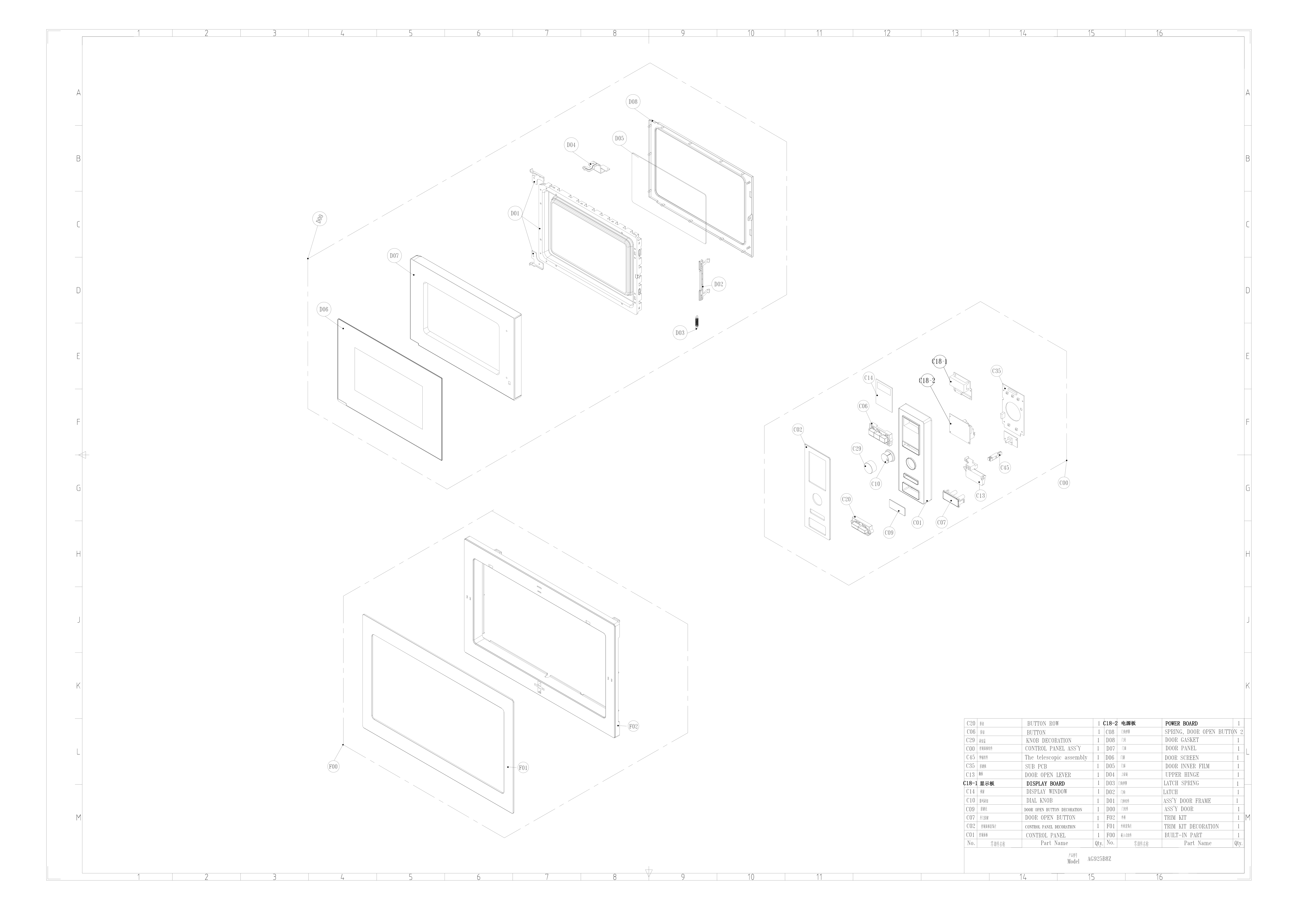

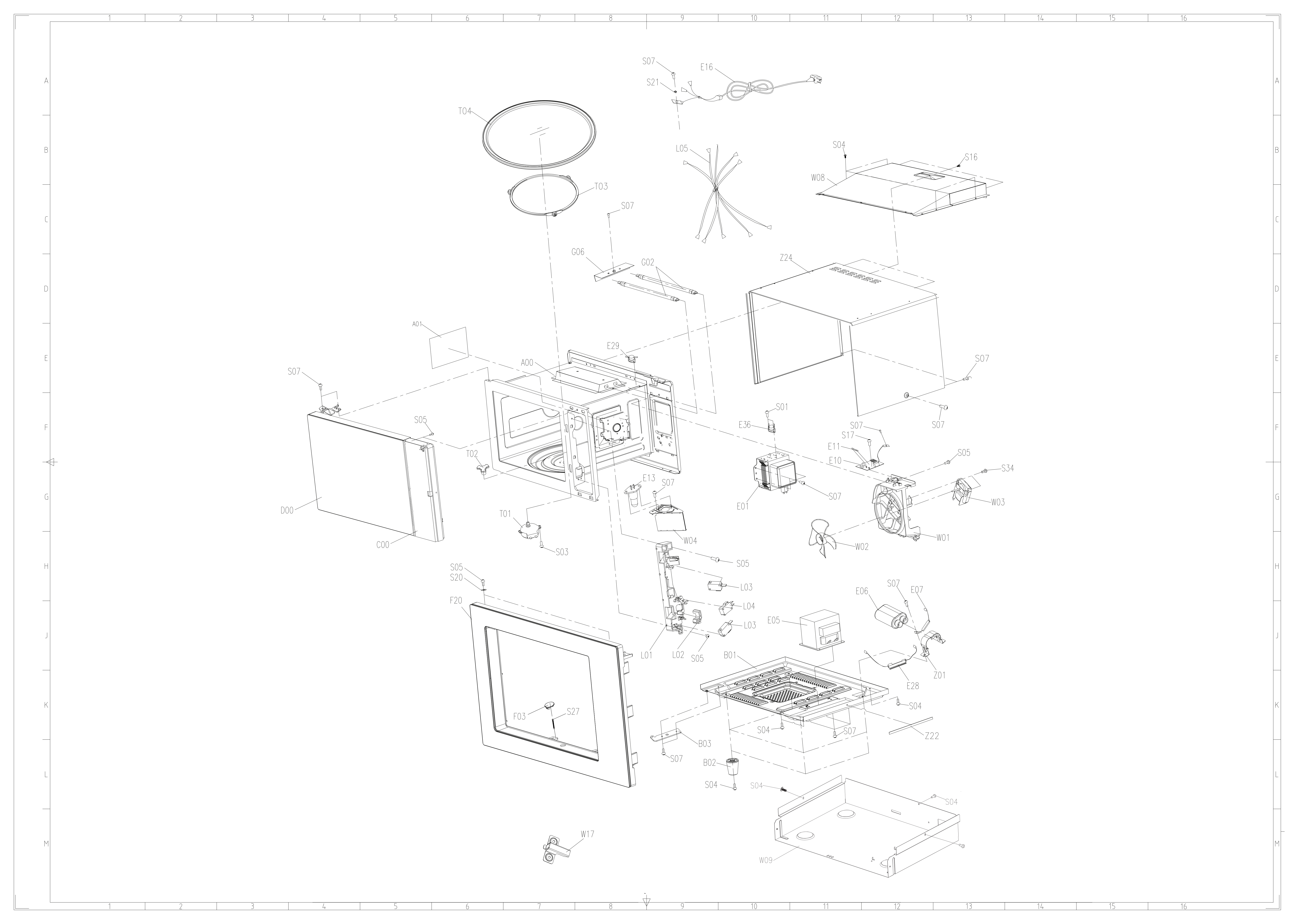

| Drawing 1 | ||||
| 0 | 12970000000278
RACK | Not Available | ||
| A00 | 12270000022616
CAVITY ASSEMBLY | Not Available | ||
| A01 | 12570000001036
SPLASH COVER | On Order | 8.99 | |
| B01 | 12270000005090
BASEPLATE | Not Available | ||
| B02 | 12170000000179
FOOT | In Stock | 9.99 | |
| B03 | 12270000006126
HINGE | In Stock | 11.99 | |
| C00 | CLBIMW25LXCP
CONTROL PANEL ASSEMBLY | In Stock | 54.99 | |
| C01 | 12170000001981
CONTROL PANEL | In Stock | Contact Us | |
| C02 | 16070000B15291
MEMBRANE DECO. | In Stock | Contact Us | |
| C06 | 12170000A27533
BUTTON | Not Available | ||
| C07 | 12170000007205
DOOR OPEN BUTTON | Low Stock | Contact Us | |
| C08 | 12970000000400
SPRING | On Order | 9.99 | |
| C09 | 12170000003644
BUTTON DECORATION | Low Stock | Contact Us | |
| C10 | 12170000009156
DIAL KNOB | In Stock | 4.99 | |
| C13 | 12170000010328
DOOR OPEN LEVER | In Stock | 11.99 | |
| C14 | 16070000B15292
OTHER DECO. | Low Stock | Contact Us | |
| C18-1 | 17170000004641
DISPLAY CRICUIT BOARD | In Stock | 19.99 | |
| C18-2 | 17170000006442
POWER SUPPLY BOARD | Low Stock | 24.99 | |
| C20 | 12170000A27534
BUTTON | Low Stock | Contact Us | |
| C29 | 12270000000362
KNOB COVER | Low Stock | Contact Us | |
| C35 | 17170000007444
KEY-PRESS BOARD | Low Stock | Contact Us | |
| C45 | 12170000003502
KNOB ASSEMBLY | In Stock | Contact Us | |
| D00 | CLBIMW25LXDR
DOOR ASSEMBLY | In Stock | Contact Us | |
| D01 | 12270000003811
DOOR FRAME ASSEMBLY | Not Available | ||
| D02 | 12170000023688
LATCH | In Stock | 11.99 | |
| D03 | 12970000000365
LATCH SPRING | In Stock | 6.99 | |
| D04 | 12270000006190
HINGE | In Stock | 5.99 | |
| D05 | 12170000009519
DOOR FILM | In Stock | 11.99 | |
| D06 | 12570000A23957
DOOR SCREEN | In Stock | Contact Us | |
| D07 | 12170000006052
DOOR PANEL | Low Stock | Contact Us | |
| D08 | 12170000009575
DOOR GASKET | In Stock | 13.99 | |
| E01 | 17470000000809
MAGNETRON | In Stock | 29.99 | |
| E05 | 17470000003517
H.V.TRANSFORMER | In Stock | 24.99 | |
| E06 | 17470000000689
H.V.CAPACITOR | In Stock | 19.99 | |
| E07 | 17470000008946
H.V.DIODE | Low Stock | 18.99 | |
| E10-E11 | 17170000002939
NOISE FLITER ASSEMBLY | In Stock | 15.99 | |
| E13 | 17470000009104
INTEGRATED LAMP | In Stock | 11.99 | |
| E16 | 17470000A02562
POWER CORD | Not Available | ||
| E28 | 17470000009122
FUSE | In Stock | 14.99 | |
| E29 | 17470000009163
THERMOSTAT | In Stock | 17.99 | |
| E36 | 17470000001486
THERMOSTAT | In Stock | 10.99 | |
| F01 | 12270000001032
TRIM DECORATION | Low Stock | Contact Us | |
| F02 | 12170000006657
TRIM PANEL | Low Stock | Contact Us | |
| F03 | 12170000007372
SCREW COVER | Not Available | ||
| G02 | 17470000001105
QUARTZ HEATER | In Stock | 18.99 | |
| G06 | 12270000008094
HEATER BRACKET | Not Available | ||
| L01 | 12170000003384
LATCH BOARD | Low Stock | 11.99 | |
| L02 | 12170000007318
INTERLOCK LEVER | In Stock | 8.99 | |
| L03 | 17470000008423
MICROSWITCH | In Stock | 9.99 | |
| L04 | 17470000008425
MICROSWITCH | In Stock | 9.99 | |
| L05 | 17470000001139
MAIN WIRE HARNESS | Low Stock | Contact Us | |
| T01 | 11002014A00325
SYNCHRONOUS MOTOR | In Stock | 22.99 | |
| T02 | 12170000000424
COUPLER | In Stock | 9.99 | |
| T03 | 12170000004310
SWIVEL ASSEMBLY | In Stock | 13.99 | |
| T04 | 12570000007510
GLASS TURNTABLE | In Stock | 14.99 | |
| W01 | 12170000004303
FAN GUIDE | In Stock | 7.99 | |
| W02 | 12170000000210
FAN | In Stock | 12.99 | |
| W03 | 11002017000384
BRUSHLESS DC MOTOR | In Stock | 6.99 | |
| W04 | 12270000000175
WIND GUIDE COVER | In Stock | 9.99 | |
| W08 | 12270000008416
AIR DAMPER | Not Available | ||
| W09 | 12270000008407
AIR DAMPER | Not Available | ||
| W17 | 12270000003554
MOUNTING PLATE | In Stock | 14.99 | |
| Z01 | 12270000006211
CAPACITOR HOLDER | Not Available | ||
| Z24 | CLBIMW25LXCV
COVER | In Stock | Contact Us | |
| Manufacturer Model Number | CLBIMW25LUK |
| EAN | 3663602632467 |
| Brand | Cooke and Lewis |
| Description | 25L BUILT-IN MICROWAVE |
