| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

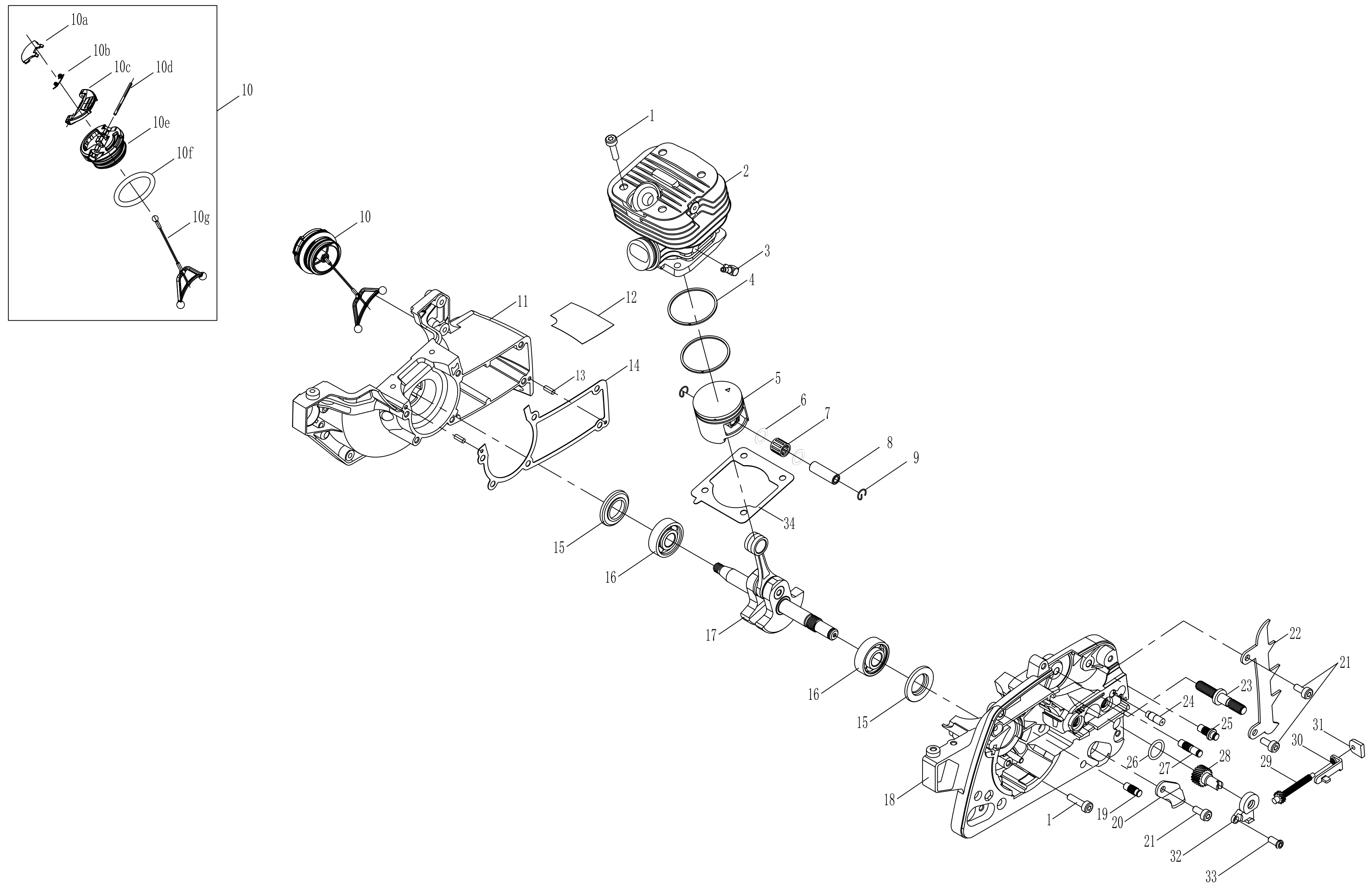

| Drawing 1 | ||||
| 1 | 01.01.2141
SCREW - M5X20 $$$ | Not Available | ||
| 2 | 20070004
CYLINDER | Low Stock | 32.40 | |
| 3 | 20056209
PRESSURE NOZZLE | Not Available | ||
| 4 | 20053142
PISTON RING | In Stock | 6.14 | |
| 5 | 20053143
PISTON | Low Stock | 9.70 | |
| 6 | 20062601
NEEDLE BEARING GASKET | Low Stock | 5.25 | |
| 7 | 20053144
NEEDLE BEARING 9X12X12 | Low Stock | 9.61 | |
| 8 | 20053188
PISTON PIN | Low Stock | 5.33 | |
| 9 | 20053190
GUDGEON PIN RETAINING CLIP | Low Stock | 5.02 | |
| 10 | 20087160
FUEL/OIL FILL CAP (KF)CS | In Stock | 9.99 | |
| 10a | 20082038
CAP COVER $$$ | Not Available | ||
| 10b | 20074083
FUEL CAP TORSION SPRING | Not Available | ||
| 10c | 20078618
FLIP LEVER $$$ | Not Available | ||
| 10d | 20073571
PIN - 2X36 | Not Available | ||
| 10e | 20081182
FUEL FILLER CAP (MAIN BODY) $$$ | Not Available | ||
| 10f | 20057242
FUEL TANK PORT COVER GASKET | Low Stock | 4.80 | |
| 10g | 20056374
ANTI-DROP PLATE | Not Available | ||
| 11 | 20053177
LEFT CRANKCASE | Not Available | ||
| 12 | 20057217
CRANKCASE HEAT ISOLATION | Not Available | ||
| 13 | 20061574
PIN 3X10 | Not Available | ||
| 14 | 20050744
CRANKCASE GASKET | Not Available | ||
| 15 | 20057218
OIL SEALING | Not Available | ||
| 16 | 20062595
BEARING | Not Available | ||
| 17 | 20070009
CRANKSHAFT | Not Available | ||
| 18 | 20053162
RIGHT CRANKCASE | Not Available | ||
| 19 | 20062591
PIN FOR BRAKE SPRING | Not Available | ||
| 20 | 20057144
CHAIN CATCHER | Not Available | ||
| 21 | 20062588
SCREW M5X16 $$$ | In Stock | 3.99 | |
| 22 | 20081499
SPIKED BUMPER | Not Available | ||
| 23 | 20062584
SUPPORTING BOLT | Not Available | ||
| 24 | 20057219
VENT NOZZLE | Not Available | ||
| 25 | 20062592
PIN FOR GEMEL | Not Available | ||
| 26 | 20055774
O-RING | Not Available | ||
| 27 | 20062593
PIN FOR FRONT HANDLE GUARD | Not Available | ||
| 28 | 20062599
TENSIONER GEAR | In Stock | 3.99 | |
| 29 | 20062600
TENSIONER SCREW | Low Stock | 3.99 | |
| 30 | 20057279
TENSIONER BLOCK | Low Stock | 5.25 | |
| 31 | 20065030
POSITION BLOCK | Low Stock | 1.50 | |
| 32 | 20065029
GEAR COVER | Low Stock | 1.99 | |
| 33 | 01.01.3061
SCREW - M4X10 $$$ | Not Available | ||
| 34 | A42.0101.0005
CYLINDER GASKET | On Order | 5.47 | |

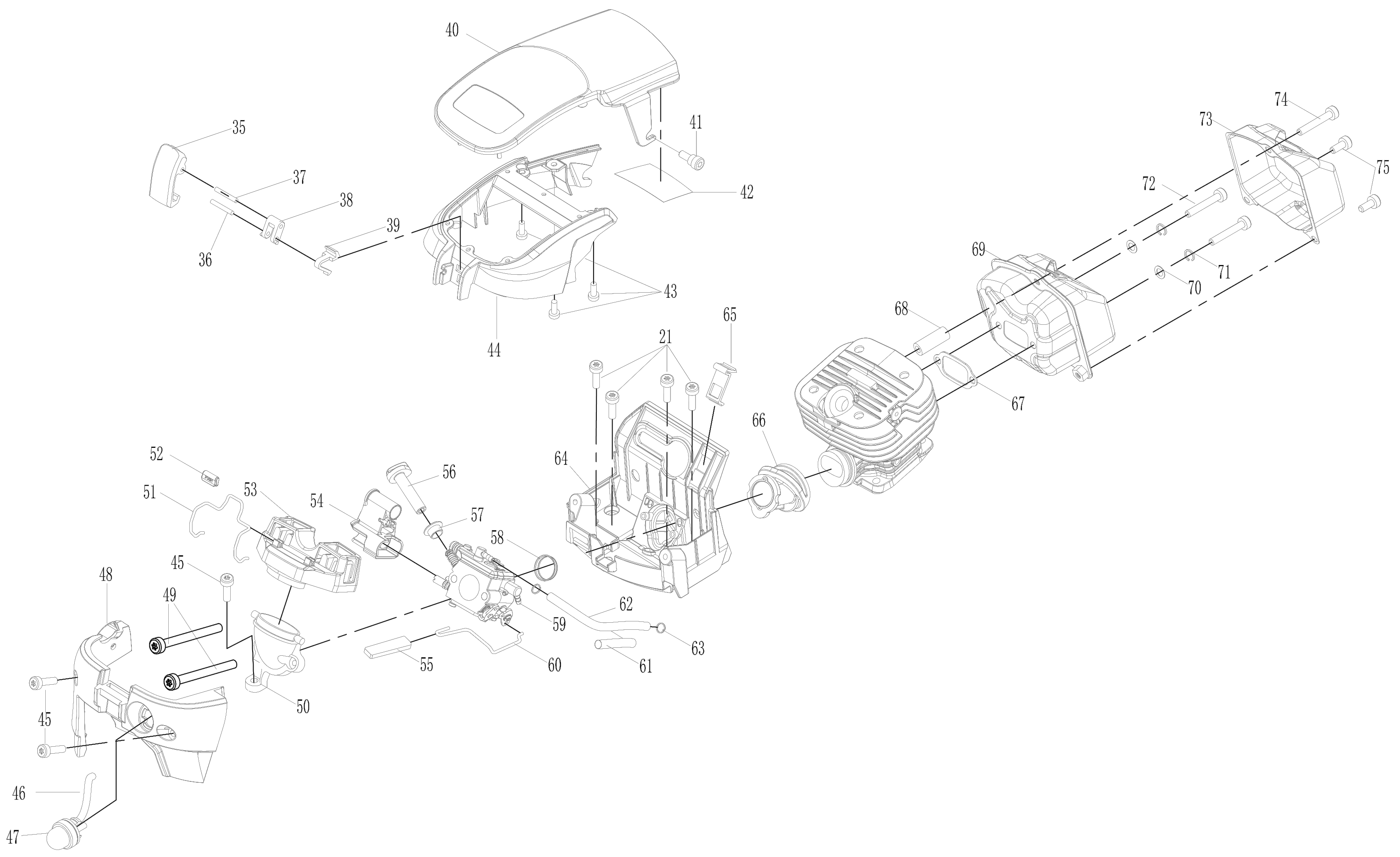

| Drawing 2 | ||||
| 35 | 20065010
LOCK LEVER | In Stock | 3.99 | |
| 36 | 20061582
PIN 3X22 | In Stock | 3.99 | |
| 37 | 20061583
PIN 3X23 | In Stock | 3.99 | |
| 38 | 20065012
TRANSFER BAR | In Stock | 3.99 | |
| 39 | 20065011
HOOK | In Stock | 3.99 | |
| 40 | 20064985
CYLINDER SHIELD | Low Stock | 9.25 | |
| 41 | 20054604
POSITION SCREW | Not Available | ||
| 42 | 20057194
TOP HEAT ISOLATION | Not Available | ||
| 43 | 20054543
SCREW $$$ | Not Available | ||
| 44 | 20081494
CYLINDER SHIELD SUPPORT | Low Stock | 10.59 | |
| 45 | 20062620
SCREW - ST $$$ | Not Available | ||
| 46 | 20054576
FUEL TANK ASSEMBLY - BREATHER TUBE | Not Available | ||
| 47 | 20071682
PRIMER BULB | In Stock | 3.99 | |
| 48 | 20064993
REAR COVER | Low Stock | 7.92 | |
| 49 | 20055162
SCREW M4X40 $$$ | Not Available | ||
| 50 | 20057150
AIR FILTER BASE | Low Stock | 5.69 | |
| 51 | 20057151
LOCKING SPRING | Low Stock | 5.25 | |
| 52 | 20064909
LOCK KNOB | In Stock | 3.99 | |
| 53 | 20054602
AIR FILTER | In Stock | 9.25 | |
| 54 | 20064991
L/H GUIDER | Not Available | ||
| 55 | 20057145
THROTTLE KNOB | In Stock | 5.25 | |
| 56 | 20064900
CHOKE KNOB | In Stock | 3.99 | |
| 57 | 20057147
CHOKE KNOB BASE | In Stock | 5.99 | |
| 58 | 20057203
SUPPORT RING | Not Available | ||
| 59-a | 20054913
CARBURETTOR - WALBRO WTE-21 | In Stock | 34.99 | |
| 59-b | 20092941
CARBURETTOR - RUIXING MC16M2 | Not Available | ||
| 60 | 20057149
THROTTLE ROD | In Stock | 5.25 | |
| 61 | 20055760
HEAT ISOLATION TUBE | Not Available | ||
| 62 | 20054577
OIL FEED PIPE | Not Available | ||
| 63 | 20054663
CIRCLIP $$$ | Not Available | ||
| 64 | 20055161
CARBURETTOR SUPPORT | Not Available | ||
| 65 | 20064992
HOT/FREEZE CHANGE SCREEN | Not Available | ||
| 66 | 20057204
INTAKE PIPE | In Stock | 7.92 | |
| 67 | 20050743
MUFFLER GASKET | Not Available | ||
| 68 | 20054820
SUPPORT TUBE | Not Available | ||
| 69 | 20070002
MUFFLER | Not Available | ||
| 70 | 20054561
PLAIN WASHER $$$ | Not Available | ||
| 72 | 20062614
EXHAUST SCREW $$$ | Not Available | ||
| 74 | 20062597
SCREW M5X40 $$$ | Not Available | ||
| 75 | 20060992
SCREW - M5X12 $$$ | Not Available | ||

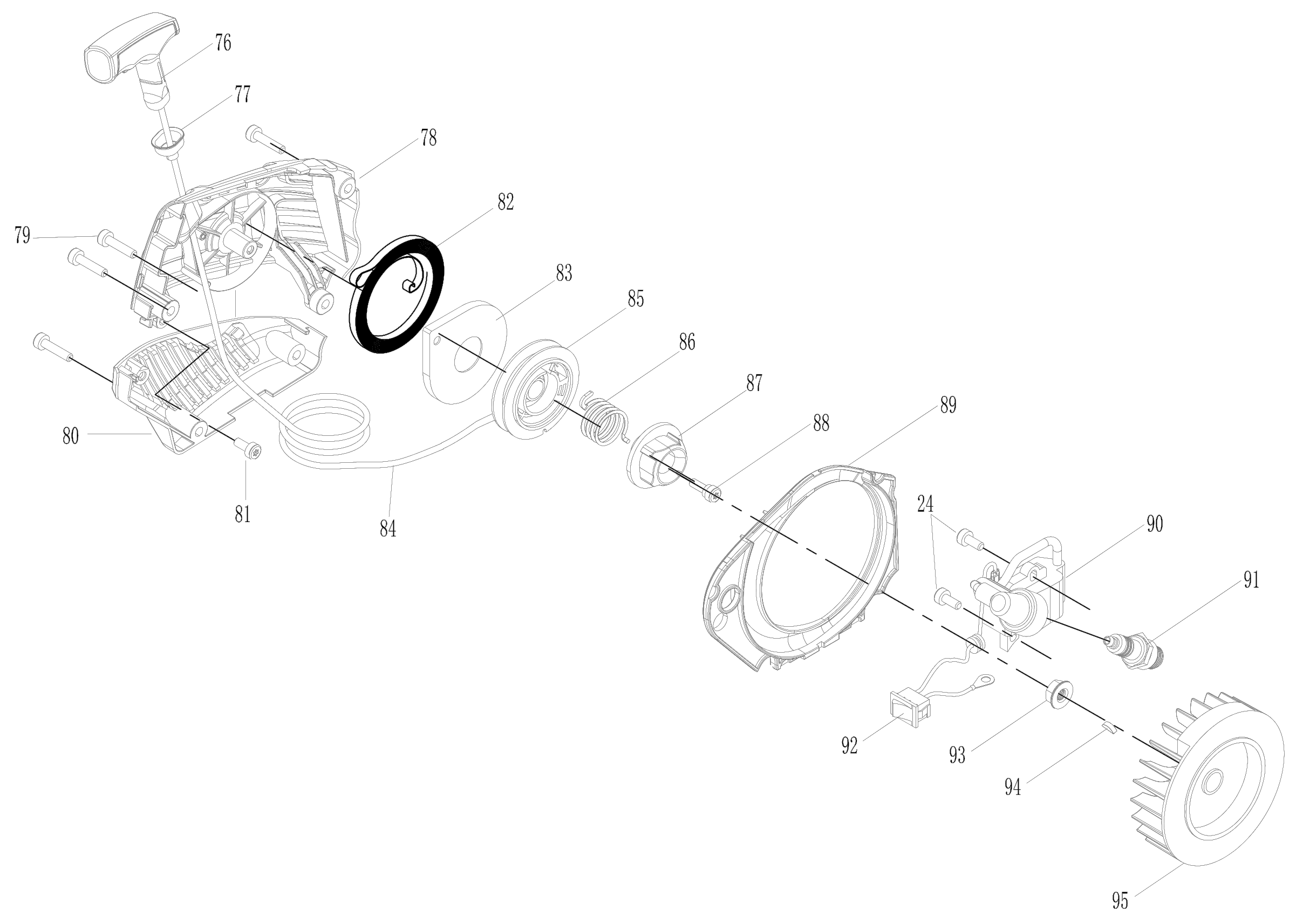

| Drawing 3 | ||||
| 76 | 20081175
STARTER HANDLE | In Stock | 3.99 | |
| 77 | 20054603
STARTER ASSEMBLY - EYELET | Not Available | ||
| 78 | 20064915
STARTER COVER | Not Available | ||
| 79 | 20062583
SCREW - M5X25 $$$ | Not Available | ||
| 80 | 20081497
AIR INTAKE SCREEN | Not Available | ||
| 81 | 20062619
SCREW - ST $$$ | Not Available | ||
| 82 | 20056498
STARTER ASSEMBLY - CLOCK SPRING (included w GP0000007290) | Not Available | ||
| 83 | 20056497
STARTER SPRING $$$ | In Stock | 3.99 | |
| 84 | 20056633
STARTER ROPE 3X920 | In Stock | 9.99 | |
| 85 | 20057232
REEL | In Stock | 5.91 | |
| 86 | 20057234
STARTER TORSION SPRING | Not Available | ||
| 87 | 20057233
STARTER RATCHET | Not Available | ||
| 88 | 20062598
STARTER SCREW | Not Available | ||
| 89 | 20057146
FLOW GUIDING COVER | Not Available | ||
| 90 | 20050747
IGNITION COIL | On Order | 14.99 | |
| 91 | 20050781
SPARK PLUG - NGK BPMR7A | In Stock | 9.99 | |
| 92 | 20050736
SWITCH | In Stock | 4.99 | |
| 93 | 20054557
NUT - M8 | Not Available | ||
| 95 | 20050746
ROTATOR | In Stock | 9.99 | |

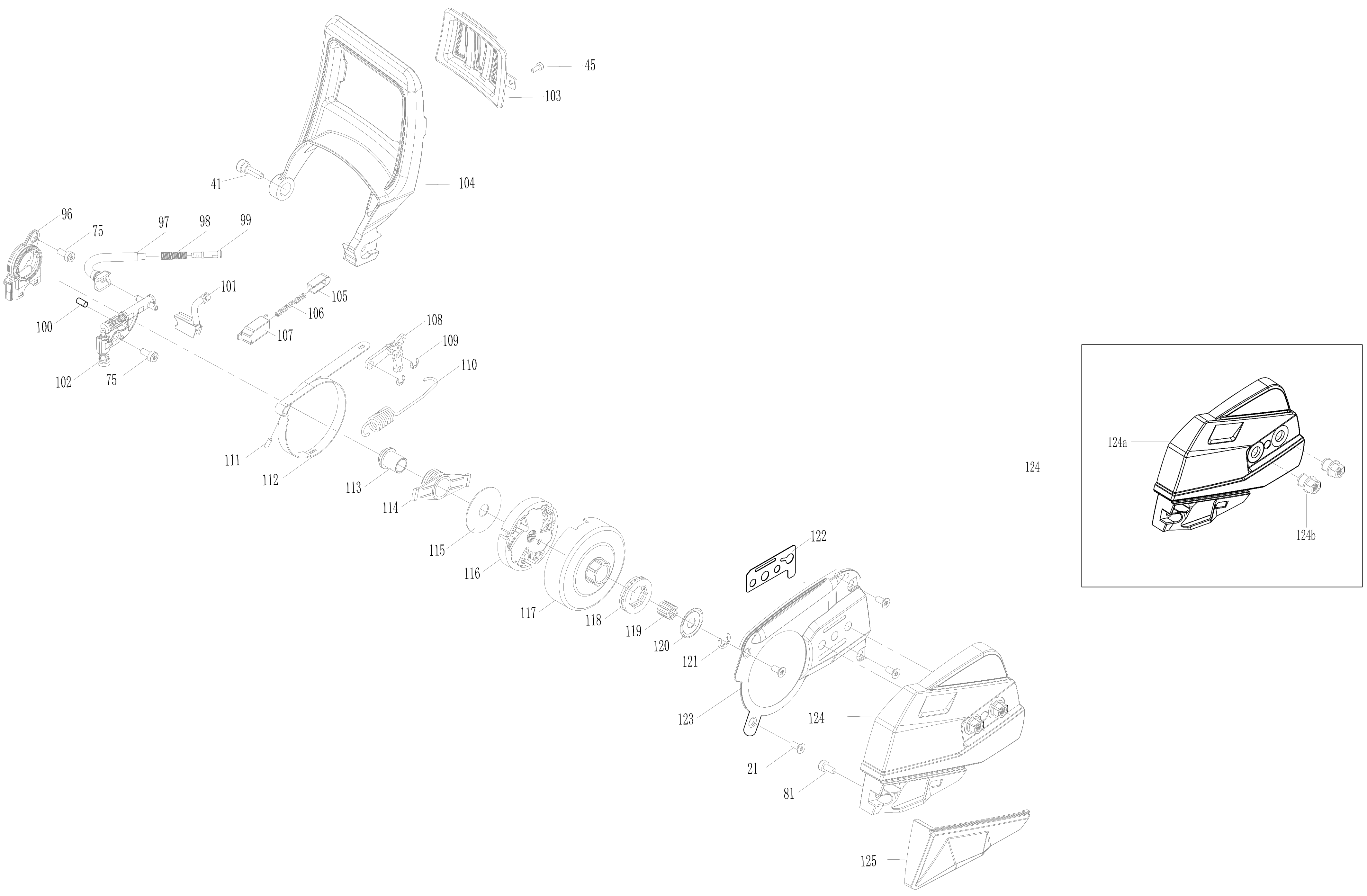

| Drawing 4 | ||||
| 96 | 20065040
OIL PUMP COVER | Low Stock | 3.99 | |
| 97 | 20057255
OIL TUBE | Low Stock | 3.99 | |
| 98 | 20057254
OIL FILTER SPRING | Not Available | ||
| 99 | 20065041
OIL FILTER | In Stock | 3.99 | |
| 100 | 20061563
OIL PUMP PIN5X14 | Not Available | ||
| 101 | 20057256
SPRAY NOZZLE | In Stock | 3.99 | |
| 102 | 20069986
OIL PUMP | Not Available | ||
| 103 | 20079930
FRONT HANDLE GUARD FENCE | In Stock | 6.58 | |
| 104 | 20064972
FRONT HANDLE GUARD | In Stock | 11.92 | |
| 105 | 20054606
RETURN SPRING COVER | Not Available | ||
| 106 | 20054605
RETURN SPRING | Low Stock | 3.99 | |
| 107 | 20065031
RETURN SPRING FIXTURE | Not Available | ||
| 108 | 20057250
GEMEL | Low Stock | 4.99 | |
| 109 | 20054565
E-CLIP - M5 | Not Available | ||
| 110 | 20057247
BRAKE SPRING | In Stock | 7.99 | |
| 111 | 20061580
PIN - 3X8 | Not Available | ||
| 112 | 20057248
BRAKE STRAP | In Stock | 3.99 | |
| 113 | 20057208
BUSH FOR WORM | Not Available | ||
| 114 | 20064908
WORM | In Stock | 3.99 | |
| 115 | 20057207
WASHER FOR CLUTCH | Low Stock | 3.99 | |
| 116 | 20073443
CENTRIFUGAL CLUTCH ASSEMBLY | Low Stock | 14.99 | |
| 117 | 20070026
CLUTCH COUPLING CUP | In Stock | 9.99 | |
| 118 | 20054648
SPROCKET | On Order | Contact Us | |
| 119 | 20062590
NEEDLE BEARING 10X14X13 | Not Available | ||
| 120 | 20057210
ANTI-FRICITION WASHER10X30X0.8 | Not Available | ||
| 121 | 20061678
E RING 8 | Low Stock | 3.99 | |
| 122 | 20057283
COVER SEAL SUBPLATE | Not Available | ||
| 123 | 20057245
BRAKE SPRING COVER | Low Stock | 7.92 | |
| 124a | 20079929
CLUTCH COVER | Low Stock | 14.15 | |
| 124b | 20062587
CAPTIVE NUT | Not Available | ||
| 125 | 20081502
CHIP DISCHARGE COVER | Not Available | ||

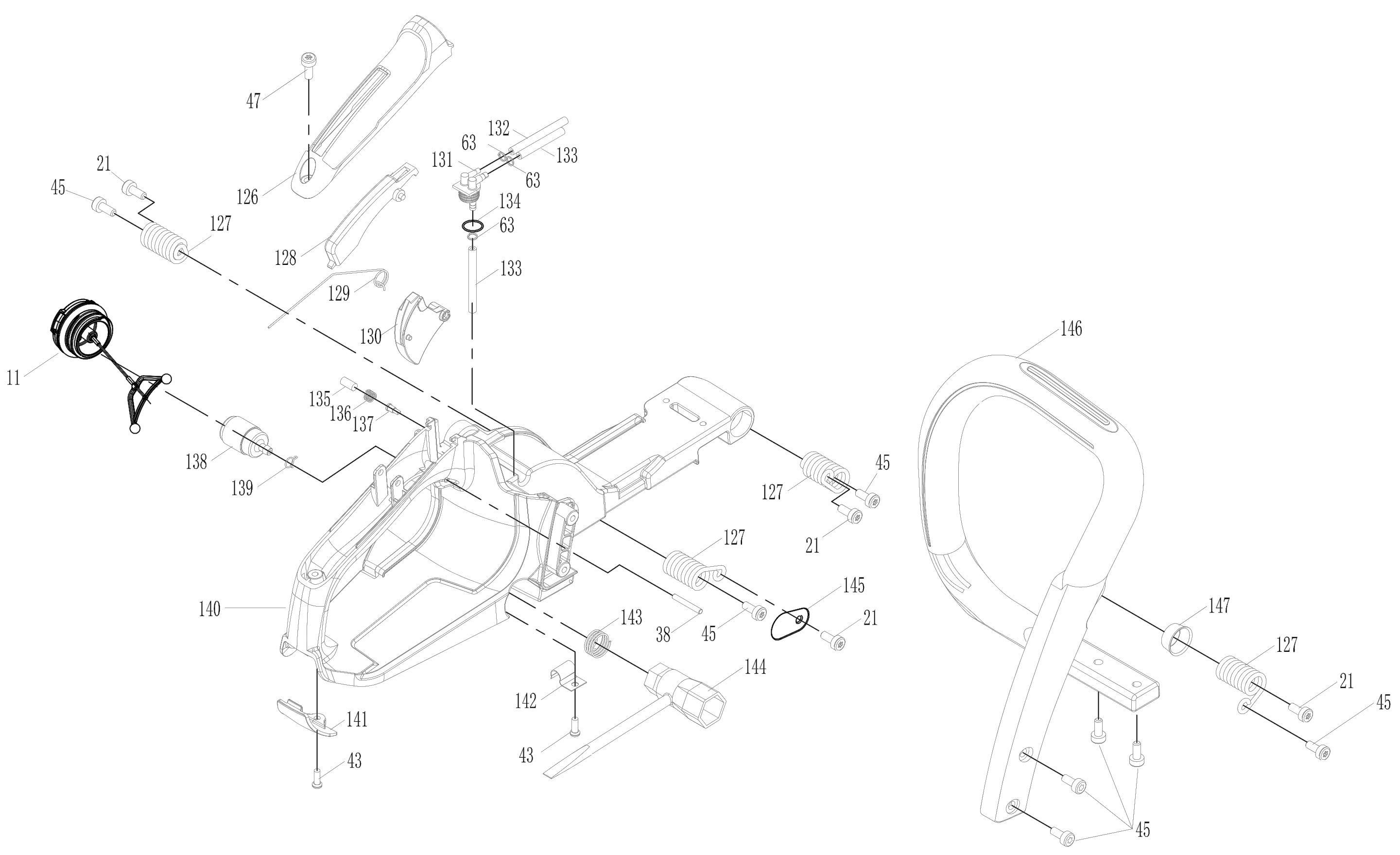

| Drawing 5 | ||||
| 126 | 20081495
REAR HANDLE COVER | Low Stock | 8.36 | |
| 127 | 20057195
ANTI-VIBRATION SPRING | Low Stock | 6.14 | |
| 128 | 20065024
THROTTLE TRIGGER LOCK-OUT | Low Stock | 5.47 | |
| 129 | 20057237
THROTTLE TRIGGER SPRING | Low Stock | 5.33 | |
| 130 | 20064929
THROTTLE TRIGGER | Low Stock | 5.47 | |
| 131 | 20065015
PIPE CONNECTION | Not Available | ||
| 134 | 20055773
O RING 10X1.5 | Not Available | ||
| 135 | 20057235
FILTER | In Stock | 5.07 | |
| 136 | 20057240
SPRING | Low Stock | 3.99 | |
| 137 | 20054664
BREATHER VALVE | Low Stock | 3.99 | |
| 138 | 20071683
FUEL FILTER | Not Available | ||
| 139 | 20057266
PIPE CLIP | Not Available | ||
| 140 | 20081496
REAR HANDLE (MAIN BODY) | Low Stock | 23.49 | |
| 141 | 20081500
BOTTOM COVER | Not Available | ||
| 142 | 20057148
STRAP SPRING | Not Available | ||
| 143 | 20050731
FIXTURE SPRING | Not Available | ||
| 144 | 30000049
SPARK PLUG WRENCH | Low Stock | 3.99 | |
| 145 | 20057202
SHOCK SPRING COVER | Not Available | ||
| 146 | 20057143
FRONT HANDLE | Low Stock | 14.15 | |
| 147 | 20057200
SPRING BASE | Low Stock | 5.47 | |
| Manufacturer Model Number | ECSP41-1 |
| EAN | 5059340255897 |
| Brand | Erbauer |
| Description | 41.4CC 40CM CHAINSAW |
