| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

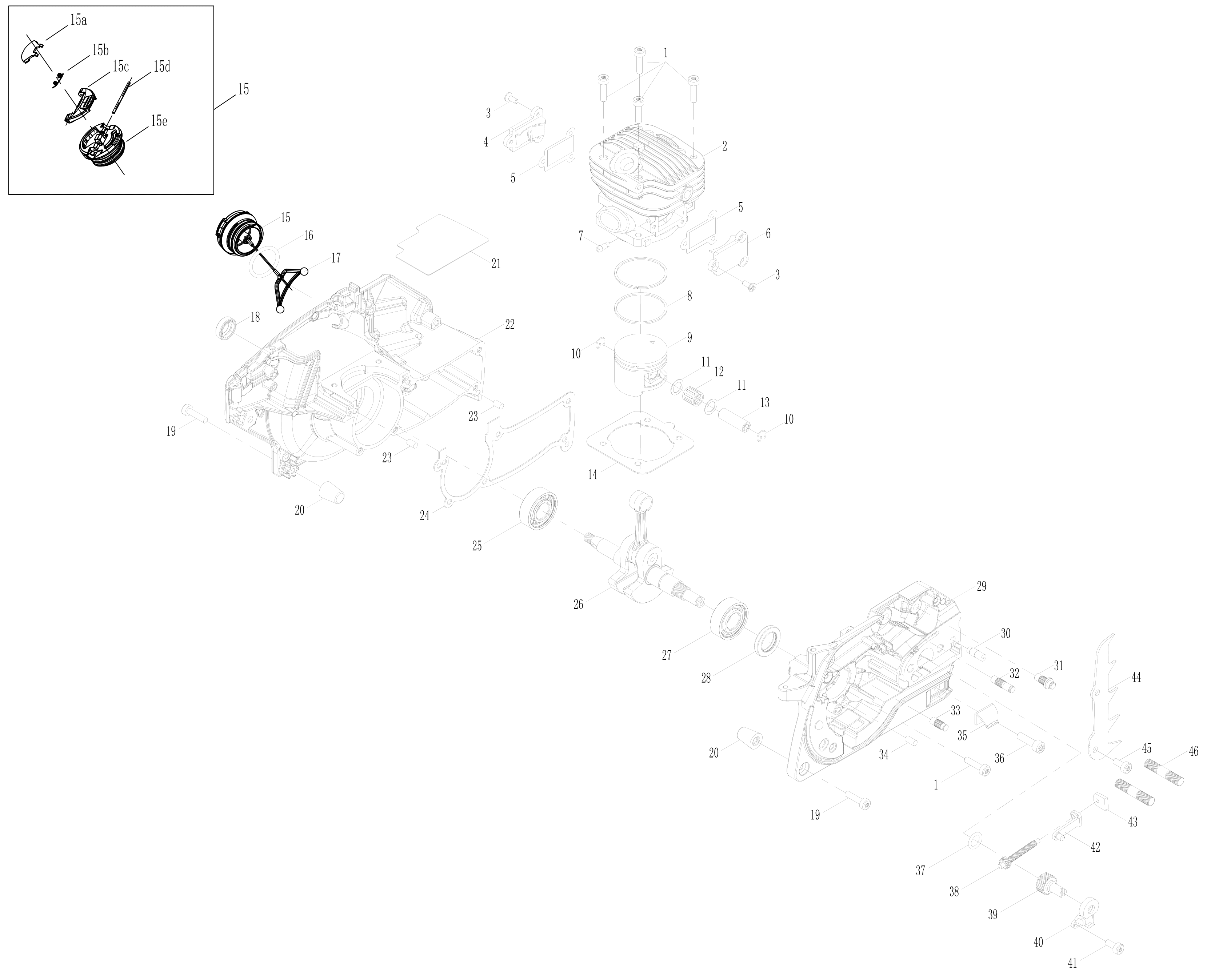

| Drawing 1 | ||||
| 1 | 20060868
SCREW - M5X20 | Not Available | ||
| 2 | 20053343
CYLINDER | Low Stock | 19.99 | |
| 3 | 20051840
SCREW - M4X8 | Not Available | ||
| 4 | 20053344
CYLINDER LEFT COVER | Not Available | ||
| 5 | 20053345
CYLINDER RIGHT COVER | Not Available | ||
| 6 | 20050832
CYLINDER HEAD GASKET | Not Available | ||
| 7 | 20056492
NEGATIVE PRESSURE NOZZLE | Not Available | ||
| 8 | 20053377
PISTON RING | Low Stock | 2.49 | |
| 9 | 20053380
PISTON | Low Stock | 14.99 | |
| 10 | 20053105
GUDGEON PIN RETAINING CLIP | Low Stock | 1.99 | |
| 11 | 20062630
NEEDLE RING | Low Stock | 1.50 | |
| 12 | 20053379
NEEDLE BEARING - 13X10X12.5 | Low Stock | 8.99 | |
| 13 | 20053378
PISTON PIN | Not Available | ||
| 14 | 20050830
CYLINDER HEAD GASKET | Not Available | ||
| 15 | 20087160
FUEL/OIL FILL CAP | In Stock | 9.99 | |
| 15-A | 20082039
OIL CAP PANEL | Not Available | ||
| 15-B | 20074083
FUEL CAP TORSION SPRING | Not Available | ||
| 15-C | 20082040
OIL CAP FLAP | Not Available | ||
| 15-D | 20081183
CYLINDRICAL PIN 2X30 | Not Available | ||
| 15-E | 20081186
OIL PORT COVER | Not Available | ||
| 16 | 20057566
OIL CAP GASKET 22.4X3.55 | Not Available | ||
| 17 | 20056374
ANTI-DROP PLATE | Not Available | ||
| 18 | 20057572
OIL SEAL 12X20X5 | Not Available | ||
| 19 | 20062785
SCREW - M5X20 $$$ | Not Available | ||
| 20 | 20055776
SHOCK ABSORBER RUBBER | Not Available | ||
| 21 | 20057687
CASE DIAPHRAGM | Not Available | ||
| 22 | 20053366
LEFT BOX | Not Available | ||
| 23 | 20054566
PIN - 5X10 | Not Available | ||
| 24 | 20050833
CASE GASKET | Not Available | ||
| 25 | 20054571
BEARING 6202D GRADE 15X35X11 | Not Available | ||
| 26 | 20070032
CRANKSHAFT CONNECTING ROD PISTON ASSEMBLY | Not Available | ||
| 27 | 20062612
RIGHT BOX BEARING | Not Available | ||
| 28 | 20057571
RIGHT BOX OIL SEAL - 20X30X5 | Not Available | ||
| 29 | 20053351
RIGHT BOX | Not Available | ||
| 30 | 20057219
VENT NOZZLE | Not Available | ||
| 31 | 20062592
PIN FOR GEMEL | Not Available | ||
| 32 | 20062593
PIN FOR FRONT HANDLE GUARD | Not Available | ||
| 33 | 20062591
PIN FOR BRAKE SPRING | Not Available | ||
| 34 | 20061563
OIL PUMP PIN5X14 | Not Available | ||
| 35 | 20055486
CHAIN BLOCK | Not Available | ||
| 36 | 20060989
SCREW - M6X20 $$$ | Not Available | ||
| 37 | 20055774
O-RING | Not Available | ||
| 38 | 20062600
TENSIONER SCREW | In Stock | 3.99 | |
| 39 | 20062599
TENSIONER GEAR | In Stock | 3.99 | |
| 40 | 20065029
GEAR COVER | Low Stock | 1.99 | |
| 41 | 20060992
SCREW - M5X12 $$$ | Not Available | ||
| 42 | 20055498
TENSIONING BLOCK | In Stock | 4.99 | |
| 43 | 20065030
POSITION BLOCK | Low Stock | 1.50 | |
| 44 | 20081180
TOOTH PLATE | Not Available | ||
| 45 | 20062588
SCREW - M5X16 $$$ | In Stock | 3.99 | |
| 46 | 20062618
STUD - M8 | Not Available | ||
| 47 | 20066395
AIR FILTER COVER | Low Stock | 9.99 | |
| 48 | 20055504
UPPER COVER ALUMINUM PARTITION | Not Available | ||
| 49 | 20054543
SCREW $$$ | Not Available | ||
| 50 | 20081178
ON THE COVER | Not Available | ||
| 51 | 20066404
AIR CONTROL DAMPER | Not Available | ||
| 52 | 20057614
UPPER COVER WIND SHIELD | Not Available | ||
| 53 | 20057589
SHOCK ABSORBING RUBBER | Not Available | ||
| 54 | 20065011
HOOK | In Stock | 3.99 | |
| 55 | 20065010
LOCK LEVER | In Stock | 3.99 | |
| 56 | 20065012
TRANSFER BAR | In Stock | 3.99 | |
| 57 | 20061582
PIN - 3X22 | In Stock | 3.99 | |
| 58 | 20061583
PIN - 3X23 | In Stock | 3.99 | |
| 59 | 20064909
LOCK KNOB | In Stock | 3.99 | |
| 60 | 20055502
AIR FILTER SPRING | Low Stock | 3.99 | |
| 61 | 20057608
AIR FILTER | In Stock | 4.99 | |
| 62 | 20054593
SHOCK BLOCK | Not Available | ||
| 63 | 20062623
SCREW - M5X55 | Not Available | ||
| 64 | 20062620
SCREW - ST $$$ | Not Available | ||
| 65 | 20057607
INTAKE SEAT | Not Available | ||
| 66 | 20050125
THROTTLE LINE | Low Stock | 7.99 | |
| 67 | 20064900
CHOKE KNOB | In Stock | 3.99 | |
| 68 | 20057147
CHOKE KNOB BASE | In Stock | 3.99 | |
| 69-A | 20054899
CARBURETTOR - WALBRO BPMR7A/WT-1161 | Low Stock | 34.99 | |
| 69-B | 20092912
CARBURETTOR - RUIXING (7J-6) | Not Available | ||
| 70 | 20066274
THROTTLE SEAT | Low Stock | 3.99 | |
| 71 | 20066460
ADJUSTING GUIDE SLEEVE | Not Available | ||
| 72 | 20057686
BREATHER PIPE | Not Available | ||
| 73 | 20055478
COPPER ELBOW | Not Available | ||
| 74 | 20066276
INTAKE PIPE BRACKET | Not Available | ||
| 75 | 20057568
OIL FEED PIPE | Low Stock | 3.99 | |
| 76 | 20057203
SUPPORT RING | Not Available | ||
| 77 | 20057567
INTAKE PIPE | Not Available | ||
| 78 | 20055474
OIL SEAL SPRING | Not Available | ||
| 79 | 20054576
FUEL TANK ASSEMBLY - FUEL PIPE | Not Available | ||
| 80 | 20071682
PRIMER BULB | In Stock | 3.99 | |
| 81 | 20066405
REAR CASING | Not Available | ||
| 82 | 20055500
INTAKE HOUSING | Not Available | ||
| 83 | 20057688
RETURN PIPE SLEEVE | Not Available | ||
| 84 | 20055483
CARBURETTOR INSERT | Not Available | ||
| 85 | 20055488
EXHAUST HEAT SHIELD | Not Available | ||
| 86 | 20050834
EXHAUST GASKET | Low Stock | 3.99 | |
| 87 | 20070034
EXHAUST | Low Stock | 22.99 | |
| 88 | 20054561
WASHER - M5 $$$ | Not Available | ||
| 89 | 01.04.0091
WASHER - M5 - LOCKING | Not Available | ||
| 90 | 20062614
EXHAUST SCREW $$$ | Not Available | ||
| 91 | 20055487
MUFFLER FIXING PLATE | Not Available | ||
| 92 | 20062613
SCREW $$$ | Not Available | ||
| 93 | 20081175
STARTER ASSEMBLY - PULL HANDLE | In Stock | 3.99 | |
| 94 | 20054603
STARTER ASSEMBLY - EYELET | Not Available | ||
| 95 | 20062583
SCREW - M5X25 $$$ | Not Available | ||
| 96 | 20066310
STARTER ASSEMBLY - MAIN HOUSING | Not Available | ||
| 97 | 20062619
SCREW - ST $$$ | Not Available | ||
| 98 | 20056633
STARTER ASSEMBLY - PULL CORD $$$ | In Stock | 9.99 | |
| 99 | 20081170
STARTER ASSEMBLY - VENT PLATE | Not Available | ||
| 100 | 20054704
STARTER ASSEMBLY - RECOIL SPRING | Not Available | ||
| 101 | 02.05.86
STARTER ASSEMBLY - DISC | In Stock | 4.99 | |
| 102 | 20054700
STARTER ASSEMBLY - CORD DISC | Not Available | ||
| 103 | 20054702
STARTER ASSEMBLY - SPRING | Not Available | ||
| 104 | 20057609
STARTER ASSEMBLY - RATCHET DISC | Not Available | ||
| 105 | 20054703
WASHER $$$ | Not Available | ||
| 106 | 20057586
STARTER ASSEMBLY - COVER $$$ | Not Available | ||
| 107 | 02.05.86
SWITCH | In Stock | 4.99 | |
| 110 | 20050838
IGNITER | Low Stock | 12.49 | |
| 111 | 20054557
NUT - M8 | Not Available | ||
| 112 | 20050781
SPARK PLUG - NGK BPMR7A | In Stock | 9.99 | |
| 113 | 20062624
HALF ROUND KEY - 3X3.7X10 | Not Available | ||
| 114 | 20050746
ROTATOR | In Stock | 9.99 | |
| 115 | 20062624
HALF ROUND KEY - 3X3.7X10 | Not Available | ||
| 116 | 20066369
FRONT BAFFLE SLEEVE | Low Stock | 3.99 | |
| 117 | 20054606
RETURN SPRING COVER | Not Available | ||
| 118 | 20054605
RETURN SPRING | Low Stock | 3.99 | |
| 119 | 20065031
RETURN SPRING FIXTURE | Not Available | ||
| 120 | 20066382
BRAKE LEVER | Not Available | ||
| 121 | 20066369
FRONT BAFFLE SLEEVE | Low Stock | 3.99 | |
| 122 | 20057255
OIL TUBE | Low Stock | 3.99 | |
| 123 | 20057254
OIL FILTER SPRING | Not Available | ||
| 124 | 20065041
OIL FILTER | In Stock | 3.99 | |
| 125 | 20065040
OIL PUMP COVER | Low Stock | 3.99 | |
| 126 | 20062631
SCREW - M5X8 | Not Available | ||
| 127 | 20069986
OIL PUMP | Low Stock | 7.99 | |
| 128 | 20057256
SPRAY NOZZLE | In Stock | 3.99 | |
| 129 | 20064908
OIL PUMP WORM DRIVE GEAR | In Stock | 3.99 | |
| 130 | 20057207
WASHER FOR CLUTCH | Low Stock | 3.99 | |
| 131 | 20073443
CLUTCH ASSEMBLY | Low Stock | 14.99 | |
| 132 | 20062611
SPACER - 17.8X10.1X0.8 | Not Available | ||
| 133 | 20070026
OUTER CLUTCH DRUM | In Stock | 9.99 | |
| 134 | 20054648
SPROCKET | Not Available | ||
| 135 | 20062590
NEEDLE BEARING 10X14X13 | Not Available | ||
| 136 | 20057210
ANTI-FRICITION WASHER - 10X30X0.8 | Not Available | ||
| 137 | 20061678
E RING 8 | Not Available | ||
| 138 | 20057247
BRAKE SPRING | In Stock | 3.99 | |
| 139 | 20057250
BRAKE BAND LINKAGE | Low Stock | 4.99 | |
| 140 | 20054565
E-CLIP - M5 | Not Available | ||
| 141 | 20061580
PIN - 3X8 | Not Available | ||
| 142 | 20057248
BRAKE BAND | In Stock | 3.99 | |
| 143 | 20057693
COVER GASKET | Low Stock | 1.99 | |
| 144 | 20055497
BRAKE BAND COVER PLATE | Not Available | ||
| 146 | 20066355
SPROCKET COVER | Not Available | ||
| 147 | 20062587
CAPTIVE NUT | Not Available | ||
| 148 | 20081173
SPROCKET COVER PANEL | Not Available | ||
| 149 | 20081174
UPPER HANDLE | Low Stock | 3.99 | |
| 150 | 20066314
TRIGGER CONTROL ARM | Low Stock | 3.99 | |
| 151 | 20055496
TRIGGER CONTROL ARM TORSION SPRING | Low Stock | 3.99 | |
| 152 | 20066323
GUIDE PLATE | Not Available | ||
| 153 | 20066288
LINKAGE LEVER | Low Stock | 3.99 | |
| 154 | 20055495
TRIGGER RETURN SPRING | Not Available | ||
| 155 | 20085770
PETROL TANK CAP | In Stock | 7.99 | |
| 155-A | 20082038
CAP COVER $$$ | Not Available | ||
| 155-B | 20078618
FLIP LEVER $$$ | Not Available | ||
| 155-C | 20073571
PIN - 2X36 | Not Available | ||
| 155-D | 20081182
FUEL FILLER CAP (MAIN BODY) $$$ | Not Available | ||
| 156 | 20057242
O-RING | Low Stock | 4.80 | |
| 157 | 20057581
BREATHER PLUG | Not Available | ||
| 158 | 20057240
SPRING | Low Stock | 3.99 | |
| 159 | 20054664
BREATHER VALVE | Low Stock | 3.99 | |
| 160 | 20053338
SPRING SEAT | Not Available | ||
| 161 | 20055476
LONG SHOCK ABSORBER SPRING | Low Stock | 3.99 | |
| 162 | 20062622
SCREW - ST $$$ | Not Available | ||
| 163 | 20053339
SPRING SEAT | Not Available | ||
| 164 | 20057584
FUEL PIPE | Low Stock | 3.99 | |
| 165 | 20057266
PIPE CLIP | Not Available | ||
| 166 | 20071683
FUEL FILTER | In Stock | 3.99 | |
| 167 | 20054576
FUEL TANK ASSEMBLY - BREATHER TUBE | Not Available | ||
| 168 | 20055389
HOSE HOLDERS | Not Available | ||
| 169 | 20081185
BASE | Low Stock | 14.99 | |
| 170 | 20081171
BOTTOM COVER | Not Available | ||
| 171 | 20057148
STRAP SPRING | Not Available | ||
| 172 | 20050731
FIXTURE SPRING | Not Available | ||
| 173 | 30000049
SPARK PLUG WRENCH | Low Stock | 3.99 | |
| 174 | 20066280
TRIGGER | Low Stock | 3.99 | |
| 175 | 20053341
SHORT SHOCK ABSORBING SPRING SEAT | Low Stock | 3.99 | |
| 176 | 20055477
SHORT SHOCK ABSORBING SPRING | Low Stock | 3.99 | |
| 177 | 20050128
TOP HANDLE | Low Stock | 14.99 | |
| Manufacturer Model Number | ECSP51-1 |
| EAN | 5059340255996 |
| Brand | Erbauer |
| Description | 50.9CC 50CM CHAINSAW |
