Erbauer EGT18LI 18V 30CM GRASS TRIMMER - ERBAUER GEN1 (PARTS ONLY)

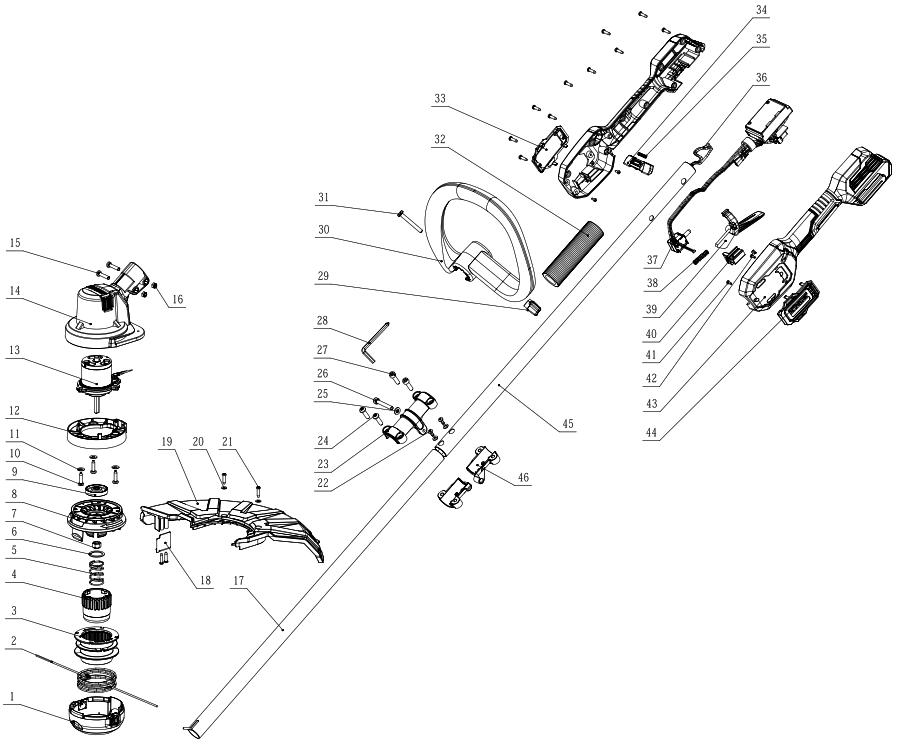

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 2824019003
TRIMMER HEAD - LOWER COVER | Not Available | ||
| 2 | 3800123001
TRIMMER LINE - 2mm DIAMETER $$$ BUY IN STORE | Not Available | ||
| 3 | 3127635002
MOUNTING WIRE HOLDER | Low Stock | 7.03 | |
| 4 | 2824022002
SUPPORT HEAD ASSY | Not Available | ||
| 5 | 3660582001
COMPRESSION SPRING | Not Available | ||
| 6 | 5650349002
WASHER | Low Stock | Contact Us | |
| 7 | 5630271001
NUT | Low Stock | 3.99 | |
| 8 | 2824497001
UPPER HOUSING ASSY | Low Stock | 4.49 | |
| 9 | 3520800001
OUTER FLANGE | Low Stock | 6.99 | |
| 10 | 5610055004
SCREW | Low Stock | 0.99 | |
| 11 | 5650396003
WASHER | Not Available | ||
| 12 | 3128752001
SHIELD | Low Stock | 8.99 | |
| 13 | 2730277001
DC MOTOR | Low Stock | 39.99 | |
| 14 | 3127519001
MOTOR HOUSING | In Stock | 14.99 | |
| 15 | 5620052002
SCREW | Not Available | ||
| 16 | 5630007001
PREVAILING TORQUE HEXAGON NUT | Not Available | ||
| 17 | 3706622001
CONNECTING TUBE | Not Available | ||
| 18 | 3704344001
BLADE | Not Available | ||
| 19 | 3127348001
GUARD | Low Stock | 6.99 | |
| 20 | 5650005002
PLAIN WASHER | Not Available | ||
| 21 | 5610294001
TAPPING SCREW | Not Available | ||
| 22 | 5610097002
THREAD FORMING SCREW | Not Available | ||
| 23 | 3422219003
CONNECTING TUBE | Not Available | ||
| 24 | 5620675001
HEXALOBULAR SOCKET SCREW | Not Available | ||
| 25 | 5650016005
PLAIN WASHER | Not Available | ||
| 26 | 5620512004
HEXAGON SOCKET SCREW | Not Available | ||
| 27 | 5620334004
INNER HEXAGON SPANNER | Not Available | ||
| 28 | 5680186002
HEXAGON SOCKET SCREW | Not Available | ||
| 29 | 3402297003
KNOB | Low Stock | 3.99 | |
| 30 | 3129573001
FRONT HANDLE | Not Available | ||
| 31 | 5640243001
THROUGH-BOLT | Low Stock | 3.99 | |
| 32 | 3705711001
GRIP SLEEVE | Low Stock | 6.99 | |
| 33 | 3127462001
RIGHT COVER | Not Available | ||
| 34 | 3129615002
LOCK BUTTON | Not Available | ||
| 35 | 3660124001
RETURN SPRING | Not Available | ||
| 36 | 4860300006
INTERNAL WIRE ASSY | Not Available | ||
| 37 | 2830424001
ELECTRIC ASSEMBLY | Low Stock | 19.99 | |
| 38 | 3660461001
SPRING | Not Available | ||
| 39 | 3129614002
SWITCH ASSEMBLY - TRIGGER | Low Stock | 3.99 | |
| 40 | 3128797001
SWITCH ASSEMBLY - SLIDER | Not Available | ||
| 41 | 5610010007
TAPPING SCREW | Not Available | ||
| 42 | 5620176002
SCREW WITH WASHER | Not Available | ||
| 43 | 3900101001
L R HOUSING SET | Low Stock | 9.99 | |
| 44 | 3126827001
LEFT COVER | Not Available | ||
| 45 | 3706621001
CONNECTING TUBE | Not Available | ||
| 46 | 3422218003
CONNECTING TUBE | Not Available | ||
| Manufacturer Model Number | EGT18-Li |
| EAN | 3663602418245 |
| Brand | Erbauer |
| Description | 18V 30CM GRASS TRIMMER - ERBAUER GEN1 (PARTS ONLY) |
