| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

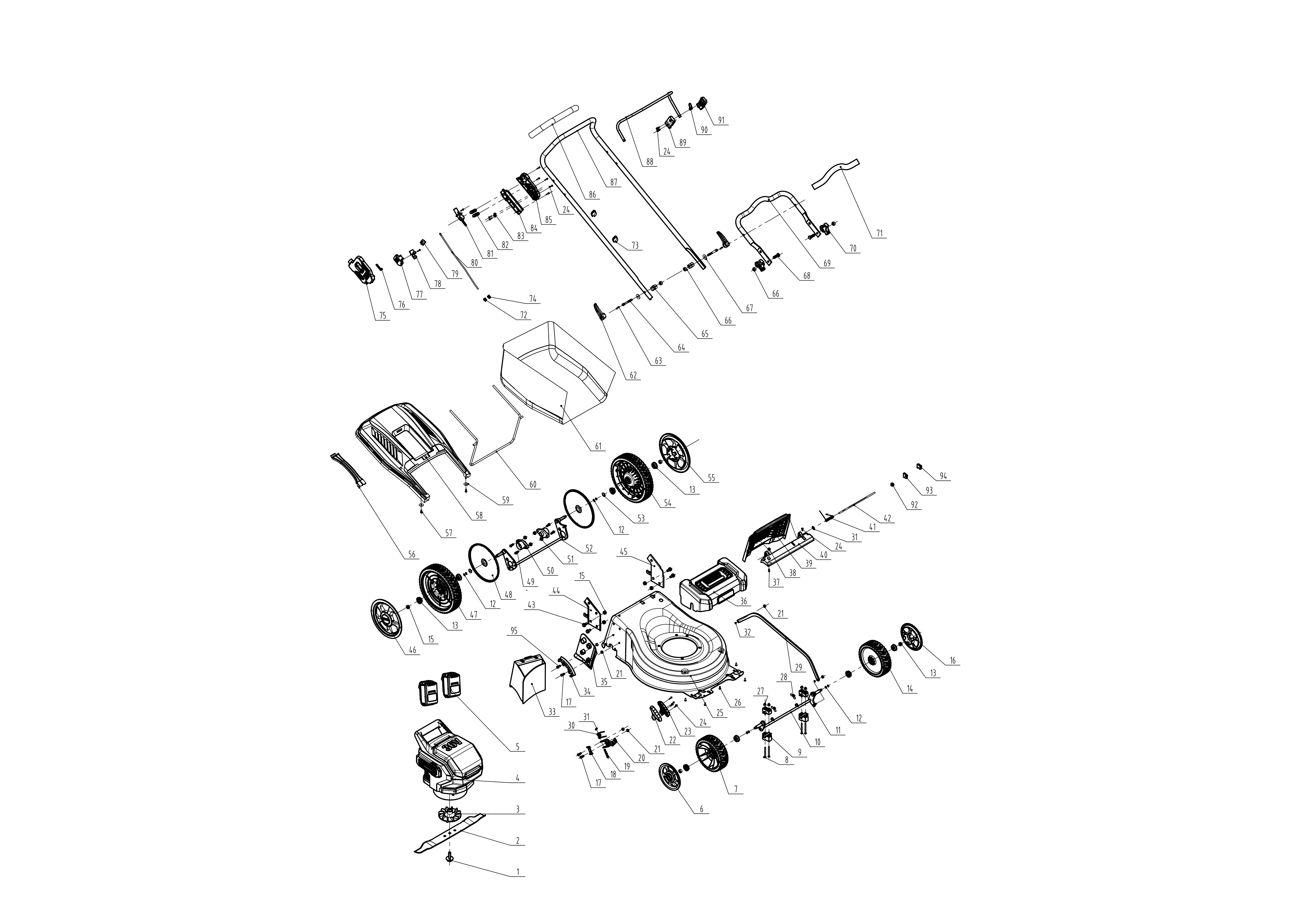

| Drawing 1 | ||||
| BATTERY | EBAT18-LI-5
ERBAUER EBAT18-LI-5 - 18V 5000mAh BATTERY (KF) | Not Available | ||
| CHARGER | EMC18-LI
MULTI-PORT BATTERY CHARGER | Not Available | ||
| 1 | 12003101000-000
BLADE RETAINING BOLT | Low Stock | 3.99 | |
| 2 | 32603101000-200
ACCESSORY - BLADE - 46CM | On Order | 18.99 | |
| 3 | 11903101000-000
IMPELLER | On Order | 9.99 | |
| 4 | 2850269001
POWER HEAD ASSEMBLY | In Stock | 149.99 | |
| 6 | 10903105500-000
WHEEL TRIM - 18CM - RH | Low Stock | 6.99 | |
| 7 | 15103101000-500
WHEEL - 18CM - RH | Low Stock | 12.49 | |
| 8 | 50572060060-121
THROUGH-BOLT | Not Available | ||
| 9 | 11103101000-000
FRONT WHEEL BRACKET (46CM BASE) RH | Not Available | ||
| 10 | 42103101000-200
FRONT AXLE (46CM BASE) | Low Stock | 19.99 | |
| 11 | 11003101000-000
FRONT WHEEL BRACKET (46CM BASE) LH | Not Available | ||
| 12 | 50603120-200
WASHER $$$ | Not Available | ||
| 13 | 50702080-100
LOCKING NUT $$$ | Not Available | ||
| 14 | 14903101000-500
WHEEL - 18CM - LH | Low Stock | 12.49 | |
| 15 | 50708080-100
FLANGE NUT $$$ | Not Available | ||
| 16 | 10803105500-000
WHEEL TRIM - 18CM - LH | Low Stock | 6.99 | |
| 17 | 50133060014-121
HEX SCREW $$$ | Not Available | ||
| 18 | 42003101000-200
SPRING SEAT $$$ | Not Available | ||
| 19 | 41303101000-100
HEIGHT ADJUSTMENT SHAFT | Not Available | ||
| 20 | 31803101000-200
HEIGHT ADJUSTMENT LEVER | Not Available | ||
| 21 | 50702060-100
LOCKING NUT $$$ | Not Available | ||
| 22 | 11603101000-101
HEIGHT ADJUSTMENT HANDLE (OUTER) | Not Available | ||
| 23 | 11503101000-100
HEIGHT ADJUSTMENT HANDLE (INNER) | Not Available | ||
| 24 | 50111040016-211
SCREW $$$ | Not Available | ||
| 25 | 30303105500-700
CHASSIS - 46CM | Not Available | ||
| 26 | 50111050014-211
SCREW $$$ | Not Available | ||
| 27 | 50704060-100
LOCKING NUT $$$ | Not Available | ||
| 28 | 40903101000-100
COUNTERWEIGHT TENSION SPRING $$$ | Not Available | ||
| 29 | 31403101000-200
HEIGHT ADJUSTMENT CONNECTING BAR | Not Available | ||
| 30 | 41203101000-100
HEIGHT ADJUSTMENT TORSION SPRING | Not Available | ||
| 31 | 50801050-200
E-CLIP | Not Available | ||
| 32 | 41306000200-100
WASHER $$$ | Not Available | ||
| 33 | 14603101000-000
ACCESSORY - MULCHING PLUG INSERT | Not Available | ||
| 34 | 11403101000-000
HEIGHT ADJUTMENT GAITER | Not Available | ||
| 35 | 11803101000-000
HEIGHT ADJUSTMENT MOUNTING BRACKET | Not Available | ||
| 36 | 10703105500-000
REAR TRIM PANEL $$$ | Not Available | ||
| 37 | 50572050014-121
BOLT $$$ | Not Available | ||
| 38 | 50702050-100
LOCKING NUT $$$ | Not Available | ||
| 39 | 11203105500-000
REAR COVER | Low Stock | 6.99 | |
| 40 | 10603105500-000
REAR COVER BRACKET | Not Available | ||
| 41 | 41003101000-100
REAR COVER TORSION SPRING | Not Available | ||
| 42 | 41103101000-100
REAR COVER PIVOT PIN | Not Available | ||
| 43 | 50571180016-121
BOLT $$$ | Not Available | ||
| 44 | 31603101000-200
HANDLEBAR BRACKET (RH) | Not Available | ||
| 45 | 31503101000-200
HANDLEBAR BRACKET (LH) | Not Available | ||
| 46 | 11103105500-000
WHEEL TRIM - 25CM - RH | Low Stock | 6.99 | |
| 47 | 15303101000-500
WHEEL - 25CM - RH | Low Stock | 14.99 | |
| 48 | 13303101000-000
WHEEL TRIM (INNER) - 25CM | In Stock | 8.49 | |
| 49 | 50321050018-121
SCREW $$$ | Not Available | ||
| 50 | 11303101000-000
REAR WHEEL BEARING | Not Available | ||
| 51 | 50704050-100
FLANGE NUT $$$ | Not Available | ||
| 52 | 41903101000-200
REAR AXLE ASSEMBLY (46CM BASE) | Low Stock | 9.99 | |
| 53 | 40303100100-100
WASHER $$$ | Not Available | ||
| 54 | 15203101000-500
WHEEL - 25CM - LH | Low Stock | 3.99 | |
| 55 | 11003105500-000
WHEEL TRIM - 25CM - LH | Not Available | ||
| 56 | 10403101000-000
COLLECTOR - HANDLE | Low Stock | 4.99 | |
| 57 | 50111040012-211
SCREW $$$ | Not Available | ||
| 58 | 12503105500-000
COLLECTOR - LID | Low Stock | 4.99 | |
| 59 | 31103101000-100
WASHER $$$ | Not Available | ||
| 60 | 40603101000-200
ACCESSORY - COLLECTOR FRAME | Low Stock | 9.99 | |
| 61 | 80103101000-500
ACCESSORY - COLLECTOR BAG | Low Stock | 28.35 | |
| 62 | 10803000200-000
HANDLEBAR ADJUSTMENT LEVER | In Stock | 4.99 | |
| 63 | 41003000100-200
HANDLEBAR ADJUSTMENT LEVER PIN | Low Stock | 3.99 | |
| 64 | 40703000200-100
HANDLEBAR ADJUSTMENT LEVER BOLT | Low Stock | 9.99 | |
| 65 | 10903000200-000
HANDLEBAR ADJUSTMENT LEVER NUT RETAINER | Low Stock | 3.99 | |
| 66 | 50701080-100
HANDLEBAR ADJUSTMENT LEVER NUT | In Stock | 3.99 | |
| 67 | 50601080-100
HANDLEBAR ADJUSTMENT LEVER WASHER | Low Stock | 3.99 | |
| 68 | 50572080030-121
HANDLEBAR ADJUSTMENT LEVER NUT | Not Available | ||
| 69 | 30403105500-000
LOWER HANDLEBAR | Not Available | ||
| 70 | 12203101000-000
LOWER HANDLEBAR ADJUSTMENT KNOB | In Stock | 3.99 | |
| 71 | 20103100200-000
LOWER HANDLEBAR SLEEVE | Not Available | ||
| 72 | 14703101000-000
2-PIN FEMALE CONNECTOR | Not Available | ||
| 73 | 13703000100-000
CONTROL CABLE CLAMP | Not Available | ||
| 74 | 10203105109-000
3-PIN FEMALE CONNECTOR | Not Available | ||
| 75 | 10103105500-000
SWITCH BOX - OUTER CASING | Low Stock | 14.99 | |
| 76 | 30303000100-100
SWITCH PIN | Not Available | ||
| 77 | 10403105500-000
BUTTON | Low Stock | 9.99 | |
| 78 | 10503105500-000
TRIGGER KEY | Low Stock | 9.99 | |
| 79 | 60302005-000
ROCKER SWITCH | Low Stock | 3.99 | |
| 80 | 60403105500-000
CONTROL CABLE | On Order | 12.49 | |
| 81 | 13703101000-000
TRIGGER | Low Stock | 3.99 | |
| 82 | 40203000100-100
TRIGGER SPRING | Not Available | ||
| 83 | 14203000100-000
CABLE CLAMP | Not Available | ||
| 84 | 10203105500-000
SWITCH BOX GLAND | Not Available | ||
| 85 | 10303105500-000
SWITCH BOX - INNER CASING | Low Stock | 6.99 | |
| 86 | 20103000117-001
HANDLEBAR GRIP | Not Available | ||
| 87 | 30503105500-000
UPPER HANDLEBAR | Not Available | ||
| 88 | 30503101000-100
SAFETY LEVER | Not Available | ||
| 89 | 13903101000-000
SAFETY LEVER BRACKET (RH) | Not Available | ||
| 90 | 40303101000-100
SPRING | Not Available | ||
| 91 | 14003101000-000
SAFETY LEVER BRACKET (LH) | Not Available | ||
| 92 | 12203105500-000
ROUND COVER | Not Available | ||
| 93 | 12303105500-000
SQUARE COVER | Not Available | ||
| 94 | 12403105500-000
SQUARE SCREW CAP | Not Available | ||
| 95 | 50133060020-121
SCREW $$$ | Not Available | ||
| Drawing 2 | ||||
| 4-1 | 50111040025-121
SCREW $$$ | Not Available | ||
| 4-2 | 50708080-100
NUT $$$ | Not Available | ||
| 4-3 | 11703105500-000
MOTOR BASE $$$ | Not Available | ||
| 4-4 | 50571050028-151
HEX SCREW $$$ | Not Available | ||
| 4-5 | 50702040-100
HEXAGONAL LOCKNUT $$$ | Not Available | ||
| 4-6 | 12103105500-00
SCREW GLAND $$$ | Not Available | ||
| 4-7 | 50571080030-221
HEX BOLTS $$$ | Not Available | ||
| 4-8 | 60303105500-000
MOTOR (BRUSHLESS) | Low Stock | 64.99 | |
| 4-9 | 50704050-100
NUT $$$ | Not Available | ||
| 4-10 | 2831522001
MOTOR CONTROL PCB | In Stock | 49.99 | |
| 4-11 | 12003105500-00
CRIMPING COVER $$$ | Not Available | ||
| 4-12 | 11603105500-000
LEFT CASING $$$ | Not Available | ||
| 4-13 | 50111040016-211
INNER PLUM HEAD PAN TAPPING SCREW $$$ | Not Available | ||
| 4-14 | 11903105500-500
LOWER CASE $$$ | Not Available | ||
| 4-15 | 11503105500-000
RIGHT CASE $$$ | Not Available | ||
| 4-16 | 10903101000-000
SWITCH PLATE $$$ | Not Available | ||
| 4-17 | 60301012-000
MICRO SWITCH $$$ | Low Stock | 3.99 | |
| 4-18 | 2830518001
36V PROTECTION PCB | Low Stock | 36.99 | |
| 4-19 | 3403477001
PLUG-IN SEAT (WAS GP0000000577) $$$ | Not Available | ||
| 4-20 | 50601040-100
FLAT WASHERS $$$ | Not Available | ||
| 4-21 | 80700003-000
THREAD $$$ | Not Available | ||
| 4-22 | 11003100200-100
SECURITY KEY | Not Available | ||
| 4-23 | 11403105500-500
UPPER CASE $$$ | Not Available | ||
| 4-24 | 30103105500-000
PIN $$$ | Not Available | ||
| 4-25 | 3660753094
SWITCH SELF-LOCKING SPRING (WAS GP0000000584) | Not Available | ||
| 4-26 | 30203105500-000
SPRING $$$ | Not Available | ||
| 4-27 | 11303105500-000
TRANSPARENT COVER | Low Stock | 9.99 | |
| 4-28 | 14203000100-000
CABLE CLAMP | Not Available | ||
| 4-29 | 60211400-100
INTERNAL WIRING HARNESS | Not Available | ||
| 4-30 | 14803101000-000
2-PIN CONNECTOR FEMALE $$$ | Not Available | ||
| 4-31 | 15003101000-000
2-PIN CONNECTOR MALE $$$ | Not Available | ||
| 4-32 | 60103001300-000
FEMALE TERMINAL $$$ | Not Available | ||
| 4-33 | 60105000100-000
FEMALE TERMINAL $$$ | Not Available | ||
| 4-34 | 60401001-000
MALE TERMINAL $$$ | Not Available | ||
| 4-35 | 50311040048-121
SCREW $$$ | Not Available | ||
| 4-36 | 50111130016-111
SCREW $$$ | Not Available | ||
| 4-37 | 50601045-100
WASHER $$$ | Not Available | ||
| Manufacturer Model Number | ELM18-Li |
| EAN | 3663602418276 |
| Brand | Erbauer |
| Description | 2X 18V 46CM LAWNMOWER |
