| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

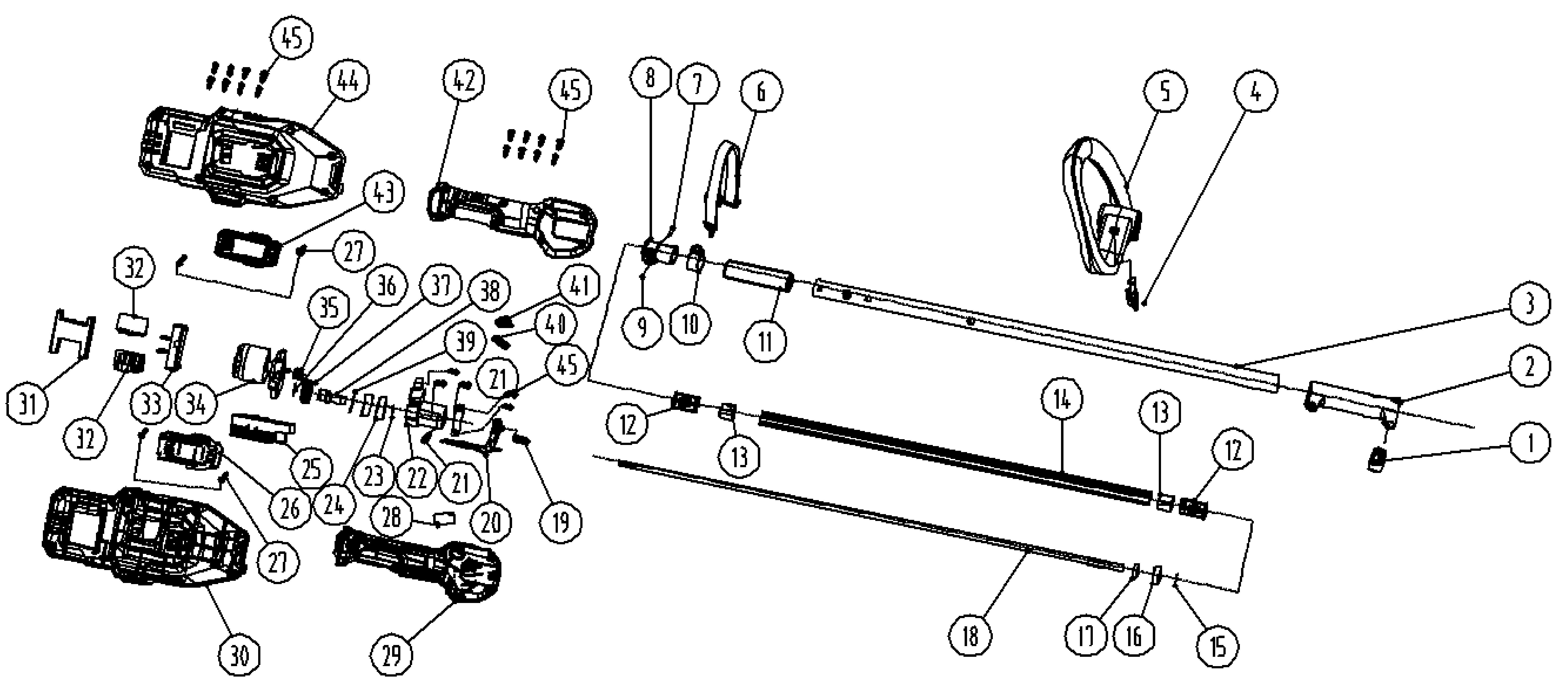

| Drawing 1 | ||||
| 1 | 10808400200-100
QUICK-CHANGE KNOB | Not Available | ||
| 2 | 30208400200-000
QUICK CHANGE CONNECTOR | Not Available | ||
| 3 | 30108400200-000
REAR HANDLE ALUMINUM TUBE | Not Available | ||
| 4 | 11904002900-100
SECONDARY HANDLE KNOB | Not Available | ||
| 5 | 11804002900-000
VICE HANDLE | Not Available | ||
| 6 | 80107100700-000
STRAP | Not Available | ||
| 7 | 50135060016-121
SCREW | Not Available | ||
| 8 | 11208100100-000
STRAP BUCKLE | Not Available | ||
| 9 | 50702060-100
NUT | Not Available | ||
| 10 | 11808100100-000
STRAP BUCKLE | Not Available | ||
| 11 | 20104002900-000
RUBBER HOSE | Not Available | ||
| 12 | 10908400200-000
NYLON PROTECTIVE SLEEVE | Not Available | ||
| 13 | 20108400200-000
RUBBER SUPPORT | Not Available | ||
| 14 | 11008400200-000
PLASTIC HOSE | Not Available | ||
| 15 | 50802080-201
RETAINING RING FOR SHAFT | Not Available | ||
| 16 | 20208400200-000
BEARING PROTECTOR | Not Available | ||
| 17 | 50906900-000
DEEP GROOVE BALL BEARING | Not Available | ||
| 18 | 40108400200-000
HARD SHAFT COMPONENTS | Not Available | ||
| 19 | 40203000100-100
TRIGGER SPRING | Not Available | ||
| 20 | 10708400200-100
SWITCH BOARD MACHINE | Not Available | ||
| 21 | 50111050010-121
SCREW | Not Available | ||
| 22 | 40208400200-000
GEARBOX UNDER COVER | Not Available | ||
| 23 | 50802120-201
RETAINING RING FOR SHAFT | Not Available | ||
| 24 | 50906001-000
DEEP GROOVE BALL BEARING | Not Available | ||
| 25 | 60208400200-000
BRUSHLESS CONTROLLER COMPONENTS | Not Available | ||
| 26 | 10408400200-000
RIGHT PLATE | Not Available | ||
| 27 | 50121020010-211
SCREW | Not Available | ||
| 28 | 60301033-000
MICRO SWITCH | Not Available | ||
| 29 | 10608400200-500
RIGHT HANDLE | Not Available | ||
| 30 | 10208400200-500
RIGHT CASE | Not Available | ||
| 31 | 10904002900-500
INSERT BLOCK FIXING BLOCK | Not Available | ||
| 32 | 60204002900-000
PLUG-IN SEAT ASSEMBLY | Not Available | ||
| 33 | 60408400200-000
SERIAL MODULE BOARD | Not Available | ||
| 34 | 60108400200-000
BRUSHLESS MOTOR | Not Available | ||
| 35 | 40308400200-000
REDUCTION PINION | Not Available | ||
| 36 | 50802120-201
RETAINING RING FOR SHAFT | Not Available | ||
| 37 | 40408400200-000
REDUCTION GEAR | Not Available | ||
| 38 | 40508400200-000
GEARBOX OUTPUT SHAFT | Not Available | ||
| 39 | 50803300-200
RETAINING RING FOR HOLE | Not Available | ||
| 40 | 40204100100-100
SELF-LOCKING SPRING | Not Available | ||
| 41 | 10504002900-100
SELF-LOCKING BUTTON | Not Available | ||
| 42 | 10508400200-500
LEFT HANDLE | Not Available | ||
| 43 | 10308400200-000
LEFT PANEL | Not Available | ||
| 44 | 10108400200-500
RIGHT CASE | Not Available | ||
| 45 | 50111040016-211
SCREW | Not Available | ||

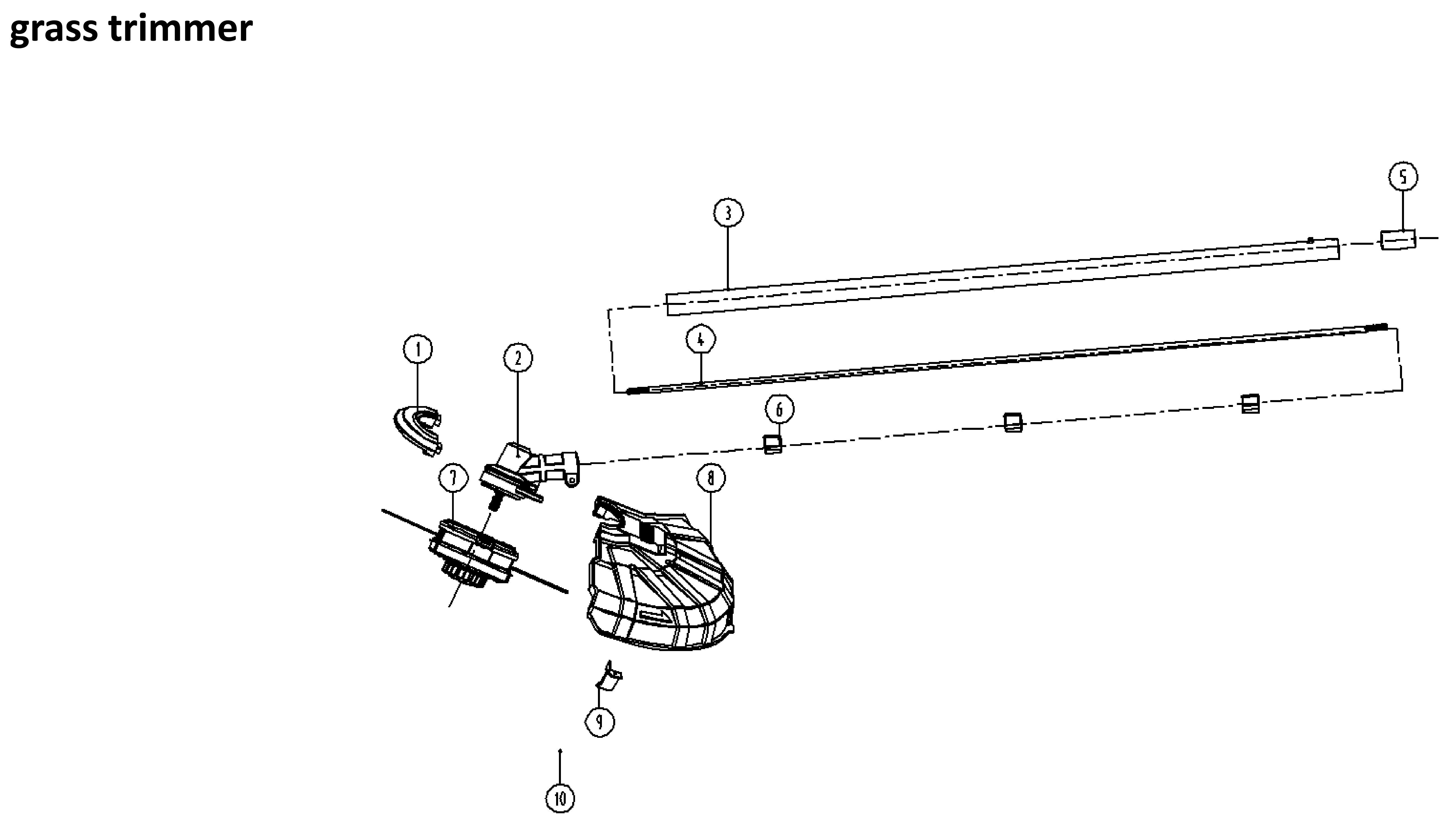

| Drawing 2 | ||||
| 1 | 12208400200-000
PROTECTIVE COVER A | Not Available | ||
| 2 | 32708400200-000
GEARBOX | Not Available | ||
| 3 | 30408400200-000
MOWER ALUMINUM TUBE | Not Available | ||
| 4 | 40708400200-000
MOWER DRIVE SHAFT | Not Available | ||
| 5 | 21108400200-000
ALUMINUM TUBE PROTECTIVE COVER | Not Available | ||
| 6 | 21008400200-000
ALUMINUM TUBE PROTECTIVE COVER | Not Available | ||
| 7 | 12408400200-000
NYLON STRAW HEAD | Not Available | ||
| 8 | 12308400200-000
PROTECTIVE COVER B | Not Available | ||
| 9 | 32508400200-200
SMALL BLADE | Not Available | ||
| 10 | 50111040010-211
SCREW | Not Available | ||

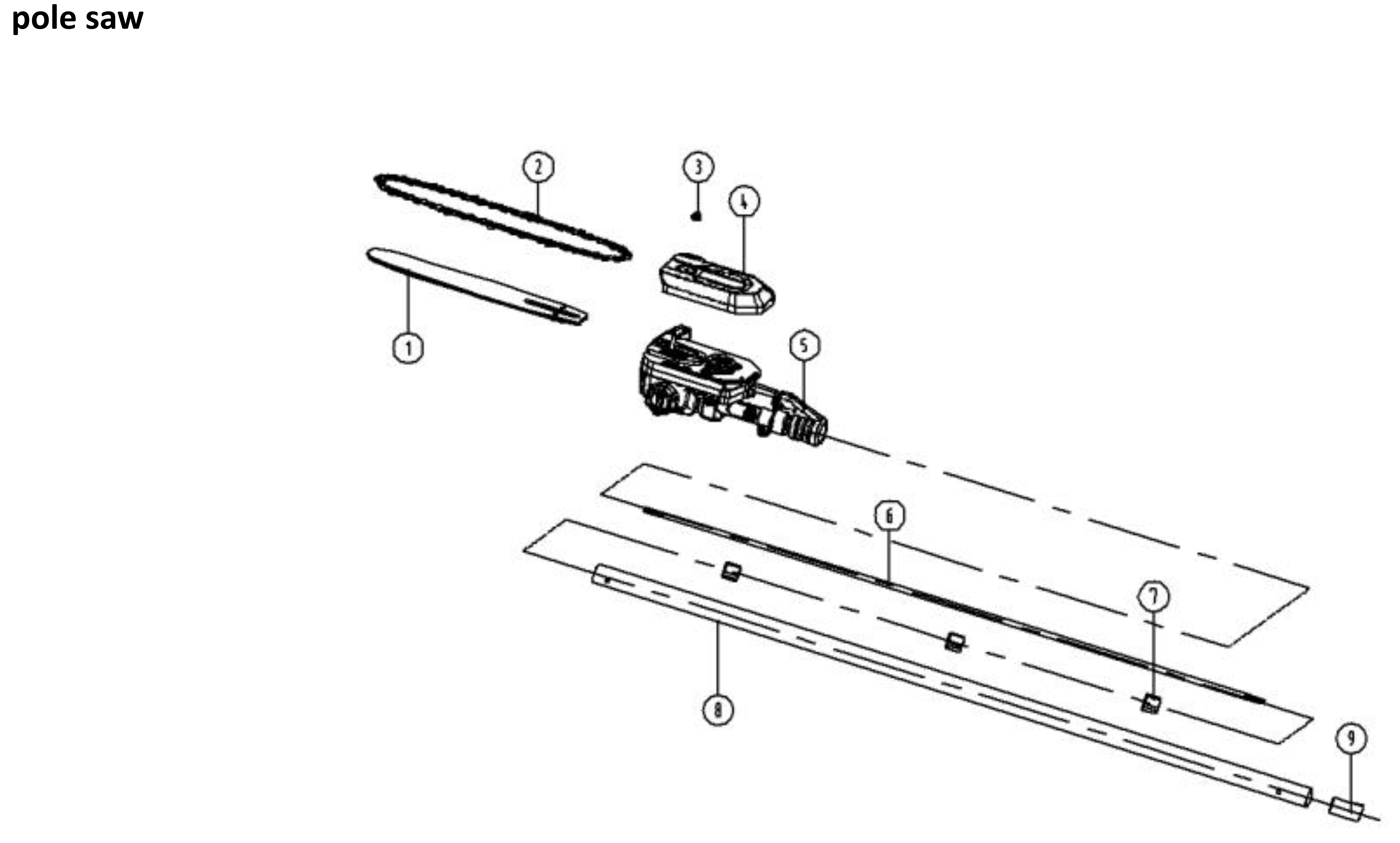

| Drawing 3 | ||||
| 1 | 33108400200-000
GUIDES | Not Available | ||
| 2 | 30306100650-000
CHAIN | Not Available | ||
| 3 | 50702080
NUT | Not Available | ||
| 4 | 11108400200-000
SPROCKET COVER | Not Available | ||
| 5 | 32808400200-000
GEARBOX | Not Available | ||
| 6 | 40608400200-100
DRIVE SHAFT | Not Available | ||
| 7 | 21008400200-000
ALUMINUM TUBE PROTECTIVE COVER | Not Available | ||
| 8 | 30508400200-000
ALUMINUM TUBE ASSEMBLY | Not Available | ||
| 9 | 21108400200-000
ALUMINUM TUBE PROTECTIVE COVER | Not Available | ||
| Drawing 4 | ||||
| 1 | 32908400200-000
HIGH BRANCH SAW GEARBOX | Not Available | ||
| 2 | 44608400200-000
HIGH BRANCH SAW DRIVE SHAFT | Not Available | ||
| 3 | 21008400200-000
ALUMINUM TUBE PROTECTIVE COVER | Not Available | ||
| 4 | 30608400200-000
HIGH BRANCH SAW ALUMINUM TUBE | Not Available | ||
| 5 | 21108400200-000
ALUMINUM TUBE PROTECTIVE COVER | Not Available | ||

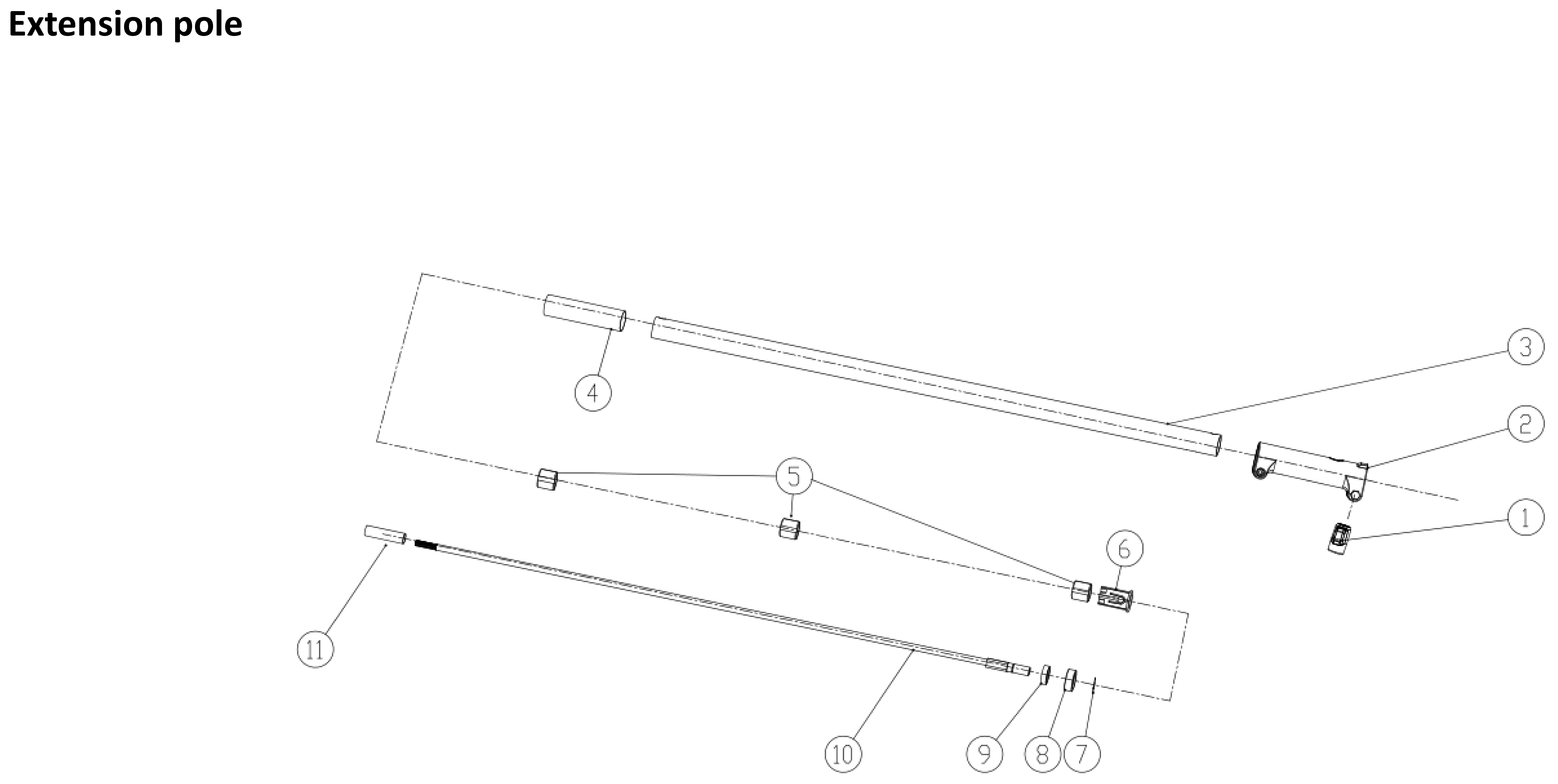

| Drawing 5 | ||||
| 1 | 10808400200-100
QUICK-CHANGE KNOB | Not Available | ||
| 2 | 30208400200-000
QUICK CHANGE CONNECTOR | Not Available | ||
| 3 | 30708400200-000
EXTENSION ROD ALUMINUM TUBE | Not Available | ||
| 4 | 20104002900-000
RUBBER HOSE | Not Available | ||
| 5 | 21008400200-000
ALUMINUM TUBE PROTECTIVE COVER | Not Available | ||
| 6 | 10908400200-000
NYLON PROTECTIVE SLEEVE | Not Available | ||
| 7 | 50802100-201
RETAINING RING FOR SHAFT | Not Available | ||
| 8 | 20208400200-000
BEARING PROTECTOR | Not Available | ||
| 9 | 50906900-000
DEEP GROOVE BALL BEARING | Not Available | ||
| 10 | 40108400200-000
HARD SHAFT COMPONENTS | Not Available | ||
| 11 | 21108400200-000
ALUMINUM TUBE PROTECTIVE COVER | Not Available | ||
| Manufacturer Model Number | EMT36-Li |
| EAN | 5036581058562 |
| Brand | Erbauer |
| Description | 2x 18V MULTI TOOL (EU) |
