Erbauer ERT1027GHT 36v HEDGE TRIMMER - ERBAUER GEN2 - 60CM

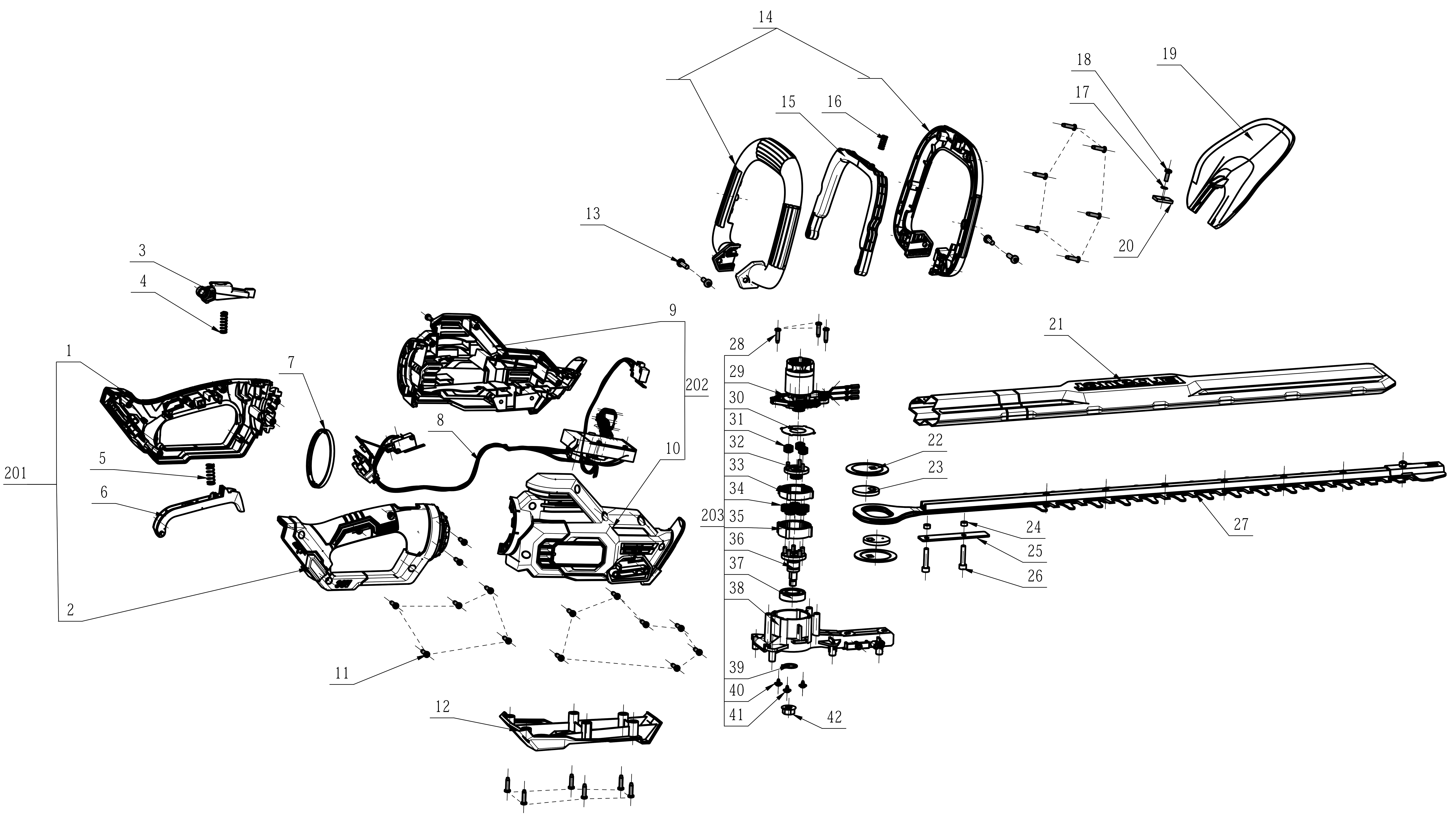

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 3 | 3136197001
LOCK BUTTON | Not Available | ||
| 4 | 3660072002
SPRING | Not Available | ||
| 5 | 3660013001
SPRING | Not Available | ||
| 6 | 3135584002
TRIGGER | Not Available | ||
| 7 | 3136138001
SWIVEL RING | Not Available | ||
| 8 | 2832233001
CONTROL PCB ASSEMBLY | Low Stock | 59.99 | |
| 11 | 5610267004
CASING SCREW | Low Stock | 3.99 | |
| 12 | 3136196001
MAIN CASING BOTTOM PLATE | Not Available | ||
| 13 | 5610291003
SCREW | Low Stock | 4.99 | |
| 14 | 3900129001
FRONT HANDLE | Low Stock | 7.49 | |
| 15 | 3123108001
SAFETY TRIGGER | Not Available | ||
| 16 | 3660046001
SPRING | Not Available | ||
| 17 | 5650006001
WASHER | Not Available | ||
| 18 | 5620477003
SCREW (HEX) | Not Available | ||
| 19 | 3125037002
FRONT GUARD | Low Stock | 4.99 | |
| 20 | 3704304001
GUARD BRACKET | Not Available | ||
| 21 | 3136259001
ACCESSORY - SCABBARD | Not Available | ||
| 22 | 5650494001
WASHER | Not Available | ||
| 23 | 3706977001
CAM | Not Available | ||
| 24 | 5650196001
BUSHING | Not Available | ||
| 25 | 3706209001
SUPPORT PLATE | Not Available | ||
| 26 | 5620216005
SCREW (HEX) | Not Available | ||
| 27 | 2851561001
BLADE ASSEMBLY | Low Stock | 6.99 | |
| 42 | 5630325001
NUT | Not Available | ||
| 201 | 3901061001
HANDLE CASING ASSEMBLY | Low Stock | 14.99 | |
| 201-1 | 3323924001
HANDLE CASING (LH) | Not Available | ||
| 201-2 | 3323925001
HANDLE CASING (RH) | Not Available | ||
| 202 | 3901060001
MAIN CASING ASSEMBLY | Low Stock | 9.99 | |
| 202-9 | 3323926001
MAIN CASING (LH) | Not Available | ||
| 202-10 | 3323927001
MAIN CASING (RH) | Not Available | ||
| 203 | 2790888001
MOTOR/GEARBOX ASSEMBLY | Low Stock | 49.99 | |
| 203-28 | 5610294001
SCREW $$$ | Not Available | ||
| 203-29 | 2790889001
MOTOR | Not Available | ||
| 203-30 | 5650576001
WASHER $$$ | Not Available | ||
| 203-31 | 3520965001
PLANETARY GEAR $$$ | Not Available | ||
| 203-32 | 2824927001
SUN GEAR $$$ | Not Available | ||
| 203-33 | 3520964001
RING GEAR $$$ | Not Available | ||
| 203-34 | 3520961001
PLANETARY GEAR $$$ | Not Available | ||
| 203-35 | 3520963001
RING GEAR $$$ | Not Available | ||
| 203-36 | 2824926002
BEARING CARRIER $$$ | Low Stock | 5.99 | |
| 203-37 | 5700018014
BEARING $$$ | Not Available | ||
| 203-38 | 3402850001
GEARBOX CASING $$$ | Not Available | ||
| 203-39 | 5660018001
CIRCLIP $$$ | Not Available | ||
| 203-40 | 5650652001
WASHER $$$ | Not Available | ||
| 203-41 | 5610016001
SCREW $$$ | Not Available | ||
| Manufacturer Model Number | ERT1027GHT |
| EAN | 5059340904979 |
| Brand | Erbauer |
| Description | 36v HEDGE TRIMMER - ERBAUER GEN2 - 60CM |
