Erbauer ERT1028GBL 36v BLOWER - ERBAUER GEN2

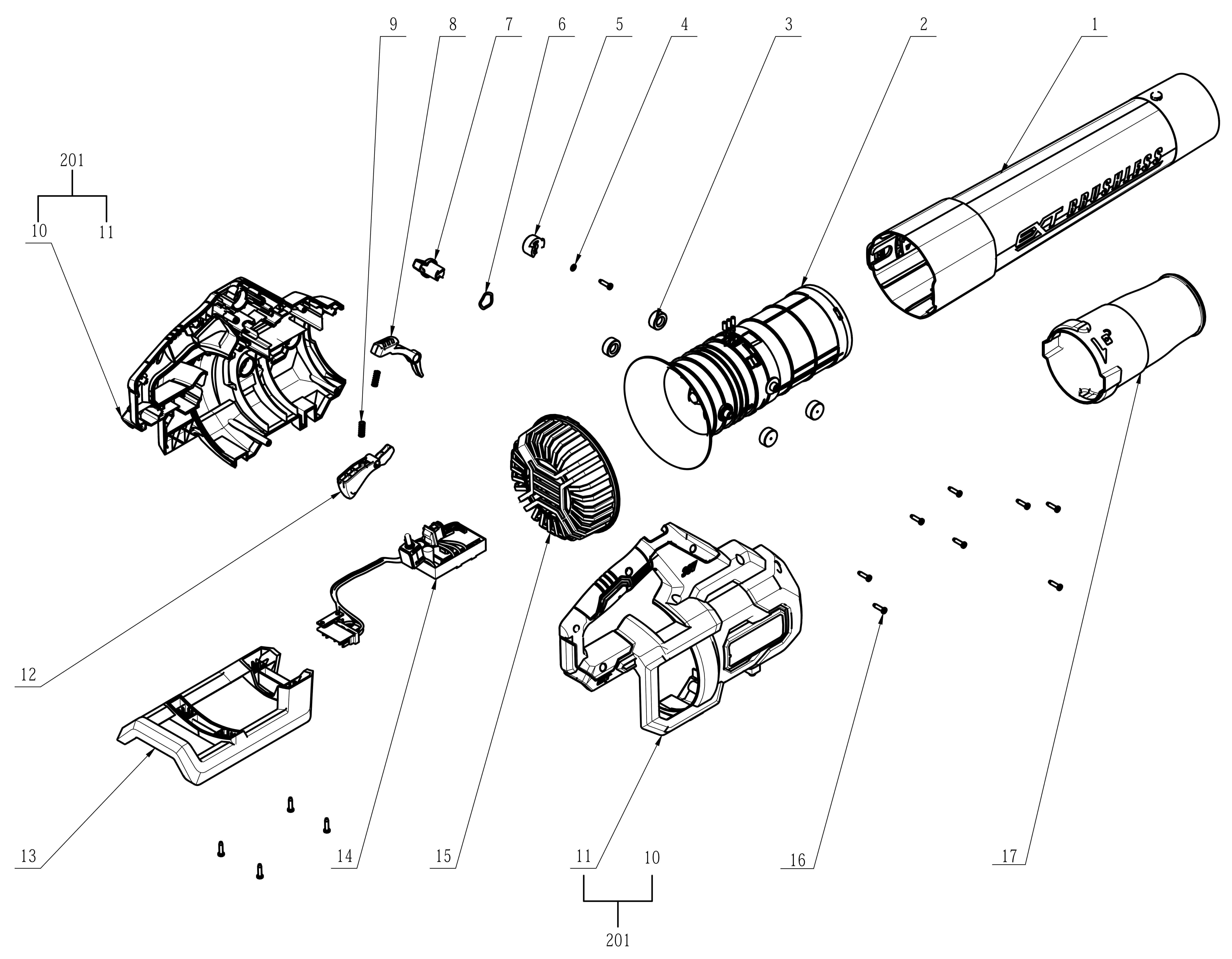

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 2851732001
ACCESSORY - BLOWER TUBE | On Order | 12.49 | |
| 2 | 2851558001
FRONT DUCT | Not Available | ||
| 3 | 5650519001
VIBRATION DAMPER | Not Available | ||
| 4 | 5650006001
WASHER | Not Available | ||
| 5 | 3128759001
INTERMEDIATE RING | Not Available | ||
| 6 | 5650058001
WASHER | Not Available | ||
| 7 | 3135924001
SPEED REGULATOR KNOB | Not Available | ||
| 8 | 3135921001
BOOST LEVER | Not Available | ||
| 9 | 3660088003
SPRING | Not Available | ||
| 12 | 3135919001
TRIGGER | Not Available | ||
| 13 | 3135912001
MAIN HOUSING - BASE | On Order | 12.49 | |
| 14 | 2832353001
CONTROL PCB ASSEMBLY | On Order | 44.99 | |
| 15 | 3135923001
REAR COVER | On Order | 4.99 | |
| 16 | 5610267004
CASING SCREW | On Order | 3.99 | |
| 17 | 3133060001
ACCESSORY - CONE NOZZLE | On Order | 9.99 | |
| 201 | 3901078001
MAIN HOUSING ASSEMBLY | On Order | 12.49 | |
| 201-10 | 3323853001
MAIN HOUSING (LH) | Not Available | ||
| 201-11 | 3323854001
MAIN HOUSING (RH) | Not Available | ||
| Manufacturer Model Number | ERT1028GBL |
| EAN | 5059340904870 |
| Brand | Erbauer |
| Description | 36v BLOWER - ERBAUER GEN2 |
