| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

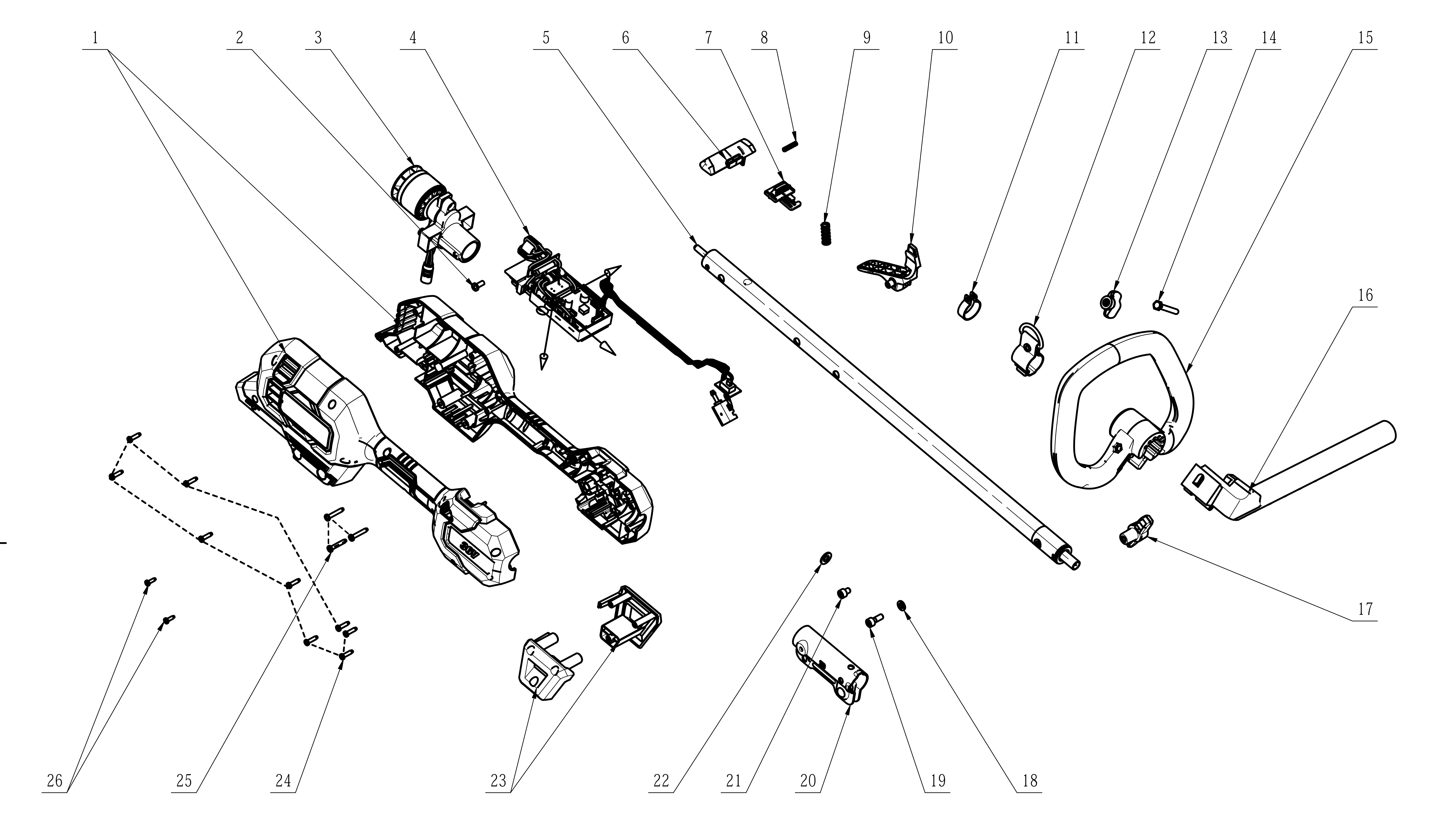

| Drawing 1 | ||||
| 1 | 3901021001
MAIN HOUSING ASSEMBLY | Low Stock | 19.99 | |
| 2 | 5620050006
SCREW | Not Available | ||
| 3 | 2790627001
MOTOR/GEARBOX ASSEMBLY | Low Stock | 49.99 | |
| 4 | 2832217001
CONTROL PCB ASSEMBLY | Low Stock | 64.99 | |
| 5 | 2851610001
UPPER TUBE/SHAFT ASSEMBLY | Low Stock | 24.99 | |
| 6 | 3133431002
TRIGGER SAFETY CATCH | Not Available | ||
| 7 | 3132514002
CONTROL SWITCH (PLASTIC ONLY) | Not Available | ||
| 8 | 3660124001
RETURN SPRING | Not Available | ||
| 9 | 3660717001
SPRING | Not Available | ||
| 10 | 3133432002
TRIGGER SWITCH | Not Available | ||
| 11 | 3705178001
LOCKING RING | Low Stock | 3.99 | |
| 12 | 2823319002
HARNESS EYELET | Not Available | ||
| 13 | 3402297005
KNOB | Not Available | ||
| 14 | 5640243001
THROUGH-BOLT | Low Stock | 3.99 | |
| 15 | 3136489001
SHAFT HANDLE | Low Stock | 14.99 | |
| 16 | 3136031001
SUPPORT HANDLE | Low Stock | 3.99 | |
| 17 | 3403663001
KNOB | Low Stock | 4.99 | |
| 18 | 5650016008
WASHER | Not Available | ||
| 19 | 5620340004
SCREW (HEX) | Not Available | ||
| 20 | 2828491001
SHAFT CONNECTOR | Not Available | ||
| 21 | 5620546001
SCREW (HEX) | Low Stock | 3.99 | |
| 22 | 5650025001
WASHER | Not Available | ||
| 23 | 3901052001
STAND (L+R) | Low Stock | 4.99 | |
| 24 | 5610267004
SCREW (HEX) | Low Stock | 3.99 | |
| 25 | 5610044008
SCREW | Not Available | ||
| 26 | 5610329001
SCREW | Not Available | ||

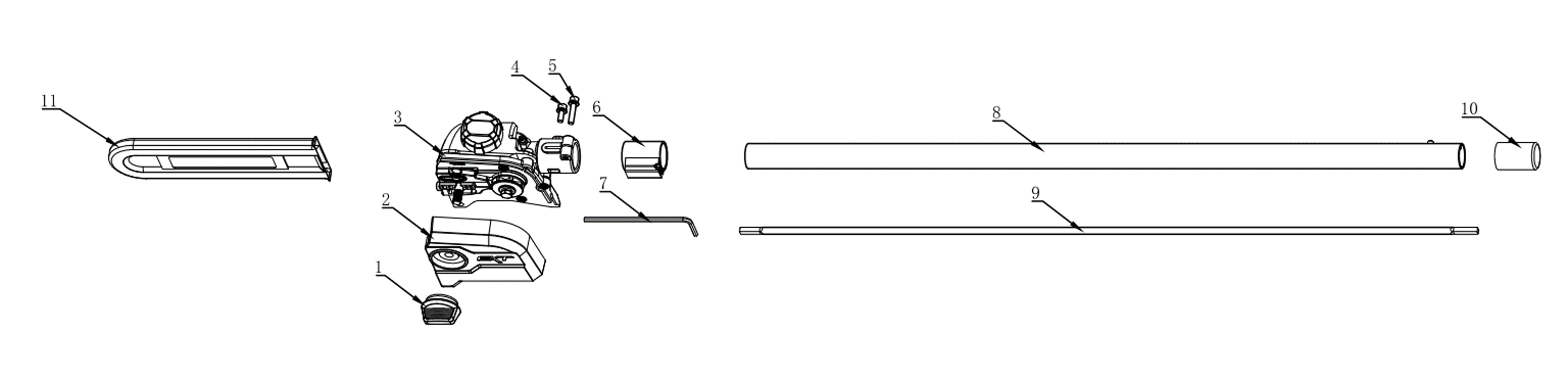

| Drawing 2 | ||||
| A | 80TXL038X
ACCESSORY - CHAIN - OREGON 80TXL038X | Not Available | ||
| B | 084BXNA041
ACCESSORY - GUIDE BAR - OREGON 084BXNA041 | Not Available | ||
| 1 | 30403133
LOCKING KNOB | Not Available | ||
| 2 | 30401162
SPROCKET COVER | Low Stock | 14.99 | |
| 3 | 10515105
CHAINSAW ATTACHMENT - GEARBOX ASSEMBLY | Low Stock | 34.99 | |
| 4 | 30110221
SCREW (HEX) | Not Available | ||
| 5 | 30110234
SCREW (HEX) | Not Available | ||
| 6 | 30108011
COLLAR | Not Available | ||
| 7 | 30108009
ACCESSORY - HEX KEY | Not Available | ||
| 8 | 10515106
OUTER TUBE | Low Stock | 12.49 | |
| 9 | 30102345
DRIVE SHAFT | Low Stock | 9.99 | |
| 10 | 30203052
ACCESSORY - TUBE CAP | Not Available | ||
| 11 | 30401002
ACCESSORY - SCABBARD | Not Available | ||

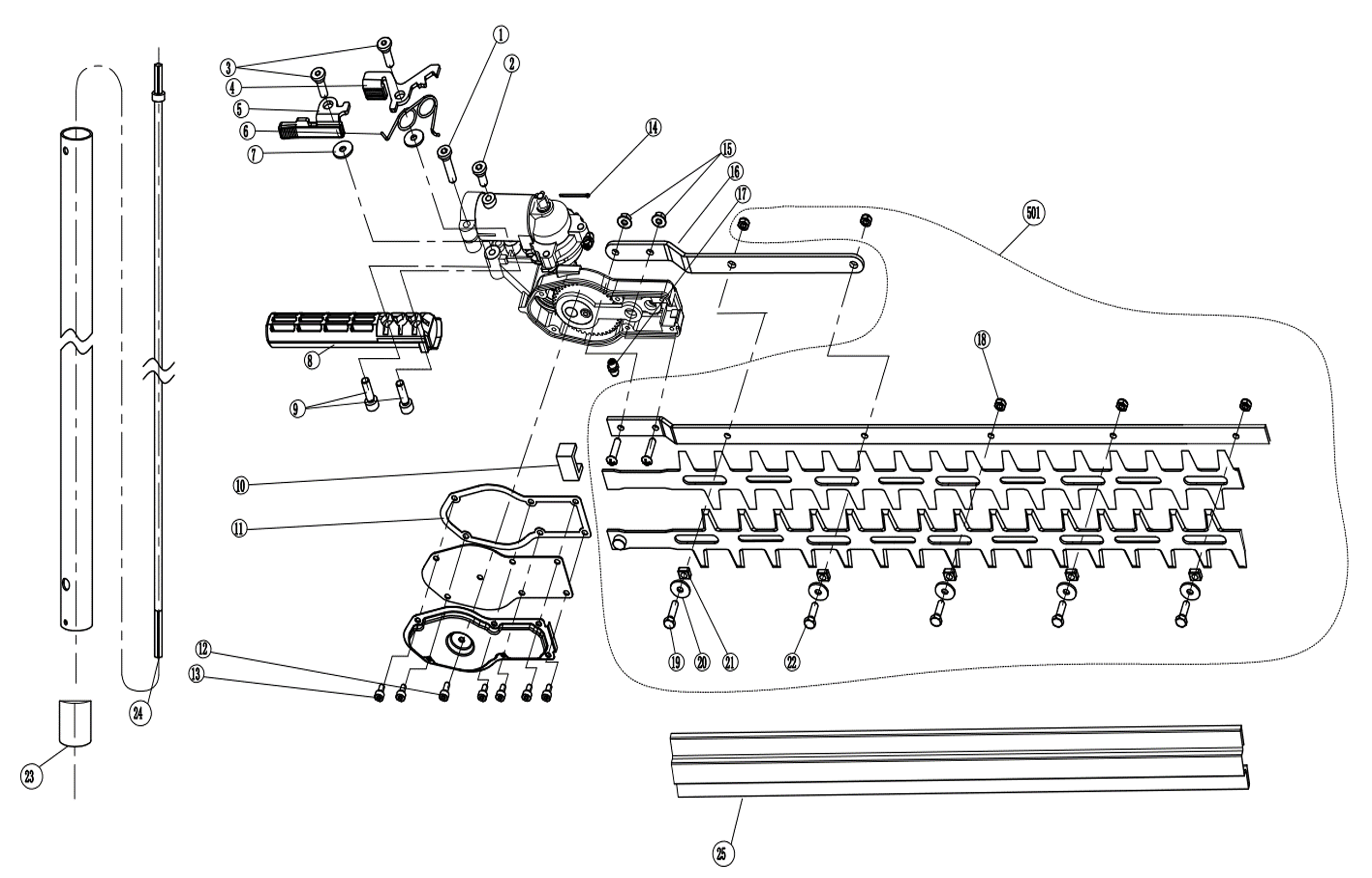

| Drawing 3 | ||||
| 1 | 30110234
SCREW (HEX) | Not Available | ||
| 2 | 30110231
SCREW (HEX) | Not Available | ||
| 3 | 30113274
THREADED COLLAR | Not Available | ||
| 4 | 30128100
LOCKING TAB | Not Available | ||
| 5 | 30128101
LOCKING TAB HANDLE | Not Available | ||
| 6 | 30127040
SPRING | Not Available | ||
| 7 | 30125238
WASHER | Not Available | ||
| 8 | 30408073
HANDLE | Low Stock | 9.99 | |
| 9 | 30113234
SCREW (HEX) | Not Available | ||
| 10 | 306008
FELT SEAL | Not Available | ||
| 11 | 306001
GEARBOX GASKET | Not Available | ||
| 12 | 30113277
SCREW (HEX) | Not Available | ||
| 13 | 30113276
SCREW (HEX) | Not Available | ||
| 14 | 30123064
COTTER PIN | Not Available | ||
| 15 | 30112012
HEX NUT (FLANGED) | Not Available | ||
| 16 | 30128121
SUPPORT BAR | Not Available | ||
| 17 | 30133016
ROLLER | Not Available | ||
| 23 | 30203052
ACCESSORY - TUBE CAP | Not Available | ||
| 24 | 30102345
DRIVE SHAFT | Low Stock | 9.99 | |
| 25 | 30408074
ACCESSORY - SCABBARD | Not Available | ||
| 501 | 10515110
BLADE ASSEMBLY | Low Stock | 64.99 | |

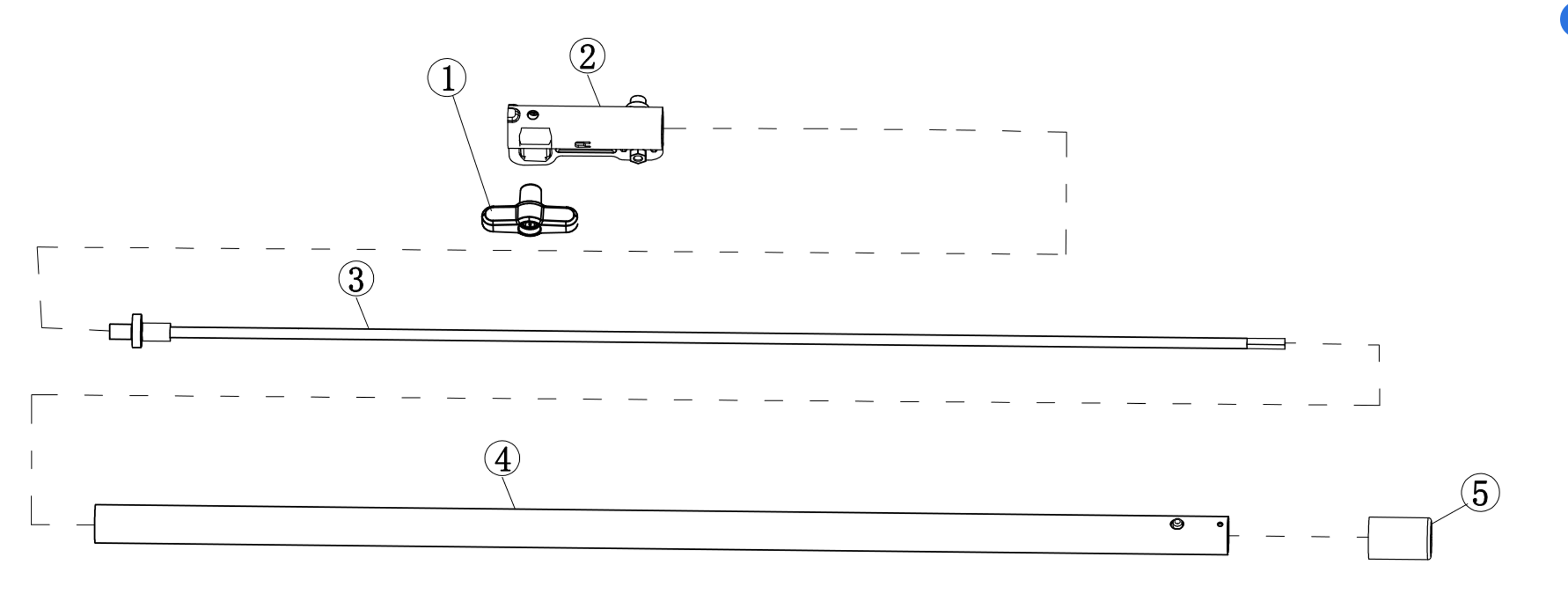

| Drawing 4 | ||||
| 1 | 3403663001
KNOB | Low Stock | 4.99 | |
| 2 | 10515107
SHAFT CONNECTOR | Not Available | ||
| 3 | 10515108
DRIVE SHAFT | Not Available | ||
| 4 | 10515109
OUTER TUBE | Not Available | ||
| 5 | 30203052
ACCESSORY - TUBE CAP | Not Available | ||

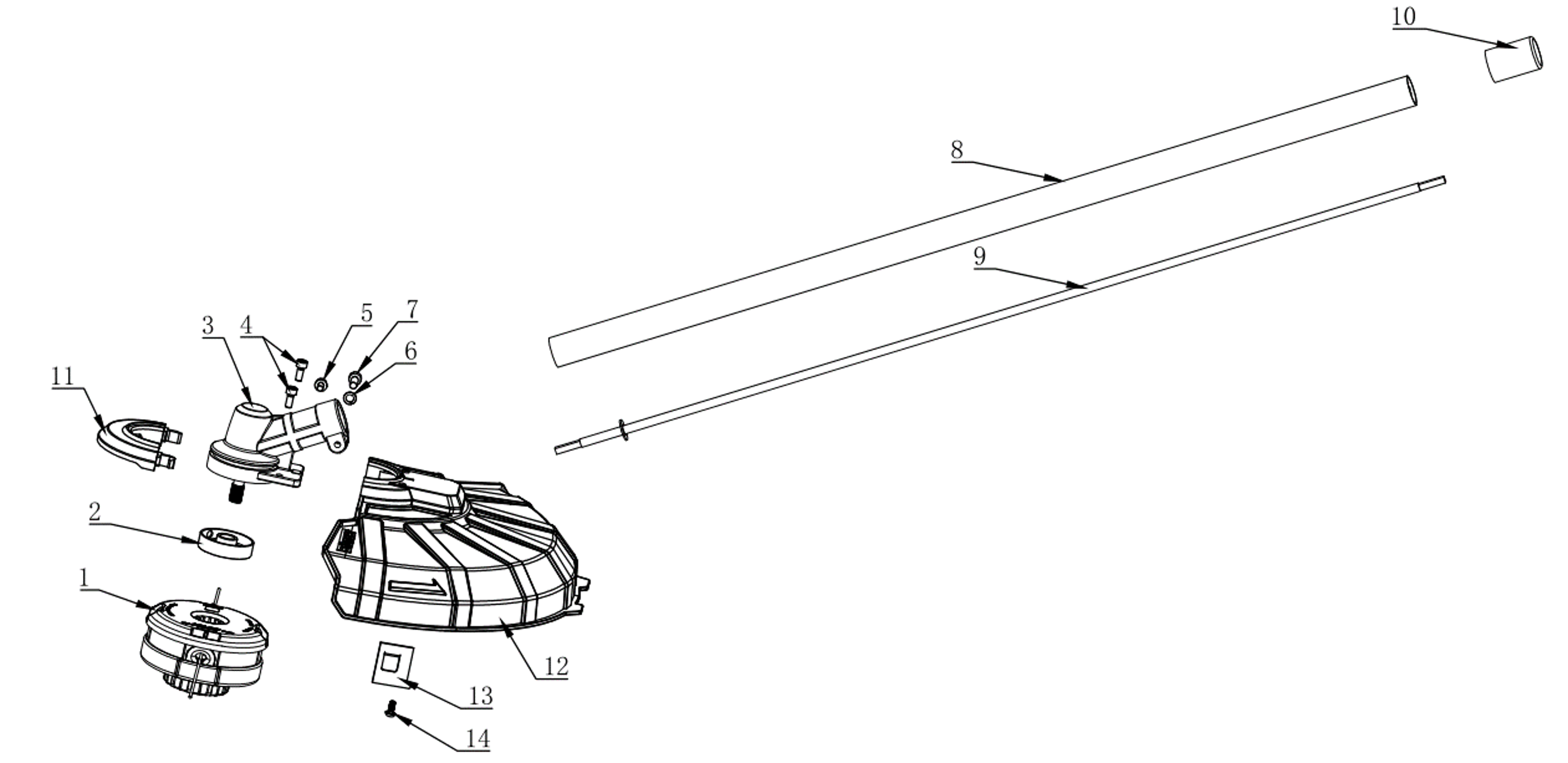

| Drawing 5 | ||||
| 1 | 30402016
TRIMMER HEAD ASSEMBLY | Low Stock | 19.99 | |
| 2 | 30129218
BACKING FLANGE | Low Stock | 4.99 | |
| 3 | 10515103
ANGLE GEAR (GRASS TRIMMER ATTACHMENT) | Low Stock | 26.99 | |
| 4 | 30113337
SCREW (HEX) | Not Available | ||
| 5 | 30110221
SCREW (HEX) M5x12 | Not Available | ||
| 6 | 30125090
SPLIT WASHER | Not Available | ||
| 7 | 30113171
SCREW (HEX) M6x20 | Not Available | ||
| 8 | 10515104
OUTER TUBE | Not Available | ||
| 9 | 30102345
DRIVE SHAFT | Low Stock | 9.99 | |
| 10 | 30203052
ACCESSORY - TUBE CAP | Not Available | ||
| 11 | 30402015
GUARD - FRONT SECTION | Low Stock | 9.99 | |
| 12 | 30402014
GUARD - REAR SECTION | Low Stock | 15.99 | |
| 13 | 30111196
LINE CUTTING BLADE | Low Stock | 3.99 | |
| 14 | 30145140
SCREW | Not Available | ||

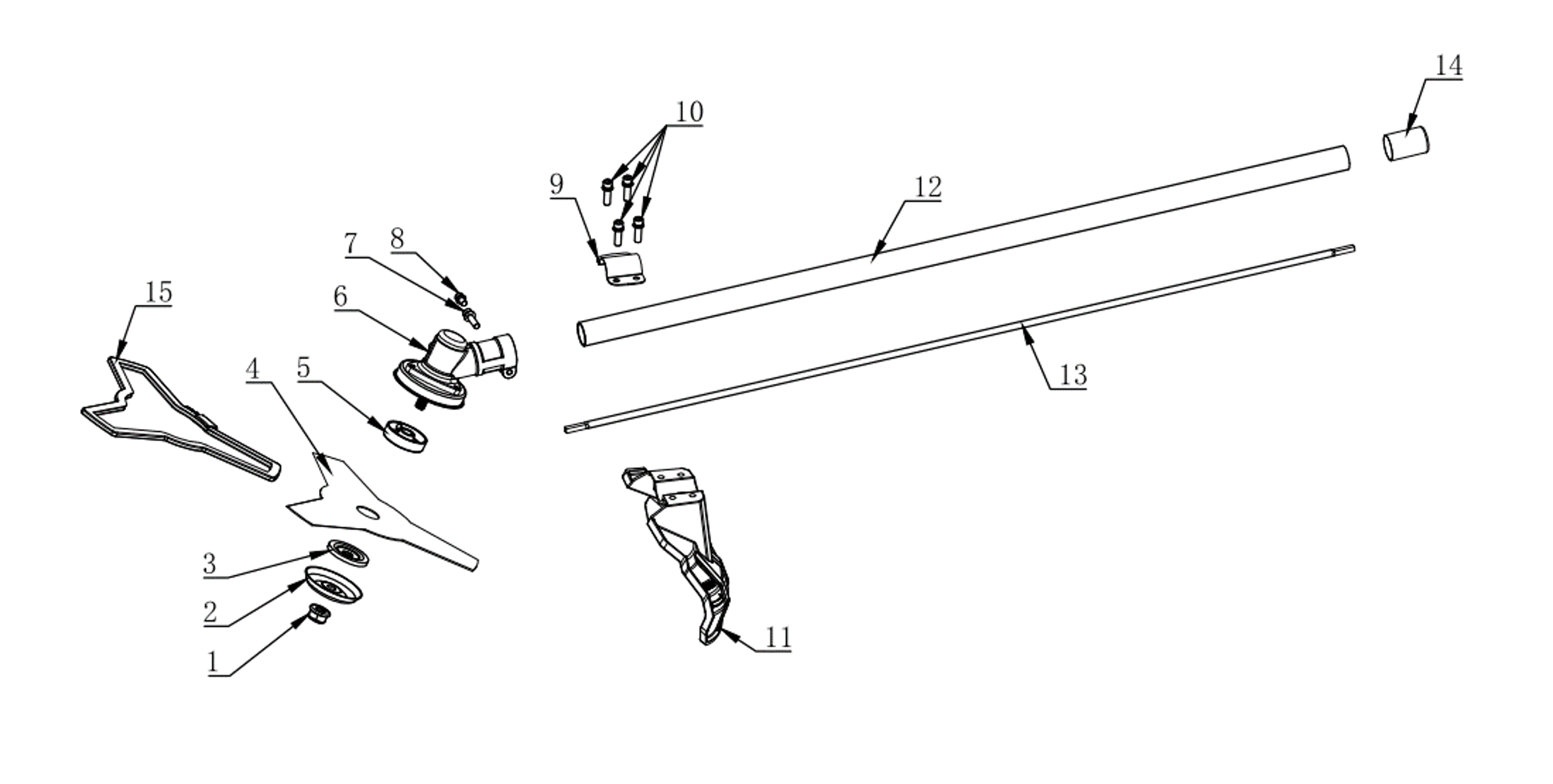

| Drawing 6 | ||||
| 1 | 30118325
LOCKING NUT (M10) | Low Stock | 3.99 | |
| 2 | 30122039
FLANGE COVER | Low Stock | 3.99 | |
| 3 | 30119143
FRONT FLANGE | Low Stock | 6.99 | |
| 4 | 30145130
ACCESSORY - BRUSH CUTTER BLADE - 25CM - 3T | Low Stock | 12.49 | |
| 5 | 30129218
BACKING FLANGE | Low Stock | 4.99 | |
| 6 | 10515101
ANGLE GEAR (BRUSH CUTTER ATTACHMENT) | Low Stock | 26.99 | |
| 7 | 30110221
SCREW (HEX) | Not Available | ||
| 8 | 30110297
SCREW (HEX) | Not Available | ||
| 9 | 30129216
GUARD BRACKET | Not Available | ||
| 10 | 30110333
SCREW (HEX) | Not Available | ||
| 11 | 30129215
BRUSH CUTTER GUARD | Low Stock | 12.49 | |
| 12 | 10515102
OUTER TUBE | Not Available | ||
| 13 | 30102344
DRIVE SHAFT | Not Available | ||
| 14 | 30203052
ACCESSORY - TUBE CAP | Not Available | ||
| 15 | 30408072
ACCESSORY - BRUSH CUTTER BLADE SLEEVE | Not Available | ||
| Manufacturer Model Number | ERT1029GMT |
| EAN | 5059340904740 |
| Brand | Erbauer |
| Description | 36v MULTI-TOOL - ERBAUER GEN2 - 4-IN-1 |
