Cooke and Lewis FS60DISHEU FREESTANDING 60CM DISHWASHER

Drawing 1
Item# Part Details Availability £
Drawing 1

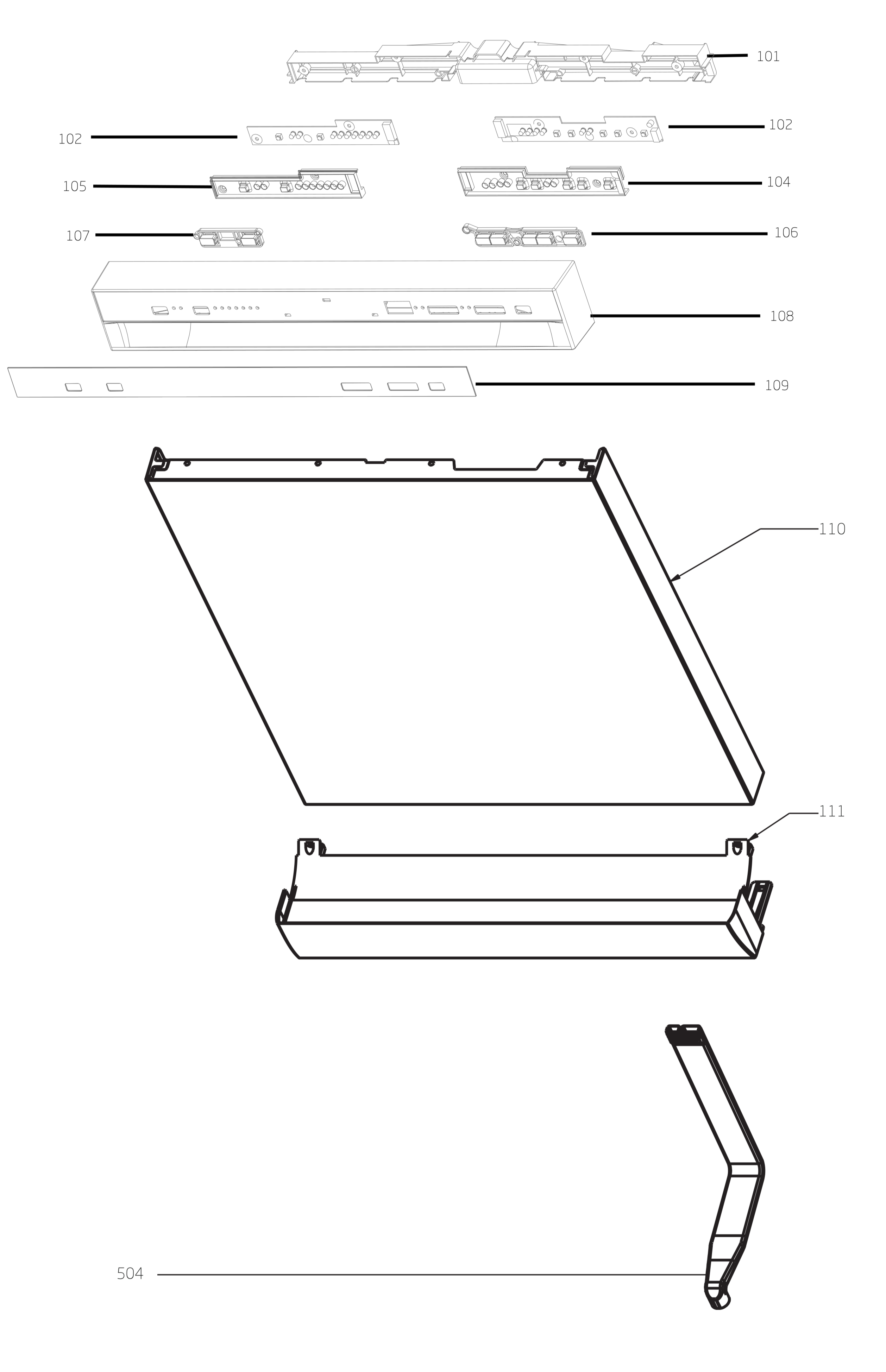

101 12176000033461
OUTSOURCING PROCESSING FEES
Not Available
102 17176000032872
DISPLAY CIRCUIT BOARD
In Stock29.99
104 12676000007796
SEALING GASKET
In Stock19.99
105 12676000007797
SEALING GASKET
In Stock19.99
106 12176000033462
BUTTON
In Stock9.99
107 12176000033463
BUTTON
In Stock9.99
108 12176000033460
CONTROL PANEL
In Stock34.99
109 12276000019791
PATCH
Not Available
110 12276000009567
OUTERDOOR
Low Stock39.99
111 12176000004079
BASEBOARD
Low Stock20.99

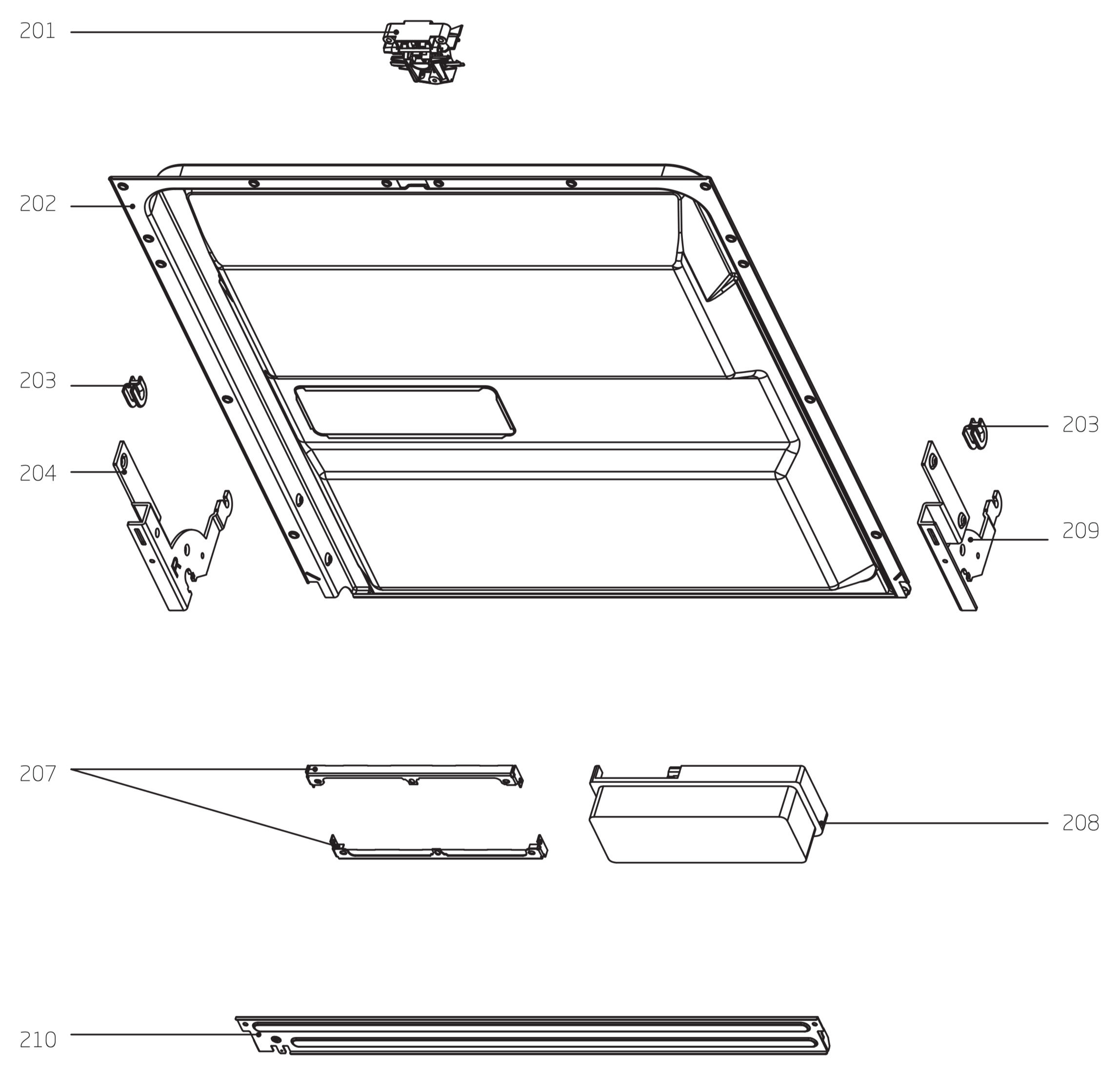

201 17476000007454
DOOR SWICTH ASSEMBLY
In Stock9.99
202 12276000019834
INNER DOOR ASSEMBLY
Low Stock39.99
203 12176000003629
SNAP RING
Not Available
204 12276000001731
LEFT HINGE ASSEMBLY
In Stock28.99
207 12276000001459
DISPENSER BRACKET
Low StockContact Us
208 17476000007435
DISPENSER
In Stock19.99
209 12276000016091
RIGH HINGE ASSEMBLY
In Stock19.99
210 12276000001805
HINGE JOIN BOARD
In Stock29.99
302 12176000027453
UPPER BACK SUPPORT
Not Available
303 12176000027452
UPPER BACK SUPPORT
Not Available
304 12176000018923
TOP PLATE ASSEMBLY
Not Available
305 12276000013810
LEFT SIDE PANEL
Not Available
306 12276000013808
RIGHT SIDE PLATE
Not Available
307 12276000016489
TUB ASSEMBLY
Not Available
308 12176000008573
BASKET GUIDER SUPPORTING HOLDER
In Stock30.99
309 11303223000326
SCREW
Not Available
310 12176000010412
RAIL SUPPORT ASSEMBLY
In StockContact Us
313 11301014000001
SCREW AND WASHERS
Not Available
314 12176000009491
DOOR LOCK HOOK
In Stock4.99
315 12176000025300
STOPPER
Not Available
316 12276000014587
UPPER BASKET GUIDER(LEFT)
In Stock19.99
317 12276000014586
UPPER BASKET GUIDER(RIGHT)
In Stock19.99
318 12276000002981
ANGLEPLATE
Not Available
321 12276000013805
LEFT HINGE HOLEDER
In Stock19.99
322 12276000013809
RIGHT HINGE HOLDER
In Stock19.99

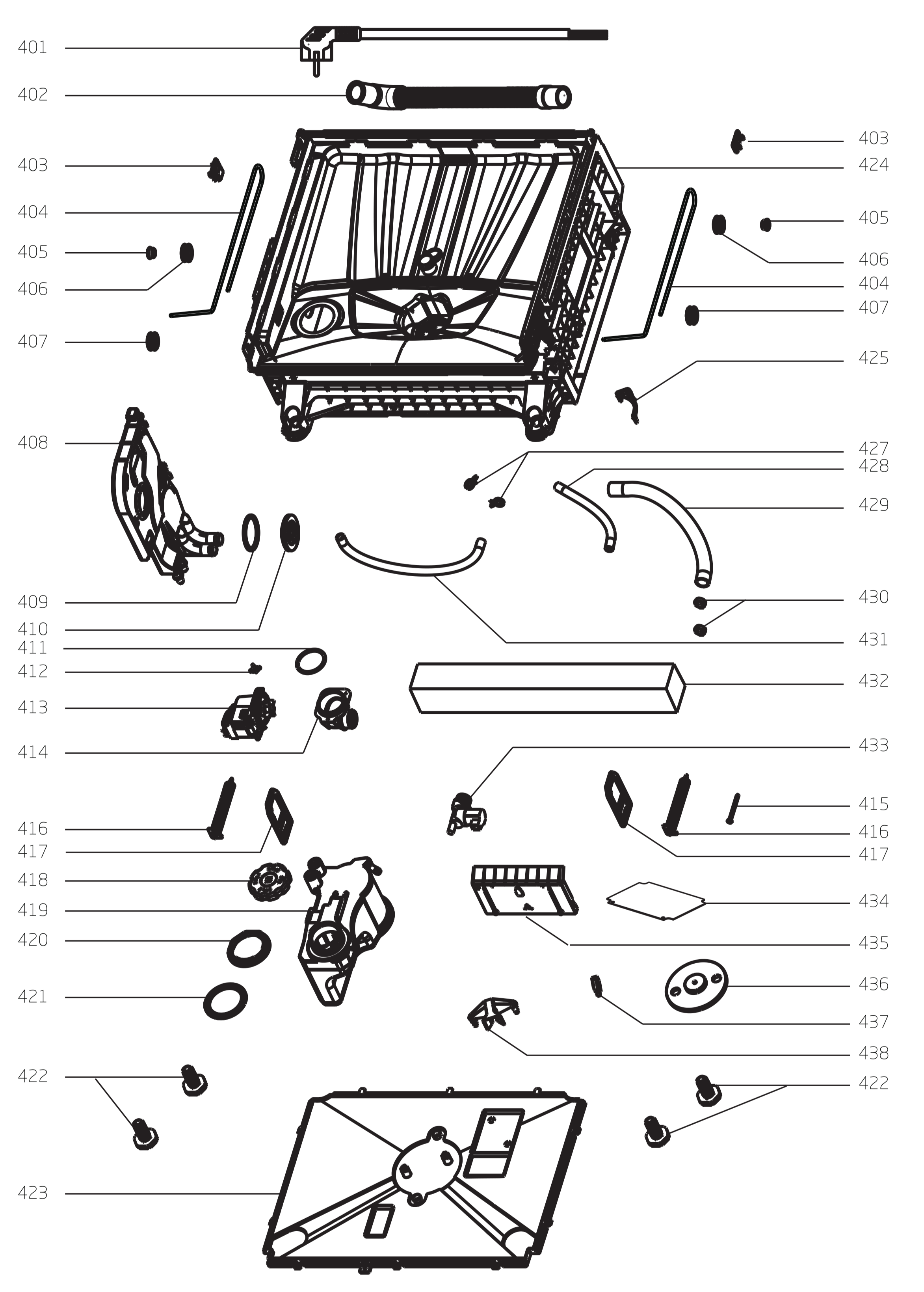

401 17476000007396
POWER CORD
Low Stock24.99
402 12676000000138
DRAIN PIPE ASSEMBLY
In Stock20.99
403 12176000025576
OVERFLOW CAP
In Stock9.99
404 12976000000392
DOOR ROPE
In Stock16.99
405 12176000003604
PIN
Not Available
406 12176000008820
ROPE PULLEY
In Stock9.99
407 12176000025290
WHEEL
In Stock9.99
408 12176000024283
AIR BREATHER
In Stock19.99
409 12676000000713
WASHERS
Low StockContact Us
410 12176000025297
AIR BREAKER NUT
In Stock9.99
411 12676000003902
O TYPE SEALING RING
In Stock9.99
412 17176000012008
TEMPERATURE SENSOR
In Stock17.99
413 17476000007443
INDUCTION PUMP
In Stock35.99
414 12176000024245
SHUNT VALVE CHAMBER COVER
Not Available
416 12976000000133
SPRING
In Stock16.99
417 12676000003901
WASH PUMP HOLDER
Not Available
418 12176000024730
HANDLE COVER
In Stock19.99
419 17476000001365
SOFTENER
In Stock15.99
420 12176000025295
SOFTENER NUT
In StockContact Us
421 12676000004365
SOFTENER GASKET
In Stock22.99
422 12176000009741
FOOT
In StockContact Us
423 12176000A59373
BASE TRAY COVER
Not Available
424 12176000024366
BASE TRAY
Not Available
425 12176000030997
DIVERSION BLOCK
In Stock11.99
427 12976000000332
HOOP
In Stock9.99
428 12676000003941
OUTLET PIPE
In Stock10.99
429 12676000003921
DRAIN HOSE
In StockContact Us
430 12976000004605
CLAMP
In Stock9.99
431 12676000000644
PIPE
In Stock10.99
432 12776000000023
COUNTER WEIGHT
Not Available
433 17476000007448
INLET VALVE
In Stock15.99
434 17176000033710
MAIN CONTROL PANEL
Low Stock34.99
435 12176000024244
PCB BOX
In Stock24.99
436 12876000000050
FLOAT
In Stock11.99
437 17476000001137
MICROSWITCH
In Stock15.99
438 12176000024250
FLOAT SEAT
In Stock19.99

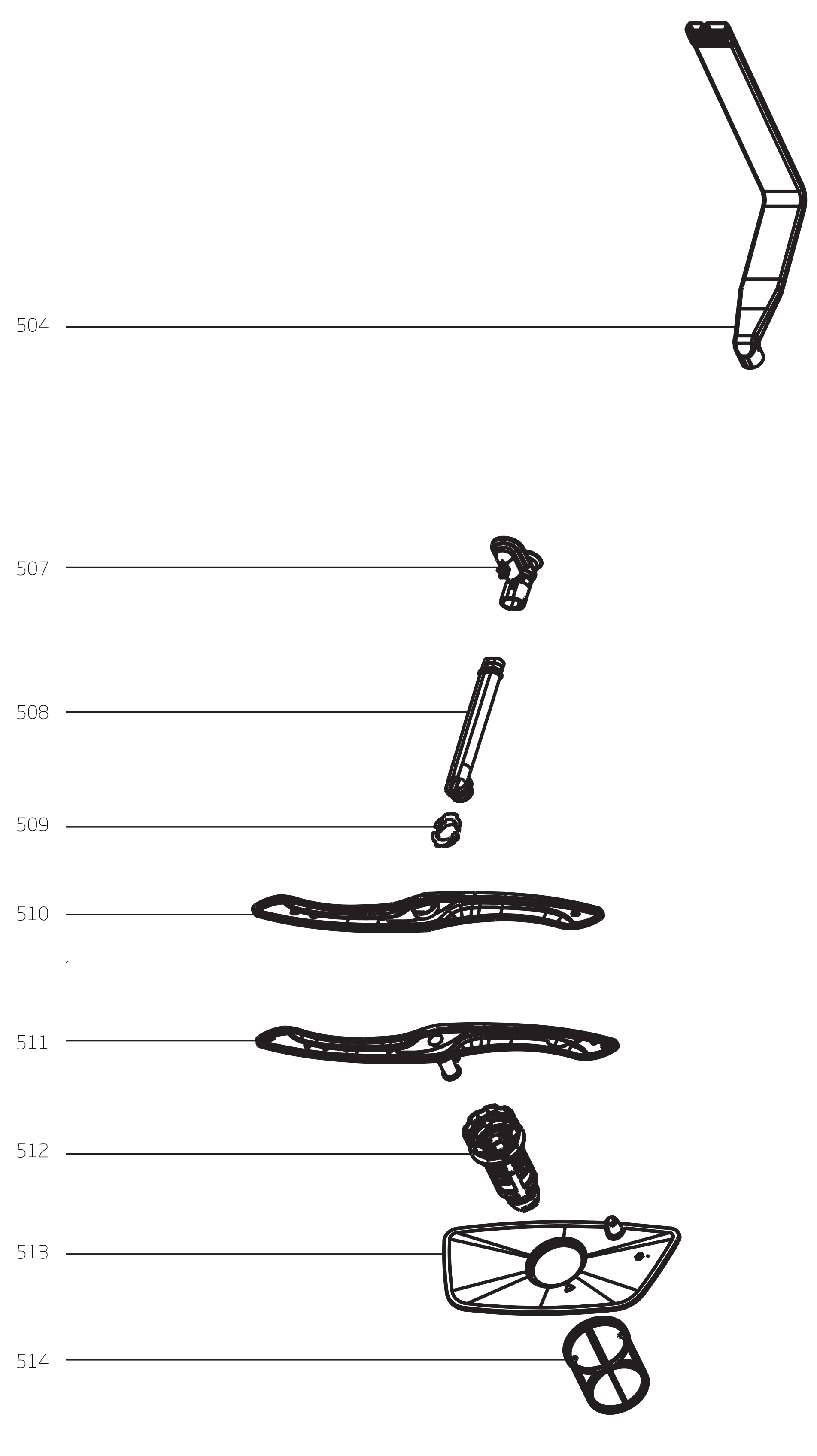

504 12176000A47558
INNER PIPE ASSEMBLY
In Stock20.99
510 12176000025291
MIDDLE SPAYER ASSEMBLY
In Stock21.99
511 12176000025299
LOWER SPRAYER
In Stock21.99
512-513 514 12176000025070
FILTER
In Stock19.99
601 12976000004604
CLAMP
In StockContact Us
602 12676000000132
WASHING PUMP OUTLET PIPE
In Stock6.99

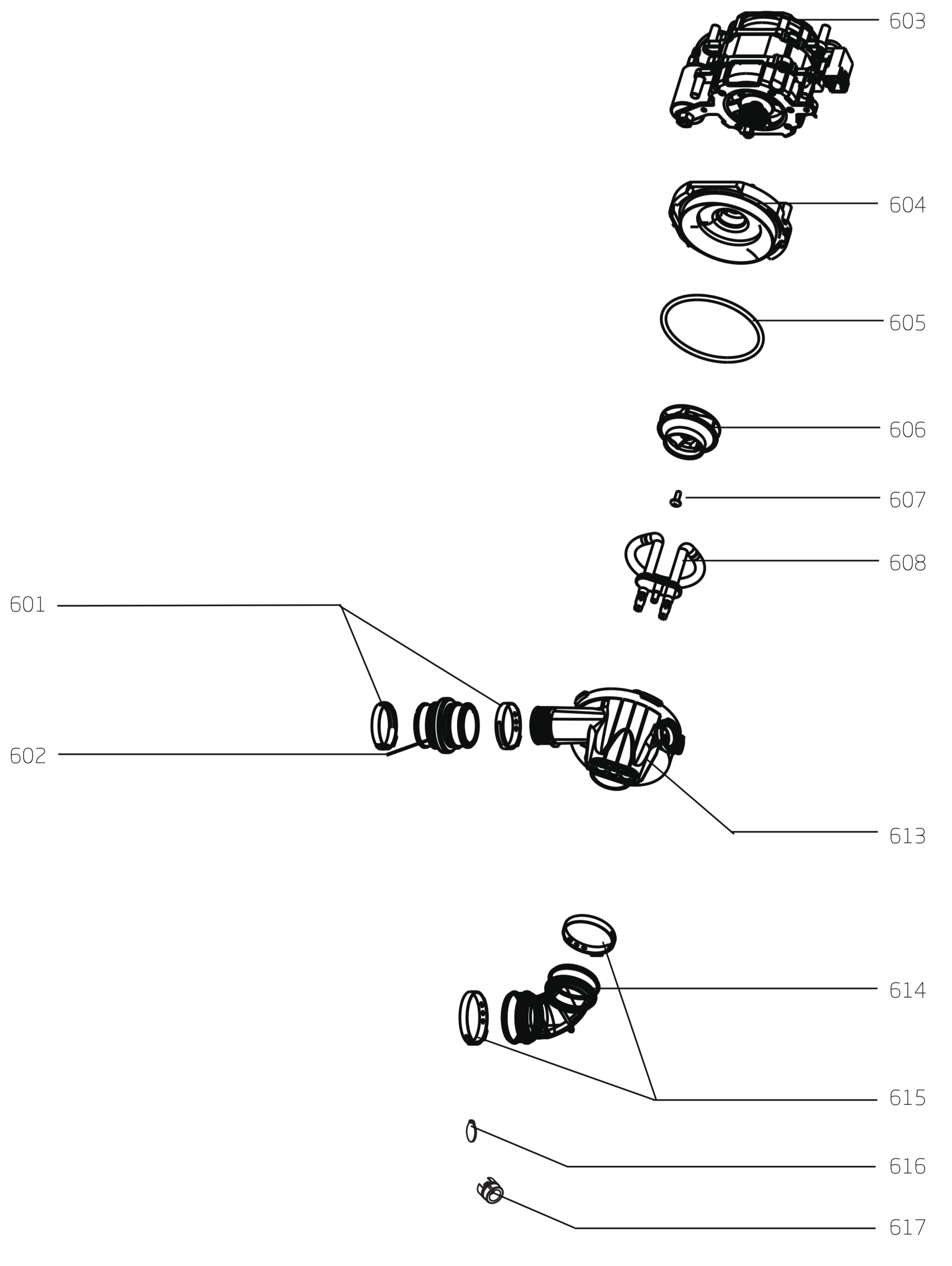

603 11001010000700
INDUCTION PUMP
In Stock24.99
604 12176000002603
LOWER PUMP CASE
Low StockContact Us
605 12676000000780
PUMP SEALING RING
In Stock19.99
606 12176000008792
IMPELLER
In Stock15.99
607 11301226000055
SCREW
Low StockContact Us
608-613 17476000007431
HEATING ELEMENTS
In Stock24.99
614 12676000003903
INLET PIPE
Low Stock15.99
615 12976000000308
CLAMP
In Stock9.99
616-617 12676000000993
CHECK VALVE SEAT ASSEMBLY
Not Available
701 12976000006252
UPPER BASKET ASSEMBLY
In Stock24.99
702 12176000025292
PLASTIC SLEEVE
Not Available
703 12176000025294
CUP HOLDER
In Stock19.99
704 12976000006251
LOWER BASKET ASSEMBLY
In Stock29.99
705 12176000025296
CUTLERY BASKET
In Stock16.99
Manufacturer Model NumberFS60DISHEU
EAN5059340445724
BrandCooke and Lewis
DescriptionFREESTANDING 60CM DISHWASHER
