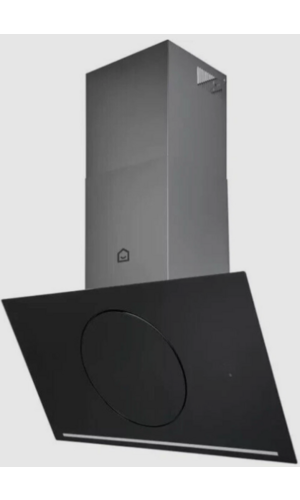

GoodHome GHAGRO90 GOOD HOME 90CM ANGLED GLASS ROUND POP OUT WITH RF
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 2.02.04.03.0005
INNER GLASS + FRAME ASSEMBLY (WAS AA0000000789) | Not Available | ||
| 2 | 2.02.04.01.0002
NEW DIFFUSER (GHAGRO90) (WAS AA0000000784) | Low Stock | 16.99 | |
| 3 | 2.02.04.03.0004
OUTER GLASS + FRAME ASSEMBLY (WAS AA0000000790) | Not Available | ||
| 4 | 1.06.04.04.0010
LEFT CONNECTION SHAFT (WAS AA0000000788) | Not Available | ||
| 5 | 1.01.04.10.0041
RIGHT CONNECTION SHAFT (WAS AA0000000785) | Not Available | ||
| 6 | 1.01.04.10.0013
FIXED PLATE (WAS AA0000000787) | Not Available | ||
| 7 | 1.01.04.10.0027
WIRE COVER (WAS AA0000000786) | Not Available | ||
| 8 | 1.01.04.02.0002
SENSOR BRACKET (WAS AA0000000778) | Not Available | ||
| 9 | 1.06.04.04.0003
LOCKING PIN (WAS AA0000000804) | Not Available | ||
| 10 | 1.06.04.04.0004
PIN CLIP (WAS AA0000000776) | Not Available | ||
| 11 | 1.04.04.05.0001
LINEAR ACTUATOR (WAS AA0000000777) | Not Available | ||
| 12 | 1.06.04.04.0011
LEFT SHAFT SLEEVE (WAS AA0000000782) | Not Available | ||
| 13 | 1.01.04.10.0047
LEFT BLOCK (WAS AA0000000780) | Not Available | ||
| 14 | 1.01.04.10.0007
GUIDE | Not Available | ||
| 15 | 1.06.04.01.0046
ALUMINIUM GREASE FILTER | Not Available | ||
| 16 | 2.02.04.01.0004
LED LAMP ASSEMBLY | Not Available | ||
| 17 | 1.02.04.10.0168
POWER PCB COVER | Not Available | ||
| 18 | 1.05.04.01.0002
POWER PCB (WAS AA0000000795) | Not Available | ||
| 19 | 1.02.04.10.0169
POWER PCB CASING | Not Available | ||
| 20 | 2.02.04.07.0003
CONTROL/DISPLAY PCB ASSEMBLY (WAS AA0000000793) | Not Available | ||
| 21 | 1.06.04.04.0008
SHAFT SLEEVE (WAS AA0000000783) | Not Available | ||
| 22 | 1.01.04.10.0042
RIGHT BLOCK (WAS AA0000000781) | Not Available | ||
| 23 | 1.02.04.10.0065
SPINDLE BRACKET COVER (WAS AA0000000799) | Not Available | ||
| 24 | 1.02.04.10.0064
SPINDLE BRACKET (WAS AA0000000801) | Not Available | ||
| 25 | 1.01.04.02.0022
ROTATING BRACKET (WAS AA0000000803) | Not Available | ||
| 26 | 1.01.04.10.0043
SPINDLE (WAS AA0000000800) | Not Available | ||
| 27 | 1.01.04.10.0006
FOLLOWER LEVER (WAS AA0000000802) | Not Available | ||
| 28 | 1.06.04.01.0047
ALUMINIUM GREASE FILTER | Not Available | ||
| 29 | 1.01.04.07.0002
MAIN CHASSIS $$$ | Not Available | ||
| 30 | 1.04.04.06.0019
FAN MOTOR ASSEMBLY (WAS AA0000000797) | Not Available | ||
| 31 | 2.03.04.01.0021
LOWER CHIMNEY SECTION (WAS AA0000000806) | Not Available | ||
| 32 | 1.01.04.02.0030
LOWER CHIMNEY SECTION BRACKET (WAS AA0000000807) | Not Available | ||
| 33 | 1.01.04.08.0006
UPPER CHIMNEY SECTION (WAS AA0000000808) | Not Available | ||
| 34 | 1.01.04.02.0029
UPPER CHIMNEY SECTION BRACKET (WAS AA0000000809) | Not Available | ||
| 35 | 1.04.01.09.0001
MAGNETIC RING (WAS AA0000001197) | In Stock | 4.99 | |
| 36 | 1.04.04.01.0004
POWER CABLE (NO PLUG) (WAS AA0000000775) | In Stock | 12.49 | |
| 37 | 1.04.04.02.0001
LED LAMP WIRING HARNESS (AMBIENT) (WAS AA0000000774) | Not Available | ||
| 38 | 1.04.04.02.0011
LED LAMP WIRING HARNESS (MAIN) (WAS AA0000000773) | Not Available | ||
| 39 | 1.04.04.08.0002
DISPLAY PCB WIRING HARNESS | In Stock | 3.99 | |
| 40 | 1.04.04.02.0007
POWER PCB EARTH BOND | Low Stock | Contact Us | |
| Manufacturer Model Number | GHAGRO90 |
| EAN | 3663602434313 |
| Brand | GoodHome |
| Description | GOOD HOME 90CM ANGLED GLASS ROUND POP OUT WITH RF |
