| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 2 | 37028246
BOTTOM/TOP HINGE SS/1400 BUILT HEX PIN | In Stock | 4.99 | |

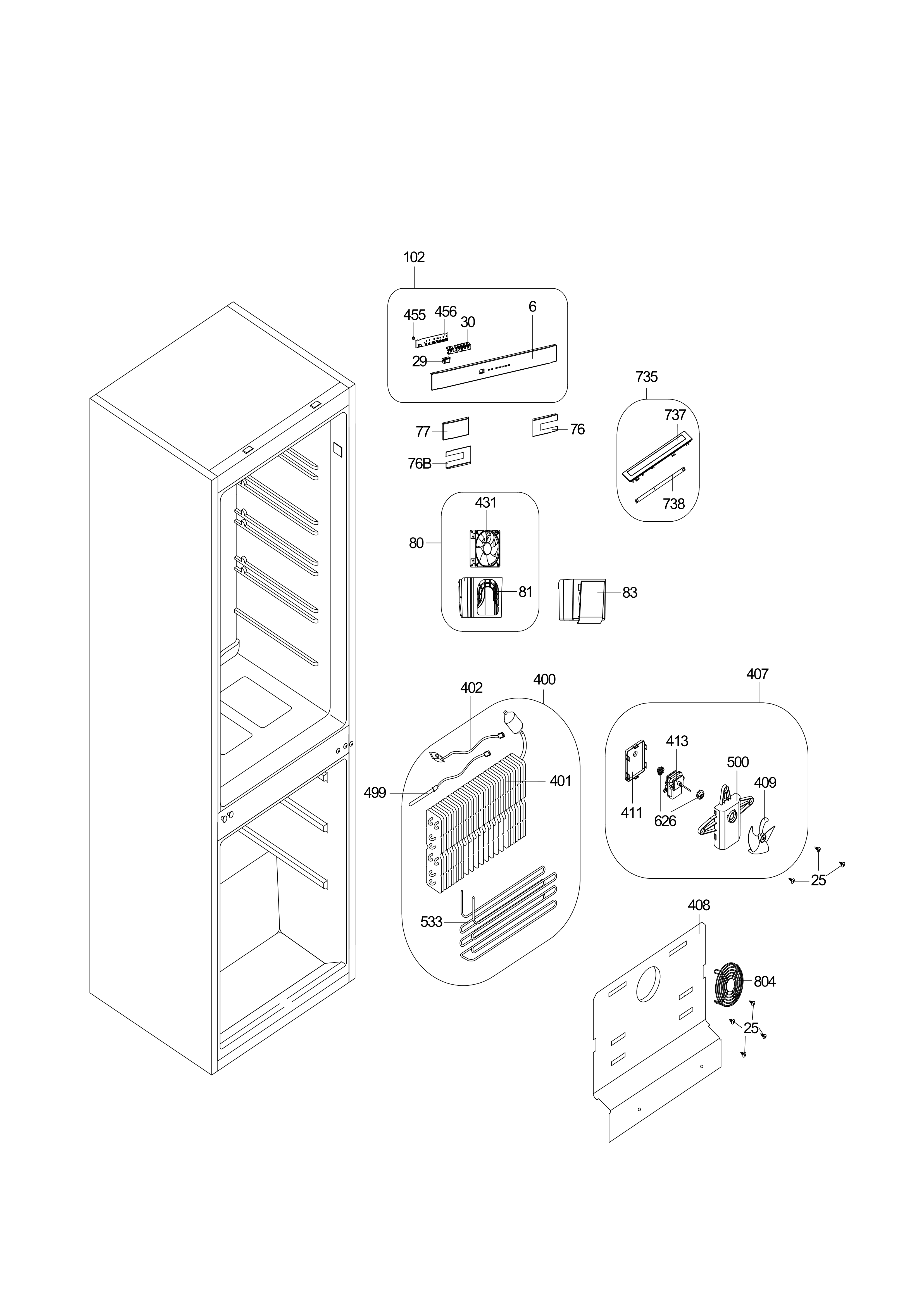

| 6 | 42328460
HEAD PANEL/2751-2761 VER2(SW) 432C | Not Available | ||
| 11 | 42290855
DOOR HINGE SCREW CAP (WHITE) | In Stock | 1.00 | |
| 12 | 42032778
SCREW CAP (LARGE) | In Stock | 3.99 | |
| 13 | 32031240
LIGHT SWITCH | In Stock | 12.99 | |
| 14 | 42283234
TUNNEL DRAIN PLUG RCYPP | In Stock | 3.99 | |
| 18 | 42310075
ICE TRAY COMMON SMALL | In Stock | 1.99 | |
| 29 | 42157903
HEAD PANEL BUTON /2791 (SW) 432SRGF | Low Stock | 5.26 | |
| 30 | 42136560
LIGHT CARRIER 2451 | Low Stock | 5.35 | |
| 37 | 47014890
R COMPARTMENT GLASS SHELF/2751 | In Stock | 12.99 | |
| 38A | 42153785
R.GLASS SHELF PRF/3951(EXT)WH 442.5 | In Stock | 4.99 | |
| 38B | 42147146
R.GLASS SHELF BACK TRIM/319(S.W) | In Stock | 4.99 | |
| 39 | 47014813
CRISPER GLASS SHELF/2751 (SLIDER) | In Stock | 12.99 | |
| 40-704 | 42298428
CRISPER FLAP GR/2795(432C)HUMC | Not Available | ||
| 41 | 42157049
REFRIGERATOR CRISPER DRAWER | In Stock | 19.99 | |
| 76 | 42152836
HEAD PANEL COVER 2791 RIGHT S.W | Low Stock | 5.40 | |
| 76B | 42152837
HEAD PANEL COVER 2791 LEFT S.W | Low Stock | 5.40 | |
| 77 | 42152838
HEAD PANEL COVER 2791 S.W | Low Stock | 5.40 | |
| 80/428 | 32049196
TURBO FAN MOTOR GRUBU-2/3951(NDC) PROD 5102577268 | In Stock | 27.13 | |
| 81 | 42257001
FAN MOTOR HOUSING 453 | Low Stock | 3.99 | |
| 82/431 | 32035094
TUR.FAN MOTOR DC(92*92*25)DFL9025S | In Stock | 16.45 | |
| 82/431 | 52166192
PAC.BAG(1240 x 1850 x 0.025)280-310 HISIR | Low Stock | Contact Us | |
| 83 | 42258566
TURBO FAN COVER/3951COLDAIR FLOW432 | Low Stock | 9.36 | |
| 92 | 42306900
FREEZER DRAWER UPPER/MIDDLE | In Stock | 19.99 | |
| 94 | 42186249
FREEZER PULL-OUT TRAY (WAS 42195560) | Low Stock | 11.99 | |
| 102 | 32054588
GO.PA.GR/2761(KAR)432C/ATSZ/TK | Not Available | ||

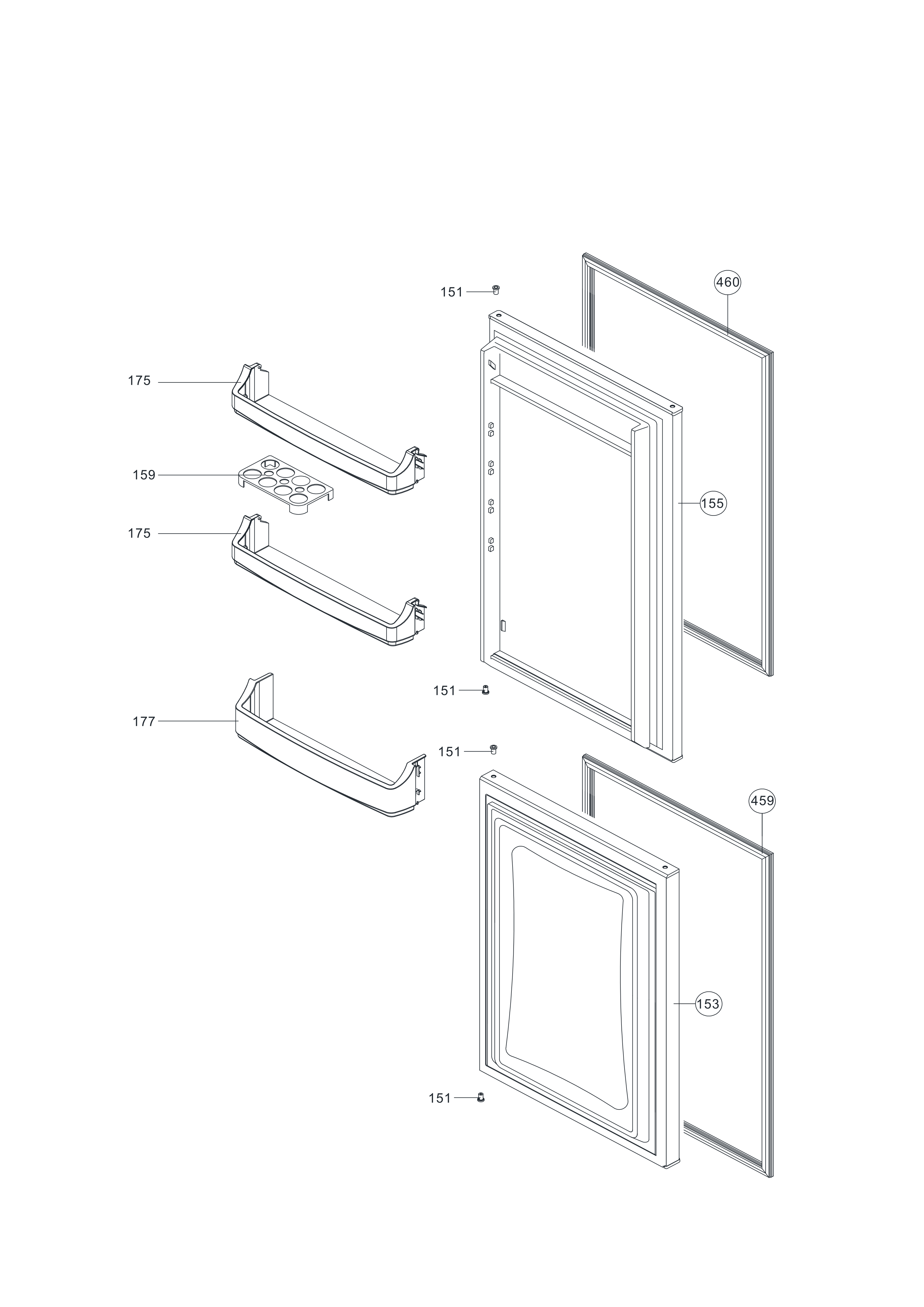

| 151 | 42004499
DOOR HINGE RECEIVER | In Stock | 3.99 | |
| 153 | 20912661
F DOOR ASSY/2751 ANK S-W.CAP(S.W) | In Stock | 69.99 | |
| 155 | 20912651
R DOOR ASSY/2751 ANK S-W.CAP(S.W) | In Stock | 64.99 | |
| 159 | 42163485
ACCESSORY - EGG HOLDER | In Stock | 3.99 | |
| 164 | 42207490
BODY SCREW CAP(SNOW WHITE) | Low Stock | 9.21 | |
| 175 | 42161064
REFRIGERATOR DOOR SHELF UPPER/MIDDLE | In Stock | 19.99 | |
| 177 | 42161010
REFRIGERATOR DOOR SHELF BOTTOM | In Stock | 17.49 | |

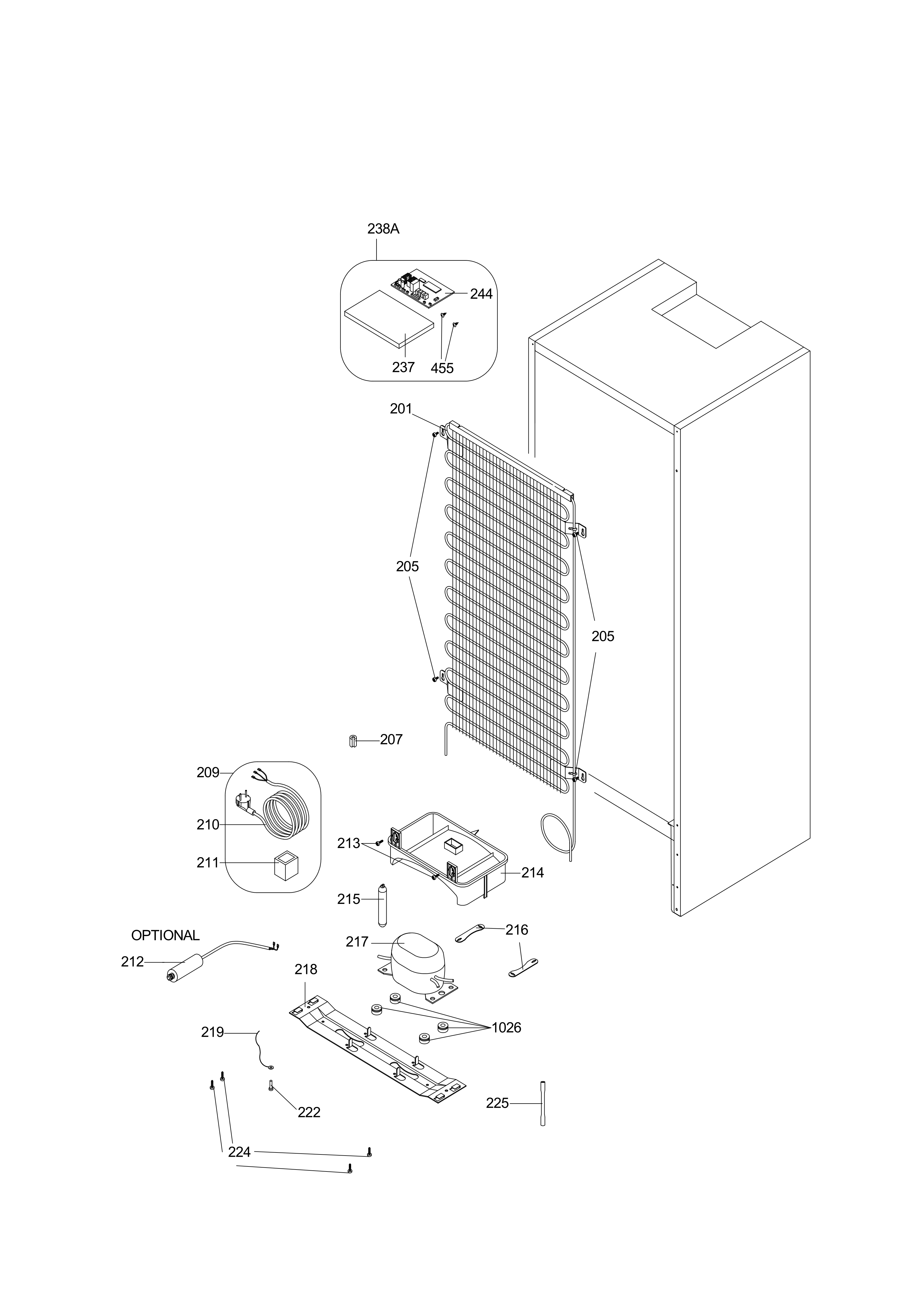

| 201 | 37029479
SYS - CONDENSER | Low Stock | 29.68 | |
| 207 | 42155463
RUBBER CONDANSER MUTUAL ANTIVIBRASYON | On Order | 3.99 | |
| 209 | 32052088
CAP.SUP.CAB.TB1114YLNM/3.5UFMET/2.5M/UK | On Order | Contact Us | |
| 210 | 32007439
POWER CABLE (2.5M TYPE-G PLUG) | In Stock | 9.99 | |
| 211 | 32047327
OVER L.GR.TB1114Y-NM/DRB198N61/QPE2C15M | In Stock | 19.99 | |
| 211B | 42177882
COMP.COVER/JIAXIPERA/24.01.59 | Low Stock | Contact Us | |
| 212 | 32040619
CAPACITOR 3.5uF/A-S2/6.3/METAL | In Stock | Contact Us | |
| 214 | 42291449
EVAPORATOR TRAY $$$ | In Stock | 4.25 | |
| 215 | 37029499
DRYER(XH9 0.40MM 5.5GR)SINGLE | In Stock | 6.99 | |
| 216 | 37054237
COMPRESSOR BRACKET | Not Available | ||
| 217 | 32047326
COMPR.TB1114Y-NM/3.5UF/DRB198N61/QPE2C15 | In Stock | Contact Us | |
| 218 | 37053889
COMPRESSOR BASE $$$ | Not Available | ||
| 222 | 20865033
VIDA TOPRAK.KABLO/TRT(37023688)FANTOM | Not Available | ||
| 224 | 20828531
VIDA KOM.SAS/1400-425-455(35000728FANTOM | Not Available | ||
| 225 | 37049663
SERVICE TUBE(105*6*0 | On Order | 9.12 | |
| 237 | 42152839
MAINBOARD COVER 2791E/V0 | Low Stock | 5.01 | |
| 400 | 22087525
FIN EVAP GR/2751/SENS | Low Stock | Contact Us | |
| 401 | 37028184
FIN EVAPORATOR/2751 | Low Stock | 77.11 | |
| 408 | 42272582
F MULTIFLOW /2751 | Not Available | ||
| 412-626 | 42179530
FREEZER FAN MOTOR RUBBER 590/SILIKON | Low Stock | 3.99 | |
| 433B | 32027851
SENSOR/STAND./R6K/800MM/DOUBLE ITHAL | Low Stock | 9.99 | |
| 434 | 30014912
SENSOR/STANDARD/R6K/200MM/SINGLE | In Stock | 5.99 | |
| 456 | 32054587
MB/BDA5253H/2761/ATSZ/RDL/R24/V7.1 (CAN USE 32056474) | Not Available | ||
| 459 | 42159331
F DOOR GASKET/2751 I (SW) | In Stock | 14.99 | |
| 460 | 42159310
R DOOR GASKET/2751 I (SW) | In Stock | 14.99 | |
| 471 | 42305747
BOTTOM HINGE RECEIVER/FOOT (RH) | In Stock | 3.99 | |
| 472 | 37028128
BOTTOM HINGE PIN | In Stock | 3.99 | |
| 474 | 42305746
BOTTOM HINGE RECEIVER/FOOT (LH) | In Stock | 3.99 | |
| 476 | 42209616
SS ASM KIT/DD 54 CM RV3 (WITHOUTBRACKET) | In Stock | 9.99 | |
| 477 | 22021982
TOP COVER PANEL | Low Stock | 13.99 | |
| 478 | 42147208
INTEGRATED F/F DECOR DOOR SLIDER $$$ (COMES WITH 42315951) | In Stock | 3.99 | |
| 478B | 42180204
INTEGRATED F/F DECOR DOOR SLIDER COVER $$$ (COMES WITH 42315951) | In Stock | 3.99 | |
| 479 | 42033307
INTEGRATED F/F DECOR DOOR SLIDER GUIDE $$$ (COMES WITH 42315951) | In Stock | 4.99 | |
| 480 | 37001045
COUNTER-SUNK SCREW (17X4MM) $$$ (COMES WITH 42315951) | Not Available | ||
| 481 | 42217911
FURN. SPACE COVER GASKET/3200BI-SS (SW) | In Stock | 5.99 | |
| 482 | 37001157
MIDDLE SS HINGE/2600 ANK. | In Stock | 7.99 | |
| 483 | 37032978
INTEGRATED F/F CENTRE BRACKET $$$ (COMES WITH 42315951) | In Stock | 3.99 | |
| 499 | 32028176
TERMAL FUSE SINGLE | Low Stock | 4.99 | |
| 500 | 42031850
F FAN MOTOR BOX | Low Stock | 7.33 | |
| 510 | 37036052
HINGE MOUNTING SCREW | Not Available | ||
| 533 | 32030657
FIN EVAP HEATER/2751(230V 120 W) | In Stock | 49.99 | |
| 569 | 42157051
FREEZER DRAWER LOWER | In Stock | 3.99 | |
| 735 | 42232575
LED COVER GR /319/BDL3(H)/DIF | Low Stock | Contact Us | |
| 737 | 42217517
LED COVER/319 | In Stock | Contact Us | |
| 738 | 32051998
LED ST/2835 x 6/8 x 129MM/BDL3(H)G | Low Stock | Contact Us | |
| 804 | 37024005
PROPELLER COVER/5661 RV1 | Low Stock | 8.99 | |
| Manufacturer Model Number | GHBI5050UK |
| EAN | 5059340794198 |
| Brand | GoodHome |
| Description | GH BI 5050 FRIDGE FREEZER UK |
