| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

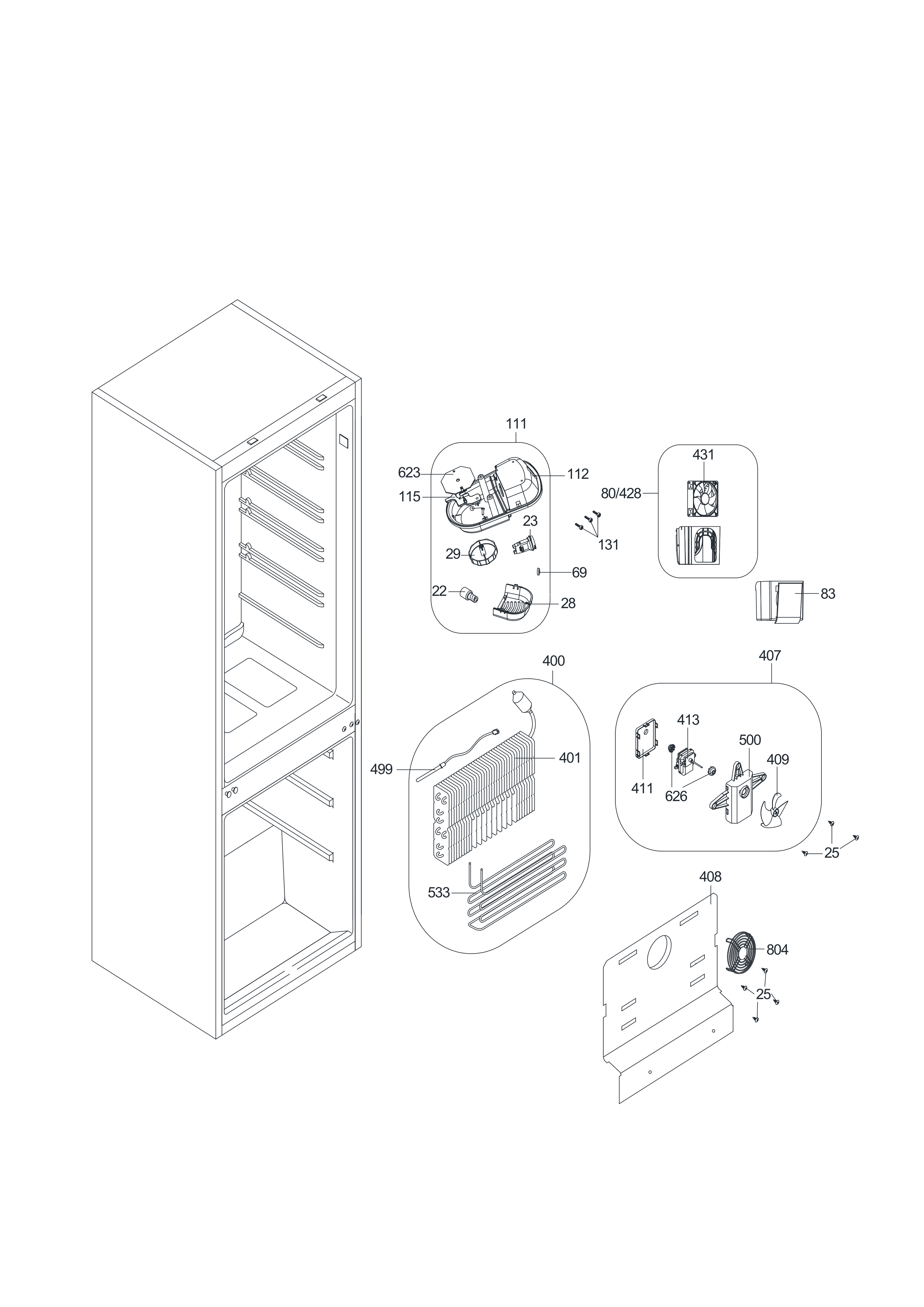

| Drawing 1 | ||||
| 2 | 37028246
BOTTOM/TOP HINGE SS/1400 BUILT HEX PIN | In Stock | 4.99 | |
| 11 | 42290855
DOOR HINGE SCREW CAP (WHITE) | In Stock | 1.00 | |
| 12 | 42032778
SCREW CAP (LARGE) | In Stock | 3.99 | |
| 13 | 32031240
LIGHT SWITCH | In Stock | 12.99 | |
| 14 | 42283234
TUNNEL DRAIN PLUG RCYPP | In Stock | 3.99 | |
| 18 | 42310075
ICE TRAY COMMON SMALL | In Stock | 1.99 | |
| 22 | 32028706
LED LAMP (6500K) | In Stock | 12.99 | |
| 23 | 30007907
LAMP HOLDER | In Stock | 3.99 | |
| 28 | 42201464
LAMP COVER/319 | In Stock | 3.99 | |
| 29 | 42147116
THERMOSTAT KNOB/319(SW432SRGF)LONG | In Stock | 3.99 | |
| 37 | 47014890
R COMPARTMENT GLASS SHELF/2751 | In Stock | 12.99 | |
| 38A | 42153785
R.GLASS SHELF PRF/3951(EXT)WH 442.5 | In Stock | 4.99 | |
| 38B | 42147146
R.GLASS SHELF BACK TRIM/319(S.W) | In Stock | 4.99 | |
| 39 | 47014813
CRISPER GLASS SHELF/2751 (SLIDER) | In Stock | 12.99 | |
| 40-704 | 42298428
CRISPER FLAP GR/2795(432C)HUMC | Not Available | ||
| 41 | 42157049
REFRIGERATOR CRISPER DRAWER | In Stock | 19.99 | |
| 69 | 42033673
THERMOSTAT BOX CAP(S.W) | Low Stock | 7.53 | |
| 80-428 | 32049196
TURBO FAN MOTOR GRUBU-2/3951(NDC) PROD 5102577268 | In Stock | 27.13 | |
| 81 | 42257001
FAN MOTOR HOUSING 453 | Low Stock | 3.99 | |
| 82-431 | 32035094
TUR.FAN MOTOR DC(92*92*25)DFL9025S | In Stock | 16.45 | |
| 83 | 42258566
TURBO FAN COVER/3951COLDAIR FLOW432 | Low Stock | 9.36 | |
| 92 | 42306900
FREEZER DRAWER UPPER/MIDDLE | In Stock | 19.99 | |
| 94 | 42186249
FREEZER PULL-OUT TRAY (WAS 42195560) | Low Stock | 11.99 | |
| 111 | 32053634
LAM.TH.B.GR/2761M/F/(432)SW LDA/RDL | On Order | Contact Us | |
| 112 | 42250829
LAMP.THERM.BOX/319 RV2 | In Stock | 3.99 | |
| 115 | 42211521
THERMOSTAT ASSY.BRACKET RV4 | Low Stock | 3.99 | |
| 132 | 47011757
CIRCULATION FAN VIBRATION DAMPER KIT (QTY-4pcs) | In Stock | 3.99 | |
| 151 | 42004499
DOOR HINGE RECEIVER | In Stock | 3.99 | |
| 153 | 20912762
FREEZER DOOR ASSEMBLY (70/30) | In Stock | 49.99 | |
| 155 | 20912758
REFRIGERATOR DOOR ASSEMBLY (70/30) | In Stock | 49.99 | |
| 159 | 42163485
ACCESSORY - EGG HOLDER | In Stock | 3.99 | |
| 175 | 42161064
REFRIGERATOR DOOR SHELF UPPER/MIDDLE | In Stock | 19.99 | |
| 177 | 42161010
REFRIGERATOR DOOR SHELF BOTTOM | In Stock | 17.49 | |
| 201 | 37029479
SYS - CONDENSER | Low Stock | 29.68 | |
| 207 | 42155463
RUBBER CONDANSER MUTUAL ANTIVIBRASYON | On Order | 3.99 | |
| 209 | 32052088
CAP.SUP.CAB.TB1114YLNM/3.5UFMET/2.5M/UK | On Order | Contact Us | |
| 210 | 32007439
POWER CABLE (2.5M TYPE-G PLUG) | In Stock | 9.99 | |
| 211 | 32047327
OVER L.GR.TB1114Y-NM/DRB198N61/QPE2C15M | In Stock | 19.99 | |
| 211B | 42177882
COMP.COVER/JIAXIPERA/24.01.59 | Low Stock | Contact Us | |
| 212 | 32040619
CAPACITOR 3.5uF/A-S2/6.3/METAL | In Stock | Contact Us | |
| 214 | 42291449
EVAPORATOR TRAY | In Stock | 4.25 | |
| 215 | 37029499
DRYER(XH9 0.40MM 5.5GR)SINGLE | In Stock | 6.99 | |
| 216 | 37047599
COMPRESSOR BRACKET | Not Available | ||
| 217 | 32047326
COMPR.TB1114Y-NM/3.5UF/DRB198N61/QPE2C15 | In Stock | Contact Us | |
| 401 | 37028188
FIN EVAPORATOR/2761 | Low Stock | 39.99 | |
| 408 | 42272579
F MULTIFLOW GR/2761 RADIAL | Low Stock | 34.99 | |
| 431B | 32035962
RADIAL FAN MOTOR EFA0301S3 100MM | In Stock | 11.99 | |
| 433B | 32027851
SENSOR/STAND./R6K/800MM/DOUBLE ITHAL | Low Stock | 9.99 | |
| 459 | 42159333
FREEZER DOOR GASKET 70/30 | In Stock | 15.99 | |
| 460 | 42159332
REFRIGERATOR DOOR GASKET 70/30 | In Stock | 18.99 | |
| 471 | 42305747
BOTTOM HINGE RECEIVER/FOOT (RH) | In Stock | 3.99 | |
| 472 | 37028128
BOTTOM HINGE PIN | In Stock | 3.99 | |
| 474 | 42305746
BOTTOM HINGE RECEIVER/FOOT (LH) | In Stock | 3.99 | |
| 476 | 42209616
SS ASM KIT/DD 54 CM RV3 (WITHOUTBRACKET) | In Stock | 9.99 | |
| 477 | 22021982
TOP COVER PANEL | Low Stock | 13.99 | |
| 478 | 42147208
INTEGRATED F/F DECOR DOOR SLIDER (COMES WITH 42315951) | In Stock | 3.99 | |
| 478B | 42180204
INTEGRATED F/F DECOR DOOR SLIDER COVER $$$ (COMES WITH 42315951) | In Stock | 3.99 | |
| 479 | 42033307
INTEGRATED F/F DECOR DOOR SLIDER GUIDE (COMES WITH 42315951) | In Stock | 4.99 | |
| 481 | 42217911
FURN. SPACE COVER GASKET/3200BI-SS (SW) | In Stock | 5.99 | |
| 482 | 37001157
MIDDLE SS HINGE/2600 ANK. | In Stock | 7.99 | |
| 483 | 37032978
INTEGRATED F/F CENTRE BRACKET (COMES WITH 42315951) | In Stock | 3.99 | |
| 499 | 32029717
TERMAL FUSE SINGLE/NOVA | In Stock | 4.99 | |
| 510 | 37036052
HINGE MOUNTING SCREW | Not Available | ||
| 533 | 32030658
FIN EVAP HEATER/2761(230V 120 W) | In Stock | 19.99 | |
| 569 | 42157051
FREEZER DRAWER LOWER | In Stock | 3.99 | |
| 623 | 32053579
CONTROL PCB - 20BD76 V29.46.81 | Low Stock | 40.99 | |
| 627 | 42137872
THERMOSTAT KNOB PIM PS | In Stock | 3.99 | |
| Manufacturer Model Number | GHBI7030EU |
| EAN | 5059340794334 |
| Brand | GoodHome |
| Description | GH 7030 BI FRIDGE FREEZER EU |
