| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

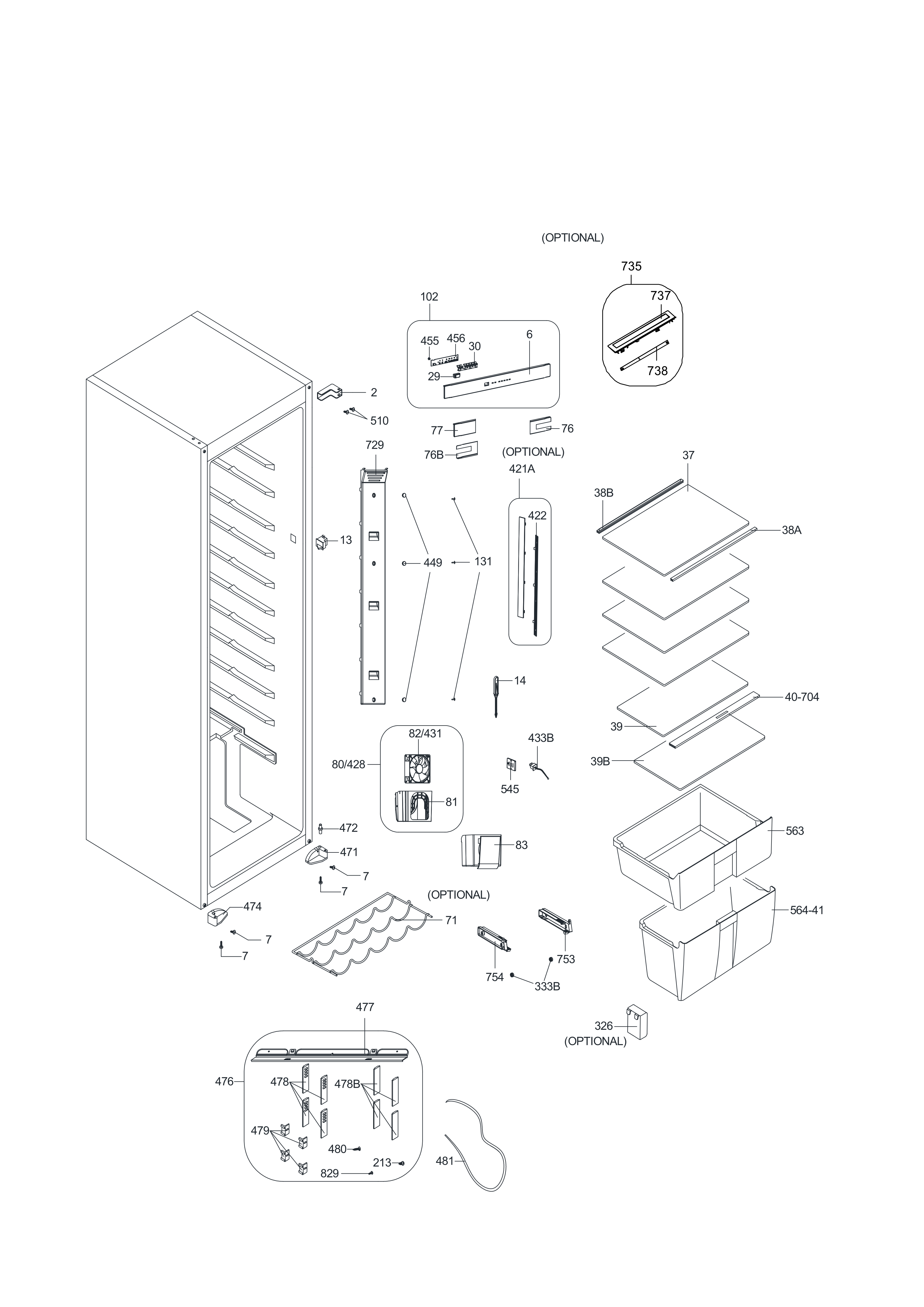

| Drawing 1 | ||||
| 2 | 37028246
BOTTOM/TOP HINGE SS/1400 BUILT HEX PIN | In Stock | 4.99 | |
| 6 | 42171975
HEAD PANEL /2795 (SW)P432C SUPER SR | Not Available | ||
| 11 | 42290855
DOOR HINGE SCREW CAP (WHITE) | In Stock | 1.00 | |
| 13 | 32031240
LIGHT SWITCH | In Stock | 12.99 | |
| 14 | 42283234
TUNNEL DRAIN PLUG RCYPP | In Stock | 3.99 | |
| 29 | 42157903
HEAD PANEL BUTON /2791 (SW) 432SRGF | Low Stock | 5.26 | |
| 30 | 42136560
LIGHT CARRIER 2451 | Low Stock | 5.35 | |
| 37 | 47013799
R COMPARTMENT GLASS SHELF/2795 | In Stock | Contact Us | |
| 38A | 42153785
R.GLASS SHELF PRF/3951(EXT)WH 442.5 | In Stock | 4.99 | |
| 38B | 42147146
R.GLASS SHELF BACK TRIM/319(S.W) | In Stock | 4.99 | |
| 39 | 47014721
TOP COMPARTMENT TOP GLASS SHELF/2795RV1 | In Stock | Contact Us | |
| 39B | 47013800
BOTTOM COMPARTMENT TOP GLASS SHELF/2795 | In Stock | 6.97 | |
| 40-704 | 42351779
GLASS SHELF TRIM W. HUMIDITY CONTROLLER | Low Stock | 6.99 | |
| 76 | 42152836
HEAD PANEL COVER 2791 RIGHT S.W | Low Stock | 5.40 | |
| 76B | 42152837
HEAD PANEL COVER 2791 LEFT S.W | Low Stock | 5.40 | |
| 77 | 42152838
HEAD PANEL COVER 2791 S.W | Low Stock | 5.40 | |
| 80/428 | 32049196
TURBO FAN MOTOR GRUBU-2/3951(NDC) PROD 5102577268 | In Stock | 27.13 | |
| 81 | 42257001
FAN MOTOR HOUSING 453 | Low Stock | 3.99 | |
| 82/431 | 32035094
TUR.FAN MOTOR DC(92*92*25)DFL9025S | In Stock | 16.45 | |
| 83 | 42258566
TURBO FAN COVER/3951COLDAIR FLOW432 | Low Stock | 9.36 | |
| 102 | 32043032
HEAD PAN.GR/2795/E-F/(KAR)432SUPER RV2 | Low Stock | Contact Us | |
| 151 | 42004499
DOOR HINGE RECEIVER | In Stock | 3.99 | |
| 155 | 22339546
DOOR ASSY/2795 ANK S-CAP (S.W.) | Low Stock | Contact Us | |
| 159 | 42163485
ACCESSORY - EGG HOLDER | In Stock | 3.99 | |
| 175 | 42161064
REFRIGERATOR DOOR SHELF UPPER/MIDDLE | In Stock | 19.99 | |
| 177 | 42161010
REFRIGERATOR DOOR SHELF BOTTOM | In Stock | 17.49 | |
| 201 | 37030438
CONDENSER 54CM/34 PASS/4.00*0.5MM(2CS) | Low Stock | Contact Us | |
| 207 | 42155463
RUBBER CONDANSER MUTUAL ANTIVIBRASYON | On Order | 3.99 | |
| 209 | 32052848
CAP.SUP.CAB.MG1050Y 2UF MET 2.5M UK | Low Stock | Contact Us | |
| 210 | 32007439
POWER CABLE (2.5M TYPE-G PLUG) | In Stock | 9.99 | |
| 211 | 32048353
OVER L.GR.MG1050Y/DRB100L61A7/QPS2-C15M | On Order | Contact Us | |
| 211B | 42252535
COMP.COVER/JIAXIPERA24.04.069 RV1 | Not Available | ||
| 212 | 32040615
CAPACITOR 2uF/A-S2/6.3/METAL | Low Stock | Contact Us | |
| 214 | 42329823
EVAPORATION TRAY /243-2791-2795 K | Low Stock | Contact Us | |
| 214 | 42329824
EVAPORATION TRAY GR. /2791-243-2795-FRK | Low Stock | Contact Us | |
| 215 | 37029499
DRYER(XH9 0.40MM 5.5GR)SINGLE | In Stock | 6.99 | |
| 216 | 37054237
COMPRESSOR BRACKET | Not Available | ||
| 217 | 32054795
COMP.MG1050Y/2MF/DRB100L61/QPS2-C15/USB | On Order | Contact Us | |
| 237 | 42152839
MAINBOARD COVER 2791E/V0 | Low Stock | 5.01 | |
| 238A | 32053595
MAINBOARD COVER GR 2751E/V0/BD52/RST NAT | Low Stock | Contact Us | |
| 244 | 32053592
MAIN B./BDA52/2795/NOSW/RST- 23849781 | Low Stock | Contact Us | |
| 333B | 42087619
CRISPER ROLLER/910(NAT) | Low Stock | Contact Us | |
| 419 | 42217517
LED COVER/319 | In Stock | Contact Us | |
| 432 | 47011757
CIRCULATION FAN VIBRATION DAMPER KIT (QTY-4pcs) | In Stock | 3.99 | |
| 433B | 32010909
SENSOR/STANDARD/R6K/70MM/SINGLE | Low Stock | Contact Us | |
| 449 | 42033244
R MULTIFLOW CAP/ 640(S.W.) | On Order | 5.28 | |
| 456 | 32043033
CONTROL/DISPLAY PCB | Low Stock | Contact Us | |
| 460 | 42155754
GASKET 2791-2795 BUILT IN DETACH-I (SW) (ALT 47025239) | Low Stock | Contact Us | |
| 471 | 42305747
BOTTOM HINGE RECEIVER/FOOT (RH) | In Stock | 3.99 | |
| 472 | 37028128
BOTTOM HINGE PIN | In Stock | 3.99 | |
| 474 | 42305746
BOTTOM HINGE RECEIVER/FOOT (LH) | In Stock | 3.99 | |
| 476 | 42180269
SS ASM KIT/DD 54 CM RV2 (WITHOUTBRACKET) | In Stock | Contact Us | |
| 477 | 22021982
TOP COVER PANEL | Low Stock | 13.99 | |
| 478 | 42147208
INTEGRATED F/F DECOR DOOR SLIDER (COMES WITH 42315951) | In Stock | 3.99 | |
| 478B | 42180204
INTEGRATED F/F DECOR DOOR SLIDER COVER (COMES WITH 42315951) | In Stock | 3.99 | |
| 479 | 42033307
INTEGRATED F/F DECOR DOOR SLIDER GUIDE (COMES WITH 42315951) | In Stock | 4.99 | |
| 481 | 42217911
FURN. SPACE COVER GASKET/3200BI-SS (SW) | In Stock | 5.99 | |
| 545 | 42345221
SENSOR COVER/566(S.W.)RV1 | Low Stock | Contact Us | |
| 563 | 42157055
TOP CRISPER GR/2795(TRANS-GRAY) | On Order | Contact Us | |
| 564 | 42157052
BOTTOM CRISPER GR/2795(TRANS-GRAY) | On Order | Contact Us | |
| 729 | 42121311
MULTIFLOW COVER NF/3951 SNOW | Low Stock | Contact Us | |
| 735 | 42217561
LED COVER GR/319/BDL3(I)/DIF | In Stock | Contact Us | |
| 738 | 32034650
LED ST/2835*6/8*129MM/BDL3 (I) | Low Stock | 12.49 | |
| 753 | 42325843
CHILLER RAIL RIGHT/473 RV3 | Low Stock | Contact Us | |
| 754 | 42325844
CHILLER RAIL LEFT/473 RV3 | On Order | Contact Us | |
| Manufacturer Model Number | GHBITFRUK |
| EAN | 5059340794549 |
| Brand | GoodHome |
| Description | GH BI TALL FRIDGE UK |
