GoodHome GHBITFZUK BUILT IN TALL FREEZER 177CM

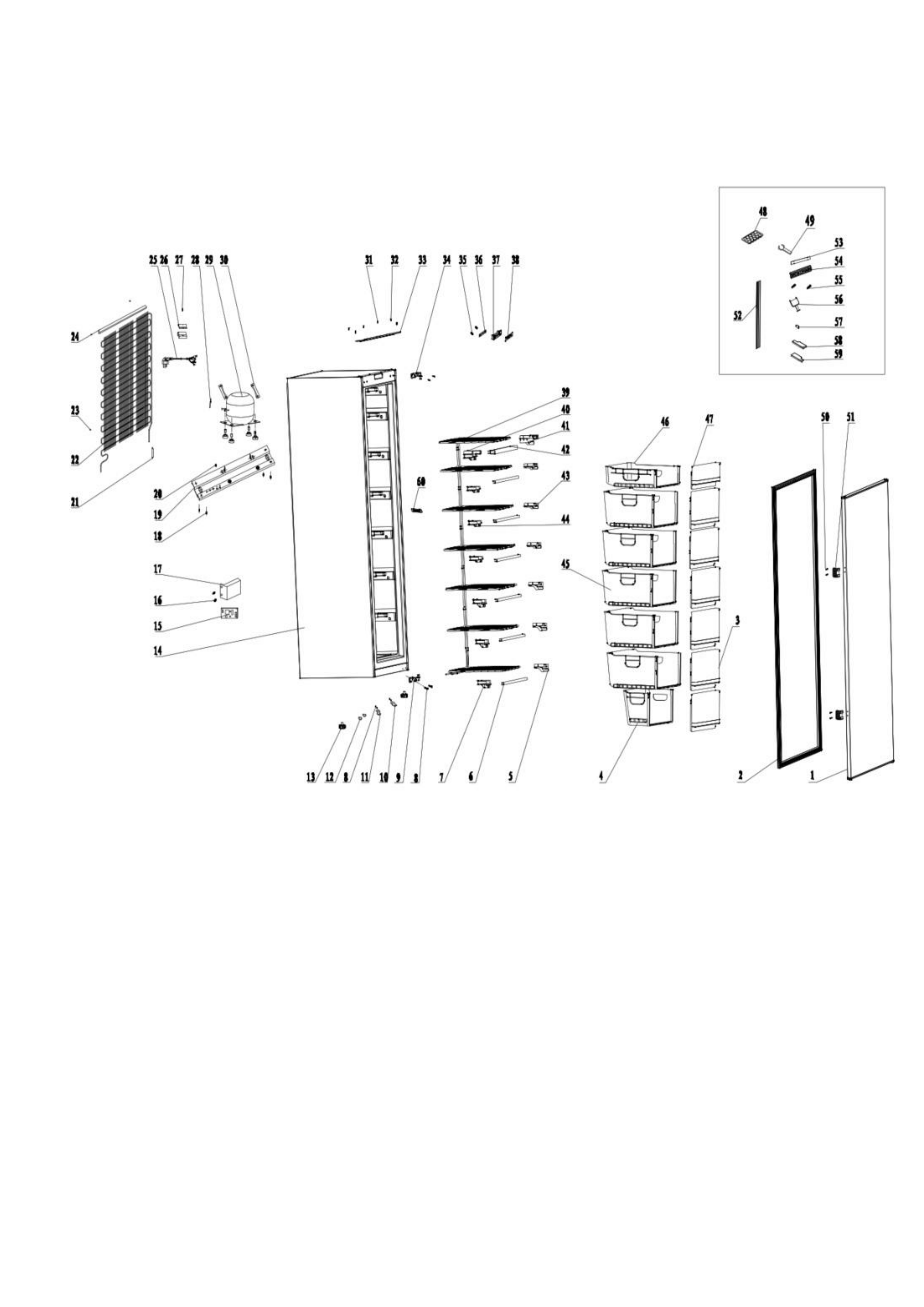

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 2.01.R0TQ02-362
FOAMED DOOR | Low Stock | 79.99 | |
| 2 | 2.25.100102-111
DOOR GASKET | In Stock | 14.99 | |
| 3 |
LOWER/MIDDLE DRAWER FRONT (W/O SERIGRAPHY) | In Stock | 14.99 | |
| 4 |
LOWER DRAWER | In Stock | 14.99 | |
| 5 |
RIGHT STOPPER CLIP | Low Stock | 6.99 | |
| 6 |
FREEZER EVAPORATOR FRONT LINER | Low Stock | 3.99 | |
| 7 |
LEFT STOPPER CLIP | Low Stock | 6.99 | |
| 8 |
FLANGE SCREW | In Stock | 3.99 | |
| 9 |
LOWER HINGE | In Stock | 6.99 | |
| 12 |
SCREW HOLE PLUG | Not Available | ||
| 13 |
ADJUSTABLE FEET | In Stock | 6.99 | |
| 15 |
POWER BOARD | On Order | 29.99 | |
| 21 |
DRIER FILTER | In Stock | 9.99 | |
| 29 |
COMPRESSOR | In Stock | 97.99 | |
| 29-A |
COMPRESSOR STARTER | Low Stock | 9.99 | |
| 29-B |
COMPRESSOR PROTECTOR | Low Stock | 9.99 | |
| 33 | 2.24.0710602-02
UPPER HINGE PLATE | In Stock | 6.99 | |
| 34 |
UPPER HINGE | In Stock | 6.99 | |
| 36 |
DISPLAY BOARD | Low Stock | 9.99 | |
| 37 |
DISPLAY BOARD COVER | Not Available | ||
| 38 |
DISPLAY FLIM FOR USER INTERFACE | On Order | 9.99 | |
| 40 |
LEFT STOPPER | Low Stock | 3.99 | |
| 41 |
RIGHT STOPPER | Low Stock | 3.99 | |
| 42 |
FREEZER EVAPORATOR FRONT LINER | Low Stock | 3.99 | |
| 43 |
RIGHT STOPPER | Low Stock | 3.99 | |
| 44 |
LEFT STOPPER | Low Stock | 3.99 | |
| 45 |
MIDDLE DRAWER | Low Stock | 14.99 | |
| 46 |
TOP DRAWER | Low Stock | 14.99 | |
| 47 |
TOP DRAWER FRONT | Low Stock | 12.99 | |
| 48 |
ICE TRAY | Not Available | ||
| 51 |
SLIDER BASE | In Stock | 5.99 | |
| 52 | 2.25.500502-116
DEFROST BOARD | In Stock | 11.99 | |
| 53 |
SLIDER SCREW CAP | In Stock | 2.99 | |
| 54 |
SLIDER | In Stock | 3.99 | |
| 56 |
LOWER FIXING PART COVER | Low Stock | 4.99 | |
| 57 |
HINGE HOLE COVER | Low Stock | 4.99 | |
| 58 |
UPPER HINGE COVER | In Stock | 4.99 | |
| 59 |
LOWER HINGE COVER | Low Stock | 4.99 | |
| Manufacturer Model Number | GHBITFZUK |
| EAN | 5059340169521 |
| Brand | GoodHome |
| Description | BUILT IN TALL FREEZER 177CM |
