GoodHome GHBUFREUA GH BUILT UNDER FRIDGE EU

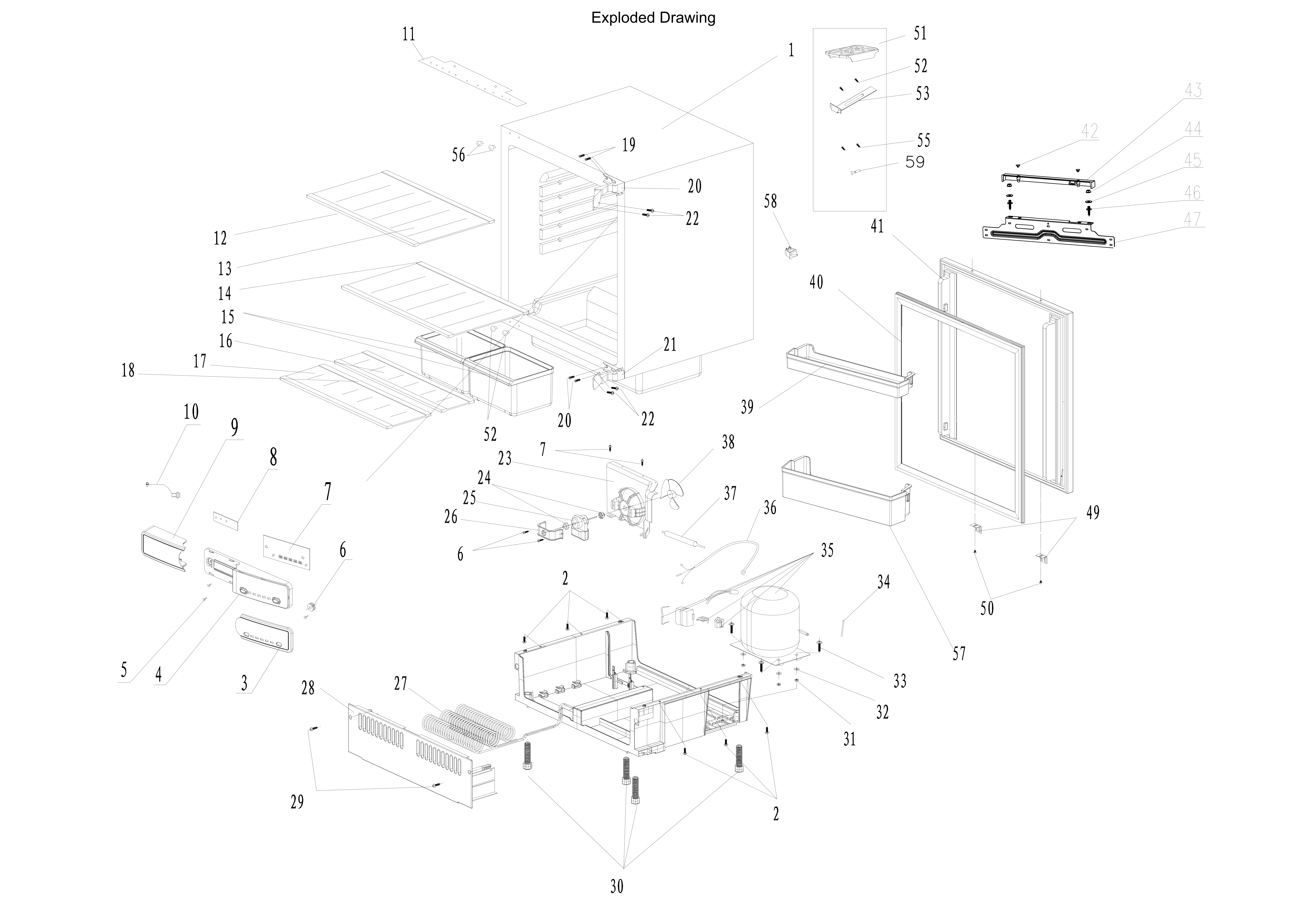

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 2.00.TQ020153-W
FOAMED CABINET | Not Available | ||
| 3 | 1.06.TQ4474-324
TEMPERATURE CONTROL BOX COVER (USE AA0000002844) | In Stock | 3.99 | |
| 4 | 1.06.TQ4472-324
CONTROL/DISPLAY HOUSING | In Stock | 3.99 | |
| 6 | 1.06.TQ5570-113
FIXING BASE (WAS 106TQ5570113) | Not Available | ||
| 7 | 1.27.01D2XX-324
MAIN CONTROL BOARD | Low Stock | Contact Us | |
| 8 | 1.30.3D360X-302
LED LAMP PCB | In Stock | 4.99 | |
| 9 | 1.06.TQ4470-324
LAMP COVER | Not Available | ||
| 11 | 2.24.1410102-01
TOP FIXIATION PANEL | In Stock | 8.99 | |
| 12 | 1.06.TQ197I-101
SHELF FRONT LINER | In Stock | Contact Us | |
| 13 | 1.42.13TQ39-325
SHELF GLASS (WAS AA0000002831) | In Stock | Contact Us | |
| 14 | 1.06.TQ1977-101
SHELF BACK LINER | Not Available | ||
| 15 | 1.06.TQ2370-101
CRISPER | In Stock | 20.99 | |
| 16 | 1.42.35TQ39-101
CRISPER COVER A | In Stock | 13.99 | |
| 17 | 1.42.36TQ39-101
CRISPER COVER B | In Stock | 13.99 | |
| 18 | 1.06.TQ1977-101
SHELF BACK LINER | Not Available | ||
| 20 | 1.11.01101TQ-08
HIGH GEMEL | Low Stock | 17.49 | |
| 21 | 1.11.03101TQ-11
LOWER GEMEL | Not Available | ||
| 23 | 1.06.TQ9J70-101
FAN COVER (WAS 106TQ9J70101) | In Stock | 13.99 | |
| 25 | 1.33.DTQ431-100
FAN MOTOR (WAS 133DTQ431100) | In Stock | 22.99 | |
| 26 | 1.11.61TQ027-01
WIND RACK (WAS 11161TQ02701) | In Stock | 6.99 | |
| 27 | 2.20.A0TQ01-101
CONDENSER | Low Stock | Contact Us | |
| 28 | 1.06.TQ9K70-323
VALANCE COVER | Not Available | ||
| 30 | 1.06.TQ2121-101
ADJUSTABLE FEET (WAS 106TQ2121101) | In Stock | 5.99 | |
| 32 | 1.14.Z06000-006
SCREW NUT (WAS 114Z06000006) | Not Available | ||
| 35 | 1.10.12133E-GXX
COMPRESSOR | Low Stock | Contact Us | |
| 36 | 1.28.DD2824-101
POWER LINE | Low Stock | 9.99 | |
| 37 | 1.46.0400TQ-014
DRYER ASSEMBLY (WAS 26000100) | In Stock | 28.99 | |
| 38 | 1.06.TQ7511-027
WIND LEAF (WAS 106TQ7511027) | In Stock | 10.99 | |
| 39 | 1.06.TQ0671-324
DOOR - SHELF - UPPER | Low Stock | 14.99 | |
| 40 | 2.25.100102-101
DOOR - GASKET (WAS 607026750) | In Stock | 14.99 | |
| 41 | 2.01.R6TQ02-325
FOAMED DOOR (WAS AA0000002837) | In Stock | 49.99 | |
| 42 | 1.06.TQ9371-105
BUSHING HOLE COVER | Low Stock | 1.99 | |
| 43 | 1.06.TQ4975-439
DECORATIVE COVER | Low Stock | 4.99 | |
| 45 | 1.14.A08500-00F
GASKET | In Stock | 3.99 | |
| 46 | 1.13.Z600XX-105
ADJUST THE BOLTS | In Stock | 3.99 | |
| 47 | 2.24.0915802-04
ADJUSTABLE HORIZONTAL PLATE (2022 MODEL) | In Stock | 9.99 | |
| 49 | 1.11.75101TQ-02
FIXED BLOCK | In Stock | 8.99 | |
| 51 | 1.06.TQ0421-034
EGG TRAY | In Stock | 3.99 | |
| 53 | 1.11.82105TQ-05
CONNECTING PIN (WAS 11182105TQ05) | In Stock | 4.99 | |
| 57 | 1.06.TQ0870-324
DOOR - SHELF - LOWER | In Stock | 14.99 | |
| 58 | 1.29.11X101-000
LIGHT SWITCH | In Stock | 3.99 | |
| 59 | 1.06.TQ3210-101
HINGED COVER | Low Stock | 3.99 | |
| 13150 | 1.28.BD2C24-101
POWER LINE | Low Stock | 9.99 | |
| Manufacturer Model Number | GHBUFREUA |
| EAN | 5059340794396 |
| Brand | GoodHome |
| Description | GH BUILT UNDER FRIDGE EU |
| Awaiting Information |
