GoodHome GHBUFRUKA GH BUILT UNDER FRIDGE UK

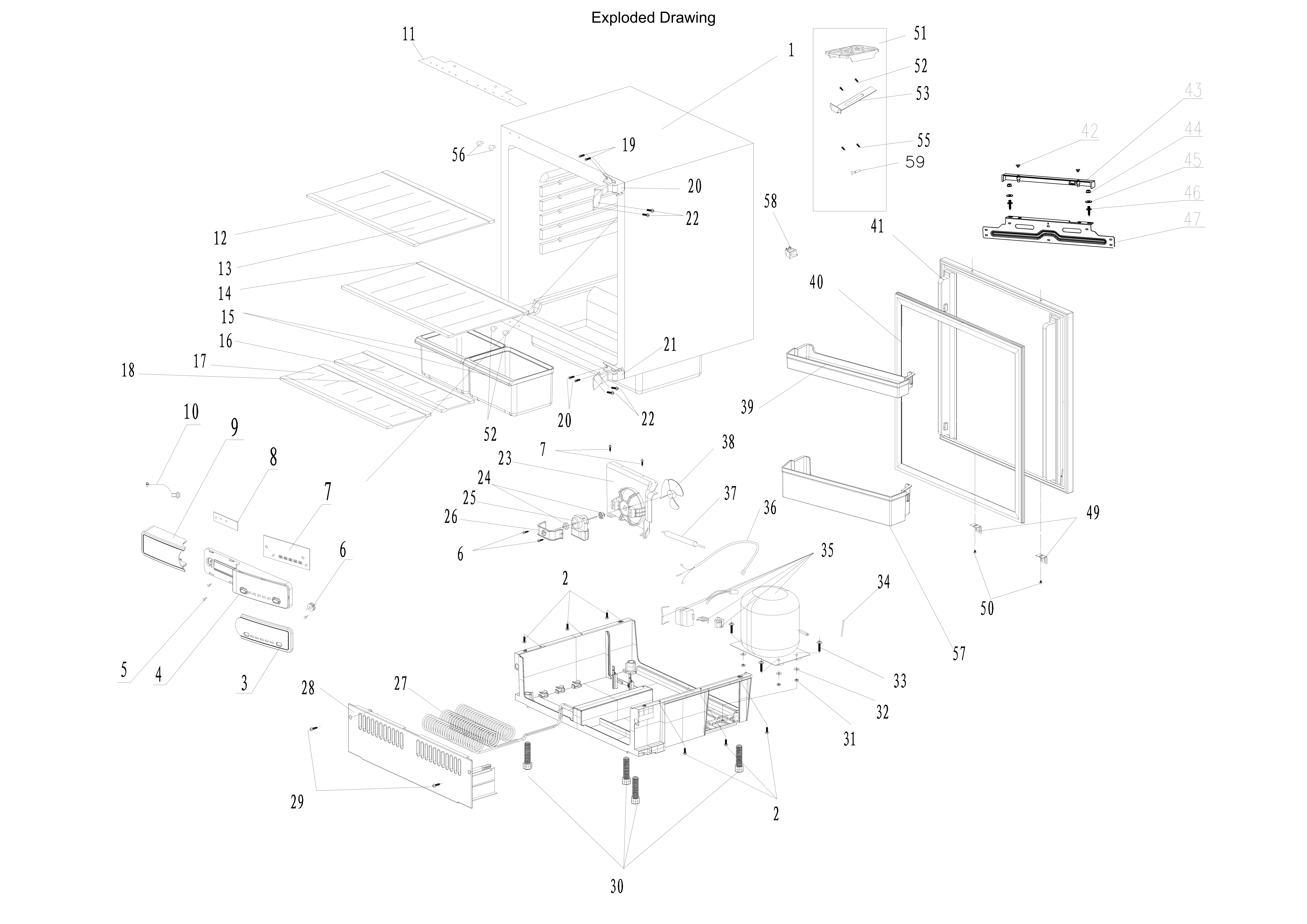

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 2.00.TQ020153-W
FOAMED CABINET | Not Available | ||
| 2 | 1.12.B48160-AB4
SELF TAPPING SCREW | Not Available | ||
| 3 | 1.06.TQ4474-324
TEMPERATURE CONTROL BOX COVER | In Stock | 3.99 | |
| 4 | 1.06.TQ4472-324
THERMOSTAT BOX | In Stock | 3.99 | |
| 5 | 1.12.B39160-AB7
SELF TAPPING SCREW | Not Available | ||
| 6 | 1.06.TQ5570-113
FIXING BASE | Not Available | ||
| 7 | 1.27.01D2XX-324
MAIN CONTROL BOARD | Low Stock | Contact Us | |
| 8 | 1.30.3D360X-302
LED LAMP | In Stock | 4.99 | |
| 9 | 1.06.TQ4470-324
LAMP COVER | On Order | 3.99 | |
| 10 | 2.32.DTQ102-325
CONNECTING | Not Available | ||
| 11 | 2.24.1410102-01
TOP FIXIATION PANEL | In Stock | 8.99 | |
| 12 | 1.06.TQ197I-101
SHELF FRONT LINER | In Stock | Contact Us | |
| 13 | 1.42.13TQ39-325
SHELF GLASS | In Stock | Contact Us | |
| 14 | 1.06.TQ1977-101
SHELF BACK LINER | In Stock | 3.99 | |
| 15 | 1.06.TQ2370-101
CRISPER | In Stock | 20.99 | |
| 16 | 1.42.35TQ39-101
CRISPER COVER A | In Stock | 13.99 | |
| 17 | 1.42.36TQ39-101
CRISPER COVER B | In Stock | 13.99 | |
| 18 | 1.06.TQ1977-101
SHELF BACK LINER | In Stock | 3.99 | |
| 19 | 1.12.M50130-AB4
DORMANT BOLT | Not Available | ||
| 20 | 1.11.01101TQ-08
HIGH GEMEL | Low Stock | 17.49 | |
| 21 | 1.11.03101TQ-11
LOWER GEMEL | Not Available | ||
| 22 | 1.13.M05016-104
SCREW | Not Available | ||
| 23 | 1.06.TQ9J70-101
WIND COWLING | In Stock | 13.99 | |
| 24 | 1.38.04PF027-01
AIR BLOWER CRASH PAD | In Stock | 6.99 | |
| 25 | 1.33.DTQ431-100
FAN MOTOR | In Stock | 22.99 | |
| 26 | 1.11.61TQ027-01
WIND RACK | In Stock | 6.99 | |
| 27 | 2.20.A0TQ01-101
CONDENSER | Low Stock | Contact Us | |
| 28 | 1.06.TQ9K70-323
FIRST GUARD SHIELD | Not Available | ||
| 29 | 1.12.B48250-AB4
SELF TAPPING SCREW | Not Available | ||
| 30 | 1.06.TQ2121-101
ADJUSTABLE FOOTING | In Stock | 5.99 | |
| 33 | 1.13.G60280-104
FLANGE SCREW | Not Available | ||
| 34 | 2.20.B3TQ00-000
CHARGING PIPE | Not Available | ||
| 35 | 1.10.12133E-GXX
COMPRESSOR | Low Stock | Contact Us | |
| 36 | 1.28.DD2824-101
POWER LINE | Low Stock | 9.99 | |
| 37 | 1.46.0400TQ-014
DRYER ASSEMBLY | In Stock | 28.99 | |
| 38 | 1.06.TQ7511-027
WIND LEAF | In Stock | 10.99 | |
| 39 | 1.06.TQ0671-324
UP PUTS THE FRAME | Low Stock | 14.99 | |
| 40 | 2.25.100102-101
GATE SEAL | In Stock | 14.99 | |
| 41 | 2.01.R6TQ02-325
FOAMED DOOR | In Stock | 49.99 | |
| 42 | 1.06.TQ9371-105
SHAFT SLEEVE HOLE COVER | Low Stock | 1.99 | |
| 43 | 1.06.TQ4975-439
DECORATIVE COVER | On Order | 4.99 | |
| 45 | 1.14.A08500-00F
PAD | In Stock | 3.99 | |
| 46 | 1.13.Z600XX-105
ADJUSTING BOLT | In Stock | 3.99 | |
| 47 | 2.24.0915802-04
ADJUSTING THE HORIZONTAL PLATE | Not Available | ||
| 49 | 1.11.75101TQ-02
FIXED BLOCK | In Stock | 8.99 | |
| 50 | 1.13.M60080-104
FLANGE SCREW | Not Available | ||
| 51 | 1.06.TQ0421-034
EGG SHELF | In Stock | 3.99 | |
| 52 | 1.13.M50130-104
FLANGE SCREW | In Stock | 3.99 | |
| 53 | 1.11.82105TQ-05
CONNECTING PIN | In Stock | 4.99 | |
| 55 | 1.12.M39120-MS4
SELF TAPPING SCREW | Not Available | ||
| 56 | 1.06.TQ2620-142
SCREW HOLE PLUG | In Stock | 3.99 | |
| 57 | 1.06.TQ0870-324
PUTS THE FRAME | In Stock | 14.99 | |
| 58 | 1.29.11X101-000
DOOR SWITCH | In Stock | 3.99 | |
| 59 | 1.06.TQ3210-101
HINGE COVER | Low Stock | 3.99 | |
| 13150 | 1.28.BD2C24-101
POWER LINE | Low Stock | 9.99 | |
| Manufacturer Model Number | GHBUFRUKA |
| EAN | 5059340794129 |
| Brand | GoodHome |
| Description | GH BUILT UNDER FRIDGE UK |
