GoodHome GHIHAC80A BAMIA 80CM FREEZONE INDUCTION HOB WITH RF

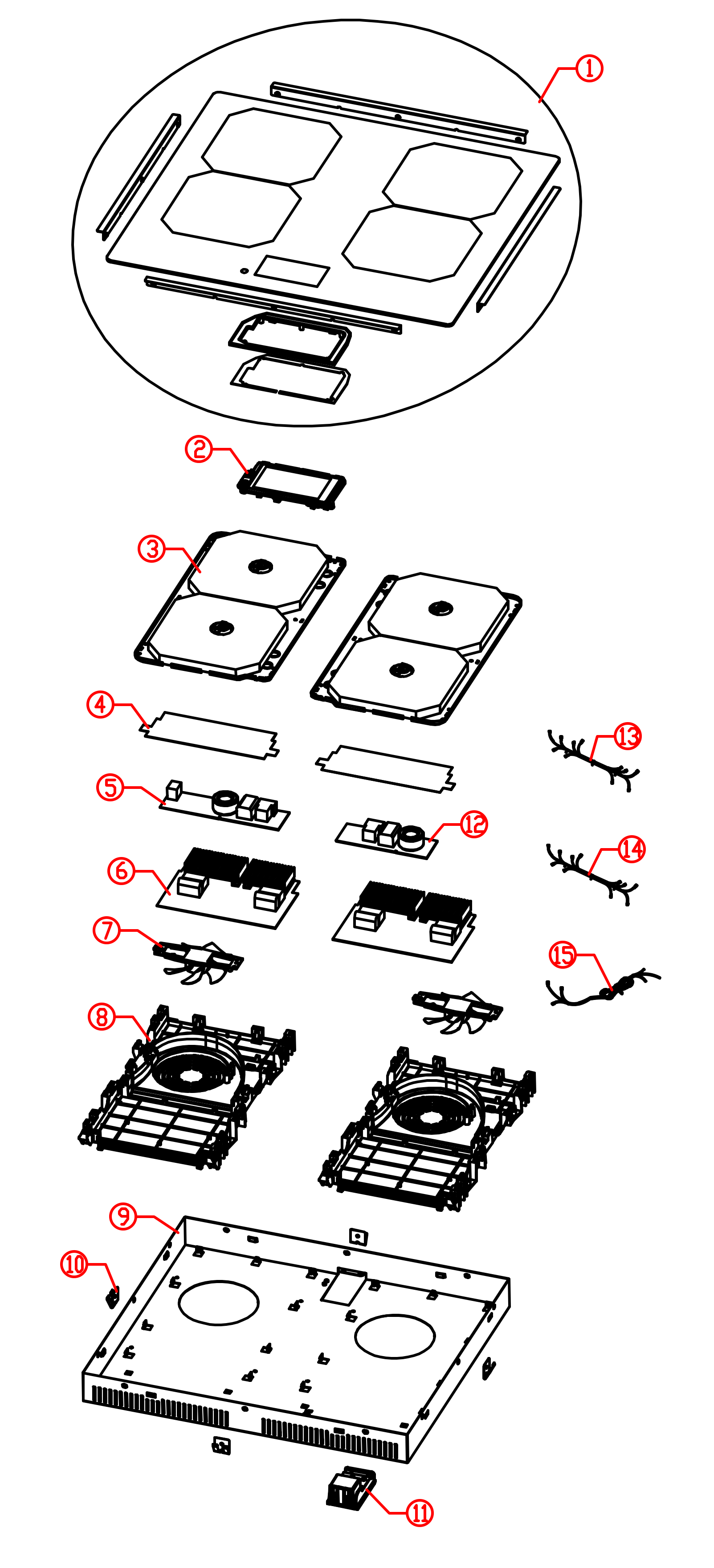

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 2.02.01.03.0165
80CM NEG GLASS | In Stock | 210.99 | |
| 2 |
GHIHAC80A TFT MODULE (KFU)EH | In Stock | 199.99 | |
| 4 |
MICA PLATE | In Stock | 5.99 | |
| 5 |
MAIN POWER BOARD (KFU)EH | In Stock | 19.99 | |
| 6 |
MAIN BOARD | In Stock | 44.99 | |
| 7 |
COOLING FAN (WAS K1.02.50-2300RDC15-00) | In Stock | 14.99 | |
| 8 |
FAN SHROUD | Not Available | ||
| 9 |
MATEL BASE | Not Available | ||
| 10 |
INSTALLATION CLIP (WAS AA0000001195) | In Stock | 2.99 | |
| 11 |
CONNECTION BOX | In Stock | 7.99 | |
| 12 |
M4 FLANGE NUT | Not Available | ||
| 13 |
SUPPORTING COLUMN | In Stock | 3.99 | |
| 14 |
?160COIL ASSEMBLY(COIL) | In Stock | 18.99 | |
| 15 |
COIL TEMPERATURE SENSOR ASSEMBLY (WAS K5.78-345IT3390-00) | In Stock | 12.99 | |
| 16 |
COMBINATION SCREW | Not Available | ||
| 17 |
MAIN BOARD (RIGHT) (KFU)EH | In Stock | 39.99 | |
| 18 |
POWER BOARD (SIDE) (CAN USE AA0000000747 OR 1.05.01.01.0016) | In Stock | 49.99 | |
| 19 | 2.02.01.04.0005
280COIL ASSEMBLY(COIL)+ ALUMINIUM PLATE | In Stock | 29.99 | |
| 20 |
COIL TEMPERATURE SENSOR ASSEMBLY | In Stock | 4.99 | |
| 21 | 2.02.01.02.0025
SIGNAL LINE SET | In Stock | 5.99 | |
| 22 | 2.02.01.02.0026
INTERNAL WIRING SET | In Stock | 59.99 | |
| 23 |
POWER CABLE | In Stock | 11.99 | |
| Manufacturer Model Number | GHIHAC80A |
| EAN | 5059340374550 |
| Brand | GoodHome |
| Description | BAMIA 80CM FREEZONE INDUCTION HOB WITH RF |
