GoodHome GHMTC72BL 72L ELECTRIC OVEN

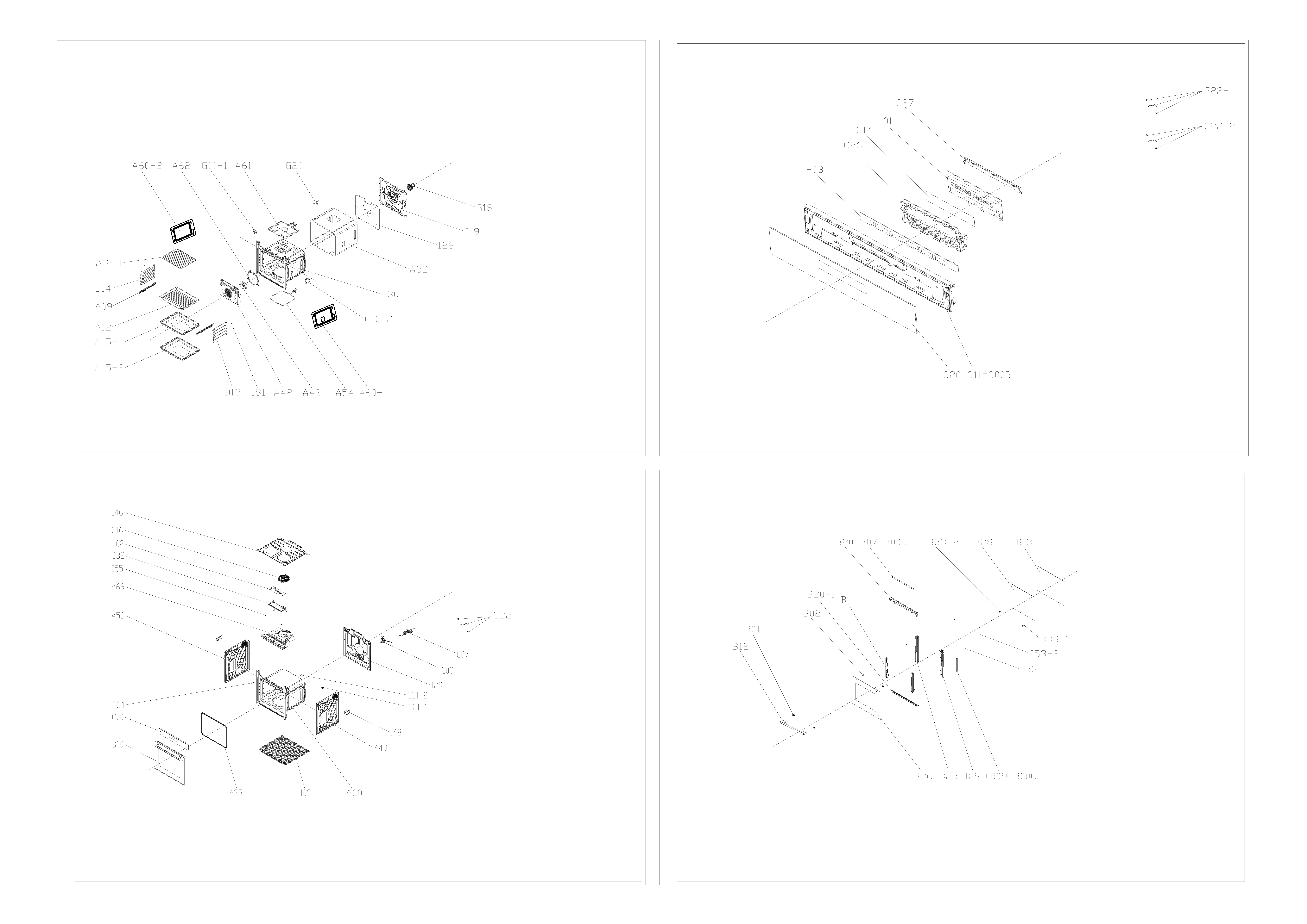

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| A09 | 12971100A64262
SLIDER SET (LH AND RH) | In Stock | 34.99 | |
| A12 | 12970000003211
RACK | In Stock | 22.99 | |
| A12-1 | 12971100A60914
BAKE RACK | In Stock | 14.99 | |
| A15-1 | 12271100A24917
GRILL TRAY | In Stock | 22.99 | |
| A30 | 12971100017122
CAVITY | Not Available | ||
| A32 | 12471100000582
CAVITY INSULATION | Low Stock | 49.99 | |
| A35 | 12671100000954
CAVITY SEALING RING | In Stock | 12.49 | |
| A42 | 12271100008325
CONVECTION MOTOR COVER | Low Stock | 14.99 | |
| A43 | 12971100001067
COVECTION FAN BLADE (CAN USE 25104805) | In Stock | 9.99 | |
| A49 | 12271100009827
ENCLOSER(RIGHT) | Low Stock | Contact Us | |
| A50 | 12271100009828
ENCLOSER(LEFT) | Low Stock | Contact Us | |
| A54 | 17471100003115
ELEMENT - LOWER (CAN USE 25117415) | In Stock | 24.99 | |
| A60-1 | 12271100010525
AUTOMATIC CLEAN FENDER (RIGHT) | Not Available | ||
| A60-2 | 12271100A19564
AUTOMATIC CLEAN FENDER (LEFT) | In Stock | 24.99 | |
| A61 | 17471100003113
ELEMENT - UPPER/GRILL (CAN USE 25117420) | In Stock | 26.99 | |
| A62 | 17471100002874
ELEMENT - REAR (CAN USE 25117425) | In Stock | 19.99 | |
| A69 | 12971100017065
VENTILATION COVER INLET ASS'Y | Not Available | ||
| B00 | GHMTC72BLXDR
DOOR ASS'Y | In Stock | Contact Us | |
| B01 | 12671100000013
DOOR HANDLE CUSHION | In Stock | 3.99 | |
| B02 | 12171100000172
HANDLE SUPPORT | In Stock | 4.99 | |
| B07-B20 | 12171100003174
DOOR FRAME UPPER COVER AND DECORATION | Not Available | ||
| B11 | 12971100016218
DOOR HINGE ASS'Y | In Stock | 29.99 | |
| B12 | 12971100020817
DOOR HANDLE | In Stock | 19.99 | |
| B13 | 12571100001694
DOOR INNER GLASS | Low Stock | 9.99 | |
| B20-1 | 12971100018417
DOOR FRAME DOWN COVER | Low Stock | Contact Us | |
| B28 | 12571100A13083
DOOR MIDDLE GLASS | In Stock | 39.99 | |
| B33-1 | 12671100001435
LOWER GLASS BRACKET (RIGHT) | Not Available | ||
| C00 | GHMTC72BLXCP
CONTROL PANEL ASS'Y | Low Stock | Contact Us | |
| C11-C20 | 12971100A85542
CONTROL PANEL HOLDER AND GLASS | Low Stock | Contact Us | |
| C14 | 12171100003140
FILM OF CONTROL PANEL | In Stock | 6.99 | |
| C26 | 12171100003137
DISPLAY BRACKET | Not Available | ||
| C27 | 12171100003281
DISPLAY SCREEN COVER | In Stock | Contact Us | |
| D13 | 12971100A70414
RAIL BRACKET(RIGHT) | In Stock | 18.99 | |
| D14 | 12971100A70413
RAIL BRACKET(LEFT) | In Stock | 18.99 | |
| G07 | 17471100000137
POWER CORD (CAN USE 291200500080) | In Stock | 9.99 | |
| G09 | 17471100004383
TEMINAL BLOCK | In Stock | 7.99 | |
| G10-1 | 17471100002113
LAMP ASSEMBLY COMPLETE | In Stock | 17.99 | |
| G10-2 | 17471100003480
LAMP (RIGHT) | In Stock | 9.99 | |
| G16 | 17471100002653
COOLING FAN MOTOR (CAN USE 26000465) | In Stock | 24.99 | |
| G18 | 17471100002673
REAR FAN MOTOR (CONVECTION MOTOR) | In Stock | 24.99 | |
| G20 | 17171100001662
TEMPERATURE SENSOR | In Stock | 9.99 | |
| G21-1 | 17471100002433
THERMOSTAT 250 DEGC (NON RESET) | In Stock | 4.99 | |
| G21-2 | 17471100002796
THERMOSTAT 250? (CAN USE 62101490) | In Stock | 29.99 | |
| G22 | 17471100006246
WIRING HARNESS | Low Stock | 34.99 | |
| G22-1 | 17171100001864
WIRE ASS'Y (BUTTING CONNECTOR 6P) | In Stock | 6.99 | |
| G22-2 | 17171100001660
WIRE ASS'Y (BUTTING CONNECTOR 5P) | In Stock | 12.99 | |
| H01 | 17171100004665
DISPLAY BOARD | Low Stock | 49.99 | |
| H02 | 17171100001580
POWER BOARD | In Stock | 44.99 | |
| H03 | 17171100001533
KEY-PRESS BOARD | In Stock | 34.99 | |
| I01 | 12971100016718
FASTENER ASSEMBLY | On Order | 4.99 | |
| I09 | 12271100010105
FOLLOWING ENCLOSER | Not Available | ||
| I19 | 12271100009305
INSULATION COVER | Not Available | ||
| I26 | 12471100000502
BACK INSULATION | Not Available | ||
| I29 | 12271100010585
BACK COVER | Not Available | ||
| I46 | 12271100009368
TOP COVER | Not Available | ||
| I48 | 12171100000295
HANDLE BOX | Not Available | ||
| I53-1 | 12671100000096
RUBBER GASKET | In Stock | 3.99 | |
| I81 | 12971100010981
CLIP FOR HANGER (CAN USE 55001400) | In Stock | 3.99 | |
| B09-24-b25-26 | 12971100A85543
DOOR OUTER GLASS AND BRACKETS | Low Stock | Contact Us | |
| Manufacturer Model Number | GHMTC72BL |
| EAN | 5059340702957 |
| Brand | GoodHome |
| Description | 72L ELECTRIC OVEN |
