| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

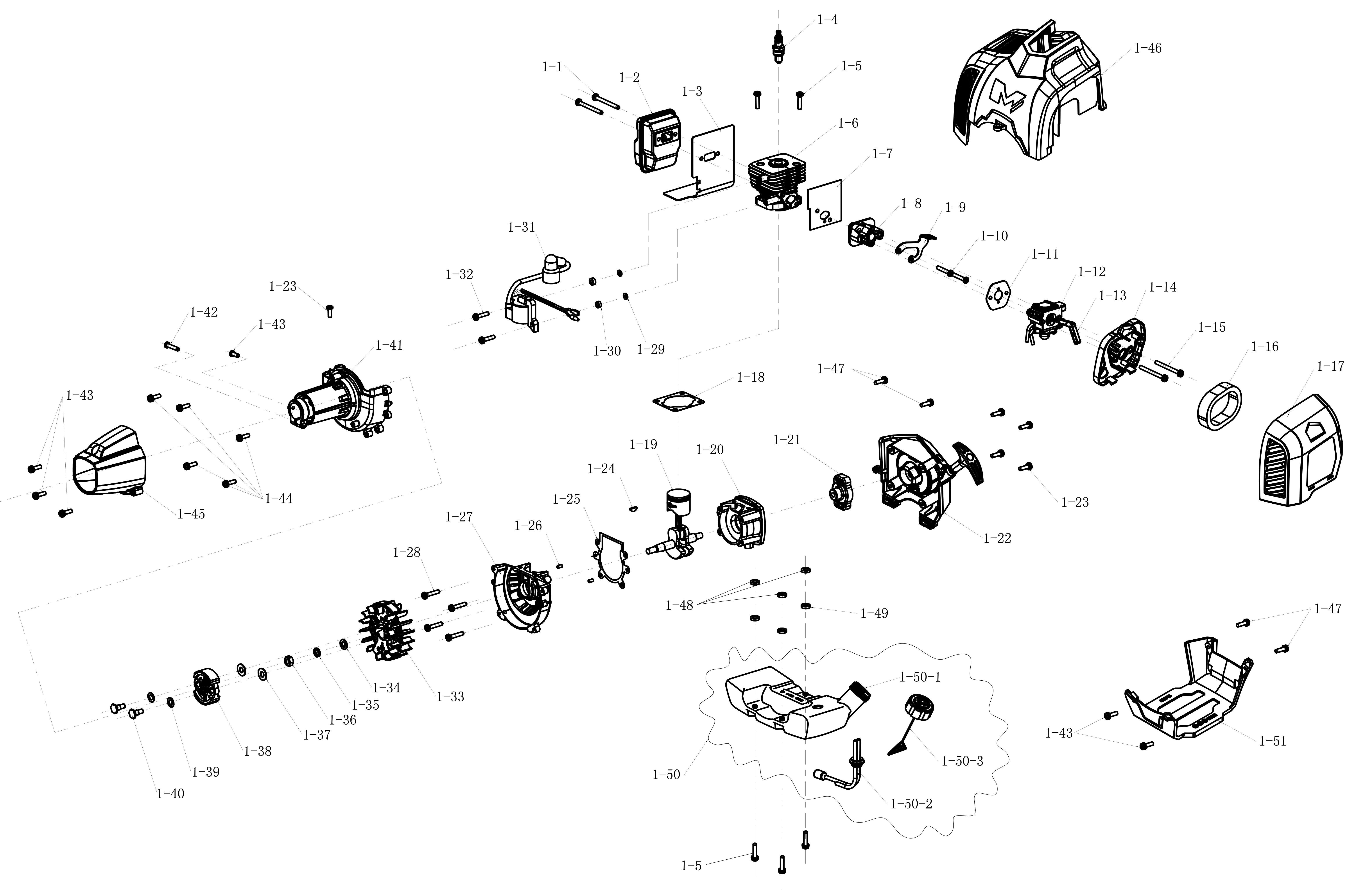

| Drawing 1 | ||||
| 1-1 | 600114031
BOLT M5X56 $$$ | In Stock | 3.99 | |
| 1-2 | 970054
MUFFLER | Not Available | ||
| 1-3 | PG30600100
EXHAUST GASKET | Not Available | ||
| 1-4 | RCJ6Y
SPARK PLUG - CHAMPION RCJ6Y | In Stock | 12.99 | |
| 1-5 | 600112060
SCREW - M5X23 $$$ | In Stock | 3.99 | |
| 1-6 | PG30400000
SL34 CYLINDER | In Stock | 17.49 | |
| 1-7 | PG30600000
CARBURETTOR GASKET | Not Available | ||
| 1-8 | PG30000200
CARBURETTOR SEAT | On Order | Contact Us | |
| 1-9 | PG30500000
SUPPORT PLATE | Not Available | ||
| 1-10 | P820700000
SCREW - M5X28 (WALBRO CARBURETTOR PRODUCTS) | On Order | Contact Us | |
| 1-11 | PG10600100
CARBURETTOR GASKET | On Order | 4.99 | |
| 1-12 | PG10000200
CARBURETTOR - WALBRO (CAN USE PG80000000) | In Stock | 34.99 | |
| 1-13 | PG40201603
CHOKE LEVER (MAC) | Low Stock | 4.99 | |
| 1-14 | PG30000301
AIR FILTER SEAT | Not Available | ||
| 1-15 | P710701600
SCREW - M5X50 | In Stock | 3.99 | |
| 1-16 | 915002
CONSUMABLE - AIR FILTER SPONGE | In Stock | 9.99 | |
| 1-17 | PG30200201
AIR FILTER COVER | On Order | 4.99 | |
| 1-18 | PG30600200
GASKET OF CYLINDER | On Order | Contact Us | |
| 1-19 | PG30100300
CRANKSHAFT & PISTON ASM. | Low Stock | 17.99 | |
| 1-20 | 979004
BACK CRANK CASE | Low Stock | 5.99 | |
| 1-21 | 970049
STARTUP DISK ASM | In Stock | 5.99 | |
| 1-22 | PG30100101
REAR COVER ASM. | On Order | 30.84 | |
| 1-23 | 600113170
SCREW - M5X15 | Not Available | ||
| 1-24 | 943013
WOODRUFF KEY | Not Available | ||
| 1-25 | 945003
CRANKCASE GASKET | In Stock | 0.99 | |
| 1-26 | 943083
LOCATING PIN - 3X8MM | Not Available | ||
| 1-27 | 970042
FRONT CRANK CASE ASM. | Low Stock | Contact Us | |
| 1-28 | 600117120
SCREW M5*35 $$$ | Low Stock | 3.99 | |
| 1-29 | 918019
WASHER | Not Available | ||
| 1-30 | 945068
FIBRE WASHER | Not Available | ||
| 1-31 | PG30100600
IGNITION COIL (USE WITH P400001200) ALL TO 23W16 $$$ | Not Available | ||
| 1-32 | 948005
SCREW - M4X23 $$$ | Not Available | ||
| 1-33 | 970055
FLYWHEEL (USE WITH PG30100600) ALL TO 23W16 $$$ | Not Available | ||
| 1-36 | 978004
NUT M8 $$$ | On Order | Contact Us | |
| 1-37 | 948017
GASKET 6 $$$ | Low Stock | 3.99 | |
| 1-38 | 943015
CLUTCH | On Order | 12.99 | |
| 1-39 | 303057
WASHER $$$ | Not Available | ||
| 1-40 | 303058
BOLT $$$ | Not Available | ||
| 1-41 | PG30100400
FLYWHEEL COVER ASM. | Low Stock | 14.99 | |
| 1-42 | PD10700200
SCREW M6X25 $$$ | Low Stock | 3.99 | |
| 1-43 | P800701400
SCREW M5X12 $$$ | Low Stock | 3.99 | |
| 1-44 | 918007
SCREW M5x18 $$$ | In Stock | 3.99 | |
| 1-45 | PG30200301
DECORATIVE COVER | Not Available | ||
| 1-46 | PG30100001
TOP COVER ASM. | Low Stock | 13.39 | |
| 1-47 | PG41700400
SCREW $$$ | Not Available | ||
| 1-48 | 948008
WASHER $$$ | Not Available | ||
| 1-49 | 971059
RUBBER PAD $$$ USE 971059 | Not Available | ||
| 1-50 | PG30100501
FUEL TANK ASM. | In Stock | 19.99 | |
| 1-51 | PG30200501
BRACKET | Not Available | ||
| 1-31a | 970019
IGNITION COIL $$$ (PART OF PG30100600) | Not Available | ||
| 1-31b | PG30000500
WIRE | Not Available | ||
| 1-50-1 | PG30000400
FUEL TANK | Not Available | ||
| 1-50-2 | PG30100700
FUEL PIPE ASM. | On Order | 6.99 | |
| 1-50-3 | P010100305
FUEL TANK CAP | Low Stock | 3.99 | |

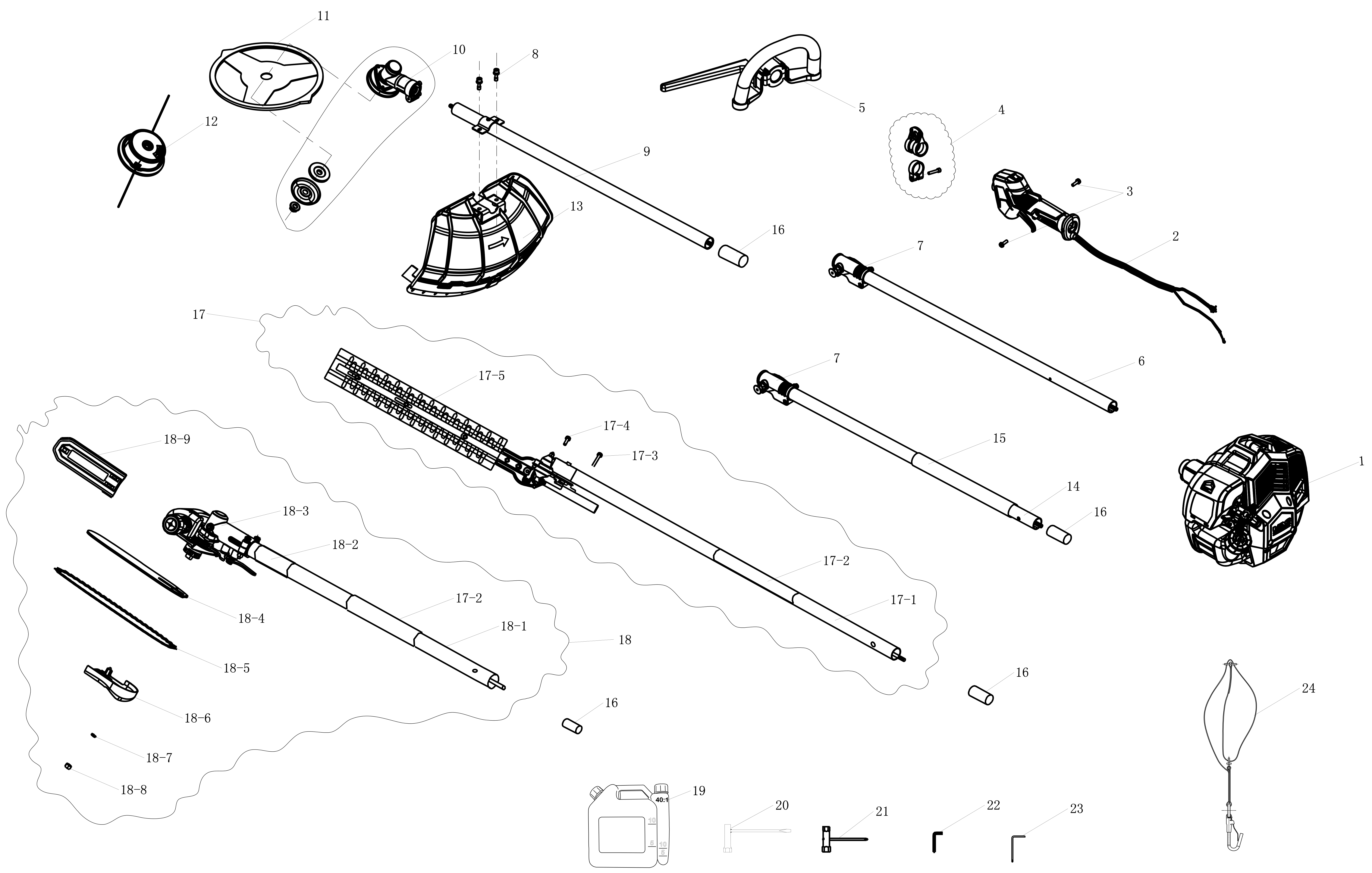

| Drawing 2 | ||||
| 1 | PG30100201
ENGINE ASSEMBLY - SL34G | Low Stock | 99.99 | |
| 2 | PD20100001
CONTROL HANDLE ASM. | Low Stock | 13.97 | |
| 4 | PD10100800
RING ASM | Low Stock | 4.99 | |
| 5 | PG31100000
SECONDARY HANDLE | Low Stock | 12.99 | |
| 6 | PG31100100
TUBE ASM | Low Stock | 18.11 | |
| 7 | PD11000701
CONNECTER ASM | In Stock | 6.99 | |
| 8 | 908016
SHEATH | Not Available | ||
| 9 | 950012
LOWER TUBE ASSEMBLY | On Order | 3.99 | |
| 10 | 950081
TRANSMISSION GEAR H | In Stock | 14.99 | |
| 11 | P711100901
ACCESSORY - BRUSH CUTTER BLADE - 3T | Low Stock | 6.99 | |
| 12 | PG31000100
TRIMMER HEAD ASM | In Stock | 17.26 | |
| 13 | 950045
SAFTY COVER ASM | In Stock | 12.99 | |
| 14 | 959006
TUBE ASM | Low Stock | 14.99 | |
| 15 | 931017
SHEATH | Not Available | ||
| 16 | P021300200
ACCESSORY - SHAFT PROTECTOR $$$ | In Stock | 3.99 | |
| 17 | MT11100500
ACCESSORY - ATTACHMENT - HEDGE TRIMMER (40cm) | Low Stock | 34.99 | |
| 17-1 | MT11100800
TUBE ASM 25 | Not Available | ||
| 17-2 | 931017
SHEATH | Not Available | ||
| 17-3 | 201105250
SCREW M525 | In Stock | 3.99 | |
| 17-4 | 903019
SCREW M5X10 | Low Stock | 0.50 | |
| 17-5 | MT11000700
SH HEDGE TRIMMER | Low Stock | 34.99 | |
| 18 | MP11101001
ACCESSORY - ATTACHMENT - PRUNER (18cm) (TRILINK) | On Order | 41.62 | |
| 18-1 | MP11100800
TUBE | Low Stock | 4.99 | |
| 18-2 | 931042
SHEATH | Not Available | ||
| 18-3 | MP11100703
POLE SAW ATTACHMENT GEARBOX/BODY | Low Stock | 39.99 | |
| 18-4 | MP11001900
ACCESSORY - GUIDE BAR - TRILINK M1500833-1041TL | Not Available | ||
| 18-5 | MP11000100
ACCESSORY - CHAIN - TRILINK CL15033X 3/8 | Not Available | ||
| 18-6 | MP11100601
POLE SAW ATTACHMENT PULLEY/TENSIONER COVER | Low Stock | 14.99 | |
| 18-7 | P021701300
LOCKING WASHER | Low Stock | 3.99 | |
| 18-8 | P021700900
NUT - M8 | In Stock | 3.99 | |
| 18-9 | 931010
ACCESSORY - BLADE COVER | Not Available | ||
| 19 | 911059
ACCESSORY - 40:1 FUEL MIXING BOTTLE (ALT GP0000004867) | Not Available | ||
| 20 | 937001
ACCESSORY - TOOLING - WRENCH | Not Available | ||
| 21 | 903086
ACCESSORY - TOOLING - WRENCH | Low Stock | Contact Us | |
| 22 | P012500300
ACCESSORY - ALLEN KEY | Low Stock | 3.99 | |
| 23 | 600369030
ACCESSORY - LOCKING KEY/T25 DRIVER | Not Available | ||
| 24 | 900420
SHOULDER BELT | Low Stock | 4.50 | |
| Manufacturer Model Number | M5MTP25-4 |
| EAN | 5059340256054 |
| Brand | Mac Allister |
| Description | (SR) 26CC 5 IN 1 MULTI TOOL (RUIXING CARB VERSION) |
