Kingfisher Spare Parts

To keep products available to all customers, orders are limited to 5 units per product. For bulk orders, please email [email protected] and our team will be happy to help.

Item#	Part Details	Availability	£

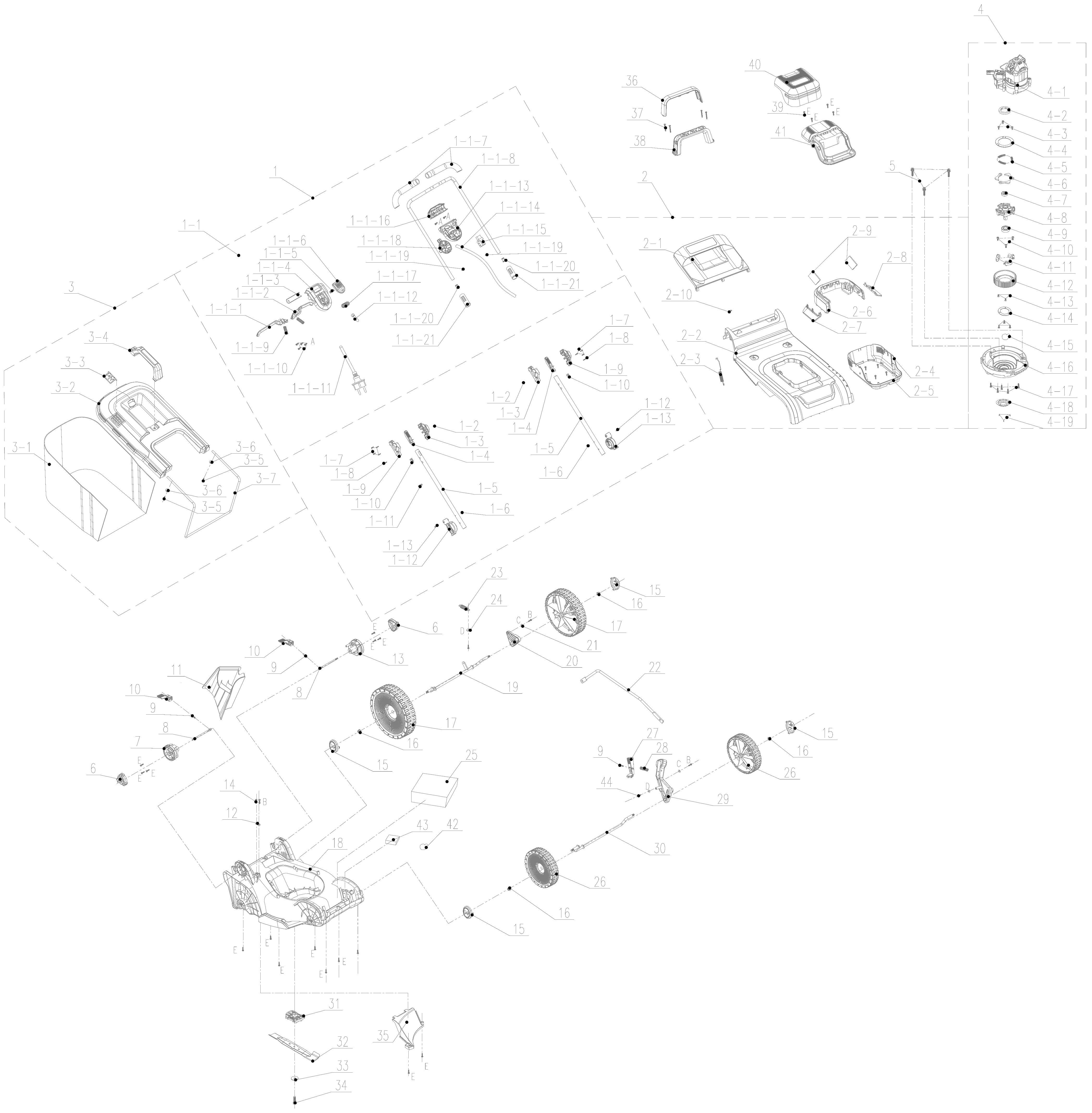

Drawing 1
1	199075000579 SWITCH BOX ASSEMBLY + HANDLEBAR	Low Stock	Contact Us
1-1	199075000580 SWITCH BOX ASSEMBLY	Not Available
1-2	8NH-04Q NUT $$$	Not Available
1-3	201058000283 COVER	Low Stock	3.99
1-4	202024003542 HANDLE	Low Stock	4.99
1-5	207300500025 LOWER HANDLEBAR	Not Available
1-6	8NH-05Q NUT $$$	Not Available
1-7	8SJAB40-20Q SCREW $$$	Not Available
1-8	207420100032 SCREW $$$	Not Available
1-9	201058000284 COVER	Low Stock	3.99
1-10	202099000026 SLIDER	Low Stock	1.99
1-11	8007-517001-0000120 WIRE CLIP	Not Available
1-12	202148000136 HANDLEBAR ADJUSTMENT GEAR	Low Stock	3.99
1-13	8SJAD05-40B SCREW $$$	Not Available
1-1-1	202004001489 TRIGGER LH	Not Available
1-1-2	202004001490 TRIGGER RH	Not Available
1-1-3	202015000494 PIPE SLEEVE $$$	Not Available
1-1-4	202113000115 SWITCH BOX UPPER COVER $$$	Not Available
1-1-5	202031001168 BRACKET $$$	Not Available
1-1-6	202003002489 BUTTON $$$	Not Available
1-1-7	202015000495 SPONGE SHEATH $$$	Not Available
1-1-8	201061000157 UPPER HANDLEBAR	Not Available
1-1-9	8342-755101-0000000 TRIGGER SPRING $$$	Not Available
1-1-10	2073110000002 SCREW $$$	Not Available
1-1-11	207020800024 POWER CORD (TYPE G PLUG)	Low Stock	19.99
1-1-12	8332-532101-0100020 POWER CORD STRAIN RELIEF	Not Available
1-1-13	202113000116 SWITCH BOX LOWER COVER $$$	Not Available
1-1-14	207040200099 CONTROL CABLE (2 CORE)	Low Stock	9.99
1-1-15	8042-660102-0000011 SWITCH	Not Available
1-1-16	202156000504 COVER $$$	Not Available
1-1-17	207010100054 COMPRESSION SPRING $$$	Not Available
1-1-18	202113000117 SWITCH BOX BRACKET $$$	Not Available
1-1-19	8PB40-20B PIN $$$	Not Available
1-1-20	202023000106 BAR END CAP	Not Available
1-1-21	202015000453 BAR SLEEVE	Not Available
2	199127000280 TOP COVER ASSEMBLY	Not Available
2-1	202030002325 REAR DISCHARGE CHUTE COVER	On Order	Contact Us
2-2	207010500043 SPRING	Not Available
2-3	202138001007 SPRING	Not Available
2-4	202031001357 BRACKET $$$	Not Available
2-5	2073110000002 SCREW $$$	Not Available
2-6	202033000733 COVER $$$	Not Available
2-7	202033000797 TRIM RH	Not Available
2-8	202033000798 TRIM LH	Not Available
2-9	299005000221 SPONGE	Not Available
2-10	207190400017 PIN SHAFT	Not Available
3	199012000139 COLLECTOR ASSEMBLY	Low Stock	24.99
3-1	199011000061 COLLECTOR BASE $$$	Not Available
3-2	202138000932 COLLECTOR LID $$$	Not Available
3-3	202999002408 COLLECTOR FILL INDICATOR	On Order	3.99
3-4	202024003537 COLLECTOR HANDLE $$$	On Order	6.99
3-5	207310101151 SCREW $$$	Not Available
3-6	207050100111 WASHER $$$	Not Available
3-7	201059000474 COLLECTOR FRAME $$$	Not Available
4	101001001318 MOTOR ASSEMBLY	Low Stock	59.99
4-1	101001001319 1800W MOTOR	Not Available
4-2	202047000003 BRAKE LINING	Not Available
4-3	8SNAB40-12D FLANGE SCREWS	Not Available
4-4	202006000144 BAFFLE $$$	Not Available
4-5	207010100180 SPRING $$$	Not Available
4-6	201028000017 BRAKE PAD	Not Available
4-7	8BC-261008-SS03 BEARING	Not Available
4-8	199013000003 BRAKE DISC	Not Available
4-9	207390200094 BEARING $$$	Not Available
4-10	207190400023 PIN SHAFT $$$	Not Available
4-11	202031001222 BRACKET $$$	Not Available
4-12	201004000633 GEAR $$$	Not Available
4-13	8SEAB40-10D SCREW $$$	Not Available
4-14	202006000155 BAFFLE $$$	Not Available
4-15	306000048 LUBRICATING GREASE	Not Available
4-16	202090000365 MOTOR BRACKET	Not Available
4-17	8SNAB50-20D SCREW $$$	Not Available
4-18	202006000163 BAFFLE $$$	Not Available
4-19	8SJAB30-08D SELF TAPPING SCREWS	Not Available
5	8SJAN50-25D SCREW $$$	Not Available
6	207250100043 LOCKING KNOB	In Stock	3.99
7	202087000215 HANDLEBAR HEIGHT ADJUSTMENT INNER LH	Low Stock	3.99
8	201135000004 THROUGH-BOLT	Low Stock	1.49
9	207190100033 PIN	Not Available
10	202116000004 LOCKING LEVER	Low Stock	4.99
11	202072000034 ACCESSORY - MULCHING PLUG INSERT	Not Available
12	8184-302201-0001720 CABLE CLAMP $$$	In Stock	3.99
13	202087000216 HANDLEBAR HEIGHT ADJUSTMENT INNER RH	On Order	3.99
14	207310101151 SCREW $$$	Not Available
15	202121000752 HUB CAP	Not Available
16	207320800007 NUT $$$	Not Available
17	199088000269 WHEEL	Low Stock	Contact Us
18	202016005526 CHASSIS $$$	Not Available
19	199086000262 REAR AXLE	Not Available
20	202031001171 BRACKET	Not Available
21	207330100097 WASHER $$$	Not Available
22	201053000149 HEIGHT ADJUSTMENT LINKAGE ROD	Not Available
23	207010500031 SPRING	Not Available
24	207050100111 WASHER $$$	Not Available
25	199094000009 BALLAST $$$	Not Available
26	199088000268 WHEEL	Low Stock	Contact Us
27	202024003667 HEIGHT ADJUSTMENT LOCKING LEVER	Low Stock	Contact Us
28	207010100174 SPRING	Not Available
29	202024003350 HEIGHT ADJUSTMENT LEVER	Low Stock	5.99
30	199086000263 FRONT AXLE	Not Available
31	202013000201 FIXING PLATE	Not Available
32	201045000451 ACCESSORY - LAWN MOWER BLADE - 43CM	In Stock	14.99
33	201057000395 BLADE LOCKING WASHER	Low Stock	1.49
34	207220100044 BLADE RETAINING BOLT	Low Stock	1.49
35	202129000006 REAR DISCHARGE CHUTE	Not Available
36	202024003595 HANDLE COVER $$$	Not Available
37	207310300025 SCREW $$$	Not Available
38	202024003596 HANDLE	Not Available
39	2073110000002 SCREW $$$	Not Available
40	202138001006 DECORATIVE COVER $$$	Not Available
41	202033000786 DECORATIVE COVER $$$	Not Available

Manufacturer Model Number	MCB1167LWM
EAN	5063022638175
Brand	Mac Allister
Description	LAWN MOWER 1800W 46CM
