Mac Allister MCB1177GHT HEDGE TRIMMER 550W 50CM

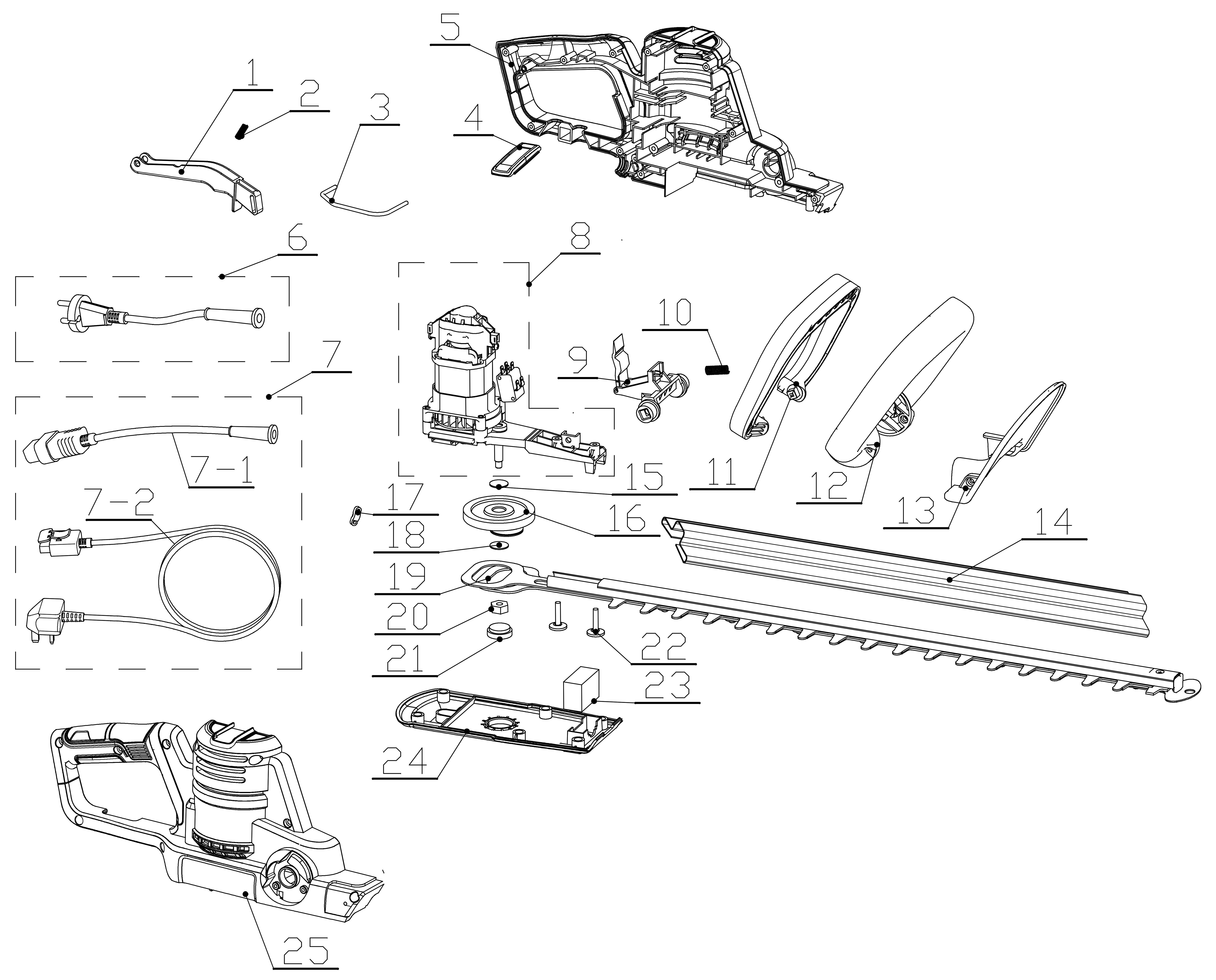

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 1-660001
TRIGGER | Not Available | ||
| 2 | 1-660002
TRIGGER SPRING | Not Available | ||
| 3 | 1-660003
WIRE | Not Available | ||
| 4 | 1-660004
COVER | Not Available | ||
| 5 | 1-660005
MAIN HOUSING - LH | Not Available | ||
| 6 | 1-660006
MAINS CABLE - SCHUCKO | Not Available | ||
| 7-1 | 1-660007-1
MAINS CABLE - BS PLUG | On Order | Contact Us | |
| 7-2 | 1-660007-2
MAINS CABLE - 10M (TYPE G PLUG) | On Order | Contact Us | |
| 8 | 1-660008
MOTOR ASSEMBLY | On Order | Contact Us | |
| 9 | 1-660009
TIE PLATE | Not Available | ||
| 10 | 1-660010
SPRING | Not Available | ||
| 11 | 1-660011
SAFETY SWITCH LEVER | Not Available | ||
| 12 | 1-660012
SAFETY HANDLE | Not Available | ||
| 13 | 1-660013
FRONT GUARD | Not Available | ||
| 14 | 1-660014
BLADE SCABBARD | Not Available | ||
| 15 | 1-660015
WASHER $$$ | Not Available | ||
| 16 | 1-660016
GEAR ASSEMBLY | On Order | Contact Us | |
| 17 | 1-660017
CABLE CLAMP | Not Available | ||
| 18 | 1-660018
WASHER $$$ | Not Available | ||
| 19 | 1-660019
BLADE ASSEMBLY - 50CM | On Order | Contact Us | |
| 20 | 1-660020
NUT - LH THREAD | Not Available | ||
| 21 | 1-660021
LOCATING RING | Not Available | ||
| 22 | 1-660022
BLADE SCREW BUSHING | Not Available | ||
| 23 | 1-660023
OIL SEAL | Not Available | ||
| 24 | 1-660024
GEARBOX BASE PLATE | Not Available | ||
| 25 | 1-660025
MAIN HOUSING - RH | Not Available | ||
| Manufacturer Model Number | MCB1177GHT |
| EAN | 5063022637680 |
| Brand | Mac Allister |
| Description | HEDGE TRIMMER 550W 50CM |
