Mac Allister MCB1179GHT HEDGE TRIMMER 600W 60CM

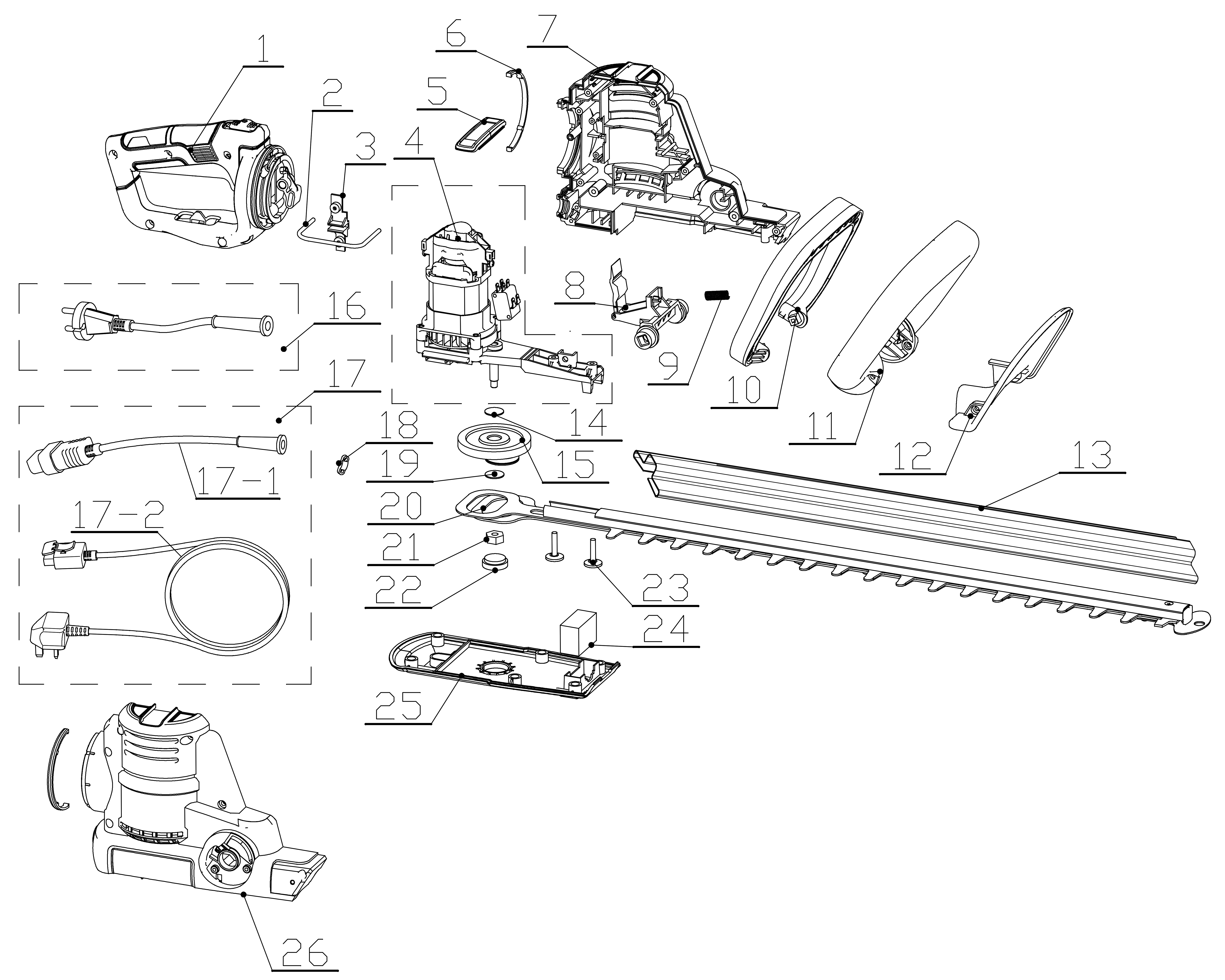

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 1-670001
HANDLE ASSEMBLY | Not Available | ||
| 2 | 1-670002
WIRE | Not Available | ||
| 3 | 1-670003
WIRE GUIDE PLATE | Not Available | ||
| 4 | 1-670004
600W MOTOR | On Order | Contact Us | |
| 5 | 1-670005
TRIM PLATE | Not Available | ||
| 6 | 1-670006
TRIM RING | Not Available | ||
| 7 | 1-670007
MAIN HOUSING - LH | Not Available | ||
| 8 | 1-660009
TIE PLATE | Not Available | ||
| 9 | 1-660010
SPRING | Not Available | ||
| 10 | 1-660011
SAFETY SWITCH LEVER | Not Available | ||
| 11 | 1-660012
SAFETY HANDLE | Not Available | ||
| 12 | 1-660013
FRONT GUARD | Not Available | ||
| 13 | 1-670013
ACCESSORY - BLADE SCABBARD - 60CM | Not Available | ||
| 14 | 1-660015
WASHER $$$ | Not Available | ||
| 15 | 1-660016
GEAR ASSEMBLY | On Order | Contact Us | |
| 16 | 1-660006
MAINS CABLE - SCHUCKO | Not Available | ||
| 17-1 | 1-660007-1
MAINS CABLE - BS PLUG | On Order | Contact Us | |
| 17-2 | 1-660007-2
MAINS CABLE - 10M (TYPE G PLUG) | On Order | Contact Us | |
| 18 | 1-670018
CABLE CLAMP | Not Available | ||
| 19 | 1-660018
WASHER $$$ | Not Available | ||
| 20 | 1-670020
BLADE - 60CM | On Order | Contact Us | |
| 21 | 1-660020
NUT - LH THREAD | Not Available | ||
| 22 | 1-660021
LOCATING RING | Not Available | ||
| 23 | 1-660022
BLADE SCREW BUSHING | Not Available | ||
| 24 | 1-660023
OIL SEAL | Not Available | ||
| 25 | 1-660024
GEARBOX BASE PLATE | Not Available | ||
| 26 | 1-670026
MAIN HOUSING - RH | Not Available | ||
| Manufacturer Model Number | MCB1179GHT |
| EAN | |
| Brand | Mac Allister |
| Description | HEDGE TRIMMER 600W 60CM |
| Awaiting Information |
