| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

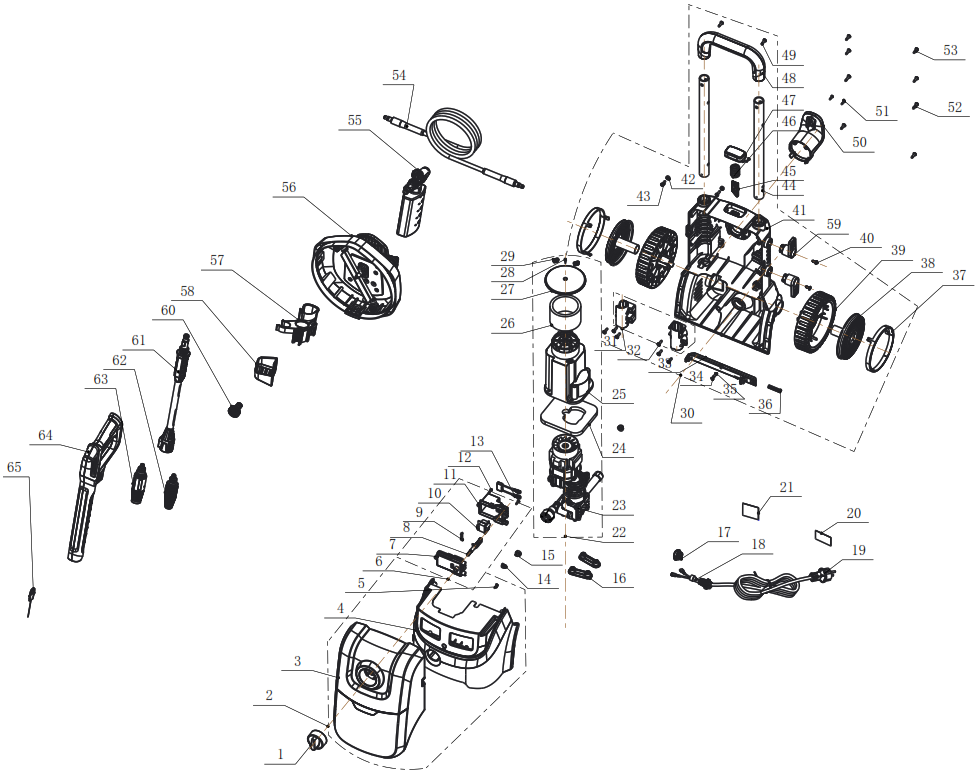

| Drawing 1 | ||||
| 1 | 120003828100
SELECTOR KNOB | Not Available | ||
| 2 | 110007138400
FRONT HOUSING ASSEMBLY | Low Stock | 14.99 | |
| 3 | 120003826800
FRONT HOUSING $$$ | Not Available | ||
| 4 | 120003826900
FRONT HOUSING BASE $$$ | Not Available | ||
| 6 | 110006547600
SWITCH BOX ASSEMBLY | Low Stock | 9.99 | |
| 10 | 150001881200
SWITCH | Not Available | ||
| 13 | 150000044300
CAPACITOR | In Stock | 2.00 | |
| 14 | 120000342600
SEAL | Not Available | ||
| 15 | 160000059300
VIBRATION DAMPER | Not Available | ||
| 17 | 120001205800
CORD CLAMP | Not Available | ||
| 18 | 120000335100
POWER CORD GLAND | Not Available | ||
| 19 | 150002232700
POWER CORD (UK TYPE-G PLUG) | In Stock | 14.99 | |
| 23 | 110007136200
PUMP ASSEMBLY | In Stock | 55.00 | |
| 24 | 190000277800
FILTER | Not Available | ||
| 25 | 120000013100
MOTOR COVER | Not Available | ||
| 26 | 190000004200
FILTER | Not Available | ||
| 29 | 160000002200
END SEAL | Not Available | ||
| 30 | 110007138800
REAR HOUSING ASSEMBLY | Low Stock | 14.99 | |
| 31 | 110007122400
HANDLE BAR GUIDE (L+R) | Not Available | ||
| 32 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 33 | 120003826400
LOCK LEVER | Not Available | ||
| 34 | 130003284000
E-CLIP | Not Available | ||
| 35 | 130003284100
ROLLER | Not Available | ||
| 36 | 130000084400
LOCK-SPRING | Not Available | ||
| 37 | 120003826200
WHEEL TRIM RING | Not Available | ||
| 38 | 120003827700
WHEEL TRIM | Not Available | ||
| 39 | 120003826600
WHEEL | Not Available | ||
| 41 | 120003827900
REAR HOUSING $$$ (USE GP0000008029) | Not Available | ||
| 44 | 120003828300
HANDLE BAR UPRIGHT | Not Available | ||
| 45 | 120003827200
CONNECTING ROD | Not Available | ||
| 46 | 130003283900
SPRING BUTTON | Not Available | ||
| 47 | 120003826500
BUTTON | Not Available | ||
| 48 | 110007122200
HANDLE ASSEMBLY | Not Available | ||
| 49 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 50 | 120002669700
REAR HANGER | Not Available | ||
| 53 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 54 | 190000472200
ACCESSORY - HIGH PRESSURE HOSE | In Stock | 24.99 | |
| 55 | 110007138700
ACCESSORY - DETERGENT TANK | Low Stock | 12.49 | |
| 56 | 110007058600
ACCESSORY - PATIO CLEANER ATTACHMENT | Low Stock | 24.99 | |
| 57 | 120003827600
ACCESSORY CARRIER | Low Stock | 4.99 | |
| 58 | 1200000886
ACCESSORY CARRIER BASE | Low Stock | 4.99 | |
| 59 | 120003827500
HOOK | Not Available | ||
| 60 | 110004484400
ACCESSORY - WATER INLET ADAPTER | In Stock | 4.99 | |
| 61 | 110005074300
ACCESSORY - LANCE | In Stock | 14.99 | |
| 62 | 110003157400
ACCESSORY - ROTARY NOZZLE | In Stock | 9.99 | |
| 63 | 110007135200
ACCESSORY - VARIO NOZZLE | In Stock | 9.99 | |
| 64 | 110006054800
ACCESSORY - PRESSURE WASHER GUN | In Stock | 17.49 | |
| 65 | 120001239500
ACCESSORY - CLEANING NEEDLE | Not Available | ||

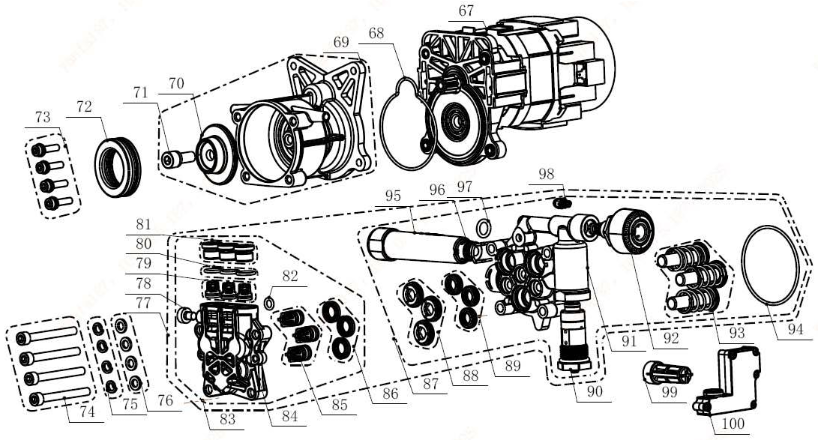

| Drawing 2 | ||||
| 67 | 110007075300
MOTOR | Low Stock | 24.99 | |
| 68 | 160000004200
SEAL | In Stock | 3.99 | |
| 69 | 110006679900
PUMP MAIN CASING | Not Available | ||
| 70 | 130000004800
WOBBLE PLATE | Not Available | ||
| 72 | 130003267100
THRUST BEARING | Not Available | ||
| 73 | 130003066500
BOLT KIT | Not Available | ||
| 75 | 130000006500
SPRING WASHER | Not Available | ||
| 77 | 110007136100
PUMP HEAD ASSEMBLY | Low Stock | 24.99 | |
| 79 | 110000253700
WATER OUTLET CHECK-VALVE KIT | Low Stock | 4.99 | |
| 80 | 160000040800
O-RING 9.8X1.9 | Low Stock | 3.99 | |
| 81 | 130003047400
CHECK-VALVE PLUG KIT | Not Available | ||
| 82 | 160000045900
O-RING 6X2 | Not Available | ||
| 83 | 110005870500
VALVE ASSEMBLY | Not Available | ||
| 84 | 110006751500
VALVE BODY | Not Available | ||
| 85 | 110000244700
WATER INLET CHECK-VALVE KIT | Low Stock | 4.99 | |
| 86 | 160000069900
SEAL | Low Stock | 3.99 | |
| 87 | 110007136000
PUMP BODY ASSEMBLY | Not Available | ||
| 88 | 120003225100
PISTON CAP KIT | Not Available | ||
| 89 | 160000178100
PISTON OIL SEAL KIT | Not Available | ||
| 90 | 110007038200
TSS ACTUATOR | In Stock | 3.99 | |
| 91 | 110006670400
PUMP ACTUATOR CASING | Not Available | ||
| 92 | 110006817000
QUICK-RELEASE OUTLET ADAPTER | In Stock | 4.99 | |
| 93 | 110006797400
PISTON KIT | Not Available | ||
| 94 | 160000045100
O-RING - 60X2.1 | Not Available | ||
| 95 | 120003136600
WATER INLET COUPLING | In Stock | 4.99 | |
| 96 | 130000063700
LOCKING PIN | Not Available | ||
| 97 | 160000043400
O-RING 10X2.5 | In Stock | 3.99 | |
| 98 | 110006814700
MAIN CHECK-VALVE | Low Stock | 3.99 | |
| 99 | 160000000400
WATER INLET FILTER | Low Stock | 3.99 | |
| 100 | 110007145000
TSS SWITCH | In Stock | 12.49 | |
| Manufacturer Model Number | MCB1282PRW |
| EAN | 5063022719447 |
| Brand | Mac Allister |
| Description | PRESSURE WASHER - 1800W - 145 BAR *M2* |
