| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

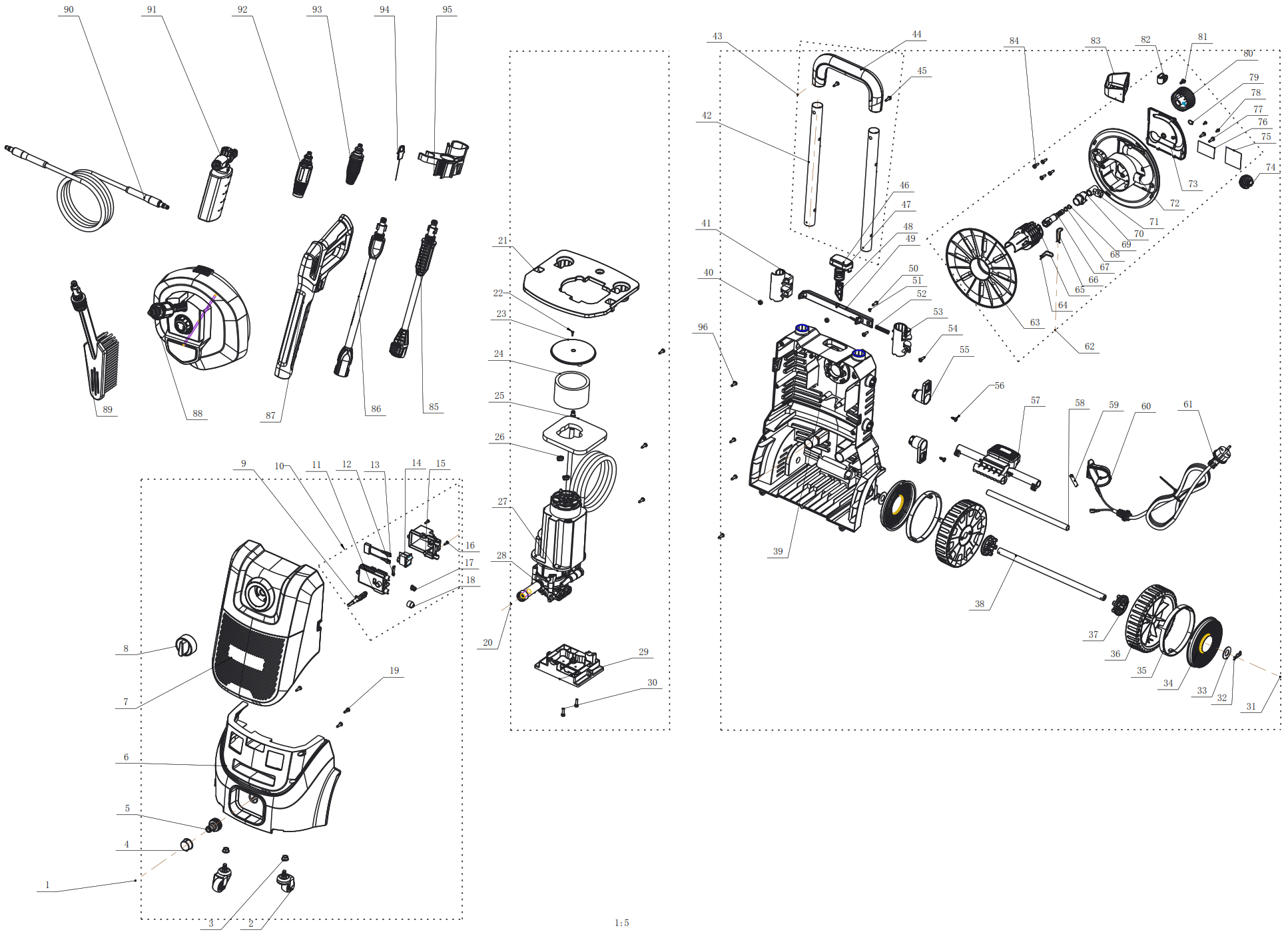

| Drawing 1 | ||||
| 1 | 110007204300
FRONT HOUSING ASSEMBLY | On Order | Contact Us | |
| 2 | 130003047000
CASTOR WHEELS | Not Available | ||
| 3 | 130000316000
LOCKING NUT | Not Available | ||
| 4 | 120000339500
WATER INLET CAP | Not Available | ||
| 5 | 110004484400
ACCESSORY - WATER INLET ADAPTER | On Order | Contact Us | |
| 6 | 120003830700
FRONT CASING - LOWER | Not Available | ||
| 7 | 120003869300
FRONT CASING - UPPER | Not Available | ||
| 8 | 120003828100
SELECTOR KNOB | Not Available | ||
| 10 | 110006547600
SWITCH BOX ASSEMBLY | On Order | Contact Us | |
| 13 | 150000044300
CAPACITOR | In Stock | 2.00 | |
| 14 | 150001881200
SWITCH | Not Available | ||
| 17 | 120000342600
SEAL | Not Available | ||
| 18 | 120000335100
POWER CORD GLAND | Not Available | ||
| 20 | 110007211800
COMPLETE PUMP ASSEMBLY 2300W | On Order | Contact Us | |
| 21 | 120003830900
UPPER MOTOR SUPPORT BRACKET | Not Available | ||
| 24 | 190000004200
FILTER | Not Available | ||
| 25 | 190000277800
FILTER | Not Available | ||
| 26 | 160000002200
END SEAL | Not Available | ||
| 27 | 120000013100
MOTOR COVER | Not Available | ||
| 28 | 110007211900
PUMP ASSEMBLY 2300W | On Order | Contact Us | |
| 29 | 120002539600
LOWER MOTOR SUPPORT BRACKET | Not Available | ||
| 31 | 110007202800
REAR HOUSING ASSEMBLY | On Order | Contact Us | |
| 32 | 130000283100
COTTER PIN | Not Available | ||
| 33 | 130003039800
WASHER | Not Available | ||
| 34 | 120003828000
WHEEL TRIM | Not Available | ||
| 35 | 120003866600
WHEEL TRIM OUTER RING | Not Available | ||
| 36 | 120003831300
WHEEL | Not Available | ||
| 37 | 120003831100
PARKING BRAKE | On Order | Contact Us | |
| 38 | 130003288300
REAR AXLE | Not Available | ||
| 39 | 120003831000
REAR CASING | Not Available | ||
| 40 | 120000530500
SPACER | Not Available | ||
| 41 | 120003826000
HANDLE BAR GUIDE (R) | Not Available | ||
| 42 | 130003284900
HANDLE BAR SET | Not Available | ||
| 43 | 110007149300
HANDLE BAR RISER $$$ (USE 130003284900) | Not Available | ||
| 44 | 110007122200
HANDLE ASSEMBLY | Not Available | ||
| 46 | 120003868000
LOCK BUTTON | Not Available | ||
| 47 | 130000068500
LOCK BUTTON RETURN SPRING | Not Available | ||
| 48 | 120003827200
RELEASE LEVER | Not Available | ||
| 49 | 120003826400
LOCKING LEVER | Not Available | ||
| 50 | 120003826700
PIN | Not Available | ||
| 51 | 130003284000
E-CLIP | Not Available | ||
| 52 | 130000084400
LOCKING SPRING | Not Available | ||
| 53 | 120003827300
HANDLE BAR GUIDE (L) | Not Available | ||
| 55 | 120003866500
ACCESSORY HOOK | On Order | Contact Us | |
| 57 | 120003873900
PARKING BRAKE PEDAL | On Order | Contact Us | |
| 58 | 110000674500
PARKING BRAKE SHAFT | On Order | Contact Us | |
| 59 | 120003826700
PIN | Not Available | ||
| 60 | 120003869400
GUIDE | Not Available | ||
| 61 | 110004810600
POWER CORD | On Order | Contact Us | |
| 62 | 110007260600
HOSE REEL ASSEMBLY | On Order | Contact Us | |
| 63 | 110007260700
HOSE REEL END PLATE - REAR | Not Available | ||
| 64 | 130003101500
LOCKING PIN | Not Available | ||
| 65 | 120002373900
HUB | Not Available | ||
| 66 | 130003082800
LOCKING PIN | Not Available | ||
| 67 | 130003200400
SPIGOT | Not Available | ||
| 68 | 160000045900
O-RING 6X2 | Not Available | ||
| 69 | 160000009200
U-PIN | Not Available | ||
| 70 | 120003153500
REEL END ADAPTER | Not Available | ||
| 71 | 130003086600
PIPE ADAPTER | Not Available | ||
| 72 | 110007260800
HOSE REEL END PLATE - FRONT | Not Available | ||
| 73 | 120003828400
REEL END COVER | Not Available | ||
| 74 | 120002600600
INTERNAL HOSE | Not Available | ||
| 75 | 120003827900
REAR HOUSING $$$ (USE GP0000008029) | Not Available | ||
| 79 | 160000064000
SEAL | Not Available | ||
| 80 | 120003869200
REEL KNOB | On Order | Contact Us | |
| 82 | 120003840700
POWER CORD CLIP | On Order | Contact Us | |
| 83 | 120000088600
ACCESSORY CARRIER | On Order | Contact Us | |
| 85 | 110005074300
ACCESSORY - LANCE | On Order | Contact Us | |
| 86 | 110005353200
ACCESSORY - LANCE EXTENSION | On Order | Contact Us | |
| 87 | 110007236300
ACCESSORY - PRESSURE WASHER GUN | On Order | Contact Us | |
| 88 | 110007203700
ACCESSORY - PATIO BRUSH ATTACHMENT | On Order | Contact Us | |
| 89 | 110001909500
ACCESSORY - SOFT BRUSH ATTACHMENT | On Order | Contact Us | |
| 90 | 190000472300
ACCESSORY - HIGH PRESSURE HOSE | On Order | Contact Us | |
| 91 | 110007200300
ACCESSORY - DETERGENT TANK | On Order | Contact Us | |
| 92 | 110005392300
ACCESSORY - VARIO NOZZLE | On Order | Contact Us | |
| 93 | 110003880600
ACCESSORY - ROTARY NOZZLE | On Order | Contact Us | |
| 94 | 120001239500
ACCESSORY - CLEANING NEEDLE | Not Available | ||
| 95 | 120003827600
ACCESSORY CARRIER | On Order | Contact Us | |

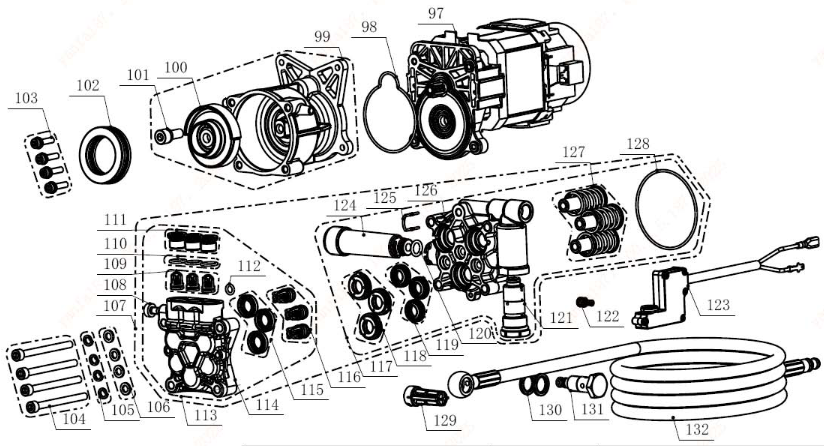

| Drawing 2 | ||||
| 97 | 110003090100
MOTOR | On Order | Contact Us | |
| 98 | 160000004200
SEAL | On Order | Contact Us | |
| 99 | 110004080000
PUMP MAIN CASING | Not Available | ||
| 100 | 130000040200
WOBBLE PLATE | Not Available | ||
| 102 | 130003098700
THRUST BEARING | Not Available | ||
| 107 | 110006825200
PUMP HEAD ASSEMBLY | On Order | Contact Us | |
| 109 | 110005851700
WATER OUTLET CHECK-VALVE KIT | Not Available | ||
| 110 | 160000040800
O-RING - 9.8x1.9 | On Order | Contact Us | |
| 111 | 130003199800
CHECK-VALVE PLUG KIT | Not Available | ||
| 112 | 160000045900
O-RING 6X2 | Not Available | ||
| 113 | 110005852000
VALVE BODY | Not Available | ||
| 114 | 110006530500
VALVE BODY | Not Available | ||
| 115 | 160000097200
INLET CHECK VALVE SEAL KIT | Not Available | ||
| 116 | 110005851800
WATER INLET CHECK-VALVE KIT | Not Available | ||
| 117 | 110006825100
PUMP BODY ASSEMBLY | Not Available | ||
| 118 | 120003697100
PISTON CAP KIT | Not Available | ||
| 119 | 160000175100
PISTON OIL SEAL KIT | Not Available | ||
| 120 | 160000120900
O-RING 9X2.65 | Not Available | ||
| 121 | 110006935100
TSS ACTUATOR | On Order | Contact Us | |
| 122 | 110006832500
OUTLET CHECK VALVE | On Order | Contact Us | |
| 123 | 110007144800
TSS SWITCH | On Order | Contact Us | |
| 124 | 120000015200
WATER INLET COUPLING | On Order | Contact Us | |
| 125 | 130003101500
LOCKING PIN | Not Available | ||
| 126 | 110006670600
PUMP ACTUATOR CASING | Not Available | ||
| 127 | 110005808300
PISTON KIT | Not Available | ||
| 128 | 160000038600
O-RING 70X2 | Not Available | ||
| 129 | 160000000400
WATER INLET FILTER | On Order | Contact Us | |
| 130 | 160000178200
COMPRESSION SEAL | On Order | Contact Us | |
| 131 | 130003266500
WATER OUTLET NUT | On Order | Contact Us | |
| 132 | 190000466900
INTERNAL HIGH-PRESSURE HOSE | On Order | Contact Us | |
| Manufacturer Model Number | MCB1290PRW |
| EAN | 5063022719546 |
| Brand | Mac Allister |
| Description | PRESSURE WASHER - 2300W - 165 BAR |
