| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

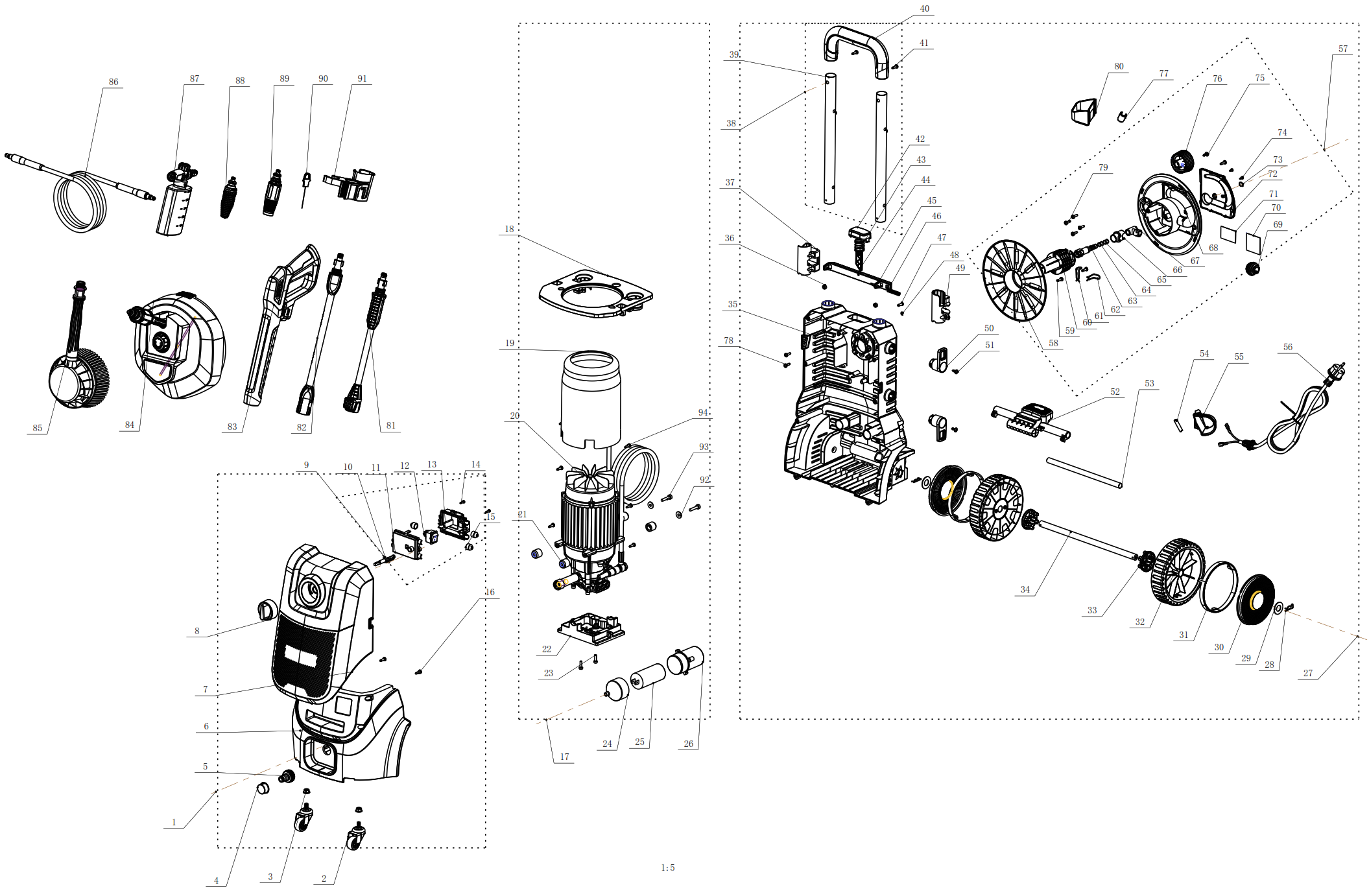

| Drawing 1 | ||||
| 1 | 110007204300
FRONT HOUSING ASSEMBLY | Low Stock | 24.99 | |
| 2 | 130003047000
CASTOR WHEELS | Not Available | ||
| 3 | 130000316000
LOCKING NUT | Not Available | ||
| 4 | 120000339500
WATER INLET CAP | Not Available | ||
| 5 | 110004484400
ACCESSORY - WATER INLET ADAPTER | In Stock | 4.99 | |
| 6 | 120003830700
FRONT CASING - LOWER | Not Available | ||
| 7 | 120003869300
FRONT CASING - UPPER | Not Available | ||
| 8 | 120003866400
SELECTOR KNOB | Not Available | ||
| 9 | 110006547600
SWITCH BOX ASSEMBLY | Low Stock | 9.99 | |
| 12 | 150001881200
SWITCH | Not Available | ||
| 15 | 120000335100
POWER CORD GLAND | Not Available | ||
| 16 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 17 | 110007219800
COMPLETE PUMP ASSEMBLY | Low Stock | Contact Us | |
| 18 | 120003830800
UPPER MOTOR SUPPORT BRACKET | Not Available | ||
| 19 | 120003338900
MOTOR COVER | Not Available | ||
| 20 | 110007219900
PUMP ASSEMBLY | Not Available | ||
| 21 | 160000017800
VIBRATION DAMPER | Not Available | ||
| 22 | 120002539600
LOWER MOTOR SUPPORT BRACKET | Not Available | ||
| 25 | 150001902000
CAPACITOR - 45uF | Low Stock | Contact Us | |
| 27 | 110007202800
REAR HOUSING ASSEMBLY | Low Stock | 34.99 | |
| 28 | 130000283100
COTTER PIN | Not Available | ||
| 29 | 130003039800
WASHER | Not Available | ||
| 30 | 120003828000
WHEEL TRIM | Not Available | ||
| 31 | 120003866600
WHEEL TRIM OUTER RING | Not Available | ||
| 32 | 120003831300
WHEEL | Not Available | ||
| 33 | 120003831100
PARKING BRAKE | Low Stock | 5.99 | |
| 34 | 130003288300
REAR AXLE | Not Available | ||
| 35 | 120003831000
REAR CASING | Not Available | ||
| 36 | 120000530500
SPACER | Not Available | ||
| 37 | 120003826000
HANDLE BAR GUIDE (R) | Not Available | ||
| 38 | 130003284900
HANDLE BAR SET | Not Available | ||
| 39 | 110007149300
HANDLE BAR RISER $$$ (USE 130003284900) | Not Available | ||
| 40 | 110007122200
HANDLE ASSEMBLY | Not Available | ||
| 41 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 42 | 120003868000
LOCK BUTTON | Not Available | ||
| 43 | 130000068500
LOCK BUTTON RETURN SPRING | Not Available | ||
| 44 | 120003827200
RELEASE LEVER | Not Available | ||
| 45 | 120003826400
LOCKING LEVER | Not Available | ||
| 46 | 130000084400
LOCKING SPRING | Not Available | ||
| 47 | 120003826700
PIN | Not Available | ||
| 48 | 130003284000
E-CLIP | Not Available | ||
| 49 | 120003827300
HANDLE BAR GUIDE (L) | Not Available | ||
| 50 | 120003866500
ACCESSORY HOOK | Low Stock | 4.99 | |
| 51 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 52 | 120003873900
PARKING BRAKE PEDAL | Low Stock | 4.99 | |
| 53 | 110000674500
PARKING BRAKE SHAFT | Low Stock | 3.99 | |
| 54 | 120003826700
PIN | Not Available | ||
| 55 | 120003869400
GUIDE | Not Available | ||
| 56 | 110007217700
POWER LEAD | Not Available | ||
| 57 | 110007260600
HOSE REEL ASSEMBLY | Low Stock | 19.99 | |
| 58 | 110007260700
HOSE REEL END PLATE - REAR | Not Available | ||
| 59 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 60 | 120002373900
HUB | Not Available | ||
| 61 | 130003101500
LOCKING PIN | Not Available | ||
| 62 | 130003082800
LOCKING PIN | Not Available | ||
| 63 | 130003200400
SPIGOT | Not Available | ||
| 64 | 160000009200
U-PIN | Not Available | ||
| 65 | 160000045900
O-RING 6X2 | Not Available | ||
| 66 | 120003153500
REEL END ADAPTER | Not Available | ||
| 67 | 130003086600
PIPE ADAPTER | Not Available | ||
| 68 | 110007260800
HOSE REEL END PLATE - FRONT | Not Available | ||
| 69 | 120002600600
INTERNAL HOSE | Not Available | ||
| 72 | 120003828400
REEL END COVER | Not Available | ||
| 73 | 160000064000
SEAL | Not Available | ||
| 75 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 76 | 120003869200
REEL KNOB | Low Stock | 3.99 | |
| 77 | 120003840700
POWER CORD CLIP | Low Stock | 3.99 | |
| 78 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 79 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |
| 80 | 120000088600
ACCESSORY CARRIER | Low Stock | 4.99 | |
| 81 | 110007199700
ACCESSORY - LANCE | Low Stock | Contact Us | |
| 82 | 110005353200
ACCESSORY - LANCE EXTENSION | Low Stock | 14.99 | |
| 83 | 110007236300
ACCESSORY - PRESSURE WASHER GUN | In Stock | 14.99 | |
| 84 | 110007203700
ACCESSORY - PATIO BRUSH ATTACHMENT | Low Stock | 24.99 | |
| 85 | 110007240900
ACCESSORY - ROTARY BRUSH ATTACHMENT | Low Stock | Contact Us | |
| 86 | 190000472300
ACCESSORY - HIGH PRESSURE HOSE | In Stock | 29.99 | |
| 87 | 110007200300
ACCESSORY - DETERGENT TANK | Low Stock | 12.49 | |
| 88 | 110005392300
ACCESSORY - VARIO NOZZLE | In Stock | 9.99 | |
| 89 | 110003880600
ACCESSORY - ROTARY NOZZLE | In Stock | 9.99 | |
| 90 | 120001239500
ACCESSORY - CLEANING NEEDLE | Not Available | ||
| 91 | 120003827600
ACCESSORY CARRIER | Low Stock | 4.99 | |
| 94 | 130000186500
SCREW ST4.8X16 | In Stock | 0.50 | |

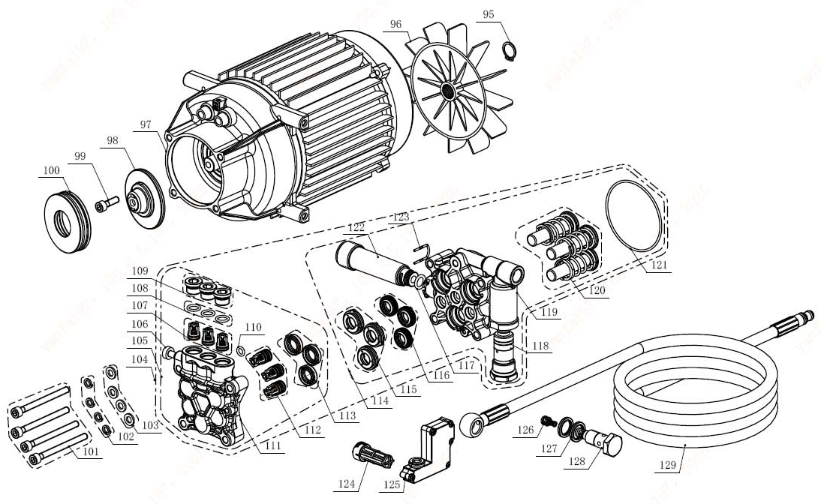

| Drawing 2 | ||||
| 95 | 130000033900
C-CLIP | Not Available | ||
| 96 | 120000012600
MOTOR COOLING IMPELLER | Not Available | ||
| 97 | 110007039600
2500W INDUCTION MOTOR | Not Available | ||
| 98 | 130003019300
WOBBLE PLATE | Not Available | ||
| 100 | 130003022600
THRUST BEARING | Not Available | ||
| 102 | 130000006500
SPRING WASHER | Not Available | ||
| 104 | 110006957400
PUMP HEAD ASSEMBLY | Low Stock | Contact Us | |
| 105 | 110003531400
VALVE ASSEMBLY | Not Available | ||
| 107 | 110003531300
WATER OUTLET CHECK-VALVE KIT | Not Available | ||
| 108 | 160000040800
O-RING 9.8X1.9 | Low Stock | 3.99 | |
| 109 | 130003027800
CHECK-VALVE PLUG KIT | Not Available | ||
| 110 | 160000045900
O-RING 6X2 | Not Available | ||
| 111 | 110006530500
VALVE BODY | Not Available | ||
| 112 | 110003530700
WATER INLET CHECK-VALVE KIT | Not Available | ||
| 113 | 160000097200
INLET CHECK VALVE SEAL KIT | Not Available | ||
| 114 | 110006957300
PUMP BODY ASSEMBLY | Not Available | ||
| 115 | 120003697100
PISTON CAP KIT | Not Available | ||
| 116 | 160000175100
PISTON OIL SEAL KIT | Not Available | ||
| 117 | 160000120900
O-RING 9X2.65 | Not Available | ||
| 118 | 110005070600
TSS ACTUATOR | Not Available | ||
| 119 | 110006670600
PUMP ACTUATOR CASING | Not Available | ||
| 120 | 110006592500
PISTON KIT | Not Available | ||
| 121 | 160000038600
O-RING 70X2 | Not Available | ||
| 122 | 120000015200
WATER INLET COUPLING | In Stock | 4.99 | |
| 123 | 130003101500
LOCKING PIN | Not Available | ||
| 124 | 160000000400
WATER INLET FILTER | Low Stock | 3.99 | |
| 125 | 110006523700
TSS SWITCH | Not Available | ||
| 126 | 110006832500
OUTLET CHECK VALVE | In Stock | 3.99 | |
| 127 | 160000178200
COMPRESSION SEAL | Low Stock | 3.99 | |
| 128 | 130003266500
WATER OUTLET NUT | Low Stock | 3.99 | |
| 129 | 190000466900
INTERNAL HIGH-PRESSURE HOSE | Low Stock | 9.99 | |
| Manufacturer Model Number | MCB1294PRW |
| EAN | 5063022719478 |
| Brand | Mac Allister |
| Description | PRESSURE WASHER - 2500W - 180 BAR *M5* |
