Mac Allister MCI1187LWM LAWN MOWER - 18V 32CM

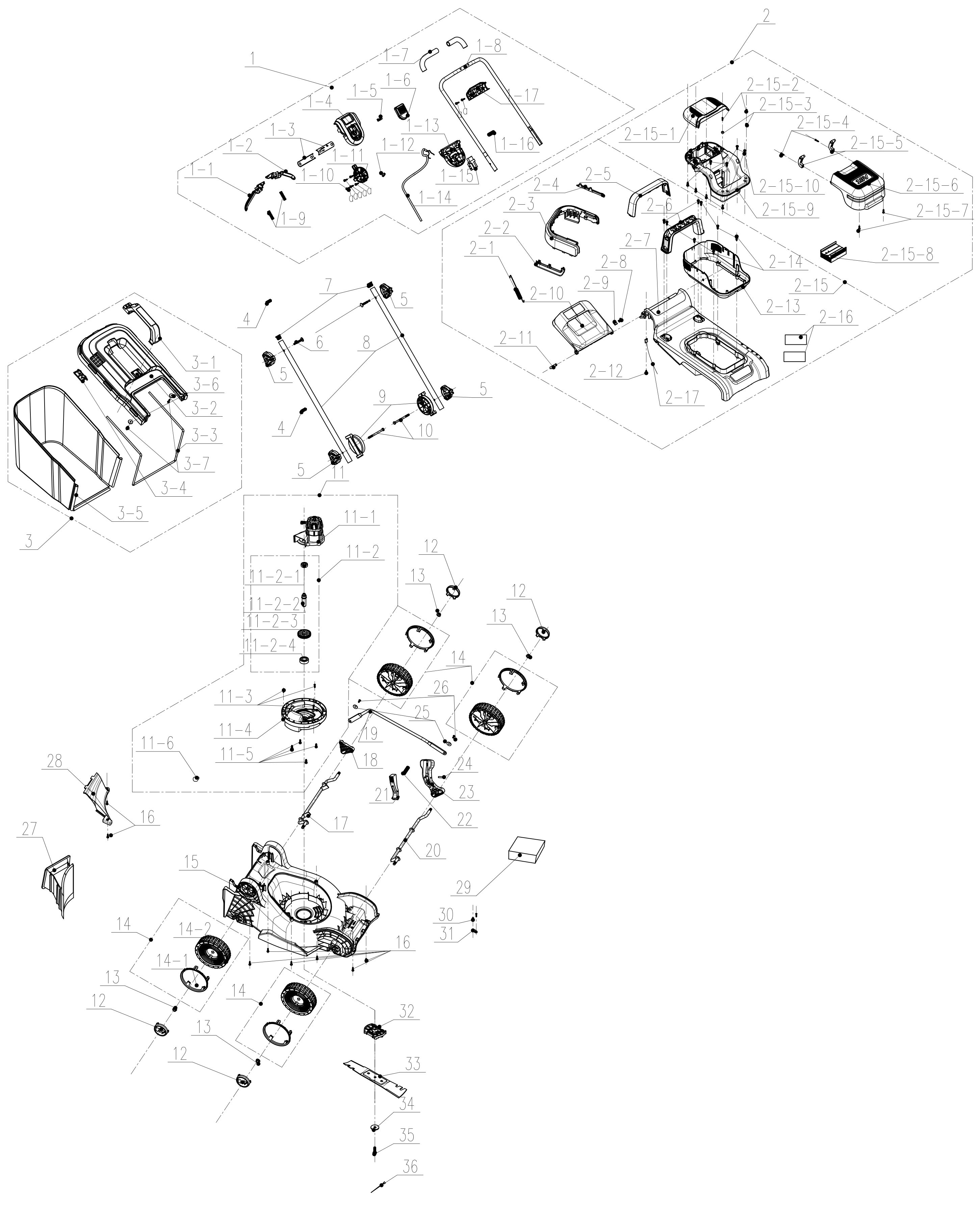

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1.1 | 2073110000002
SCREW $$$ | Not Available | ||
| 1.1 | 202004001487
TRIGGER $$$ | Not Available | ||
| 1.2 | 202004001486
TRIGGER $$$ | Not Available | ||
| 1.3 | 202015000494
PIPE SLEEVE $$$ (PART OF 199075000610) | Not Available | ||
| 1.4 | 202113000115
SWITCH BOX UPPER COVER $$$ (PART OF 199075000610) | Not Available | ||
| 1.5 | 202031001168
BRACKET $$$ (PART OF 199075000610) | Not Available | ||
| 1.6 | 202003002489
BUTTON $$$ (PART OF 199075000610) | Not Available | ||
| 1.7 | 202015000495
SPONGE SHEATH $$$ | Not Available | ||
| 1.9 | 8342-755101-0000000
TRIGGER SPRING $$$ | Not Available | ||
| 1.11 | 202156000504
COVER $$$ (PART OF 199075000610) | Not Available | ||
| 1.13 | 202113000116
SWITCH BOX LOWER COVER $$$ (PART OF 199075000610) | Not Available | ||
| 1.14 | 207040200103
CONTROL CABLE | On Order | 4.99 | |
| 1.15 | 207180100009
BUTTON SWITCH | Not Available | ||
| 1.16 | 207010100054
COMPRESSION SPRING $$$ (PART OF 199075000610) | Not Available | ||
| 1.17 | 202113000117
SWITCH BOX BRACKET $$$ (PART OF 199075000610) | Not Available | ||
| 2 | 199127000279
DECK COVER ASSEMBLY - 18V 32CM | On Order | 49.99 | |
| 2.1 | 202030002334
REAR COVER | Not Available | ||
| 2.1 | 207010500030
SPRING | Not Available | ||
| 2.2 | 202033000738
TRIM - RH | Not Available | ||
| 2.3 | 202033000736
TRIM - REAR | Not Available | ||
| 2.4 | 202033000737
TRIM - LH | Not Available | ||
| 2.5 | 202024003595
HANDLE COVER $$$ | Not Available | ||
| 2.6 | 202024003596
HANDLE | Not Available | ||
| 2.7 | 202138001030
UPPER COVER $$$ | Not Available | ||
| 2.8 | 202029000287
PRESSURE PLATE | Not Available | ||
| 2.9 | 209301000035
MAGNET | Not Available | ||
| 2.11 | 201026000465
SHAFT $$$ | Not Available | ||
| 2.13 | 202031001357
BRACKET $$$ | Not Available | ||
| 2.14 | 207310101151
SCREW $$$ | Not Available | ||
| 2.15 | 199127000282
TOP COVER ASSEMBLY - 18V | On Order | 44.99 | |
| 2.15.1 | 202138001001
CONTROL PCB COVER | Not Available | ||
| 2.15.10 | 207310101151
SCREW $$$ | Not Available | ||
| 2.15.2 | 207310500013
SCREW $$$ | Not Available | ||
| 2.15.3 | 203004000010
MAGNET | Not Available | ||
| 2.15.4 | 207310101172
SCREW $$$ | Not Available | ||
| 2.15.5 | 202031001359
HINGE | On Order | 2.99 | |
| 2.15.6 | 202012000711
BATTERY COMPARTMENT LID | On Order | 6.99 | |
| 2.15.7 | 207310500001
SCREW $$$ | Not Available | ||
| 2.15.8 | 102003001658
CONTROL PCB - 18V | On Order | 39.99 | |
| 2.15.9 | 202031001358
UPPER COVER BASE | Not Available | ||
| 2.16 | 299005000221
DAMPER $$$ | Not Available | ||
| 3 | 199012000140
ACCESSORY - GRASS COLLECTOR | On Order | 24.99 | |
| 3.1 | 202024003537
COLLECTOR LID | On Order | 6.99 | |
| 3.2 | 202138000930
COLLECTOR LID $$$ | Not Available | ||
| 3.3 | 201059000488
COLLECTOR BRACKET $$$ | Not Available | ||
| 3.4 | 202999002408
COLLECTOR FILL INDICATOR | On Order | 3.99 | |
| 3.5 | 299001000190
COLLECTOR BASE | On Order | 14.99 | |
| 3.6 | 207050100111
WASHER $$$ | Not Available | ||
| 3.7 | 207310101151
SCREW $$$ | Not Available | ||
| 4 | 8007-512001-0000120
CABLE CLIP | Not Available | ||
| 5 | 207250100053
LOCKING KNOB | In Stock | 3.99 | |
| 6 | 207221100015
THROUGH-BOLT (SQUARE-SHOULDER) | In Stock | Contact Us | |
| 7 | 8371-513001-0100110
TUBE END CAP | Not Available | ||
| 8 | 201139000188
LOWER HANDLE BAR | Not Available | ||
| 9 | 202148000137
HANDLEBAR ADJUSTMENT DISC | Not Available | ||
| 10 | 207430100032
THROUGH-BOLT | In Stock | Contact Us | |
| 11 | 101001001312
BLDC MOTOR ASSEMBLY | On Order | 39.99 | |
| 12 | 202121000752
HUB CAP | Not Available | ||
| 14 | 199088000274
WHEEL ASSEMBLY | Low Stock | 9.99 | |
| 15 | 202016005930
CHASSIS $$$ | Not Available | ||
| 16 | 2073110000002
SCREW $$$ | Not Available | ||
| 17 | 207460100016
REAR AXLE | Not Available | ||
| 18 | 202031001173
BRACKET | Not Available | ||
| 19 | 201053000157
HEIGHT ADJUSTMENT CONNECTING ROD | Not Available | ||
| 20 | 207460100017
FRONT AXLE | On Order | 12.99 | |
| 21 | 202024003539
HEIGHT ADJUSTMENT LATCH | Not Available | ||
| 22 | 207010100174
SPRING | Not Available | ||
| 23 | 202024003353
HEIGHT ADJUSTMENT LEVER | Not Available | ||
| 24 | 207190100033
PIN | Not Available | ||
| 25 | 207050100111
WASHER $$$ | Not Available | ||
| 26 | 8SJAB40-14Q01
SCREW $$$ | Not Available | ||
| 27 | 202072000035
ACCESSORY - MULCHING PLUG INSERT | Not Available | ||
| 28 | 202129000007
GRASS DISCHARGE PLATE | On Order | 4.99 | |
| 29 | 199094000008
BALLAST $$$ | Not Available | ||
| 30 | 207310101151
SCREW $$$ | Not Available | ||
| 31 | 8184-302201-0001720
CABLE CLAMP $$$ | In Stock | 3.99 | |
| 32 | 202013000201
FIXING PLATE | Not Available | ||
| 33 | 201045000460
ACCESSORY - LAWN MOWER BLADE - 32CM | On Order | 17.49 | |
| 34 | 201057000395
BLADE LOCKING WASHER | Low Stock | 1.49 | |
| 35 | 207220100044
BLADE RETAINING BOLT | Low Stock | 1.49 | |
| Manufacturer Model Number | MCI1187LWM |
| EAN | 5063022636850 |
| Brand | Mac Allister |
| Description | LAWN MOWER - 18V 32CM |
