Titan MCI1189LWM LAWN MOWER 18V 34CM

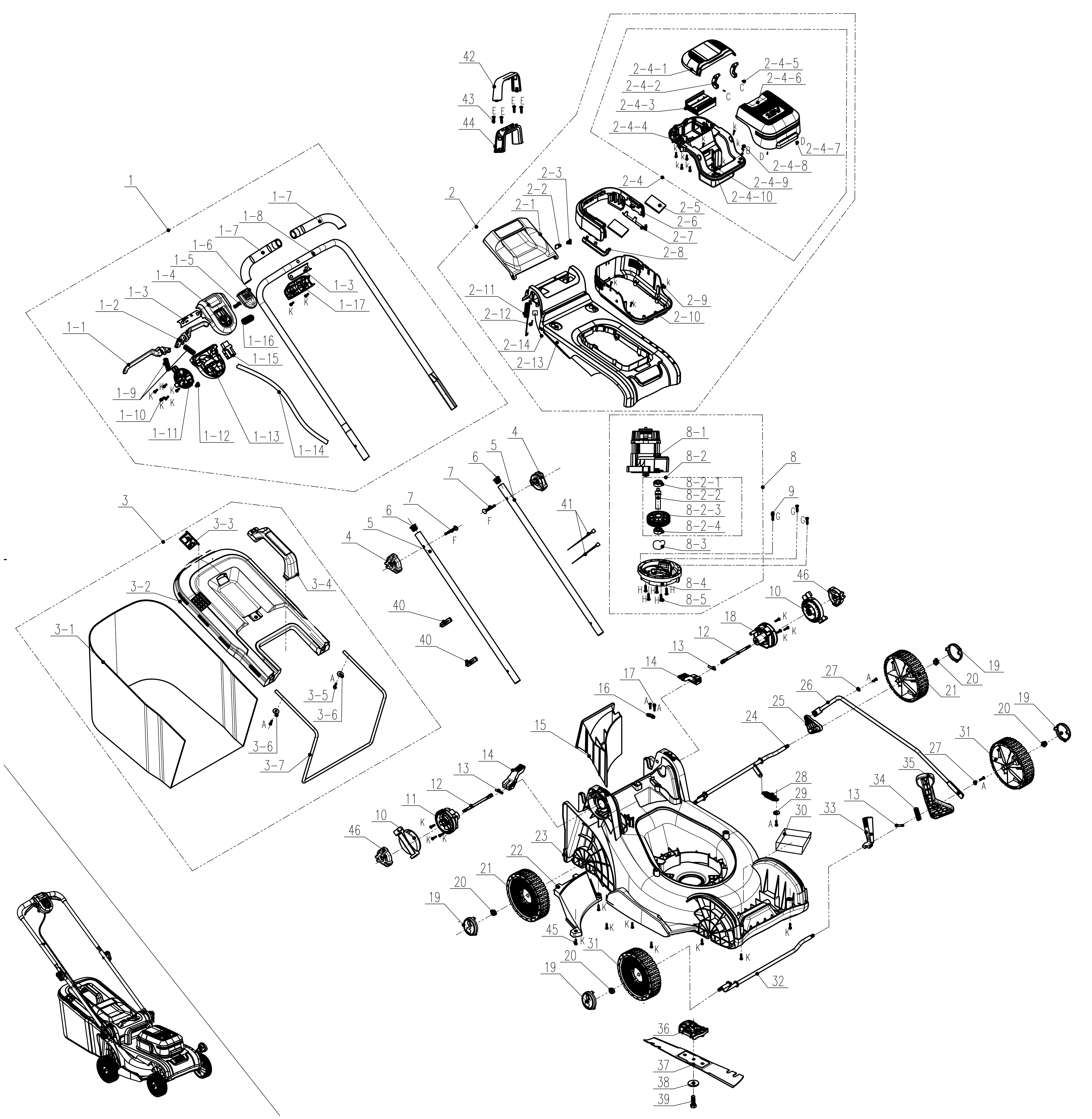

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 199075000603
SWITCH BOX/UPPER BAR ASSEMBLY | On Order | Contact Us | |
| 1-1 | 202004001534
TRIGGER $$$ | Not Available | ||
| 1-2 | 202004001513
TRIGGER $$$ | Not Available | ||
| 1-3 | 202015000494
PIPE SLEEVE $$$ | Not Available | ||
| 1-4 | 202113000115
SWITCH BOX UPPER COVER $$$ | Not Available | ||
| 1-5 | 202031001168
BRACKET $$$ | Not Available | ||
| 1-6 | 202003002539
BUTTON $$$ | Not Available | ||
| 1-7 | 202015000495
SPONGE SHEATH $$$ | Not Available | ||
| 1-8 | 201139000187
UPPER HANDLEBAR $$$ (USE GP0000008523) | Not Available | ||
| 1-9 | 8342-755101-0000000
TRIGGER SPRING $$$ | Not Available | ||
| 1-10 | 2073110000002
SCREW $$$ | Not Available | ||
| 1-11 | 202156000504
COVER $$$ | Not Available | ||
| 1-13 | 202113000116
SWITCH BOX LOWER COVER $$$ | Not Available | ||
| 1-14 | 207040200103
CONTROL CABLE | On Order | 4.99 | |
| 1-15 | 207180100009
BUTTON SWITCH | Not Available | ||
| 1-16 | 207010100054
COMPRESSION SPRING $$$ | Not Available | ||
| 1-17 | 202113000117
SWITCH BOX BRACKET $$$ | Not Available | ||
| 2 | 199002001233
UPPER DECK ASSEMBLY (INC PCB) | Not Available | ||
| 2-1 | 202083001248
MOTOR HOUSING BASE $$$ | Not Available | ||
| 2-2 | 209301000035
MAGNET | Not Available | ||
| 2-3 | 202029000287
PRESSURE PLATE | Not Available | ||
| 2-4 | 199127000294
UPPER COVER ASSEMBLY | Not Available | ||
| 2-5 | 299005000221
SPONGE | Not Available | ||
| 2-6 | 202033000790
DECORATIVE COVER | Not Available | ||
| 2-7 | 202033000801
DECORATIVE COVER (LH) | Not Available | ||
| 2-8 | 202033000803
DECORATIVE COVER (RH) | Not Available | ||
| 2-9 | 2073110000002
SCREW $$$ | Not Available | ||
| 2-10 | 202031001357
BRACKET $$$ | Not Available | ||
| 2-11 | 207010500030
SPRING | Not Available | ||
| 2-12 | 8SNAB40-12D
FLANGE SCREWS | Not Available | ||
| 2-13 | 202138000999
UPPER COVER $$$ | Not Available | ||
| 2-14 | 102003001708
WIRING | Not Available | ||
| 2-4-1 | 202138001028
PCB COVER | Not Available | ||
| 2-4-2 | 202031001359
HINGE | On Order | 2.99 | |
| 2-4-3 | 102003001659
CONTROL PCB | On Order | Contact Us | |
| 2-4-4 | 202031001358
UPPER COVER BASE | Not Available | ||
| 2-4-5 | 207310101172
SCREW $$$ | Not Available | ||
| 2-4-6 | 202012000711
BATTERY COMPARTMENT LID | On Order | 6.99 | |
| 2-4-7 | 207310500001
SCREW $$$ | Not Available | ||
| 2-4-8 | 2073110000002
SCREW $$$ | Not Available | ||
| 2-4-9 | 207310500013
SCREW $$$ | Not Available | ||
| 2-4-10 | 203004000010
MAGNET | Not Available | ||
| 3 | 199012000148
GRASS COLLECTOR | On Order | Contact Us | |
| 3-1 | 299001000201
COLLECTOR BASE | Not Available | ||
| 3-2 | 202030002280
COLLECTOR LID | Not Available | ||
| 3-3 | 202999002445
COLLECTOR FILL LEVEL INDICATOR $$$ | Not Available | ||
| 3-4 | 202024003638
COLLECTOR HANDLE $$$ | Not Available | ||
| 3-5 | 207310101151
SCREW $$$ | Not Available | ||
| 3-6 | 207050100111
WASHER $$$ | Not Available | ||
| 3-7 | 201059000484
COLLECTOR FRAME $$$ | Not Available | ||
| 4 | 207250100058
LOCKING KNOB | In Stock | Contact Us | |
| 5 | 201061000159
LOWER HANDLE RISER | Not Available | ||
| 6 | 8371-513001-0100110
TUBE END CAP | Not Available | ||
| 7 | 207221100015
THROUGH-BOLT (SQUARE-SHOULDER) | In Stock | Contact Us | |
| 8 | 101001001309
MOTOR/GEARBOX ASSEMBLY | On Order | Contact Us | |
| 9 | 8SJAN50-25D
SCREW $$$ | Not Available | ||
| 10 | 202148000135
HANDLEBAR HEIGHT ADJUSTMENT OUTER | Low Stock | Contact Us | |
| 11 | 202087000215
HANDLEBAR HEIGHT ADJUSTMENT INNER LH | Low Stock | 3.99 | |
| 12 | 201135000003
THROUGH-BOLT ROD | Low Stock | 3.99 | |
| 13 | 207190100033
PIN | Not Available | ||
| 14 | 202116000007
LOCKING LEVER (ALT GP0000007603) | Low Stock | 3.99 | |
| 15 | 202072000032
ACCESSORY - MULCHING PLUG INSERT | Not Available | ||
| 16 | 8184-302201-0001720
CABLE CLAMP $$$ | In Stock | 3.99 | |
| 17 | 207310101151
SCREW $$$ | Not Available | ||
| 18 | 202087000216
HANDLEBAR HEIGHT ADJUSTMENT INNER RH | On Order | Contact Us | |
| 19 | 202121000770
WHEEL COVER | Not Available | ||
| 20 | 207320800007
NUT $$$ | Not Available | ||
| 21 | 199088000275
WHEEL (ALT GP0000007809) | Low Stock | 7.49 | |
| 22 | 201080000075
DEFLECTOR | Not Available | ||
| 23 | 202016005509
CHASSIS $$$ | Not Available | ||
| 24 | 199086000269
REAR AXLE | Not Available | ||
| 25 | 202031001167
BRACKET | Not Available | ||
| 26 | 201053000155
HEIGHT ADJUSTMENT LINK ROD | Not Available | ||
| 27 | 207330100097
WASHER $$$ | Not Available | ||
| 28 | 207010500031
SPRING | Not Available | ||
| 29 | 207050100111
WASHER $$$ | Not Available | ||
| 31 | 199088000274
WHEEL ASSEMBLY | Low Stock | 9.99 | |
| 32 | 199086000268
FRONT AXLE | Not Available | ||
| 33 | 202024003644
HEIGHT ADJUSTMENT LOCKING LEVER (ALT GP0000007618) | Low Stock | 3.99 | |
| 34 | 207010100174
SPRING | Not Available | ||
| 35 | 201132000040
HEIGHT ADJUSTMENT LEVER | Low Stock | Contact Us | |
| 36 | 202013000201
FIXING PLATE | Not Available | ||
| 37 | 202008000013
ACCESSORY - 34CM BLADE | On Order | Contact Us | |
| 38 | 201057000395
BLADE LOCKING WASHER | Low Stock | 1.49 | |
| 39 | 207220100044
BLADE RETAINING BOLT | Low Stock | 1.49 | |
| 40 | 202157000107
CABLE CLAMP $$$ | Not Available | ||
| 42 | 202024003595
HANDLE COVER $$$ | Not Available | ||
| 43 | 8SJAB40-25D
SCREW | Not Available | ||
| 44 | 202024003669
HANDLE $$$ | Not Available | ||
| 45 | 2073110000002
SCREW $$$ | Not Available | ||
| 46 | 207250100043
LOCKING KNOB | In Stock | 3.99 | |
| Manufacturer Model Number | MCI1189LWM |
| EAN | 5063022637451 |
| Brand | Titan |
| Description | LAWN MOWER 18V 34CM |
