Mac Allister MCT1191LWM LAWN MOWER 36V 38CM

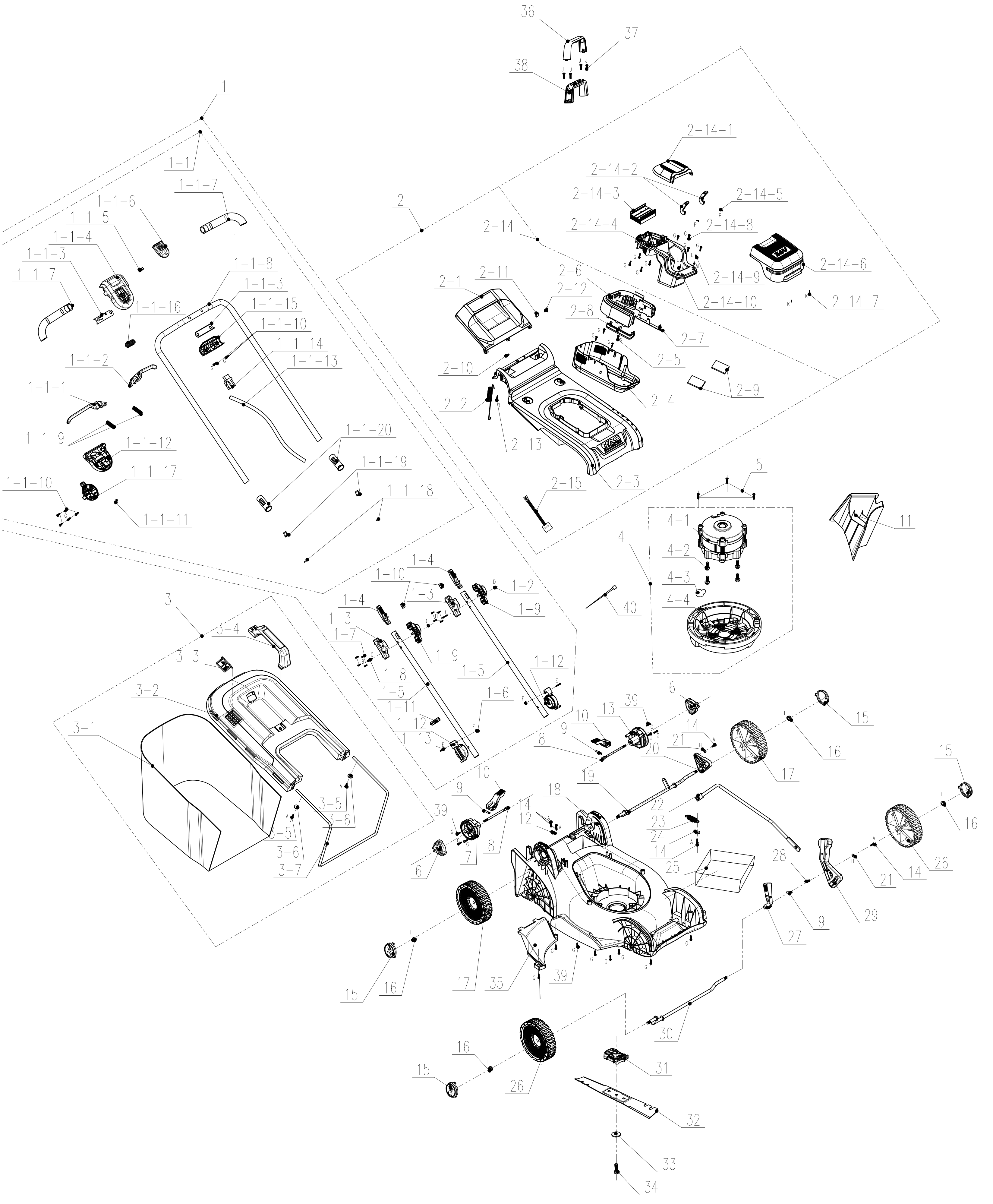

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 199004000928
FULL HANDLEBAR ASSEMBLY | Not Available | ||
| 1.1 | 202099000026
SLIDER | Low Stock | 1.99 | |
| 1.1 | 199075000610
SWITCH BOX ASSEMBLY | On Order | Contact Us | |
| 1.3 | 201058000283
BAR CLAMP (MIDDLE) (RH CASING) | Low Stock | 3.99 | |
| 1.4 | 202024003639
BAR CLAMP LEVER (MIDDLE) | On Order | Contact Us | |
| 1.5 | 202024003542
HANDLE BAR (LOWER) | Low Stock | 4.99 | |
| 1.9 | 201058000284
BAR CLAMP (MIDDLE) (LH CASING) | Low Stock | 3.99 | |
| 1.1.1 | 202004001534
TRIGGER (RH) $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.12 | 202113000116
SWITCH BOX LOWER COVER $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.13 | 207040200098
CONTROL CABLE $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.14 | 207180100009
PLUG $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.15 | 202113000117
SWITCH BOX BRACKET $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.16 | 207010100054
COMPRESSION SPRING $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.17 | 202156000504
COVER $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.18 | 8PB40-20B
PIN $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.19 | 202023000106
BAR END CAP (PART OF 199075000610) | Not Available | ||
| 1.1.2 | 202004001513
TRIGGER (LH) $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.20 | 202015000453
BAR SLEEVE (PART OF 199075000610) | Not Available | ||
| 1.1.3 | 202015000494
PIPE SLEEVE $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.4 | 202113000115
SWITCH BOX UPPER COVER $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.5 | 202031001168
BRACKET $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.6 | 202003002489
BUTTON $$$ (PART OF 199075000610) | Not Available | ||
| 1.1.7 | 202015000518
GRIP SLEEVE (PART OF 199075000610) | Not Available | ||
| 1.1.8 | 207239900436
UPPER HANDLE BAR $$$ (PART OF 199075000610) | Not Available | ||
| 1.11 | 8007-517001-0001020
CABLE CLAMP $$$ | Not Available | ||
| 1.12 | 202148000136
HANDLEBAR ADJUSTMENT GEAR | Low Stock | 3.99 | |
| 1.13 | 8SJAD05-40B
SCREW $$$ | Not Available | ||
| 2 | 199002001234
UPPER DECK ASSEMBLY | Not Available | ||
| 2.1 | 202030002335
REAR DISCHARGE CHUTE COVER | On Order | Contact Us | |
| 2.1 | 207190400017
PIN SHAFT | Not Available | ||
| 2.2 | 207010500030
RETURN SPRING | Not Available | ||
| 2.3 | 202138001010
UPPER COVER $$$ | Not Available | ||
| 2.4 | 202031001357
BRACKET $$$ | Not Available | ||
| 2.6 | 202033000790
REAR COVER $$$ | Not Available | ||
| 2.7 | 202033000805
LOWER COVER (LH) $$$ | Not Available | ||
| 2.8 | 202033000804
LOWER COVER (RH) $$$ | Not Available | ||
| 2.9 | 299005000221
DAMPER $$$ | Not Available | ||
| 2.11 | 209301000035
MAGNET TILE $$$ | Not Available | ||
| 2.12 | 202029000287
PRESSURE PLATE $$$ | Not Available | ||
| 2.14 | 199127000297
BATTERY HOUSING | On Order | Contact Us | |
| 2.14.1 | 202138001028
BATTERY HOUSING - PCB COVER $$$ | Not Available | ||
| 2.14.10 | 203004000010
MAGNET TILE | Not Available | ||
| 2.14.2 | 202031001359
BATTERY HOUSING - BATTERY COVER HINGES $$$ | Not Available | ||
| 2.14.3 | 102003001656
BATTERY HOUSING - CONTROL PCB | On Order | Contact Us | |
| 2.14.4 | 202031001358
BATTERY HOUSING - LOWER SECTION $$$ | Not Available | ||
| 2.14.6 | 202012000712
BATTERY HOUSING - BATTERY COVER | Not Available | ||
| 2.15 | 102003001708
WIRING HARNESS | Not Available | ||
| 3 | 199012000149
GRASS COLLECTOR ASSEMBLY | On Order | Contact Us | |
| 4 | 101001001332
MOTOR ASSEMBLY | On Order | Contact Us | |
| 4.1 | 101001001333
MOTOR | Not Available | ||
| 6 | 207250100043
LOCKING KNOB | In Stock | 3.99 | |
| 7 | 202087000215
HANDLEBAR HEIGHT ADJUSTMENT INNER LH | Low Stock | 3.99 | |
| 8 | 201135000004
THROUGH-BOLT | Low Stock | 1.49 | |
| 9 | 207190100033
PIN | Not Available | ||
| 10 | 202116000007
LOCKING LEVER (ALT GP0000007603) | Low Stock | 3.99 | |
| 11 | 202072000033
ACCESSORY - MULCHING PLUG INSERT | Not Available | ||
| 12 | 8184-302201-0001720
CABLE CLAMP $$$ | In Stock | 3.99 | |
| 13 | 202087000216
HANDLEBAR HEIGHT ADJUSTMENT INNER RH | On Order | Contact Us | |
| 15 | 202121000770
WHEEL COVER | Not Available | ||
| 17 | 199088000276
WHEEL (ALT GP0000007607) | Low Stock | 7.49 | |
| 18 | 202016005510
CHASSIS $$$ | Not Available | ||
| 19 | 207460100012
REAR AXLE | Not Available | ||
| 20 | 202031001169
BRACKET | Not Available | ||
| 22 | 201053000156
HEIGHT ADJUSTMENT LINKAGE ROD | Not Available | ||
| 23 | 207010500031
SPRING | Not Available | ||
| 24 | 207050100111
WASHER $$$ | Not Available | ||
| 26 | 199088000275
WHEEL (ALT GP0000007809) | Low Stock | 7.49 | |
| 27 | 202024003644
HEIGHT ADJUSTMENT LOCKING LEVER (ALT GP0000007618) | Low Stock | 3.99 | |
| 28 | 8342-755101-0000000
TRIGGER SPRING $$$ | Not Available | ||
| 29 | 202024003339
HEIGHT ADJUSTMENT LEVER | On Order | Contact Us | |
| 30 | 207460100013
FRONT AXLE | Not Available | ||
| 31 | 202013000201
FIXING PLATE | Not Available | ||
| 32 | 201045000459
ACCESSORY - LAWN MOWER BLADE - 38CM | On Order | Contact Us | |
| 33 | 201057000395
BLADE LOCKING WASHER | Low Stock | 1.49 | |
| 34 | 207220100044
BLADE RETAINING BOLT | Low Stock | 1.49 | |
| 35 | 202063000032
REAR DISCHARGE CHUTE | Not Available | ||
| 36 | 202024003595
HANDLE COVER $$$ | Not Available | ||
| 38 | 202024003669
HANDLE $$$ | Not Available | ||
.png){kind=spacer}
| Manufacturer Model Number | MCT1191LWM |
| EAN | 5063022637161 |
| Brand | Mac Allister |
| Description | LAWN MOWER 36V 38CM |
