Mac Allister MCT1193LWM LAWN MOWER - 36V - 43CM

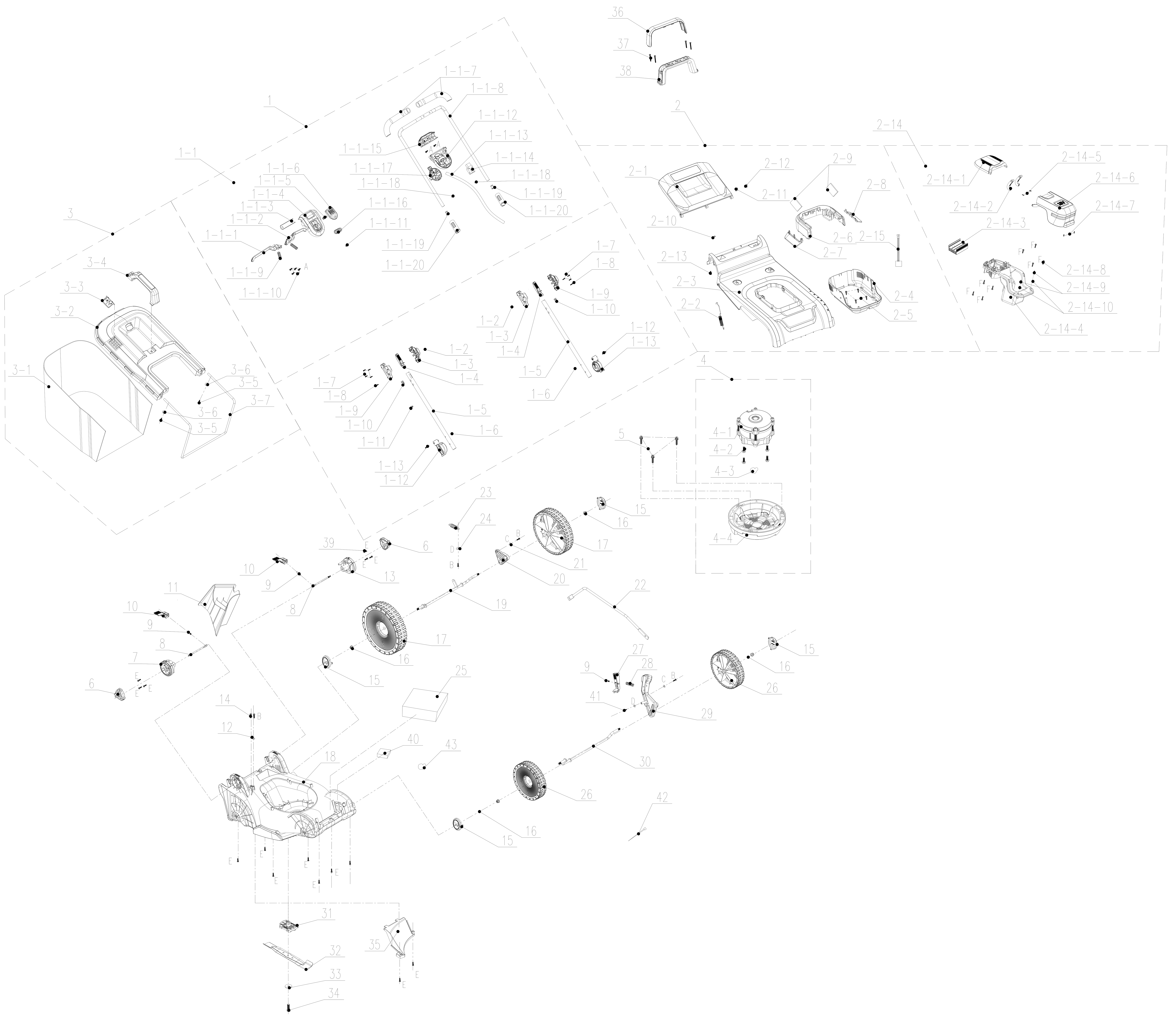

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1-1 | 199075000590
SWITCH BOX ASSEMBLY | Not Available | ||
| 1-2 | 8NH-04Q
NUT $$$ | Not Available | ||
| 1-3 | 201058000283
BAR CLAMP (MIDDLE) (RH CASING) | Low Stock | 3.99 | |
| 1-4 | 202024003542
HANDLE BAR (LOWER) | Low Stock | 4.99 | |
| 1-5 | 207300500026
HANDLE BAR RELEASE CATCH | Not Available | ||
| 1-6 | 8NH-05Q
NUT $$$ | Not Available | ||
| 1-7 | 8SJAB40-20Q
SCREW $$$ | Not Available | ||
| 1-8 | 207420100032
SCREW $$$ | Not Available | ||
| 1-9 | 201058000284
BAR CLAMP (MIDDLE) (LH CASING) | Low Stock | 3.99 | |
| 1-10 | 202099000026
SLIDER | Low Stock | 1.99 | |
| 1-11 | 8007-517001-0000120
WIRE CLIP | Not Available | ||
| 1-12 | 202148000136
HANDLEBAR ADJUSTMENT GEAR | Low Stock | 3.99 | |
| 1-13 | 8SJAD05-40B
SCREW $$$ | Not Available | ||
| 2 | 199127000283
UPPER DECK COVER ASSEMBLY | Not Available | ||
| 2-1 | 202030002325
REAR DISCHARGE CHUTE COVER | On Order | Contact Us | |
| 2-2 | 207010500030
SPRING | Not Available | ||
| 2-3 | 202138001007
SPRING | Not Available | ||
| 2-4 | 202031001357
BRACKET $$$ | Not Available | ||
| 2-5 | 2073110000002
SCREW $$$ | Not Available | ||
| 2-6 | 202033000736
TRIM - REAR | Not Available | ||
| 2-7 | 202033000795
TRIM - RIGHT | Not Available | ||
| 2-8 | 202033000796
TRIM - LEFT | Not Available | ||
| 2-9 | 299005000221
DAMPER $$$ | Not Available | ||
| 2-10 | 207190400017
PIN SHAFT | Not Available | ||
| 2-11 | 209301000035
MAGNET | Not Available | ||
| 2-12 | 202029000287
PRESSURE PLATE | Not Available | ||
| 2-13 | 207310101151
SCREW $$$ | Not Available | ||
| 2-14 | 199127000286
CONTROL PCB HOUSING | Not Available | ||
| 2-15 | 102003001708
WIRING | Not Available | ||
| 2-14.1 | 203004000010
MAGNET | Not Available | ||
| 2-14.1 | 202138001001
CONTROL PCB COVER | Not Available | ||
| 2-14.2 | 202031001359
HINGE | On Order | 2.99 | |
| 2-14.3 | 102003001656
BATTERY HOUSING - CONTROL PCB | On Order | Contact Us | |
| 2-14.4 | 202031001358
UPPER COVER BASE | Not Available | ||
| 2-14.5 | 207310101172
SCREW $$$ | Not Available | ||
| 2-14.6 | 202012000712
BATTERY HOUSING - BATTERY COVER | Not Available | ||
| 2-14.7 | 207310500001
SCREW $$$ | Not Available | ||
| 2-14.8 | 207310101151
SCREW $$$ | Not Available | ||
| 2-14.9 | 207310500013
SCREW $$$ | Not Available | ||
| 3 | 199012000142
ACCESSORY - GRASS COLLECTOR ASSEMBLY | Not Available | ||
| 3-1 | 199011000060
COLLECTOR BASE | Not Available | ||
| 3-2 | 202138000932
COLLECTOR LID $$$ | Not Available | ||
| 3-3 | 202999002408
COLLECTOR FILL INDICATOR | On Order | 3.99 | |
| 3-4 | 202024003537
COLLECTOR LID | On Order | 6.99 | |
| 3-5 | 207310101151
SCREW $$$ | Not Available | ||
| 3-6 | 207050100111
WASHER $$$ | Not Available | ||
| 3-7 | 201059000474
COLLECTOR FRAME $$$ | Not Available | ||
| 4 | 101001001324
BLDC MOTOR ASSEMBLY (DIRECT DRIVE) | On Order | Contact Us | |
| 4-1 | 101001001326
BLDC MOTOR $$$ USE 101001001324 | Not Available | ||
| 5 | 8SJAN50-25D
SCREW $$$ | Not Available | ||
| 6 | 207250100043
LOCKING KNOB | In Stock | 3.99 | |
| 7 | 202087000215
HANDLEBAR HEIGHT ADJUSTMENT INNER LH | Low Stock | 3.99 | |
| 8 | 201135000004
THROUGH-BOLT | Low Stock | 1.49 | |
| 9 | 207190100033
PIN | Not Available | ||
| 10 | 202116000004
LOCKING LEVER | Low Stock | 4.99 | |
| 11 | 202072000034
ACCESSORY - MULCHING PLUG INSERT | Not Available | ||
| 12 | 8184-302201-0001720
CABLE CLAMP $$$ | In Stock | 3.99 | |
| 13 | 202087000216
HANDLEBAR HEIGHT ADJUSTMENT INNER RH | On Order | Contact Us | |
| 14 | 207310101151
SCREW $$$ | Not Available | ||
| 15 | 202121000752
HUB CAP | Not Available | ||
| 16 | 207320800007
NUT $$$ | Not Available | ||
| 17 | 199088000269
WHEEL | Low Stock | Contact Us | |
| 18 | 202016005526
CHASSIS $$$ | Not Available | ||
| 19 | 199086000262
REAR AXLE | Not Available | ||
| 20 | 202031001171
BRACKET | Not Available | ||
| 21 | 207330100097
WASHER $$$ | Not Available | ||
| 22 | 201053000149
HEIGHT ADJUSTMENT LINKAGE ROD | Not Available | ||
| 23 | 207010500031
SPRING | Not Available | ||
| 24 | 207050100111
WASHER $$$ | Not Available | ||
| 26 | 199088000268
WHEEL | Low Stock | Contact Us | |
| 27 | 202024003667
HEIGHT ADJUSTMENT LOCKING LEVER | Low Stock | Contact Us | |
| 28 | 207010100174
SPRING | Not Available | ||
| 29 | 202024003350
HEIGHT ADJUSTMENT LEVER | Low Stock | 5.99 | |
| 30 | 199086000263
FRONT AXLE | Not Available | ||
| 31 | 202013000201
FIXING PLATE | Not Available | ||
| 32 | 201045000452
ACCESSORY - LAWN MOWER BLADE - 43CM | On Order | Contact Us | |
| 33 | 201057000395
BLADE LOCKING WASHER | Low Stock | 1.49 | |
| 34 | 207220100044
BLADE RETAINING BOLT | Low Stock | 1.49 | |
| 35 | 202129000006
REAR DISCHARGE CHUTE | Not Available | ||
| 36 | 202024003595
HANDLE COVER $$$ | Not Available | ||
| 37 | 207310300025
SCREW $$$ | Not Available | ||
| 38 | 202024003596
HANDLE | Not Available | ||
| 39 | 2073110000002
SCREW $$$ | Not Available | ||
| Manufacturer Model Number | MCT1193LWM |
| EAN | 5063022637079 |
| Brand | Mac Allister |
| Description | LAWN MOWER - 36V - 43CM |
