Mac Allister MCV1195LWM LAWN MOWER - 72V - 46CM

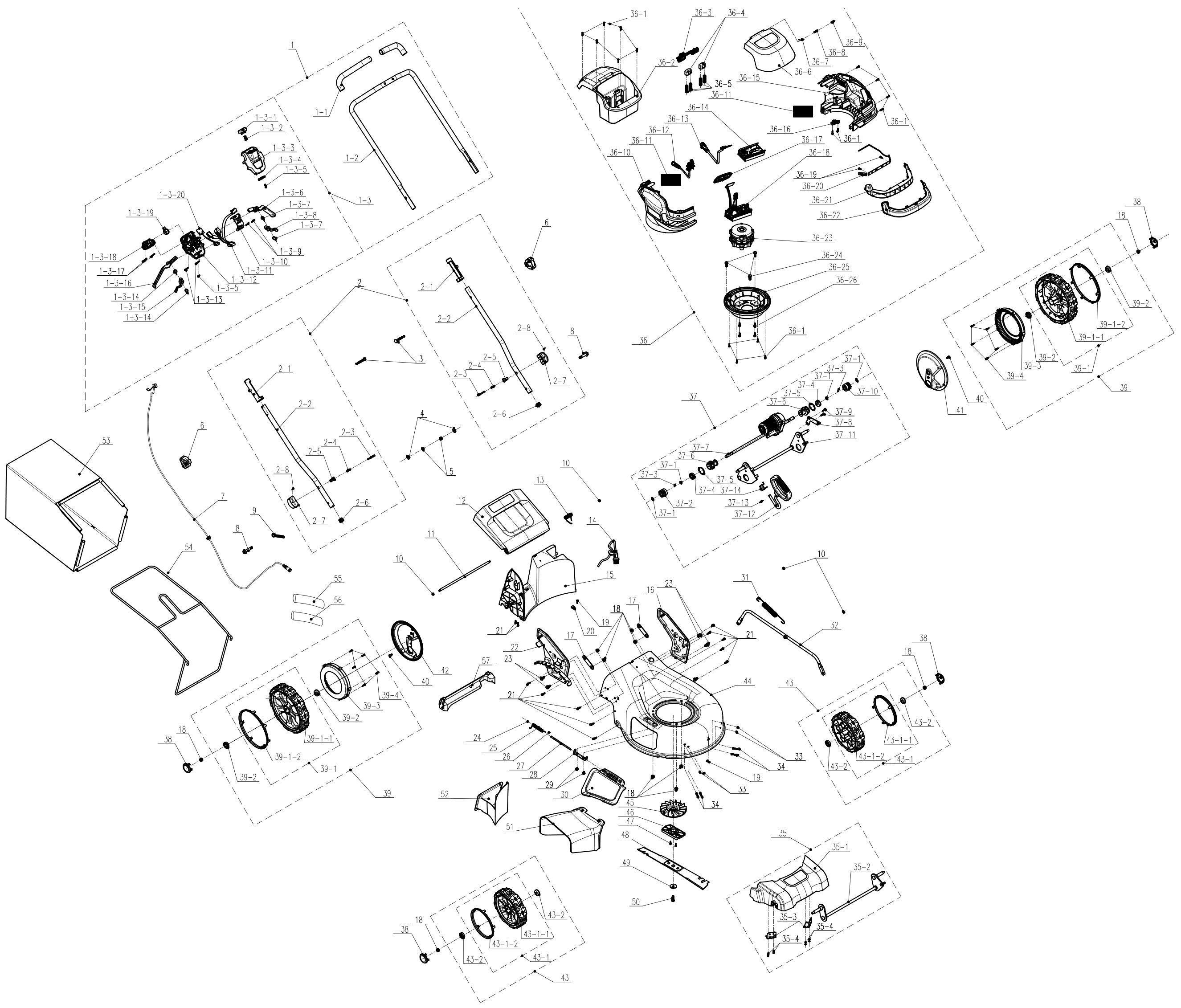

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 199004000914
UPPER HANDLE BAR/SWITCH BOX ASSEMBLY | Not Available | ||
| 1-1 | 207450100021
HANDLE BAR GRIP | Not Available | ||
| 1-2 | 207300300004
UPPER HANDLE BAR | Not Available | ||
| 1-3 | 199075000591
SWITCH BOX ASSEMBLY | On Order | 29.99 | |
| 2 | 199004000932
LOWER HANDLE BAR ASSEMBLY | Not Available | ||
| 3 | 207221100016
BOLT $$$ | Not Available | ||
| 4 | 8WF-08B-1802
WASHER $$$ | Not Available | ||
| 5 | 8NH-08Q01
NUT $$$ | Not Available | ||
| 6 | 207259901133
KNOB | On Order | 3.99 | |
| 7 | 207049900135
CONTROL CABLE | Not Available | ||
| 8 | 207220200010
BOLT $$$ | Not Available | ||
| 9 | 201070000004
WINDING CLIP | Not Available | ||
| 10 | 8NH-06Q
NUT $$$ | Not Available | ||
| 11 | 201026000563
REAR DISCHARGE CHUTE SHAFT | On Order | 3.99 | |
| 12 | 202030002532
REAR DISCHARGE CHUTE COVER | On Order | 12.99 | |
| 13 | 207010300095
SPRING | Not Available | ||
| 14 | 207040100028
WIRING | Not Available | ||
| 15 | 202016005436
REAR DISCHARGE CHUTE | On Order | 15.99 | |
| 16 | 201084000057
HANDLE BAR BRACKET - LH | Not Available | ||
| 17 | 201059000492
BRACKET | Not Available | ||
| 20 | 8007-502501-0001720
WIRE CLIP | Not Available | ||
| 22 | 201084000062
HANDLE BAR BRACKET - RH | Not Available | ||
| 23 | 8SQDD08-16B
BOLT $$$ | Not Available | ||
| 24 | 8CE-05Q
CIRCLIP $$$ | Not Available | ||
| 25 | 207010300101
SPRING | Not Available | ||
| 26 | 8025-516205-0000120
RUBBER CAP | Not Available | ||
| 27 | 201026000573
SIDE DISCHARGE COVER SHAFT | Not Available | ||
| 28 | 202031001158
SIDE DISCHARGE CHUTE BRACKET | Not Available | ||
| 29 | 8SQDD06-08B
BOLT $$$ | Not Available | ||
| 30 | 202012000656
SIDE DISCHARGE COVER | On Order | 9.99 | |
| 31 | 207010500024
HEIGHT ADJUSTMENT SPRING | Not Available | ||
| 32 | 201053000152
HEIGHT ADJUSTMENT LINK-ROD | On Order | 12.99 | |
| 34 | 8NH-05Q
NUT $$$ | Not Available | ||
| 35 | 199127000224
FRONT AXLE ASSEMBLY | Not Available | ||
| 36 | 199127000284
POWER HEAD ASSEMBLY | On Order | 59.99 | |
| 37 | 199086000290
REAR AXLE ASSEMBLY | On Order | 24.99 | |
| 38 | 202121000691
WHEEL TRIM CAP | Not Available | ||
| 39 | 199088000267
WHEEL ASSEMBLY (REAR) (SP) | On Order | 14.99 | |
| 41 | 202121000695
WHEEL ASSEMBLY (SP) - LH | On Order | 14.99 | |
| 42 | 202121000694
WHEEL INNER COVER (SP) - RH | On Order | 6.99 | |
| 43 | 199088000266
WHEEL ASSEMBLY (FRONT) | On Order | 12.99 | |
| 45 | 8403-510901-0201720
IMPELLER | On Order | 14.99 | |
| 46 | 202090000344
BLADE SUPPORT | Not Available | ||
| 47 | 8SNAB30-16D
BLADE SUPPORT SCREW | Not Available | ||
| 48 | 201045000462
ACCESSORY - BLADE - 46CM | On Order | 19.99 | |
| 49 | 201057000275
BLADE RETAINING WASHER | Not Available | ||
| 50 | 207220100034
BLADE RETAINING BOLT | Not Available | ||
| 51 | 202057000060
SHAFT SLEEVE | On Order | 9.99 | |
| 52 | 202072000031
ACCESSORY - MULCHING PLUG INSERT $$$ | Not Available | ||
| 53 | 299001000199
GRASS COLLECTOR BASE | On Order | 19.99 | |
| 54 | 202057000060
SHAFT SLEEVE | On Order | 9.99 | |
| 57 | 202030002530
COVER PLATE | On Order | 9.99 | |
| Manufacturer Model Number | MCV1195LWM |
| EAN | 5063022637222 |
| Brand | Mac Allister |
| Description | LAWN MOWER - 72V - 46CM |
