Mac Allister MLMP300H40 B&S 300E 41CM HP LAWN MOWER
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

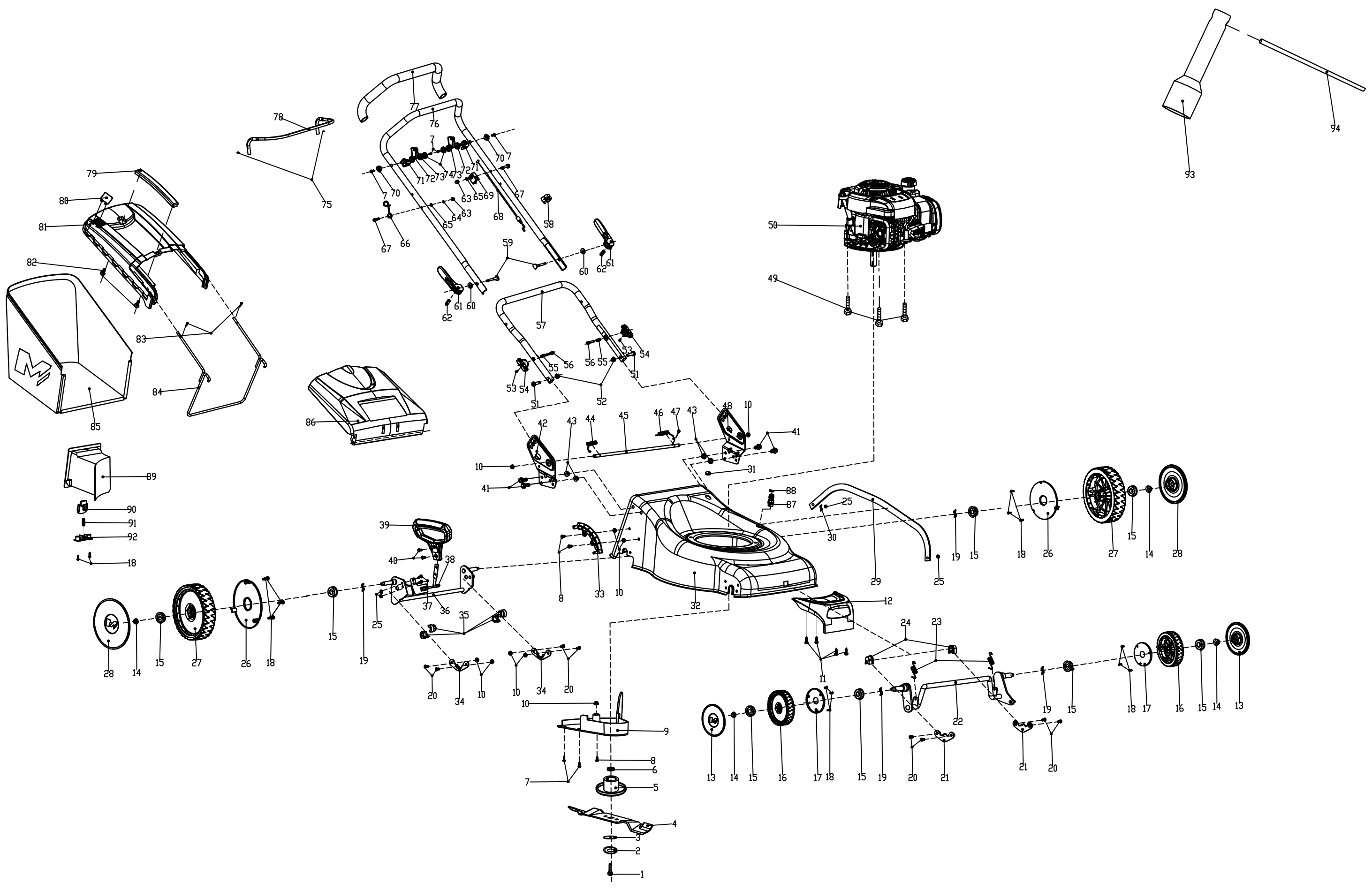

| Drawing 1 | ||||
| 1 | A26800606201
BLADE RETAINING BOLT (3/8" 24UNF) | Low Stock | 3.99 | |
| 2 | 2105300001C
DISHED WASHER | Low Stock | 3.99 | |
| 3 | 2105200367A
BLADE WASHER | Low Stock | 4.99 | |
| 4 | 21052003392000A
ACCESSORY - BLADE (UM REF: DAYE 2105200264) | On Order | 12.99 | |
| 5 | 2105500009A
STAMPING TOOL HOLDER | Low Stock | 6.99 | |
| 6 | 2105400024A
BLADE SEAT BUSH | Low Stock | 4.99 | |
| 7 | A26800103701
SELF-TAPPING SCREWS | Not Available | ||
| 8 | A26800202001A
MACHINE SCREW | Low Stock | 3.99 | |
| 9 | 21041000800001B
BELT PROTECTION COVER | Low Stock | 9.99 | |
| 10 | 3032306001
LOCKING NUT - M6 | Not Available | ||
| 11 | A26800105402
SELF-TAPPING SCREWS | Low Stock | 3.99 | |
| 12 | 21041009273267A
HEAD MASK ASSEMBLY | Not Available | ||
| 13 | 21011005293255A
WHEEL TRIM - 7 | Low Stock | 7.49 | |
| 14 | 30323060035000
HEXAGON FLANGE NUT | Not Available | ||
| 15 | 2101300065A
TAPERED BEARING $$$ | In Stock | 4.99 | |
| 16 | 21011001710001A
FRONT WHEEL (6)" | Low Stock | 9.99 | |
| 17 | 21011001730001N
6 INCH DUSTPROOF WHEEL COVER | Low Stock | 7.49 | |
| 18 | A26800100501
SELF-TAPPING SCREWS | Not Available | ||
| 19 | A26800706202
WAVE FORM WASHER | Low Stock | 3.99 | |
| 20 | A26800201901
MACHINE SCREW M6*12 | Not Available | ||
| 21 | 2101200011B
WHEEL AXLE FIXING PRESS BOARD | Low Stock | 9.99 | |
| 22 | 2101300181A
FRONT AXLE ASSEMBLY | Low Stock | 19.99 | |
| 23 | 2101300078B
FRONT AXLE TENSION SPRING | Low Stock | 7.49 | |
| 24 | 21011000290001A
FRONT AXLE FIXING RING | Low Stock | 2.99 | |
| 25 | 3031309003
HEXAGON LOCK NUT | Low Stock | 3.99 | |
| 26 | 21011001460001A
DUST WHEEL COVER | Low Stock | 4.99 | |
| 27 | 21011006420001A
REAR WHEEL | Not Available | ||
| 28 | 21011005313255A
8 INCH MAC WHEEL COVER ASSEMBLY | Low Stock | 7.49 | |
| 29 | 2106201185A
LINK | Not Available | ||
| 30 | A26800705001
WAVE WASHERS | Not Available | ||
| 31 | 2109600021A
PLUG | Not Available | ||
| 32 | 21032003690001A
MOWER DISC ASSEMBLY | Not Available | ||
| 33 | 21061001354017B
GEAR PLATE | Low Stock | 8.99 | |
| 34 | 2106200128A
AXLE FIXING RING | Not Available | ||
| 35 | 21091000633201A
AXLE SLEEVE | Low Stock | 4.99 | |
| 36 | 2101500274A
REAR AXLE ASSEMBLY | Low Stock | 19.99 | |
| 37 | A26800203001A
CROSS RECESSED PAN HEAD SCREWS | Not Available | ||
| 38 | 2106201171A
LEVEL ADJUSTMENT LEVER | Low Stock | 14.99 | |
| 39 | 21061007113267A
HEIGHT ADJUSTMENT LEVER HANDLE | Low Stock | 4.99 | |
| 40 | A26800303301
COUNTERSUNK SCREW | Not Available | ||
| 41 | A26800606401
HEXAGON HEAD FLANGE BOLTS | Not Available | ||
| 42 | 21063003410001A
ARMREST RIGHT BRACKET | Not Available | ||
| 43 | 30323060035000
HEXAGON FLANGE NUT | Not Available | ||
| 44 | 2109800118B
RIGHT-HANDED TORSION SPRING | Low Stock | 3.99 | |
| 45 | 2109300167A
LONG POLE | Not Available | ||
| 46 | 2109800117B
LEFT-HANDED TORSION SPRING | Low Stock | 4.99 | |
| 47 | 3043301003
SPLIT WASHER | Low Stock | 3.99 | |
| 48 | 21063003400001A
ARMREST LEFT BRACKET | Low Stock | 9.99 | |
| 49 | 2109900066A
TRIANGLE SELF-TAPPING BOLT | Low Stock | 3.99 | |
| 50 | 2030100308A
ENGINE ASSEMBLY - B&S 300E 08P6020012H5 | Not Available | ||
| 51 | 2106300422A
HANDLEBAR SCREW $$$ | In Stock | 3.99 | |
| 52 | 3031309002
NUT - LOCKING $$$ | In Stock | 3.99 | |
| 53 | 2106300258A
CYLINDRICAL PIN | In Stock | 3.99 | |
| 54 | 22461000080336A
LOCK KNOB | In Stock | 4.99 | |
| 55 | 2109800200A
LOWER ARMREST SPRING | Low Stock | 3.99 | |
| 56 | 2106300416A
LOCKING DOWEL | In Stock | 3.99 | |
| 57 | 21062011490001A
LOWER HANDRAIL | Low Stock | 19.99 | |
| 58 | 21061000013201A
WIRE CLIP | Low Stock | 3.99 | |
| 59 | 2106300348A
SHOULDERED BOLT | In Stock | 3.99 | |
| 60 | A26800700201
LARGE WASHERS $$$ (USE 30512050025000) | Not Available | ||
| 61 | 21061007230336A
HANDLEBAR LEVER | In Stock | 6.99 | |
| 62 | 2109300018C
HANDLE SHAFT | Not Available | ||
| 63 | A26800501603A
NUT $$$ | In Stock | 3.99 | |
| 64 | A26800800303
SPRING WASHER | Low Stock | 3.99 | |
| 65 | A26800700801
FLAT WASHER | Low Stock | 3.99 | |
| 66 | 21063000025007A
HOOK | Low Stock | 3.99 | |
| 67 | 3091307003
BOLT $$$ | Low Stock | 3.99 | |
| 68 | 2106800722A
FLAMEOUT CABLE ASSEMBLY | Low Stock | 12.99 | |
| 69 | 21061000043201A
CABLE FIXING BLOCK | Not Available | ||
| 70 | 21061001113201N
ARCHED WASHER | In Stock | 3.99 | |
| 71 | 21061007140001A
CONTROL LEVER BRACKET | In Stock | 4.99 | |
| 72 | 21061007300001A
M8 HEXAGON FLANGE NUT | Low Stock | 3.99 | |
| 73 | 21061005993201A
LEVER/CABLE CONNECTOR | In Stock | 7.99 | |
| 74 | 21061007290001A
CONTROL LEVER END CAP | Low Stock | 3.99 | |
| 75 | 2109300058A
SCREW $$$ | Not Available | ||
| 76 | 21062011590001A
UPPER ARMREST | Not Available | ||
| 77 | 2106100320A
ARMREST SHEATH | In Stock | 9.99 | |
| 78 | 21062012860336A
FLAMEOUT LEVER | Low Stock | 12.49 | |
| 79 | 21071000050001N
GRASS BOX LID HANDLE | Low Stock | 7.49 | |
| 80 | 21071000080336A
GRASS COLLECTOR - FILL INDICATOR | Not Available | ||
| 81 | 21071001280001A
ACCESSORY - GRASS BOX LID | Low Stock | 12.49 | |
| 82 | A26800103202
SELF-TAPPING SCREWS | Not Available | ||
| 83 | A26800104601A
SELF-TAPPING SCREWS | Not Available | ||
| 84 | 2107200062A
GRASS BAG HOLDER (PREVIOUSLY 2107200118A) | Low Stock | 14.99 | |
| 85 | 21077001522251A
ACCESSORY - GRASS COLLECTOR | Low Stock | 14.99 | |
| 86 | 2100201437
REAR COVER ASSEMBLY | Not Available | ||
| 87 | 21031000230001D
HOSE COUPLER | Low Stock | 5.99 | |
| 88 | 2109100013N
O-RING | In Stock | 3.99 | |
| 89 | 21061003740001N
ACCESSORY - MULCH PLUG | Low Stock | 9.99 | |
| 90 | 21041001150336A
MULCH PLUG LATCH | Low Stock | 7.49 | |
| 91 | 2109800022C
SPRING | In Stock | 3.99 | |
| 92 | 21041001160001A
LOCK BUTTON PRESSURE PLATE | In Stock | 3.99 | |
| 93 | 2012100012A
ACCESSORY - SOCKET WRENCH | In Stock | 3.99 | |
| 94 | 2012100004A
ACCESSORY - SOCKET WRENCH ROD | In Stock | 3.99 | |
| Drawing 2 | ||||
| 11 | 596501
Breather Tube | Not Available | ||
| 318 | 793480
Mounting Screw | Not Available | ||
| 535 | 799579
Air Filter | Low Stock | 22.99 | |
| 875 | 593227
Air cleaner base | Not Available | ||
| 968 | 593228
Air cleaner cover | Low Stock | 14.99 | |
| 971 | 590552
Mounting Screw | Not Available | ||
| 976 | 594281
Fuel Primer | Not Available | ||
| Drawing 3 | ||||
| 1248 | 84004348
Recoil Kit/Blower Housing | Not Available | ||
| 1249 | 590586
Mounting Screw | Not Available | ||
| Drawing 4 | ||||
| 117 | 84002021
Carburettor - Main Jet | Low Stock | 19.99 | |
| 121 | 594636
Carburettor - Service Kit | Not Available | ||
| 122 | 590549
Carburettor - Spacer | Not Available | ||
| 125 | 84001028
Carburettor - Complete | Low Stock | 64.99 | |
| Drawing 5 | ||||
| 202 | 590517
Governor Link | Not Available | ||
| 209 | 597378
Governor Spring | Not Available | ||
| 222 | 596754
Control Bracket | Not Available | ||
| 227 | 590520
Governor control lever | Not Available | ||
| 923 | 691487
Brake Assembly | Not Available | ||
| Drawing 6 | ||||
| 523 | 796503
Dipstick | Not Available | ||
| 847 | 590572
Dipstick Tube (inc Dipstick) | Not Available | ||
| 850 | 100106
Liquid Gasket | Not Available | ||
| Drawing 7 | ||||
| 16 | 590538
Crankshaft | Not Available | ||
| 24 | 222698S
Woodruff Key | Not Available | ||
| 25 | 591975
Piston | Not Available | ||
| 28 | 699659
Gudgeon Pin | Not Available | ||
| 29 | 590518
Con-rod | Not Available | ||
| 46 | 592968
Camshaft | Not Available | ||
| 598 | 593291
End-Play Shim | Not Available | ||
| Drawing 8 | ||||
| 1 | 592048
Cylinder Assembly | Not Available | ||
| 358 | 84006582
Gasket Set | Not Available | ||
| Drawing 9 | ||||
| 5 | 84001270
Cylinder Head Assembly | Not Available | ||
| 337 | 797434
Spark Plug | Not Available | ||
| 1022 | 595341
Rocker Cover Gasket | Not Available | ||
| 1023 | 595349
Rocker Cover | Not Available | ||
| Drawing 10 | ||||
| 300 | 590565
Catalystic Converter | Not Available | ||
| 832 | 592709
Exhaust Guard | Not Available | ||
| Drawing 11 | ||||
| 23 | 590544
Flywheel | Low Stock | 69.99 | |
| 333 | 595009
Magneto Pickup | Not Available | ||
| 356 | 595018
Stop Wire | Not Available | ||
| 455 | 84004349
Flywheel Cup | Low Stock | 13.99 | |
| Drawing 12 | ||||
| 187 | 791766
Fuel Line | Not Available | ||
| 957 | 596611
Fuel Tank Cap (Was PETROLCAP1) | Low Stock | 12.49 | |
| 972 | 591947
Fuel Tank Assembly | Not Available | ||
| Manufacturer Model Number | MLMP300H40 |
| EAN | 5059340124537 |
| Brand | Mac Allister |
| Description | B&S 300E 41CM HP LAWN MOWER |
