Mac Allister MTIP1400-2 1400W TILLER

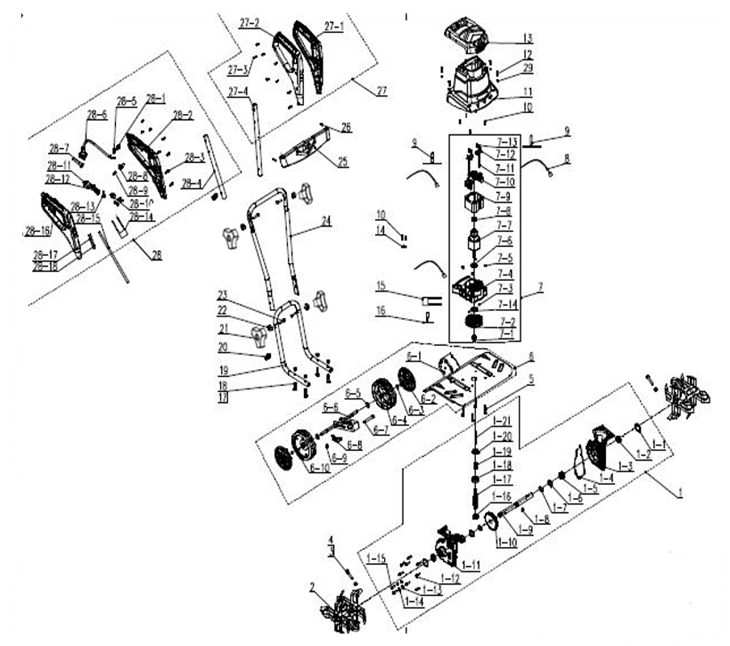

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 8440-560304-0000011
WORM GEAR BOX ASSEMBLY | Low Stock | 29.99 | |
| 1-1 | 8CA-32B
HOLE WITH CIRCLIPS | Not Available | ||
| 1-2 | 9200-903101-0100021
OIL SEAL | Not Available | ||
| 1-3 | 8146-560302-0100000
WORM GEAR ON THE RIGHT SIDE OF CABINET | Not Available | ||
| 1-4 | 8200-560301-0000000
O TYPE SEAL RING | Not Available | ||
| 1-5 | 8331-560301-0000000
BUSHING | Not Available | ||
| 1-6 | 8WF-18B01
FLAT GASKET | Not Available | ||
| 1-7 | 8CC-19B
AXIS WITH CIRCLIPS | Not Available | ||
| 1-8 | 8205-990101-0000000
PRATT-WHITNEY KEY | Not Available | ||
| 1-9 | 8081-560302-0100000
HOB SHAFT SUPPORT | Not Available | ||
| 1-10 | 8127-560301-0000000
WORM GEAR | Not Available | ||
| 1-11 | 8146-560301-0100000
WORM GEAR ON THE LEFT SIDE OF CABINET | Not Available | ||
| 1-12 | 8SACD06-20B8.8
HEXAGON SOCKET HEAD CAP SCREWS | Not Available | ||
| 1-13 | 8341-981001-0100010
SHIELD MAT | Not Available | ||
| 1-14 | 8WF-18B01
FLAT WASHER | Not Available | ||
| 1-15 | 8SACD06-10D
HEXAGON FLANGE BOLTS | Not Available | ||
| 1-16 | 8BC-261008-SS
BEARING 6000 RS | Not Available | ||
| 1-17 | 8087-560301-0100000
WORM | Not Available | ||
| 1-18 | 8BC-321210-SS03
6201-2 RS BEARINGS | Not Available | ||
| 1-19 | 8331-560302-0000000
SOFT COLLAR | Not Available | ||
| 1-20 | 8202-560302-0000010
BIG OIL SEAL | Not Available | ||
| 1-21 | 8089-560301-0100000
SOFT SHAFT | Not Available | ||
| 2 | 8440-560301-0000000
ROTARY KNIFE COMPONENTS | Low Stock | 12.99 | |
| 3 | 8NH-08D
TYPE 1 NON-METALLIC INSERT HEXAGON LOCK NUT | Not Available | ||
| 4 | 8SFDD08-65D
M8 BOLT | Low Stock | 1.00 | |
| 5 | 8SJAD06-45D
ROSS RECESS HEAD SCREW | Not Available | ||
| 6 | 8440-560305-0068820
PANEL ASSEMBLY | Low Stock | 19.99 | |
| 6-1 | 8440-560302-0000000
PROTECTION PANEL COMPONENT | Not Available | ||
| 6-2 | A062018-008-00
WHEEL CAP | Not Available | ||
| 6-3 | 8CC-12B
AXIS WITH CIRCLIPS | In Stock | 2.00 | |
| 6-4 | A062018-010-00
5.5 -INCH LEFT WHEELS | Low Stock | 5.00 | |
| 6-5 | 8WF-12D
GASKET | Not Available | ||
| 6-6 | 8440-560303-0000000
WHEEL ADJUSTING COMPONENT | Low Stock | 9.99 | |
| 6-7 | 8SFDD08-65D
SCREW | Not Available | ||
| 6-8 | 8342-560301-0000000
WHEEL TO ADJUST TENSION SPRING | Not Available | ||
| 6-9 | 8NH-08D
TYPE 1 NON-METALLIC INSERT HEXAGON LOCK NUT | Not Available | ||
| 6-10 | A062018-010-00
5.5 -INCH RIGHT WHEELS | Not Available | ||
| 7 | 8440-560306-0000020
MOTOR ASSEMBLY | Low Stock | 34.99 | |
| 7-1 | 8331-560302-0000000
SOFT COLLAR | Not Available | ||
| 7-2 | 8403-512001-0101720
WIND LEAVES | Not Available | ||
| 7-3 | 8NH-04D
TYPE 1 NON-METALLIC INSERT HEXAGON LOCK NUT | Not Available | ||
| 7-4 | 8292-560301-0000120
MOTOR FRONT BRACKET | Not Available | ||
| 7-5 | 8NH-06D
TYPE 1 NON-METALLIC INSERT HEXAGON LOCK NUT | In Stock | 1.50 | |
| 7-6 | 8BC-281208-SS03
6001-2 RS BEARINGS | Not Available | ||
| 7-7 | 8402-560102-0000010
OTOR ASSEMBLY | Not Available | ||
| 7-8 | 8BC-240808-SS
628 BEARING | Not Available | ||
| 7-9 | 8405-560102-0000010
STATOR ASSEMBLY | Not Available | ||
| 7-10 | 8292-560302-0000120
MOTOR REAR BRACKET | Not Available | ||
| 7-11 | 8206-481003-0000000
STATOR SCREW | Not Available | ||
| 7-12 | 8406-560301-0000010
CARBON BRUSH | Low Stock | 3.00 | |
| 7-13 | 8SJAB40-10B
SELF-TAPPING SCREW | Not Available | ||
| 7-14 | 9202-923006-0000000
FLYWHEEL GASKET | Not Available | ||
| 8 | 236-1006
CABLE TIES | Not Available | ||
| 9 | 8415-560303-0000010
ELECTRICAL INDUCTANCE | Not Available | ||
| 10 | 8SJAB40-14D
SELF-TAPPING SCREW | Not Available | ||
| 11 | 8024-560301-0001220
COVER PIECE | Not Available | ||
| 12 | 8SJAD05-18D
MACHINE SCREW | Not Available | ||
| 13 | 8003-560391-0068820
HANDLE | Low Stock | 4.99 | |
| 14 | 8184-302201-0001720
CABLE CLAMP | In Stock | 3.99 | |
| 15 | 8416-691501-0000020
CAPACITANCE | Not Available | ||
| 16 | 8424-560301-0000000
THERMAL PROTECTOR | Not Available | ||
| 17 | 8206-660501-0000000
CUP HEAD SQUARE NECK BOLTS | In Stock | 0.50 | |
| 18 | 8NH-06D
TYPE 1 NON-METALLIC INSERT HEXAGON LOCK NUT | Not Available | ||
| 19 | 8061-560301-0000000
UNDER ARMREST | Low Stock | 9.99 | |
| 20 | 8007-512001-0000120
INSULATING BUSHING | Not Available | ||
| 21 | 2.0725E+11
ROTARY KNOB | Low Stock | 3.00 | |
| 22 | 8341-514201-0000120
PLASTIC MATTRESS | In Stock | 1.00 | |
| 23 | 8206-511201-0100000
SQUARE NECK BOLT | In Stock | 1.50 | |
| 24 | 8061-560302-0000000
MITTELARMLEHNE | Not Available | ||
| 25 | 8185-560391-0168820
PANEL | Low Stock | 1.50 | |
| 26 | 8SJAB50-16B
SELF-DRILING TAPPING SCREWS | Not Available | ||
| 27 | 8440-560307-0001220
HANDLE ASSEMBLY | Low Stock | 4.99 | |
| 27-1 | 8001-560301-0001220
LEFT STALK | Not Available | ||
| 27-2 | 8001-560302-0001220
RIGHT STALK | Not Available | ||
| 27-3 | 8SJAB40-18D
SELF-TAPPING SCREW | Not Available | ||
| 27-4 | 8061-560303-0000000
UPPER ARMREST | Not Available | ||
| 28 | 1.99075E+11
SWITCH BOX ASSEMBLY | Not Available | ||
| 28-28 | 8SJAB40-14D
TAPPING SCREW | Not Available | ||
| 28-28 | 8020-560301-0001220
LEFT SWITCH BOX | Not Available | ||
| 28-28 | 8SJAB40-18D
SELF-TAPPING SCREW | Not Available | ||
| 28-28 | 8061-560303-0000000
UPPER ARMREST | Not Available | ||
| 28-28 | 8184-302201-0001720
CABLE CLAMP | Not Available | ||
| 28-28 | 8422-560302-0000020
POWER LINE | Not Available | ||
| 28-28 | 8332-516201-0100020
CABLE SHEATH | Not Available | ||
| 28-28 | 8312-432101-0060620
SHIFT KNOB | Not Available | ||
| 28-28 | 8342-481102-0000000
RESET SPRING | Not Available | ||
| 28-28 | 8411-522201-0000012
TERMINAL STRIP | Not Available | ||
| 28-28 | 8042-560303-0000010
MICROSWITCH | Low Stock | Contact Us | |
| 28-28 | 8312-436101-0060620
SELF-LOCKING BUTTON | Not Available | ||
| 28-28 | 8342-432101-0000000
SWITCH TORSIONAL SPRING | Not Available | ||
| 28-28 | 8416-691501-0000020
CAPACITANCE | Not Available | ||
| 28-28 | 8422-560301-0000020
THREE CORE CABLE | Not Available | ||
| 28-28 | 8020-560302-0001220
RIGHT SWITCH BOX | Low Stock | Contact Us | |
| 28-28 | 8413-560301-0000020
BRAKE CABLE | Not Available | ||
| 28-28 | 8413-560302-0000020
ELECTRICAL CARBON WIRE | Not Available | ||
| 29 | 8NH-05D
LOCKNUT | In Stock | 1.00 | |
| Manufacturer Model Number | MTIP1400-2 |
| EAN | 3663602627258 |
| Brand | Mac Allister |
| Description | 1400W TILLER |
