| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

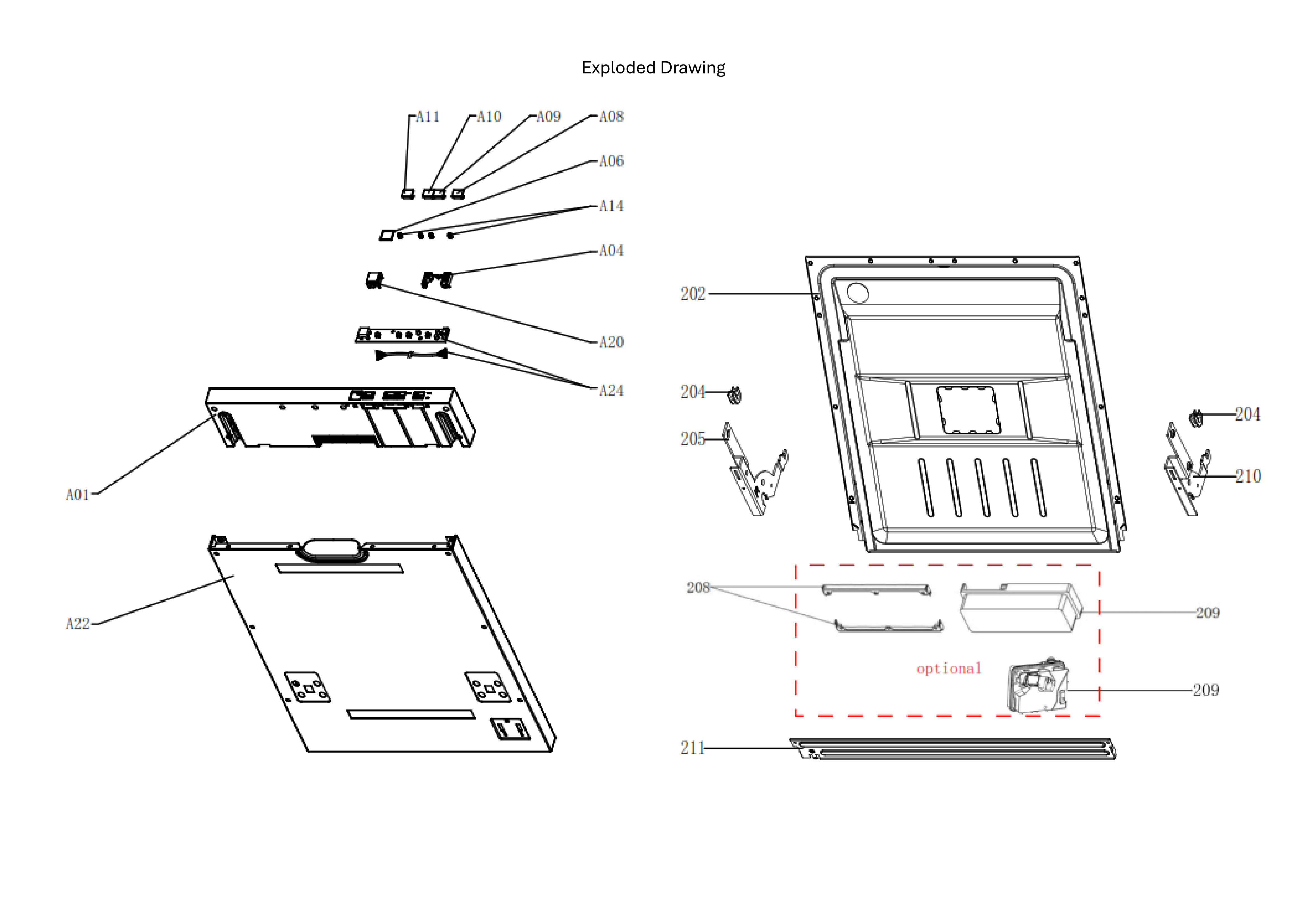

| Drawing 1 | ||||
| A22 | 12276000014971
OUTER DOOR | Low Stock | 39.99 | |
| A24 | 17176000A14586
DISPLAY CIRCUIT BOARD | Not Available | ||
| 201 | 17476000007454
DOOR SWICTH ASSEMBLY | In Stock | 9.99 | |
| 202 | 12276000005319
INNER DOOR ASSEMBLY | Not Available | ||
| 203 | 12176000030346
DOOR LOCK ASSEMBLY | Not Available | ||
| 204 | 12176000003629
SNAP RING | Not Available | ||
| 205 | 12276000021255
LEFT HINGE ASSEMBLY | Not Available | ||
| 208 | 12276000001459
DISPENSER BRACKET | On Order | Contact Us | |
| 209 | 17476000007435
DISPENSER | In Stock | 19.99 | |
| 210 | 12276000021256
RIGH THINGE ASSEMBLY | Not Available | ||
| 211 | 12276000019605
CONNECTING BOARD | Not Available | ||

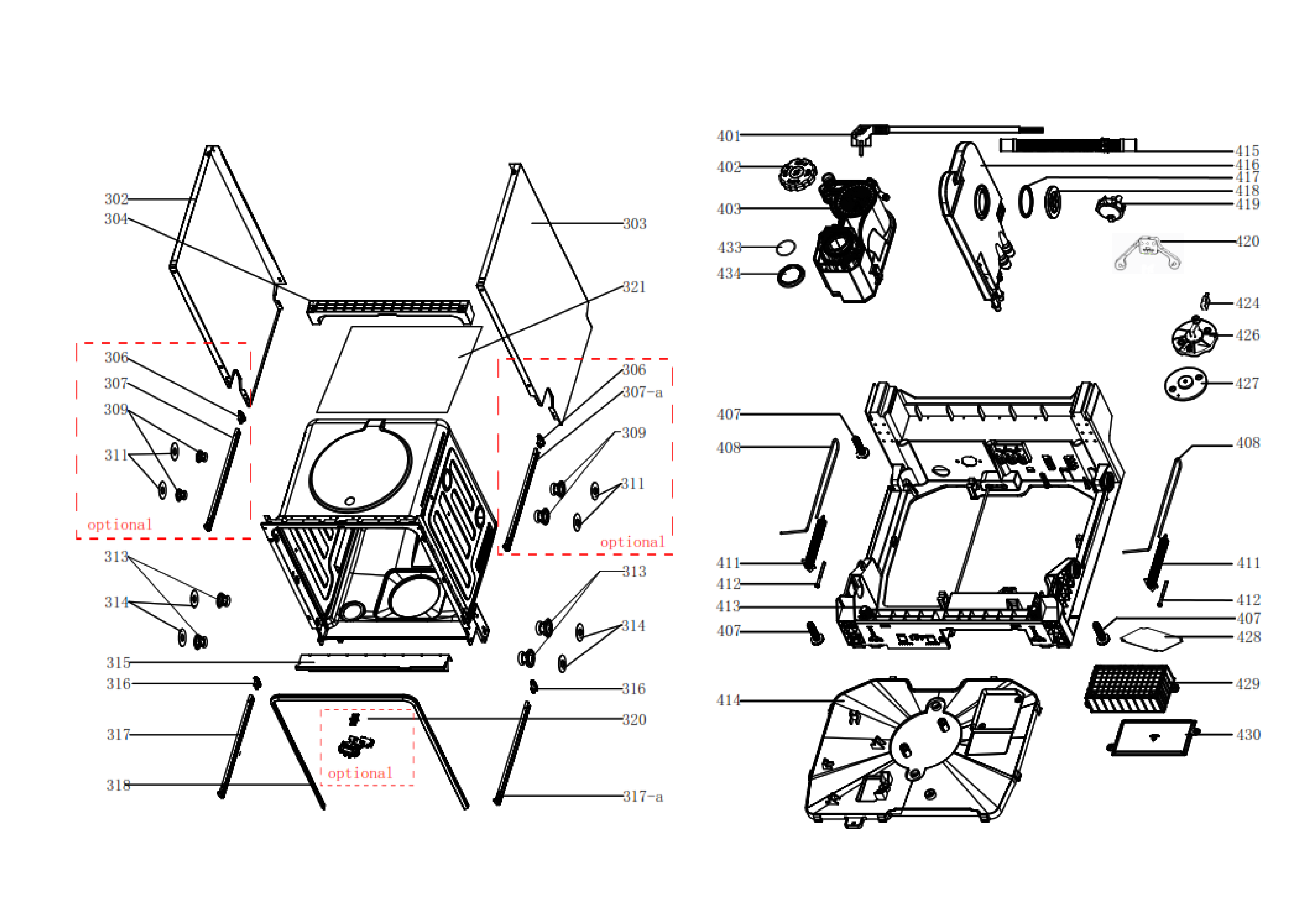

| 302 | 12276000026818
LEFT SIDE PANEL | Not Available | ||
| 303 | 12276000014953
RIGHT SIDE PLATE | Not Available | ||
| 304 | 12176000003869
UPPER BACK SUPPORT | Not Available | ||
| 313 | 12176000010412
RAIL SUPPORT ASSEMBLY | In Stock | 9.99 | |
| 314 | 12176000008573
BASKET GUIDER SUPPORTING HOLDER | In Stock | 30.99 | |
| 315 | 12276000024531
ACOUSTIC PANEL | Not Available | ||
| 316 | 12176000008496
STOPPER | In Stock | 5.99 | |
| 317 | 12276000001357
GUIDE RAIL ASSEMBLY | In Stock | 14.99 | |
| 317-A | 12276000001360
GUIDE RAIL ASSEMBLY | In Stock | 14.99 | |
| 318 | 12676000000846
SEAL | In Stock | Contact Us | |
| 320 | 12176000009491
DOOR LOCK HOOK | In Stock | 4.99 | |
| 321 | 12176000010248
BACK PLATE | Not Available | ||
| 401 | 17476000007384
EUROPEAN STANDARD POWER CORD | In Stock | 9.99 | |
| 402 | 12176000010640
SOFTENER COVER ASSEMBLY | In Stock | 13.99 | |
| 403 | 17476000010222
SOFTENER | Not Available | ||
| 404 | 12176000009490
POWER CORD CLASPER | Not Available | ||
| 407 | 12176000009726
FOOT | In Stock | 9.99 | |
| 408 | 12976000000400
DOOR ROPE | Low Stock | 9.99 | |
| 411 | 12976000000203
SPRING | In Stock | 9.99 | |
| 412 | 12976000001001
ADJUST SCREW OF DOOR SPRING | In Stock | 3.99 | |
| 413-407 | 12176000019571
BASE TRAY ASSEMBLY | Not Available | ||
| 414 | 12176000019565
BASE TRAY COVER | Not Available | ||
| 415 | 12676000000138
DRAIN PIPE ASSEMBLY | In Stock | 20.99 | |
| 416 | 12176000003906
AIR BREATHER ASSEMBLY | In Stock | 24.99 | |
| 417 | 12676000000713
WASHER | Low Stock | 3.99 | |
| 418 | 12176000013663
AIR BREATHER NUT | In Stock | 3.99 | |
| 419 | 17476000007426
PRESSURE SWITCH | In Stock | 9.99 | |
| 420 | 12276000008925
HOOK ASSEMBLY | Not Available | ||
| 421 | 12676000000140
INLET HOSE OF AIR BREATHER | In Stock | 9.99 | |
| 423 | 17476000007448
WATER INLET VALVE | In Stock | 15.99 | |
| 424 | 17476000001137
MICROSWITCH | In Stock | 15.99 | |
| 426 | 12176000003125
SWITCH SEAT | Not Available | ||
| 427 | 12876000000050
FLOAT | In Stock | 11.99 | |
| 428 | 17176000042583
MAIN CIRCUIT BOARD | Not Available | ||
| 429 | 12176000016897
PCB BOX COVER | Low Stock | 3.99 | |
| 430 | 12176000016896
PCB BOX | In Stock | 6.99 | |
| 433 | 12676000004982
SOFTENER GASKET | In Stock | 6.99 | |
| 434 | 12176000009513
SOFTENER NUT | In Stock | 9.99 | |

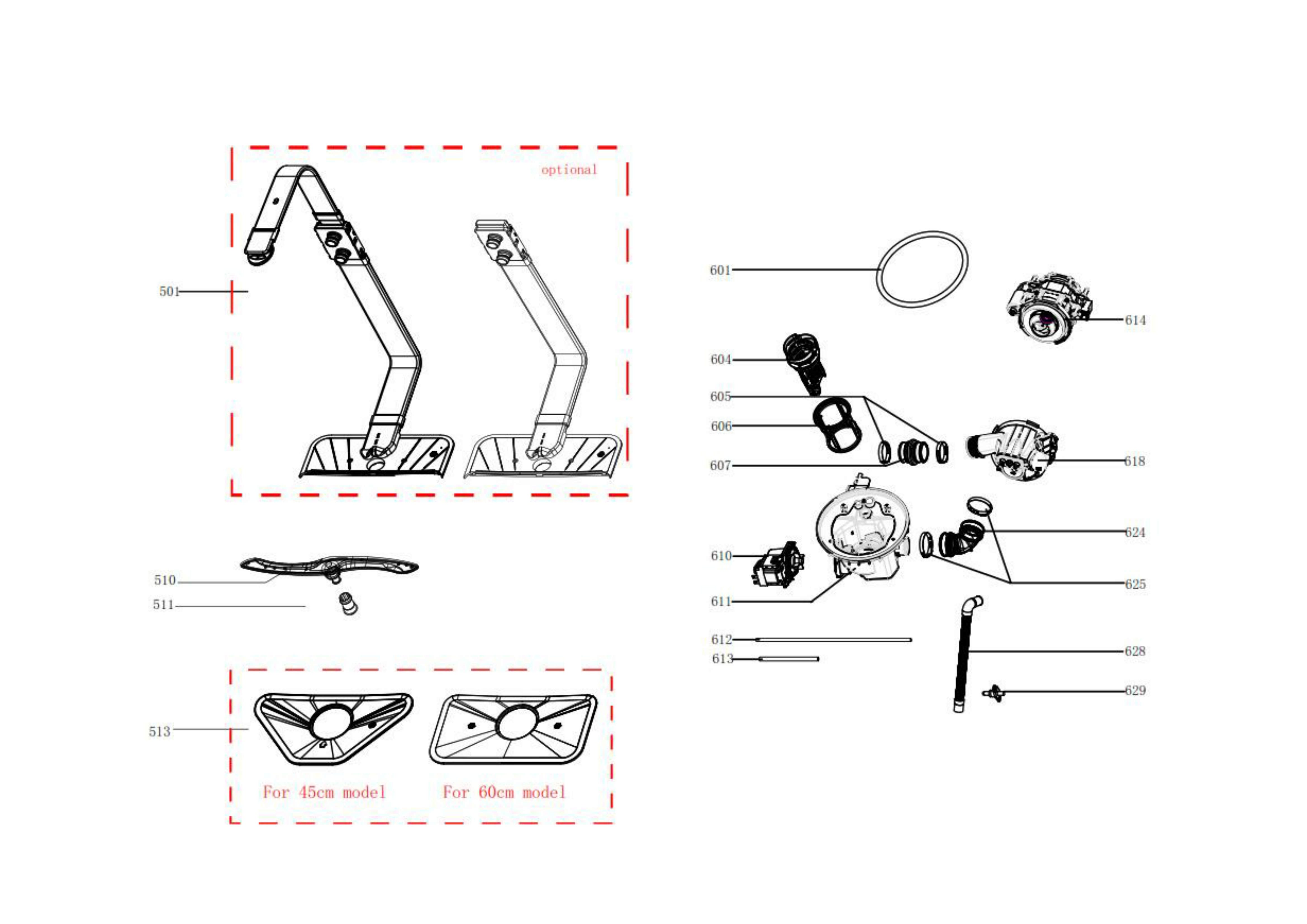

| 501 | 12176000009430
INNER PIPE ASSEMBLY | Low Stock | 10.99 | |
| 510 | 12176000009161
LOWER SPRAYER | In Stock | 16.99 | |
| 511 | 12176000008645
LOWER SPRAYER SEAT | In Stock | 9.99 | |
| 513 | 12176000003689
PLANE FILTER | In Stock | 9.99 | |
| 601 | 12676000001461
SEAL RING | On Order | 13.99 | |
| 604 | 12176000009640
FILTER HANDLE | Not Available | ||
| 605 | 12976000004604
CLAMP | In Stock | 2.99 | |
| 606 | 12176000003676
CYLINDRICAL FILTER | In Stock | 20.99 | |
| 607 | 12676000000132
WASHING PUMP OUTLET PIPE | In Stock | 6.99 | |
| 610 | 17476000007443
DRAIN PUMP | In Stock | 35.99 | |
| 611 | 12176000016228
WATER CUP ASSEMBLY | In Stock | 34.99 | |
| 612 | 12676000000687
PRESSURE SWITCH PVC PIPE | In Stock | 6.99 | |
| 613 | 12676000001521
WATER OUTLET PIPE | In Stock | 13.99 | |
| 614 | 17476000A11115
DRAIN PUMP | Not Available | ||
| 614 | 17476000A11116
INDUCTION PUMP | Not Available | ||
| 618 | 17476000007431
HEATING TUBE ASSEMBLY | In Stock | 24.99 | |
| 624 | 12676000000162
INLET PIPE | In Stock | 6.99 | |
| 625 | 12976000000308
CLAMP | In Stock | Contact Us | |
| 628 | 12676000000947
DRAIN HOSE | In Stock | 13.99 | |
| 629 | 17176000012008
TEMPERATURE SENSOR | In Stock | 17.99 | |

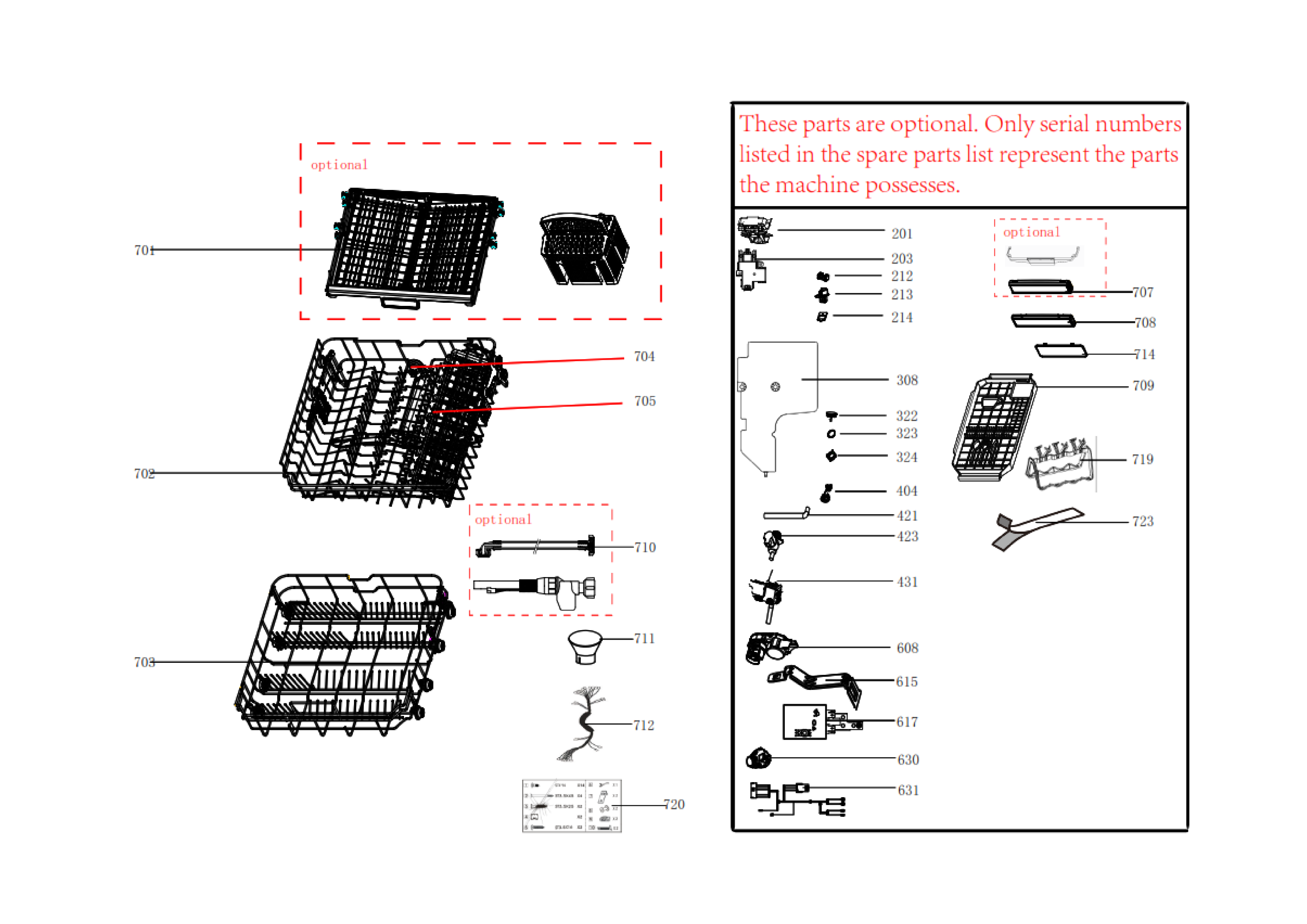

| 701 | 12176000002705
CUTLERY BASKET | In Stock | 18.99 | |
| 702 | 12976000A11509
UPPER BASKET ASSEMBLY | Not Available | ||
| 703 | 12976000A11553
LOWER BASKET ASSEMBLY | Not Available | ||
| 704 | 12176000009173
MIDDLE SPAYER ASSEMBLY | In Stock | 18.99 | |
| 705 | 12176000002821
KNIFE AND FORK RACK | In Stock | 28.99 | |
| 710 | 12176000A69893
INLET PIPE ASSEMBLY | Not Available | ||
| 711 | 12176000010312
SALT FILLER | In Stock | 15.99 | |
| 712 | 17476000A10415
WIRE HARNESS | Not Available | ||
| 720 | 12976000000292
ACCESSORY BAG | In Stock | 20.99 | |
| Manufacturer Model Number | NE60BD14UK |
| EAN | 5063022839121 |
| Brand | Unbranded |
| Description | 60CM BUILT-IN DISHWASHER WHITE UK |
