| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

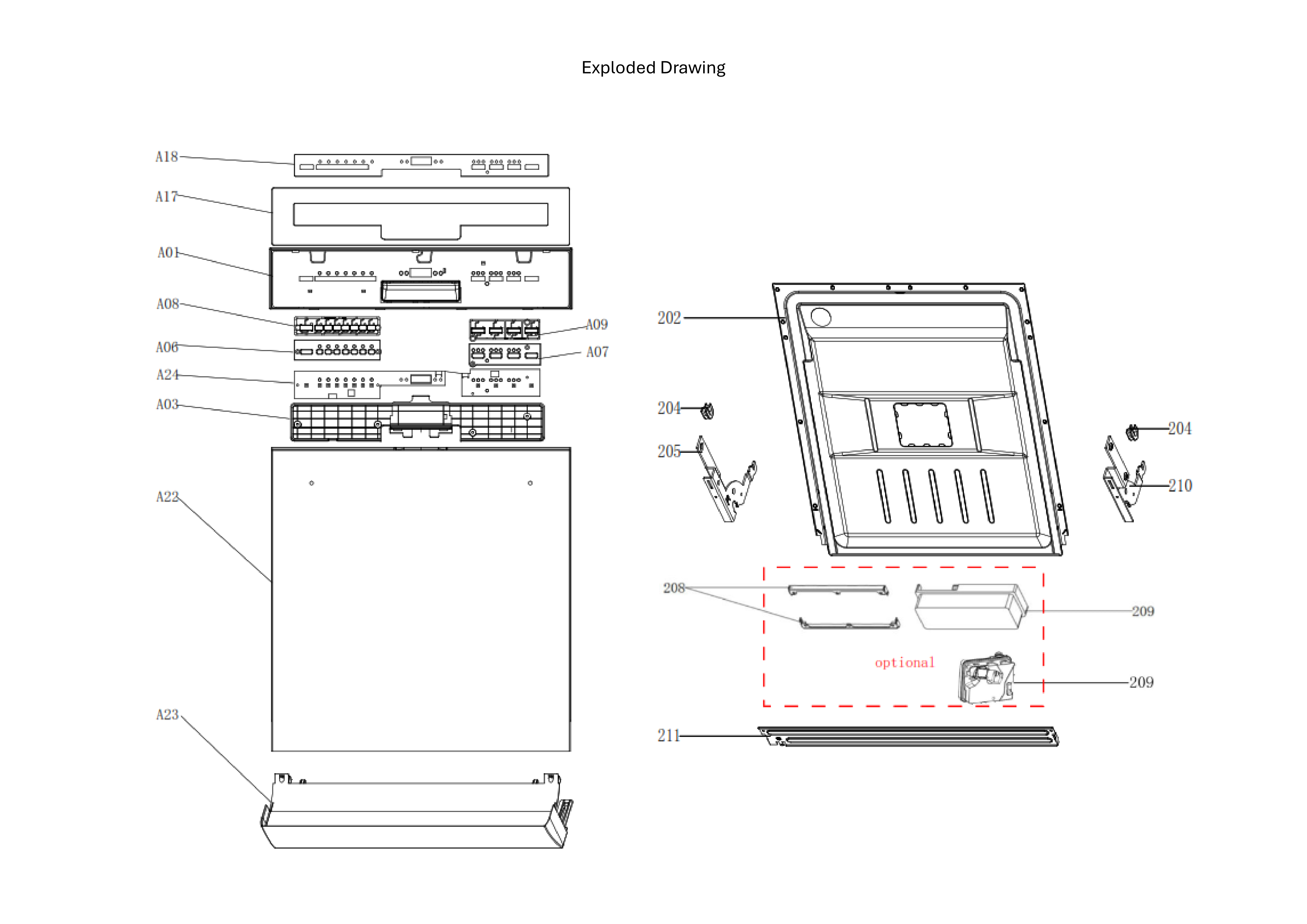

| Drawing 1 | ||||
| A01 | 12176000A49864
CONTROL PANEL | Not Available | ||
| A03 | 12176000A49868
HANDLE COVER | Not Available | ||
| A06 | 12676000005724
BUTTON | Not Available | ||
| A07 | 12676000005725
BUTTON | Not Available | ||
| A08 | 12176000B08740
BUTTON | Not Available | ||
| A09 | 12176000B08731
BUTTON | Not Available | ||
| A17 | 12276000016751
CONTROL PANEL PATCH | Not Available | ||
| A18 | 12176000B08743
CONTROL PANEL COVER STICKER | Not Available | ||
| A22 | 12276000006491
OUTER DOOR | Low Stock | 34.99 | |
| A23 | 12176000003979
BASEBOARD | Low Stock | 20.99 | |
| A24 | 17176000A06730
DISPLAY PANEL | Not Available | ||
| 201 | 17476000012184
DOOR SWITCH ASSEMBLY | Low Stock | Contact Us | |
| 202 | 12276000A20310
INNER DOOR ASSEMBLY | Not Available | ||
| 203 | 12176000030346
DOOR LOCK ASSEMBLY | Not Available | ||
| 204 | 12176000003629
SNAP RING | Not Available | ||
| 205 | 12276000021258
LEFT HINGE ASSEMBLY | Not Available | ||
| 209 | 17476000010723
DISPENSER | Not Available | ||
| 210 | 12276000021259
RIGH THINGE ASSEMBLY | Not Available | ||
| 211 | 12276000019605
CONNECTING BOARD | Not Available | ||
| 217 | 12176000013663
AIR BREATHER NUT | In Stock | 3.99 | |
| 301 | 12176000018925
TOP PLATE ASSEMBLY | Not Available | ||
| 302 | 12276000A20374
LEFT SIDE PANEL | Not Available | ||
| 303 | 12276000A20368
RIGHT SIDE PLATE | Not Available | ||
| 304 | 12176000003869
UPPER BACK SUPPORT | Not Available | ||
| 306 | 12176000008517
STOPPER | Not Available | ||
| 307 | 12276000001341
SWORD FORK FRAME UPPER BASKET GUIDER(LEFT) | Not Available | ||
| 307-a | 12276000001344
SWORD FORK FRAME UPPER BASKET GUIDER(RIGHT) | Not Available | ||
| 309 | 12176000026010
GUIDE RAIL SUPPORT | In Stock | Contact Us | |
| 311 | 12176000008444
SUPPORT BLOCK | Not Available | ||
| 313 | 12176000010412
RAIL SUPPORT ASSEMBLY | In Stock | 9.99 | |
| 314 | 12176000008573
BASKET GUIDER SUPPORTING HOLDER | In Stock | 30.99 | |
| 315 | 12276000024530
ACOUSTIC PANEL | Not Available | ||
| 316 | 12176000008496
STOPPER | In Stock | 5.99 | |
| 317 | 12276000001357
GUIDE RAIL ASSEMBLY | In Stock | 14.99 | |
| 317-a | 12276000001360
GUIDE RAIL ASSEMBLY | In Stock | 14.99 | |
| 318 | 12676000000846
SEAL | In Stock | Contact Us | |
| 320 | 12176000009491
DOOR LOCK HOOK | In Stock | 4.99 | |
| 321 | 12176000021784
ABSORBENT COTTON | Not Available | ||
| 401 | 17476000007384
EUROPEAN STANDARD POWER CORD | In Stock | 9.99 | |
| 402 | 12176000010640
SOFTENER COVER ASSEMBLY | In Stock | 13.99 | |
| 403 | 17476000010222
SOFTENER | Not Available | ||
| 404 | 12176000009490
POWER CORD CLASPER | Not Available | ||
| 406 | 12776000000023
COUNTER WEIGHT | Not Available | ||
| 407 | 12176000009741
FOOT | In Stock | Contact Us | |
| 408 | 12976000000400
DOOR ROPE | Low Stock | 9.99 | |
| 411 | 12976000000133
SPRING | Not Available | ||
| 412 | 12976000001001
ADJUST SCREW OF DOOR SPRING | In Stock | 3.99 | |
| 413-407 | 12176000019563
BASE TRAY ASSEMBLY | Not Available | ||
| 414 | 12176000015483
CHASSIS COVER | Not Available | ||
| 415 | 12676000000138
DRAIN PIPE ASSEMBLY | In Stock | 20.99 | |
| 416 | 12176000003906
AIR BREATHER ASSEMBLY | In Stock | 24.99 | |
| 417 | 12676000000713
WASHER | Low Stock | 3.99 | |
| 418 | 12176000013663
AIR BREATHER NUT | In Stock | 3.99 | |
| 419 | 17476000007426
PRESSURE SWITCH | In Stock | 9.99 | |
| 420 | 12276000008925
HOOK ASSEMBLY | Not Available | ||
| 421 | 12676000000140
INLET HOSE OF AIR BREATHER | In Stock | 9.99 | |
| 423 | 17476000007448
WATER INLET VALVE | In Stock | 15.99 | |
| 424 | 17476000001137
MICROSWITCH | In Stock | 15.99 | |
| 426 | 12176000003125
SWITCH SEAT | Not Available | ||
| 427 | 12876000000050
FLOAT | In Stock | 11.99 | |
| 428 | 17176000A12164
MAIN CIRCUIT BOARD | Not Available | ||
| 429 | 12176000016897
PCB BOX COVER | Low Stock | 3.99 | |
| 430 | 12176000016896
PCB BOX | In Stock | 6.99 | |
| 433 | 12676000004982
SOFTENER GASKET | In Stock | 6.99 | |
| 434 | 12176000009513
SOFTENER NUT | In Stock | 9.99 | |
| 501 | 12176000009472
INNER PIPE ASSEMBLY | Not Available | ||
| 510 | 12176000009161
LOWER SPRAYER | In Stock | 16.99 | |
| 511 | 12176000008645
LOWER SPRAYER SEAT | In Stock | 9.99 | |
| 513 | 12176000003689
PLANE FILTER | In Stock | 9.99 | |
| 601 | 12676000001461
SEAL RING | On Order | 13.99 | |
| 604 | 12176000009640
FILTER HANDLE | Not Available | ||
| 605 | 12976000004604
CLAMP | In Stock | 2.99 | |
| 606 | 12176000003676
CYLINDRICAL FILTER | In Stock | 20.99 | |
| 607 | 12676000000132
WASHING PUMP OUTLET PIPE | In Stock | 6.99 | |
| 610 | 17476000007443
DRAIN PUMP | In Stock | 35.99 | |
| 611 | 12176000016225
WATER CUP ASSEMBLY | Not Available | ||
| 612 | 12676000000687
PRESSURE SWITCH PVC PIPE | In Stock | 6.99 | |
| 613 | 12676000001521
WATER OUTLET PIPE | In Stock | 13.99 | |
| 614 | 17476000A11115
DRAIN PUMP | Not Available | ||
| 614 | 17476000A11116
INDUCTION PUMP | Not Available | ||
| 618 | 17476000007431
HEATING TUBE ASSEMBLY | In Stock | 24.99 | |
| 624 | 12676000000162
INLET PIPE | In Stock | 6.99 | |
| 625 | 12976000000308
CLAMP | In Stock | Contact Us | |
| 628 | 12676000000947
DRAIN HOSE | In Stock | 13.99 | |
| 629 | 17176000012008
TEMPERATURE SENSOR | In Stock | 17.99 | |
| 630 | 17176000014521
TURBIDITY SENSOR | In Stock | Contact Us | |
| 631 | 17476000000189
WIRE HARNESS | In Stock | Contact Us | |
| 701 | 12176000A75608
CUTLERY ASSEMBLY | Not Available | ||
| 702 | 12976000007627
UPPER BASKET ASSEMBLY | Low Stock | Contact Us | |
| 703 | 12976000007622
LOWER BASKET ASSEMBLY | Low Stock | Contact Us | |
| 704 | 12176000009173
MIDDLE SPAYER ASSEMBLY | In Stock | 18.99 | |
| 710 | 12176000A69893
INLET PIPE ASSEMBLY | Not Available | ||
| 711 | 12176000010312
SALT FILLER | In Stock | 15.99 | |
| 712 | 17476000A08935
MAIN WIRE HARNESS | Not Available | ||
| 714 | 12276000007706
CUTLERY HANDLE PATCH | Not Available | ||
| Manufacturer Model Number | NE60DG14EU |
| EAN | 5063022839114 |
| Brand | Unbranded |
| Description | 60CM FREESTANDING DISHWASHER GREY EU |
