| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

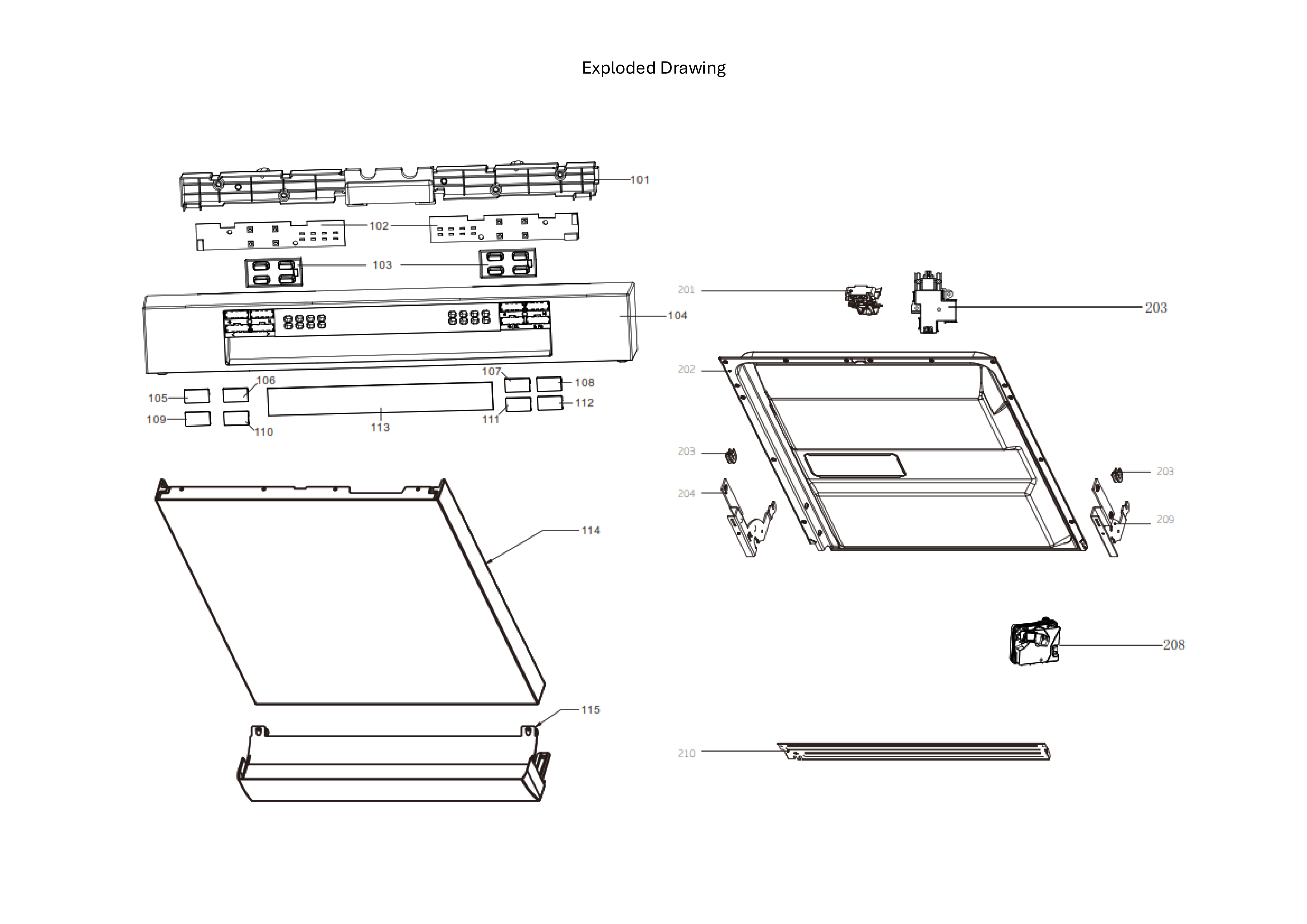

| Drawing 1 | ||||
| 101 | 12176000036535
WATERPROOF COVER | Not Available | ||
| 102 | 17176000042498
DISPLAY PANEL | Not Available | ||
| 103 | 12676000009037
SEALING GASKET | Low Stock | Contact Us | |
| 104 | 12176000036537
CONTROL PANEL | Not Available | ||
| 104-113 | 12176000B08730
CONTROL PANEL ASSEMBLY | Not Available | ||
| 105 | 12176000B08729
BUTTON | Not Available | ||
| 106 | 12176000B08727
BUTTON | Not Available | ||
| 107 | 12176000B08741
BUTTON | Not Available | ||
| 108 | 12176000B08747
BUTTON | Not Available | ||
| 109 | 12176000036545
BUTTON | Low Stock | Contact Us | |
| 110 | 12176000036540
BUTTON | Low Stock | Contact Us | |
| 111 | 12176000B08746
BUTTON | Not Available | ||
| 112 | 12176000B08728
BUTTON | Not Available | ||
| 113 | 12176000B08760
CONTROL PANEL COVER STICKER | Not Available | ||
| 114 | 12276000009567
OUTER DOOR | Low Stock | 39.99 | |
| 115 | 12176000004079
BASEBOARD | Low Stock | 20.99 | |
| 201 | 17476000012184
DOOR SWICTH ASSEMBLY | Low Stock | Contact Us | |
| 202 | 12276000019839
INNER DOOR ASSEMBLY | Not Available | ||
| 203 | 12176000003629
SNAP RING | Not Available | ||
| 204 | 12276000021255
LEFT HINGE ASSEMBLY | Not Available | ||
| 205 | 12176000030346
DOOR LOCK ASSEMBLY | Not Available | ||
| 208 | 17476000008523
DISPENSER | In Stock | 22.99 | |
| 209 | 12276000021256
RIGH THINGE ASSEMBLY | Not Available | ||
| 210 | 12276000019605
CONNECTING BOARD | Not Available | ||
| 302 | 12176000027453
UPPER BACK SUPPORT | Not Available | ||
| 303 | 12176000027452
UPPER BACK SUPPORT | Not Available | ||
| 304 | 12176000018923
TOP PLATE ASSEMBLY | Not Available | ||
| 305 | 12276000013810
LEFT SIDE PANEL | Not Available | ||
| 306 | 12276000013808
RIGHT SIDE PLATE | Not Available | ||
| 308 | 12176000008573
BASKET GUIDER SUPPORTING HOLDER | In Stock | 30.99 | |
| 310 | 12176000010412
RAIL SUPPORT ASSEMBLY | In Stock | 9.99 | |
| 313 | 12176000025300
STOPPER | Not Available | ||
| 314 | 12176000009491
DOOR LOCK HOOK | In Stock | 4.99 | |
| 315 | 12676000005443
SEAL | Low Stock | 11.99 | |
| 316 | 12276000014587
UPPER BASKET GUIDER(LEFT) | In Stock | 19.99 | |
| 317 | 12276000014586
UPPER BASKET GUIDER(RIGHT) | In Stock | 19.99 | |
| 321 | 12276000013805
LEFT HINGE HOLEDER | In Stock | 19.99 | |
| 322 | 12276000013809
RIGHT HINGE HOLDER | In Stock | 19.99 | |
| 401 | 17476000007384
EUROPEAN STANDARD POWER CORD | In Stock | 9.99 | |
| 402 | 12676000000138
DRAIN PIPE ASSEMBLY | In Stock | 20.99 | |
| 403 | 12176000025576
OVERFLOW CAP | In Stock | 9.99 | |
| 404 | 12976000000400
DOOR ROPE | Low Stock | 9.99 | |
| 405 | 12176000003604
PIN | Not Available | ||
| 406 | 12176000008820
ROPE PULLEY | In Stock | 9.99 | |
| 407 | 12176000025290
WHEEL | In Stock | 9.99 | |
| 408 | 12176000024283
AIR BREATHER | In Stock | 19.99 | |
| 408+431+42 | 17476000008042
AIR BREATHER ASSEMBLY | Not Available | ||
| 409 | 12676000000713
WASHER | Low Stock | 3.99 | |
| 410 | 12176000025297
AIR BREAKER NUT | In Stock | 9.99 | |
| 411 | 12676000003902
O TYPE SEALING RING | On Order | 9.99 | |
| 412 | 17176000012008
TEMPERATURE SENSOR | In Stock | 17.99 | |
| 413 | 17476000007443
DRAIN PUMP | In Stock | 35.99 | |
| 414 | 12176000024245
SHUNT VALVE CHAMBER COVER | Low Stock | Contact Us | |
| 416 | 12976000000133
SPRING | Not Available | ||
| 418 | 12176000024730
HANDLE COVER | In Stock | 19.99 | |
| 419 | 17476000010222
SOFTENER | Not Available | ||
| 420 | 12176000025295
SOFTENER NUT | Not Available | ||
| 421 | 12676000004365
SOFTENER GASKET | In Stock | 22.99 | |
| 422 | 12176000009741
FOOT | In Stock | Contact Us | |
| 422+405+40 | 12176000037898
BASE TRAY ASSEMBLY | Not Available | ||
| 423 | 12176000025693
BASE TRAY ASSEMBLY | Not Available | ||
| 424 | 12176000024366
CHASSIS | Not Available | ||
| 427 | 12976000000332
CLAMP | In Stock | 9.99 | |
| 428 | 12676000003941
WATER OUTLET PIPE | In Stock | 10.99 | |
| 429 | 12676000003921
DRAIN HOSE | In Stock | 10.99 | |
| 430 | 12976000004605
CLAMP | In Stock | 9.99 | |
| 431 | 12676000000644
CONNECTING PIPE | In Stock | 10.99 | |
| 432 | 12776000000023
COUNTER WEIGHT | Not Available | ||
| 433 | 17476000007448
WATER INLET VALVE | In Stock | 15.99 | |
| 434 | 17176000042363
MAIN CONTROL PANEL | Not Available | ||
| 435 | 12176000024244
PCB BOX | In Stock | 24.99 | |
| 436 | 12876000000050
FLOAT | In Stock | 11.99 | |
| 437 | 17476000001137
MICROSWITCH | In Stock | 15.99 | |
| 438 | 12176000024250
FLOAT SEAT | In Stock | 19.99 | |
| 501 | 12176000024364
INNER PIPE ASSEMBLY | Not Available | ||
| 510 | 12176000025291
MIDDLE SPAYER ASSEMBLY | In Stock | 21.99 | |
| 511 | 12176000025299
LOWER SPRAYER | In Stock | 21.99 | |
| 512+513+51 | 12176000025070
FILTER | In Stock | 19.99 | |
| 600 | 17476000A11155
INDUCTION PUMP | Not Available | ||
| 601 | 12976000004604
CLAMP | In Stock | 2.99 | |
| 602 | 12676000000132
WASHING PUMP OUTLET PIPE | In Stock | 6.99 | |
| 603 | 17476000A09036
DRAIN PUMP | Not Available | ||
| 609 | 17476000007431
HEATING TUBE ASSEMBLY | In Stock | 24.99 | |
| 614 | 12676000003903
INLET PIPE | Low Stock | 15.99 | |
| 615 | 12976000000308
CLAMP | Not Available | ||
| 617 | 12676000000993
CHECK VALVE SEAT ASSEMBLY | Not Available | ||
| 701 | 12176000A50449
CUTLERY BASKET | Not Available | ||
| 702 | 12976000A04642
UPPER BASKET ASSEMBLY | Not Available | ||
| 703 | 12176000A50444
KNIFE AND FORK RACK | Not Available | ||
| 704 | 12976000A04641
LOWER BASKET ASSEMBLY | Not Available | ||
| 705 | 12176000A69893
INLET PIPE ASSEMBLY | Not Available | ||
| 706 | 12176000010312
SALT FILLER | In Stock | 15.99 | |
| Manufacturer Model Number | NE60FD14EU |
| EAN | 5063022839138 |
| Brand | Unbranded |
| Description | 60CM FREESTANDING DISHWASHER WHITE EU |
