Unbranded NMLM18LI 18V 32CM LAWNMOWER (PARTS ONLY WARRANTY)

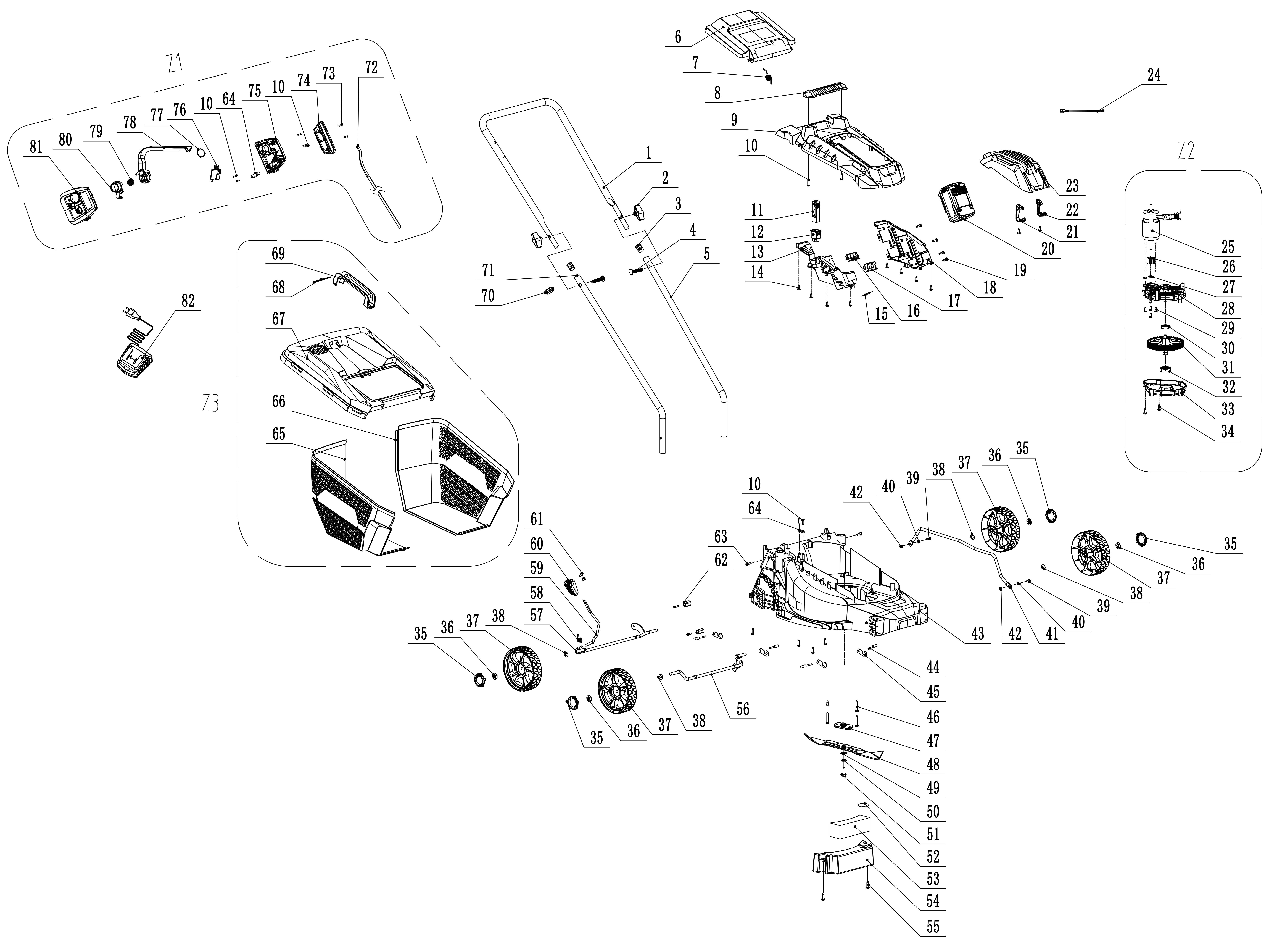

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 8.33.0361A-B
UPPER HANDLE | Not Available | ||
| 2 | 7.41.2461-5P432C
BUTTERFLY KNOB | In Stock | 5.38 | |
| 3 | 8.41.3875-B
END CAP | Not Available | ||
| 4 | 5.51.0409
HALF-ROUND SQUARE NECK BOLT | In Stock | 5.16 | |
| 5 | 8.33.0561-B
LOWER HANDLE-LEFT | Low Stock | 13.26 | |
| 6 | 8.41.0588A-P1805C
REAR COVER PLATE | Low Stock | 10.36 | |
| 7 | 8.34.0188
TORSIONAL SPRING OF REAR COVER PLATE | Not Available | ||
| 8 | 8.41.0388-B
BASE HANDLE | Not Available | ||
| 9 | 8.41.2390-P1805C
UPPER HOUSING | Not Available | ||
| 10 | 5.51.0101
SCREW $$$ | Not Available | ||
| 11 | 7.41.0979-5P432C
KEY | Not Available | ||
| 12 | 8.41.0879-P432C
KEY SEAT | Not Available | ||
| 13 | 8.41.2590-B
BATTERY COMPARTMENTS RIGHT | Not Available | ||
| 14 | 5.51.0802
SCREW $$$ | Not Available | ||
| 15 | 8.69.0190
RESISTOR (10K-ohm) | Not Available | ||
| 16 | 7.41.1492-5B
BATTERY SOCKET | Not Available | ||
| 17 | 8.41.2890-B
REVERSE CHIP SOCKET | Not Available | ||
| 18 | 8.41.2490-B
BATTERY COMPARTMENTS-LEFT | Not Available | ||
| 19 | 5.51.0601
SCREW $$$ | Not Available | ||
| 20 | NMBA18-4
BATTERY - 18V 4000mAh - NMBA18-4 | Not Available | ||
| 21 | 8.41.2790-B
SUPPORT OF TRANSPARENT COVER-RIGHT | Not Available | ||
| 22 | 8.41.2690-B
SUPPORT OF TRANSPARENT COVER-LEFT | Not Available | ||
| 23 | 8.41.2290-C10
TRANSPARENT COVER | Not Available | ||
| 24 | 8.64.0690
GROUND WIRE | Not Available | ||
| 25 | 8.12.0790
MOTOR | Low Stock | 33.10 | |
| 26 | 8.35.0190
SMALL GEAR | Low Stock | 7.03 | |
| 27 | 5.53.0202
WASHER - M6 $$$ | Not Available | ||
| 28 | 8.41.0590-N
UPPER COVER PLATE OF GEAR BOX | Not Available | ||
| 29 | 5.51.1003
SCREW $$$ | Not Available | ||
| 30 | 5.54.0401
DOUBLE-SIDED DUSTPROOF DEEP GROOVE BALL BEARINGS | Not Available | ||
| 31 | 7.41.2090-5
BIG GEAR | Low Stock | 20.38 | |
| 32 | 5.54.0201
DOUBLE-SIDED OIL PROOF DEEP GROOVE BALL BEARINGS | Low Stock | 7.83 | |
| 33 | 8.41.1590-N
LOWER COVER OF GEAR BOX | Not Available | ||
| 34 | 5.51.2401
SCREW $$$ | Not Available | ||
| 35 | 8.41.1188-P432C
WHEEL HUB | In Stock | 5.07 | |
| 36 | 5.53.1799-B
BEARING CLIP | Low Stock | 1.00 | |
| 37 | 8.41.0488-B
WHEEL | In Stock | 7.60 | |
| 38 | 5.53.0102
FLAT WASHER | Low Stock | 4.89 | |
| 39 | 5.51.0399
BOLT - M5 $$$ | Not Available | ||
| 40 | 5.53.2699-B
WASHER $$$ | Not Available | ||
| 41 | 8.33.0490
HEIGHT ADJUSTMENT LEVER | Low Stock | 11.48 | |
| 42 | 5.52.0103
NUT | Not Available | ||
| 43 | 8.41.0188B-B
CHASSIS | Not Available | ||
| 44 | 5.55.0405-B
RIVET - M4X13 $$$ | Not Available | ||
| 45 | 8.33.0690
WHEEL AXLE LEVER | Not Available | ||
| 46 | 5.51.0901
SCREW $$$ | Not Available | ||
| 47 | 8.41.1988-N
BLADE HOLDER | Not Available | ||
| 48 | 8.33.1178-4B
BLADE | Not Available | ||
| 49 | 5.53.0303B
WASHER - M8 $$$ | Not Available | ||
| 50 | 5.53.0106
SPRING WASHER | Low Stock | 4.89 | |
| 51 | 5.51.1112
BOLT | Low Stock | 5.02 | |
| 52 | 8.43.0188
SPONGE | Not Available | ||
| 53 | 8.29.0175
FRONT BALLAST | Not Available | ||
| 54 | 8.41.1388
FRONT COVER | Not Available | ||
| 55 | 5.51.0502
SCREW $$$ | Not Available | ||
| 56 | 8.33.0290
SHAFT ASSEMBLY OF FRONT WHEEL | Not Available | ||
| 57 | 8.33.0390
SHAFT ASSEMBLY OF REAR WHEEL | Not Available | ||
| 58 | 8.34.0190
SPRING | Low Stock | 7.03 | |
| 59 | 8.33.0590
HEIGHT ADJUST LEVER | Low Stock | 9.25 | |
| 60 | 8.41.1181-P432C
HANDLE OF CENTRAL LEVER | Not Available | ||
| 61 | 5.51.2201
CROSS RECESSED PAN HEAD TAPPING SCREWS | Not Available | ||
| 62 | 8.41.3090-B
CHOCK BLOCK | Not Available | ||
| 63 | 5.51.0302
TAPPING SCREW FLAT WASHER ASSEMBLIES | Not Available | ||
| 64 | 8.41.5375-N
CRIMPING PLATE | Not Available | ||
| 65 | 8.41.0888-B
HALF GRASS BOX RIGHT | Low Stock | 15.93 | |
| 66 | 8.41.0788-B
HALF GRASS BOX-LEFT | Not Available | ||
| 67 | 8.41.0688-B
UPPER COVER OF GRASS BOX | Low Stock | 16.15 | |
| 68 | 8.41.0681-P432C
INDICATE CAP | Not Available | ||
| 69 | 8.41.0988-B
HANDLE OF GRASS BOX | Not Available | ||
| 70 | 8.41.4375-B
WIRE SLOT | Not Available | ||
| 71 | 8.33.0461-B
LOWER HANDLE RIGHT | Not Available | ||
| 72 | 8.64.0190
CABLE | Not Available | ||
| 73 | 5.51.0201
SCREW | Not Available | ||
| 74 | 8.41.1990-B
FIXED COVER OF MICROSWITCH BOX | Low Stock | 5.47 | |
| 75 | 8.41.1890-B
LOWER COVER OF MICROSWITCH BOX | Low Stock | 5.91 | |
| 76 | 8.63.0290
DOUBEL MICROSWITCH | Low Stock | 13.70 | |
| 77 | 8.34.0275
TORSION SPRING | Low Stock | 3.99 | |
| 78 | 8.41.0961B-P432C
TRIGGER OF MICROSWITCH BOX | Not Available | ||
| 79 | 8.34.0550
SPRING | Low Stock | 1.99 | |
| 80 | 8.41.1690-P432C
BUTTON OF MICROSWITCH BOX | Low Stock | 5.38 | |
| 81 | 8.41.1790-B
UPPER COVER OF MICROSWITCH BOX | Low Stock | 5.91 | |
| 82 | NMFC18
CHARGER - NMFC18 | Not Available | ||
| Manufacturer Model Number | NMLM18-Li |
| EAN | 5059340239736 |
| Brand | Unbranded |
| Description | 18V 32CM LAWNMOWER (PARTS ONLY WARRANTY) |
