Unbranded NMT800 800W 28CM TILLER

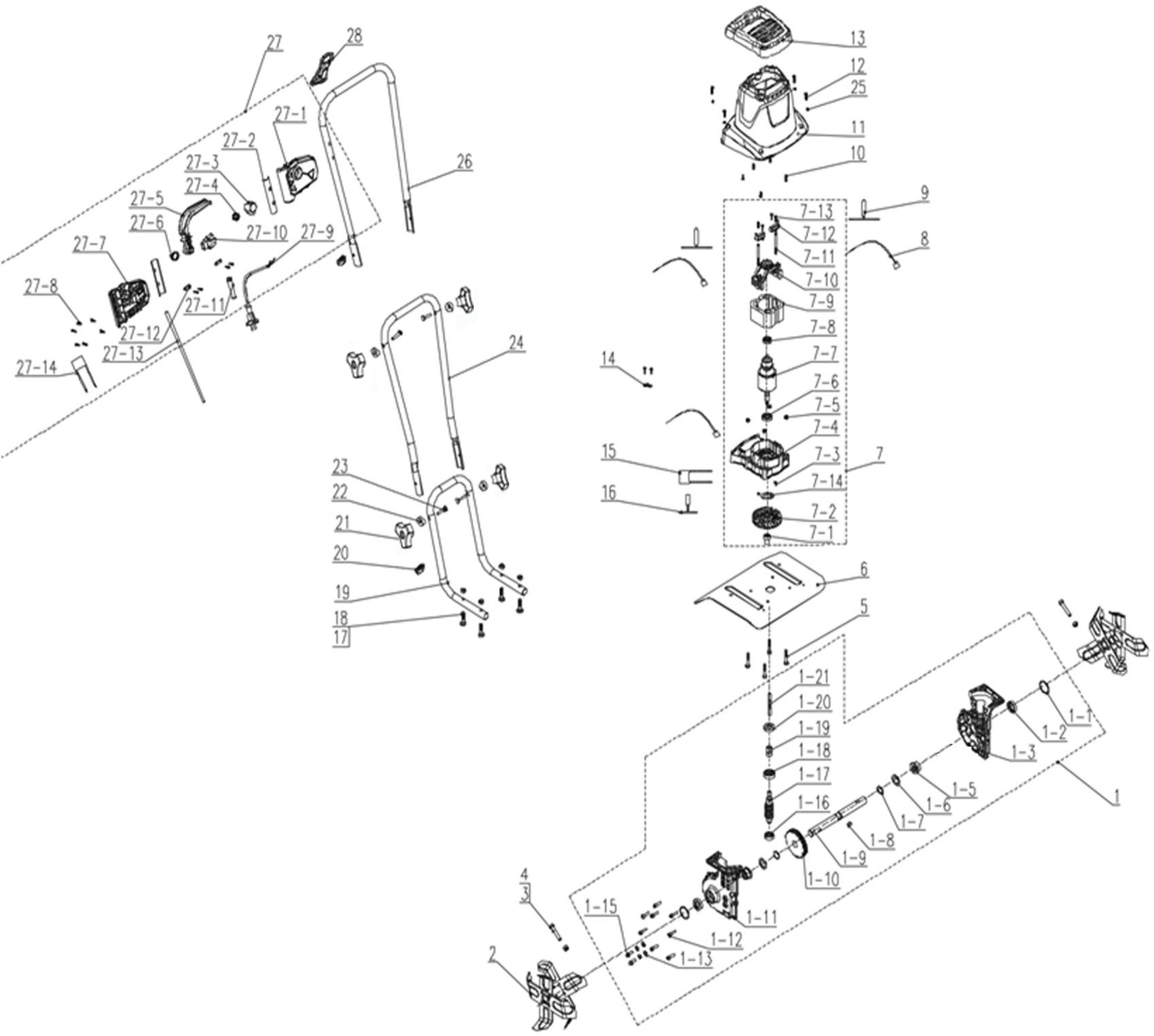

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 8440-560304-0000011
WORM GEAR BOX ASSEMBLY | Low Stock | 29.99 | |
| 1-1 | 8CA-32B
JUMP RING | Not Available | ||
| 1-2 | 9200-903101-0100021
OIL SEAL | Not Available | ||
| 1-3 | 8146-560302-0100000
WORM GEAR RIGHT BOX | Not Available | ||
| 1-5 | 8331-560301-0000000
BUSH | Not Available | ||
| 1-6 | 8WF-18B01
FLAT GASKET | Not Available | ||
| 1-7 | 8CC-19B
AXIS WITH CIRCLIPS | Not Available | ||
| 1-8 | 8205-990101-0000000
ROUND HEAD FLAT KEY | Not Available | ||
| 1-9 | 8081-560302-0100000
THE SUPPORTING SHAFT HOB | Not Available | ||
| 1-10 | 8127-560301-0000000
WORM GEAR | Not Available | ||
| 1-11 | 8146-560301-0100000
WORM LEFT BOX | Not Available | ||
| 1-12 | 8SACD06-20B8.8
SCREW | Not Available | ||
| 1-13 | 8341-981001-0100010
PROTECTING HOOD PAD | Not Available | ||
| 1-15 | 8SACD06-10D
BOLT | Not Available | ||
| 1-16 | 8BC-261008-SS
BEARING | Not Available | ||
| 1-17 | 8087-560301-0100000
WORM | Not Available | ||
| 1-18 | 8BC-321210-SS03
DEEP GROOVE BALL BEARING | Not Available | ||
| 1-19 | 8331-560302-0000000
FLEXIBLE SHAFT SLEEVE | Not Available | ||
| 1-20 | 8200-560301-0000000
BIG OIL SEAL | Not Available | ||
| 1-21 | 8089-560301-0100000
SOFT SHAFT | Not Available | ||
| 2 | 8440-990101-0100000
ROTARY KNIFE ASSEMBLY | Low Stock | 12.99 | |
| 3 | 8NH-08D
SIX ANGLE LOCK NUT | In Stock | 0.95 | |
| 4 | 8SFDD08-40D
HEXAGON NUT | In Stock | 1.00 | |
| 5 | 8SJAD06-45D
CROSS PAN HEAD SCREW | Not Available | ||
| 6 | 8181-560101-0000000
PROTECTION PANEL | Not Available | ||
| 7 | 8440-560102-0000020
MOTOR ASSEMBLY | Low Stock | 34.99 | |
| 7-1 | 8331-560302-0000000
FLEXIBLE SHAFT SLEEVE | Not Available | ||
| 7-2 | 8403-512001-0201720
FAN BLADE | Not Available | ||
| 7-3 | 8NH-04D
SIX ANGLE LOCK NUT | Not Available | ||
| 7-4 | 8291-560301-0000120
MOTOR FRONT BRACKET | Not Available | ||
| 7-5 | 8NH-06D
SIX ANGLE LOCK NUT | In Stock | 1.50 | |
| 7-6 | 8BC-321210-SS03
BEARING | Not Available | ||
| 7-7 | 8402-560101-0000010
THE ROTOR ASSEMBLY | Not Available | ||
| 7-8 | 8BC-240808-SS
628 BEARING | Not Available | ||
| 7-9 | 8405-560101-0000010
STATOR | Not Available | ||
| 7-10 | 8291-560302-0000120
MOTOR BACK SUPPORT | Not Available | ||
| 7-11 | 8SJAD05-18D
MACHINE SCREW | Not Available | ||
| 7-12 | 8406-560101-0000010
CARBON BRUSH | Not Available | ||
| 7-13 | 8SJAB40-10B
SELF TAPPING SCREW | Not Available | ||
| 7-14 | 9202-923006-0000000
FLYWHEEL GASKET | Not Available | ||
| 8 | 236-1006
TIE WIRE BELT | Not Available | ||
| 9 | 8415-560303-0000010
INDUCTOR | Not Available | ||
| 10 | 8SJAB40-14D
SELF TAPPING SCREW | Not Available | ||
| 11 | 8024-560101-0123720
SHELL | Not Available | ||
| 12 | 8SJAD05-18D
MACHINE SCREW | Not Available | ||
| 13 | 8003-560101-0100120
HANDLE | Not Available | ||
| 14 | 8184-302201-0001720
CABLE CLAMP | In Stock | 3.99 | |
| 15 | 8416-000007-0000020
CAPACITANCE | Not Available | ||
| 16 | 8424-560101-0000000
THERMAL PROTECTOR | Not Available | ||
| 17 | 8206-660501-0000000
CUP HEAD SQUARE NECK BOLTS | In Stock | 0.50 | |
| 18 | 8NH-06D
SIX ANGLE LOCK NUT | In Stock | 1.50 | |
| 19 | 8061-560301-0000000
THE LOWER HANDRAIL | Low Stock | 9.99 | |
| 20 | 8007-512001-0000120
LINE DEDUCTION | Not Available | ||
| 21 | 8313-513701-0144620
KNOB | Not Available | ||
| 22 | 8341-514201-0000120
RUBBER PLASTIC PAD | In Stock | 1.00 | |
| 23 | 8206-511201-0100000
SQUARE NECK BOLT | In Stock | 1.50 | |
| 24 | 8061-560102-0100000
THE MIDDLE ARMREST | Low Stock | 9.99 | |
| 25 | 8NH-05D
SIX ANGLE LOCK NUT | In Stock | 1.00 | |
| 26 | 8061-560101-0000000
ON THE ARM | Low Stock | 9.99 | |
| 27 | 8440-560101-0044621
SWITCH BOX COMPONENT | In Stock | 9.99 | |
| 27-1 | 8020-511207-0000120
SWITCH BOX COVER | Not Available | ||
| 27-2 | 8181-511201-0100120
AUXILIARY BUSHING | Not Available | ||
| 27-3 | 8312-511201-0244620
SWITCH BUTTON | Not Available | ||
| 27-4 | 8342-511202-0000000
SWITCH SPRING | Not Available | ||
| 27-5 | 8044-511202-0144620
SWITCH TRIGGER | Not Available | ||
| 27-6 | 8342-511201-0000000
SWITCH TORSION SPRING | Not Available | ||
| 27-7 | 8020-511208-0000120
SWITCH BOX LOWER COVER | Not Available | ||
| 27-8 | 8SJAB40-14Q
SELF TAPPING SCREW | Not Available | ||
| 27-9 | 8422-560102-0000020
POWER LINE | Low Stock | Contact Us | |
| 27-10 | 8042-517001-0000010
SWITCH | Not Available | ||
| 27-11 | 8332-532101-0100020
CABLE SHEATH | Not Available | ||
| 27-12 | 8184-302201-0001720
CABLE CLAMP | In Stock | 3.99 | |
| 27-13 | 8422-560101-0000020
THREE CORE CABLE | Low Stock | Contact Us | |
| 27-14 | 8416-000019-0000020
CAPACITOR | Not Available | ||
| 28 | 8343-512101-0100120
LINE HANG | Low Stock | 1.99 | |
| Manufacturer Model Number | NMT800 |
| EAN | 3663602627241 |
| Brand | Unbranded |
| Description | 800W 28CM TILLER |
