Performance Power NMU1299LWM LAWN MOWER - 132cc - 41CM (SP)

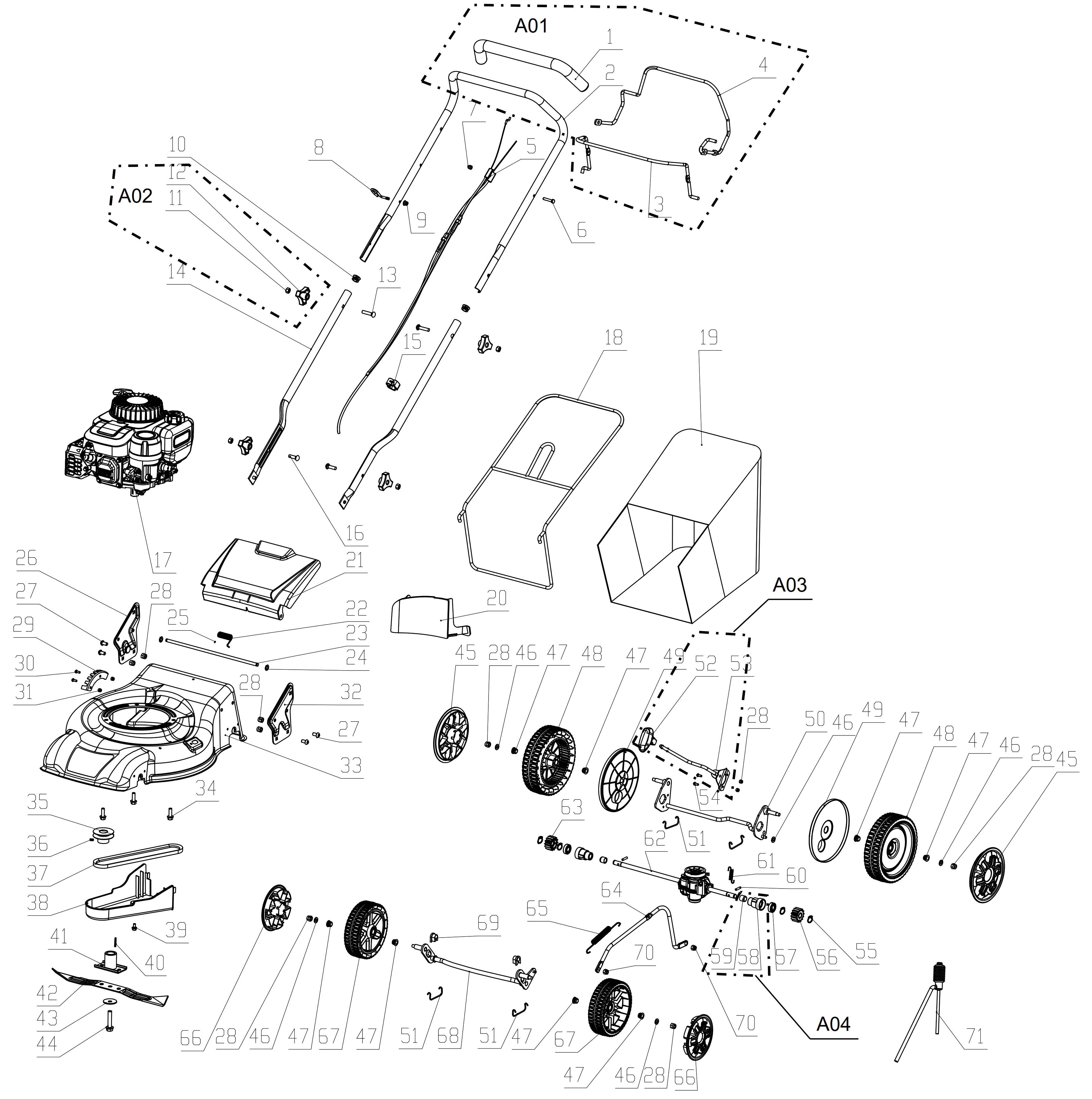

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| A01 | 1006007001
UPPER HANDLE ASSEMBLY | Not Available | ||
| A02 | 1057539001
KNOB ASSEMBLY | On Order | Contact Us | |
| A03 | 1006010001
HEIGHT ADJUSTMENT HANDLE ASSEMBLY | On Order | Contact Us | |
| A04 | 1052162001
PLASTIC BUSHING ASSEMBLY | Not Available | ||
| 5 | 1006011001
CONTROL CABLE ASSEMBLY | On Order | Contact Us | |
| 7 | 2600147001
NUT - M6 $$$ | Not Available | ||
| 8 | 1250470002
PULL-CORD GUIDE | Not Available | ||
| 9 | 2600172001
LOCKING NUT - M6 $$$ | Not Available | ||
| 10 | 1051123001
END CAP | Not Available | ||
| 13 | 2601029001
THROUGH-BOLT | Not Available | ||
| 14 | 1005514001
LOWER HANDLE | Not Available | ||
| 15 | 1054771001
CABLE CLIP | Not Available | ||
| 16 | 2601027001
THROUGH-BOLT | Not Available | ||
| 17 | 1005519001
ENGINE - NP130 | Not Available | ||
| 18 | 1005723001
GRASS COLLECTOR FRAME | On Order | Contact Us | |
| 19 | 1410064001
GRASS COLLECTOR BASE | On Order | Contact Us | |
| 20 | 1056633001
MULCHING PLUG INSERT | Not Available | ||
| 21 | 1050992001
REAR DISCHARGE CHUTE COVER | Not Available | ||
| 22 | 1350110001
SPRING | Not Available | ||
| 23 | 1255259001
REAR DISCHARGE CHUTE SHAFT | Not Available | ||
| 25 | 1050776001
SPRING | Not Available | ||
| 26 | 1255309001
HANDLE BRACKET - RH | Not Available | ||
| 29 | 1255260001
HEIGHT ADJUSTMENT SELECTOR | Not Available | ||
| 32 | 1255308001
HANDLE BRACKET - LH | Not Available | ||
| 35 | 1255795001
DRIVE BELT PULLEY | Not Available | ||
| 36 | 1251057001
GRUB SCREW | Not Available | ||
| 37 | 1400402001
DRIVE BELT | On Order | Contact Us | |
| 38 | 1057552001
DRIVE BELT COVER | On Order | Contact Us | |
| 40 | 1250850001
WOODRUFF KEY | Not Available | ||
| 41 | 1004996001
BLADE SEAT | Not Available | ||
| 42 | 1255261001
ACCESSORY - LAWN MOWER BLADE - 41CM | On Order | Contact Us | |
| 43 | 1251439001
BLADE RETAINING WASHER | Not Available | ||
| 44 | 1251056001
BLADE RETAINING BOLT (3/8-24UNF) | On Order | Contact Us | |
| 45 | 1052418016
WHEEL TRIM - 20CM | Not Available | ||
| 47 | 1200007001
SHAFT SLEEVE | Not Available | ||
| 48 | 1052427001
WHEEL - 20CM | On Order | Contact Us | |
| 49 | 1052166001
WHEEL INNER COVER - 20CM (SP) | On Order | Contact Us | |
| 50 | 1006009001
REAR AXLE | Not Available | ||
| 51 | 1250469001
SPRING HOOK | Not Available | ||
| 56 | 1000872001
DRIVE GEAR - LH | On Order | Contact Us | |
| 57 | 2600817001
BEARING | Not Available | ||
| 60 | 1251002001
PIN - 5X21.5 | Not Available | ||
| 61 | 1350642001
TENSIONER SPRING | Not Available | ||
| 62 | 1006008001
TRANSAXLE | On Order | Contact Us | |
| 63 | 1000873001
DRIVE GEAR - RH | On Order | Contact Us | |
| 64 | 1255543001
HEIGHT ADJUSTMENT LINK-ROD | Not Available | ||
| 65 | 1350589001
TENSION SPRING | Not Available | ||
| 66 | 1052417016
WHEEL TRIM - 165MM | Not Available | ||
| 67 | 1052414001
WHEEl - 165MM | On Order | Contact Us | |
| 68 | 1005516001
FRONT AXLE ASSEMBLY | Not Available | ||
| 69 | 1050642001
SHAFT BUSHING | Not Available | ||
| 71 | 1056413000
ACCESSORY - FUEL SIPHON | On Order | Contact Us | |
| Manufacturer Model Number | NMU1299LWM |
| EAN | 5063022748980 |
| Brand | Performance Power |
| Description | LAWN MOWER - 132cc - 41CM (SP) |
