Performance Power PPB1157LWM LAWN MOWER 1200W 32CM

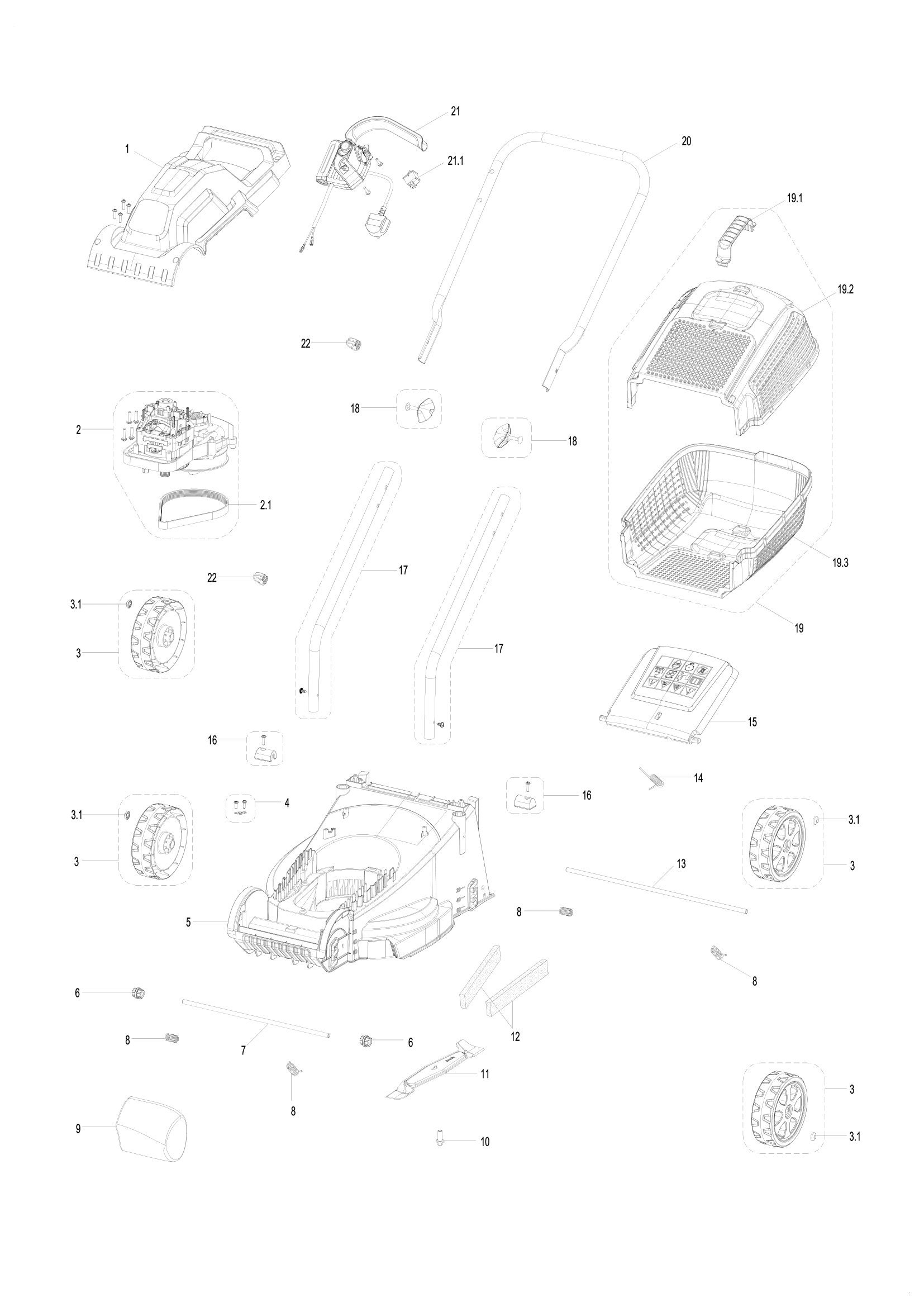

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | GD6KBX.00.01.X1.03.X
TOP COVER | Not Available | ||
| 2 | GD6KBX.20.00.X1.01.X
MOTOR ASSEMBLY | Low Stock | 39.99 | |
| 2-1 | WOCSDX.16.PJ
DRIVE BELT | In Stock | 4.99 | |
| 3 | TGQTGL.B4.00.X1.05.X
WHEEL ASSEMBLY (140MM) | Low Stock | Contact Us | |
| 3-1 | BOC2YX.12.NS
WHEEL AXLE CAP | In Stock | 4.93 | |
| 4 | TOQTGX.04.YX.X2.02.X
CABLE CLAMP | Not Available | ||
| 5 | GD6MBX.30.00
CHASSIS $$$ | Not Available | ||
| 6 | GD11BX.00.01
BEARING INSERT | Not Available | ||
| 7 | GD51BX.00.07
FRONT AXLE | Not Available | ||
| 8 | TOTHYL.02.12
HEIGHT ADJUSTMENT SPRING | In Stock | 4.93 | |
| 9 | GMC4BX.50.00
BALLAST $$$ | Not Available | ||
| 10 | BOA4FL.08.20.01
BOLT - M8X20 | In Stock | 2.00 | |
| 11 | GD6MBX.00.06.01
ACCESSORY - BLADE - 32CM | In Stock | Contact Us | |
| 12 | GD6MBX.00.05
AIR FILTER | Not Available | ||
| 13 | GD6KBX.00.03
REAR AXLE | Low Stock | Contact Us | |
| 14 | TOTHYN.09.10
SAFETY DOOR SPRING | In Stock | 3.99 | |
| 15 | GD60BX.00.03.01
REAR CHUTE FLAP | Not Available | ||
| 16 | GD60BX.00.06.X1.01.X
END CAP | Not Available | ||
| 17 | GD60BX.00.08.X1.10.X
LOWER HANDLEBAR SECTION | Not Available | ||
| 18 | TGQTXN.06.00.X1.31.X
LOCKING KNOB ASSEMBLY | In Stock | Contact Us | |
| 19 | GD6MBX.40.00.01
COLLECTOR ASSEMBLY | Low Stock | Contact Us | |
| 19-1 | GD21BX.20.01
COLLECTOR HANDLE $$$ | In Stock | 4.99 | |
| 19-2 | GD64BX.30.01.W10.KN
COLLECTOR LID $$$ | Not Available | ||
| 19-3 | GD6MBX.40.10
COLLECTOR BASE $$$ | Not Available | ||
| 20 | GD67BX.20.01.03
UPPER HANDLEBAR | Not Available | ||
| 21 | TGDQ15.E8.00.X1.12.X
SWITCH BOX ASSEMBLY | Low Stock | Contact Us | |
| 21-1 | WODQ10.10.12
SWITCH | Not Available | ||
| 22 | TOQTGX.03.XJ.01
CABLE CLIPS | In Stock | 1.99 | |
| Manufacturer Model Number | PPB1157LWM |
| EAN | 5063022638274 |
| Brand | Performance Power |
| Description | LAWN MOWER 1200W 32CM |
