Performance Power PPB1158LWM LAWN MOWER 1200W 32CM

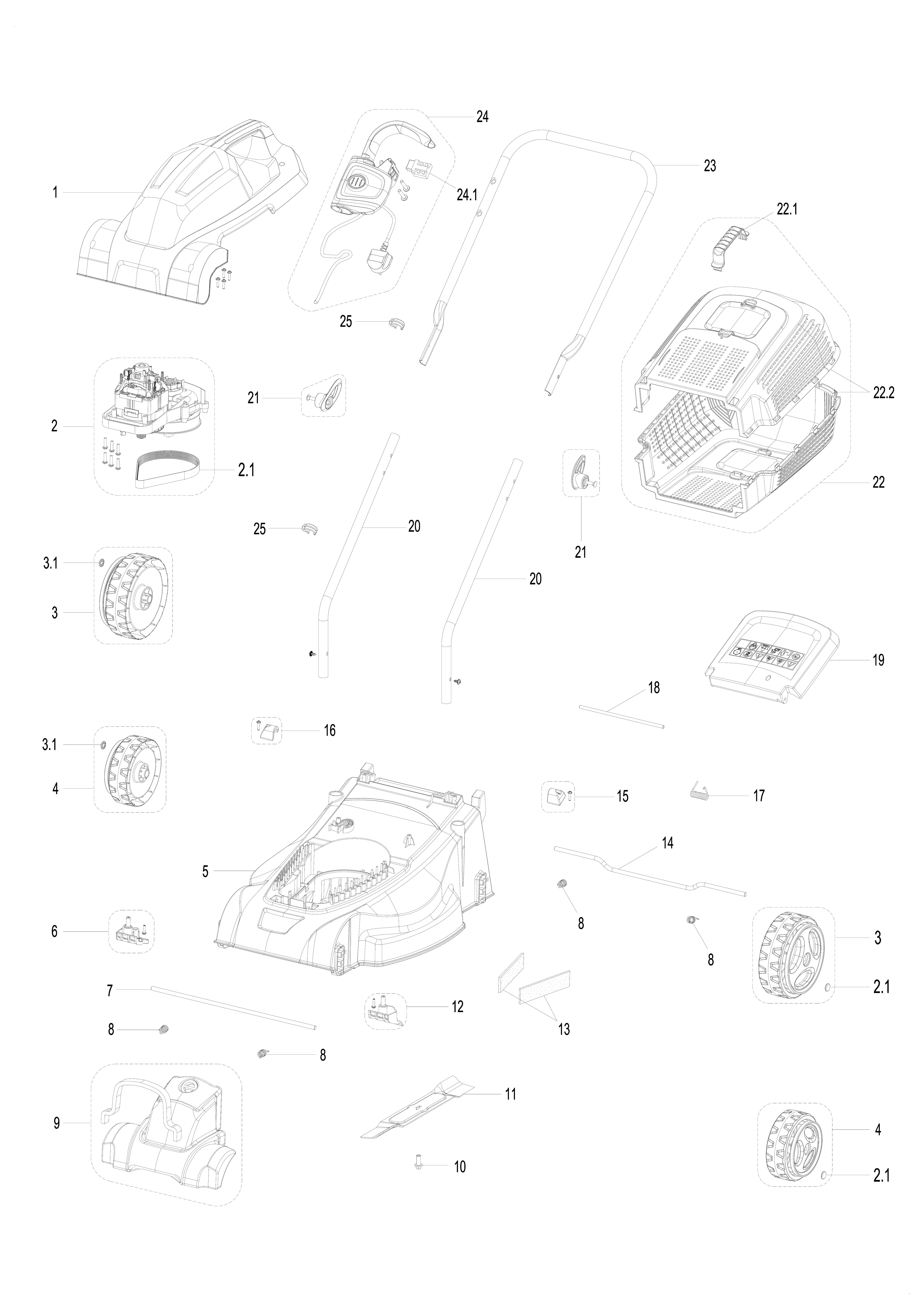

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | GD34BX.00.01.X2.01.X
TOP COVER | Not Available | ||
| 2 | GD3ABX.10.00.X1.01.X
MOTOR ASSY | Low Stock | 27.34 | |
| 2-1 | WOCSDX.19.PJ
DRIVE BELT | Low Stock | 9.52 | |
| 3 | TGQTGL.54.00.X1.10.X
WHEEL ASSEMBLY - 170MM | Low Stock | 4.49 | |
| 3-1 | BOC2YX.12.NS
WHEEL AXLE CAP | In Stock | 4.93 | |
| 4 | TGQTGL.49.00.X1.11.X
WHEEL ASSEMBLY - 140MM | Low Stock | 3.99 | |
| 5 | GD3CBX.00.01
CHASSIS $$$ | Not Available | ||
| 6 | GD32BX.00.02.X1.01.X
CABLE CLAMP $$$ | Not Available | ||
| 7 | GD31BX.00.07
FRONT AXLE | Not Available | ||
| 8 | TOTHYL.02.12
HEIGHT ADJUSTMENT SPRING | In Stock | 4.93 | |
| 9 | GD34BX.10.00.X1.01.X
WEIGHTED FRONT ASSEMBLY $$$ | Not Available | ||
| 10 | BOA4FL.08.20.01
BOLT - M8X20 | In Stock | 2.00 | |
| 11 | GD31BX.00.04.01
ACCESSORY - BLADE - 36CM | In Stock | 14.99 | |
| 12 | GD32BX.00.03.X1.01.X
CABLE CLAMP RHS $$$ | Not Available | ||
| 13 | GD32BX.00.06
AIR FILTER | Not Available | ||
| 14 | GD31BX.00.05
REAR AXLE | Not Available | ||
| 15 | GD21BX.00.09.X1.01.X
RIGHT PRESS CAP ASSY | Not Available | ||
| 16 | GD21BX.00.11.X1.01.X
LEFT PRESS CAP ASSY | Not Available | ||
| 17 | TOTHYN.03.10
SPRING FOR AXLE | Low Stock | 5.11 | |
| 18 | GD31BX.00.08
TORSION SPRING SHAFT | Low Stock | 5.38 | |
| 19 | GD31BX.00.02.02
SAFETY DOOR | Low Stock | 7.25 | |
| 20 | GD31BX.00.09.X1.04.X
LOWER HANDLE BAR | Not Available | ||
| 21 | TGQTXN.03.00.KN
LOCKING KNOB ASSEMBLY (ALT GP0000004893) | Not Available | ||
| 22 | GD31BX.20.00
COLLECTOR ASSEMBLY | Low Stock | 12.49 | |
| 22-1 | GD21BX.20.01
COLLECTOR HANDLE $$$ | In Stock | 4.99 | |
| 22-2 | GD31BX.20.01
COLLECTOR LID + BASE | Not Available | ||
| 23 | GD31BX.00.12.03
UPPER HANDLEBAR | Not Available | ||
| 24 | TGDQ15.29.00.X2.01.X
SWITCH BOX ASSEMBLY | Low Stock | 17.49 | |
| 24-1 | WODQ10.02.08
SWITCH | Low Stock | 4.99 | |
| 25 | TOQTGX.03.XJ.01
CABLE CLIPS | In Stock | 1.99 | |
| Manufacturer Model Number | PPB1158LWM |
| EAN | 5063022637406 |
| Brand | Performance Power |
| Description | LAWN MOWER 1200W 32CM |
