Performance Power PPB1172GGT GRASS TRIMMER 450W 30CM

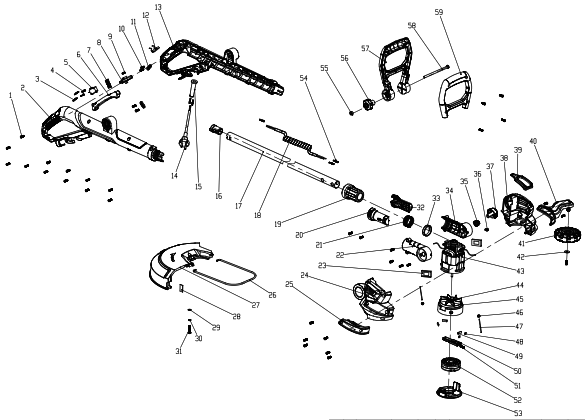

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 2 | 402021028
HANDLE (RHS) | Not Available | ||
| 4 | 601010001
LOCK SPRING | Not Available | ||
| 5 | 405020003
SWITCH | Not Available | ||
| 6 | 402091126
TRIGGER | Not Available | ||
| 7 | 404030003
SPRING | Not Available | ||
| 8 | 402091137
SAFETY BUTTON | Not Available | ||
| 9 | 404030029
PUSH BUTTON SPRING | Not Available | ||
| 10 | 403010018
TAPPING SCREW | Not Available | ||
| 11 | 402100004
CABLE CLAMP | Not Available | ||
| 12 | 405080001
CAPACITOR | Not Available | ||
| 13 | 402021027
HANDLE (LHS) | Not Available | ||
| 14 | 405030350
POWER CABLE (0.35M) | Low Stock | 7.49 | |
| 15 | 402100922
POWER CORD STRAIN RELIEF | Not Available | ||
| 16 | 402101216
CENTRE SHAFT UPPER END CAP | Not Available | ||
| 17 | 401020151
CENTRE SHAFT | Not Available | ||
| 18 | 405040104
INTERNAL WIRING | Not Available | ||
| 19 | 402102227
LOCKING SLEEVE | Not Available | ||
| 20 | 402102229
CENTRE SHAFT LOWER END CAP (RHS) | Not Available | ||
| 21 | 404030035
ROTARY ARM SPRING | Not Available | ||
| 22 | 402102231
SWIVEL ARM (RHS) | Not Available | ||
| 23 | 402100640
VIBRATION DAMPER | Not Available | ||
| 24 | 402011214
MOTOR HOUSING (RHS) | Not Available | ||
| 25 | 402102236
MOTOR HOUSING TRIM (RHS) | Not Available | ||
| 26 | 404060209
PLANT GUARD | Not Available | ||
| 27 | 402080067
TRIMMER HEAD GUARD | Not Available | ||
| 28 | 303050003
TRIMMER WIRE BLADE | Not Available | ||
| 32 | 402102228
CENTRE SHAFT LOWER END CAP (LHS) | Not Available | ||
| 33 | 402100478
LOCKING COLLAR | Not Available | ||
| 34 | 402102230
SWIVEL ARM (LHS) | Not Available | ||
| 35 | 404030036
SWIVEL ARM SPRING | Not Available | ||
| 37 | 402091138
SWIVEL ARM BUTTON | Not Available | ||
| 38 | 402011215
MOTOR HOUSING (LHS) | Not Available | ||
| 39 | 402102232
TRIM PLATE | Not Available | ||
| 40 | 402102235
MOTOR HOUSING TRIM/WHEEL GUIDE (LHS) | Not Available | ||
| 41 | 402102237
GUIDE WHEEL | Low Stock | 3.99 | |
| 43 | 405010060+405010062
MOTOR ASSEMBLY | Low Stock | 14.99 | |
| 44 | 404060207
TRIMMER HEAD BASE | Not Available | ||
| 45 | 402102234
TRIMMER HEAD | Low Stock | 3.99 | |
| 46 | 404060206
TRIMMER HEAD EYELET | Not Available | ||
| 47 | 601030003
ACCESSORY - TRIMMER WIRE | Not Available | ||
| 48 | 404060213
COUNTERWEIGHT B | Not Available | ||
| 49 | 404060217
COUNTERWEIGHT D | Not Available | ||
| 50 | 402100637
SPOOL RELEASE | Low Stock | 1.99 | |
| 51 | 404030070
SPOOL RELEASE SPRING | Low Stock | 1.99 | |
| 52 | 402100636
SPOOL | Low Stock | 3.99 | |
| 53 | 402102274
TRIMMER HEAD COVER | Low Stock | 3.99 | |
| 54 | 601020005
HEAT SHRINK TUBING $$$ | Not Available | ||
| 55 | 403020010
SELF-LOCKING NUT | Not Available | ||
| 56 | 402091139
LOCKING KNOB | Not Available | ||
| 57 | 402050148
FRONT HANDLE (REAR SECTION) | Not Available | ||
| 58 | 403010046
THROUGH-BOLT | Not Available | ||
| 59 | 402050149
FRONT HANDLE (FRONT SECTION) | Not Available | ||
| 60 | 405030355
POWER CABLE (7M. 2X0.75MM2 - UK TYPE-G PLUG) | Not Available | ||
| Manufacturer Model Number | PPB1172GGT |
| EAN | 5063022638069 |
| Brand | Performance Power |
| Description | GRASS TRIMMER 450W 30CM |
