| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

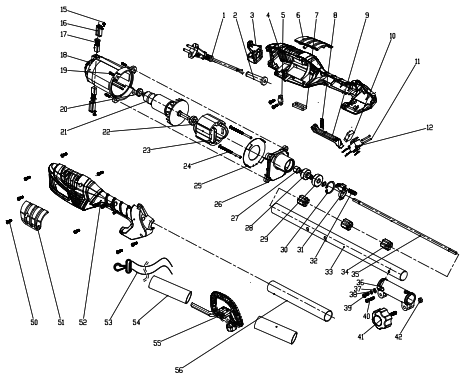

| Drawing 1 | ||||
| 1 | 405030199
POWER CORD (0.35M) | Not Available | ||
| 2 | 402100922
POWER CORD STRAIN RELIEF | Not Available | ||
| 3 | 402102263
HOOK | Not Available | ||
| 4 | 402011229
CASING - LH | Not Available | ||
| 5 | 402100097
CABLE CLAMP | Not Available | ||
| 6 | 402102265
PANEL - LH | Not Available | ||
| 7 | 405080033
DAMPER | Not Available | ||
| 8 | 404030004
SPRING | Not Available | ||
| 9 | 402091156
TRIGGER | Not Available | ||
| 10 | 405080057
CAPACITOR | Not Available | ||
| 11 | 404020001
PIN | Not Available | ||
| 12 | 405020045
SWITCH (DOUBLE) | Not Available | ||
| 15 | 403010019
SCREW $$$ | Not Available | ||
| 16 | 405090023
MOTOR - BRUSH HOLDER | Not Available | ||
| 17 | 405090017
MOTOR - CARBON BRUSH | In Stock | 3.99 | |
| 18 | 402100152
MOTOR - COVER | Not Available | ||
| 19 | 403010006
SCREW $$$ | Not Available | ||
| 20 | 403050001
MOTOR - BEARING | Not Available | ||
| 21 | 405010031
MOTOR - ROTOR | Not Available | ||
| 22 | 403050005
MOTOR - BEARING | Not Available | ||
| 23 | 405010069
MOTOR - STATOR | Not Available | ||
| 24 | 403010023
SCREW $$$ | Not Available | ||
| 25 | 402100151
MOTOR - COVER PLATE | Not Available | ||
| 26 | 401010017
MOTOR - BRACKET | Not Available | ||
| 27 | 404060196
MOTOR - SLEEVE BEARING | Not Available | ||
| 28 | 404020030
GEAR SHAFT | Not Available | ||
| 29 | 403050006
MOTOR - BEARING | Not Available | ||
| 30 | 403030022
C CLIP | Not Available | ||
| 31 | 402091157
TRIGGER LOCK | Not Available | ||
| 32 | 404030011
TRIGGER SPRING | Not Available | ||
| 33 | 301130024
REAR SHAFT OUTER TUBE | Not Available | ||
| 34 | 402100107
SHAFT SLEEVE | Not Available | ||
| 35 | 404020055
DRIVE SHAFT | Not Available | ||
| 36 | 401010028
SHAFT CONNECTOR | Not Available | ||
| 41 | 402091158
KNOB | Not Available | ||
| 51 | 402102266
PANEL - RH | Not Available | ||
| 52 | 402011230
CASING - RH | Not Available | ||
| 53 | 499000010
ACCESSORY - SAFETY HARNESS | Low Stock | 8.99 | |
| 54 | 499000065
FOAM SLEEVE | Not Available | ||
| 55 | 301030020
HANDLE | Not Available | ||
| 56 | 402100263
SLEEVE | Not Available | ||

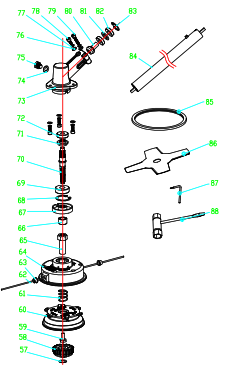

| Drawing 2 | ||||
| 57 | 404060046
TRIMMER HEAD - KNOB CAP | Not Available | ||
| 58 | 402102270
TRIMMER HEAD - KNOB | Not Available | ||
| 59 | 404060162
TRIMMER HEAD - THROUGH-BOLT | Not Available | ||
| 60 | 402102268
TRIMMER HEAD - SPOOL | Low Stock | 3.99 | |
| 61 | 404030023
TRIMMER HEAD - SPRING | Low Stock | 1.99 | |
| 62 | 601030012
ACCESSORY - TRIMMER WIRE | Not Available | ||
| 63 | 401010040
TRIMMER HEAD - EYELET | Not Available | ||
| 64 | 402102269
TRIMMER HEAD - MAIN BODY | Low Stock | 3.99 | |
| 65 | 404020035
TRIMMER HEAD - CONNECTING SHAFT | Not Available | ||
| 66 | 404060163
SHAFT SLEEVE | Not Available | ||
| 67 | 404060164
BACKING FLANGE | Not Available | ||
| 68 | 403030024
CIRCLIP | Not Available | ||
| 69 | 403050013
BEARING | Not Available | ||
| 70 | 404020036
OUTPUT SHAFT | Not Available | ||
| 71 | 404010023
OUTPUT BEVEL GEAR | Not Available | ||
| 72 | 403050012
BEARING | Not Available | ||
| 73 | 401010043
ANGLE GEAR HOUSING | Not Available | ||
| 74 | 499000057
GASKET | Not Available | ||
| 75 | 403010114
GREASE POINT BOLT | Not Available | ||
| 80 | 404010024
INPUT BEVEL GEAR | Not Available | ||
| 81 | 404060047
GASKET | Not Available | ||
| 82 | 403050005
BEARING | Not Available | ||
| 83 | 403030023
CIRCLIP | Not Available | ||
| 84 | 301130005
LOWER DRIVE SHAFT ASSEMBLY | Not Available | ||
| 85 | 402100689
ACCESSORY - BLADE PROTECTOR | Not Available | ||
| 86 | 303050005
ACCESSORY - BRUSH CUTTER BLADE (4T) | Low Stock | 11.99 | |
| 87 | 404060342
ACCESSORY - LOCKING TOOL $$$ | Not Available | ||
| 88 | 404060336
ACCESSORY - BOX SPANNER/MULTI-TOOL | Not Available | ||
| 89 | 405030309
ACCESSORY - POWER CABLE (11M UK TYPE-G PLUG) | Low Stock | 14.99 | |
| Manufacturer Model Number | PPB1173GBC |
| EAN | 5063022638267 |
| Brand | Performance Power |

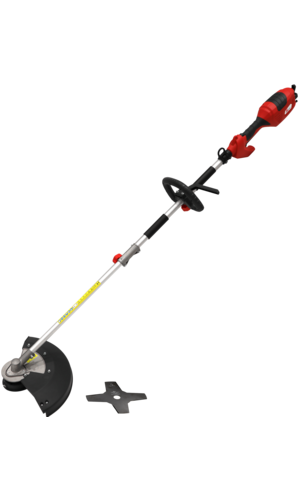

| Description | BRUSH CUTTER 1000W 38CM/23CM BLADE |
