Performance Power PPB1176GHT HEDGE TRIMMER 450W 45CM

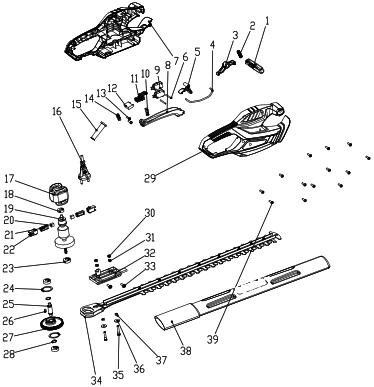

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 402091125
SAFETY BUTTON | Not Available | ||
| 2 | 404030025
SPRING | Not Available | ||
| 3 | 402100931
LINKAGE ARM | Not Available | ||
| 4 | 404060265
TRIGGER LINKAGE | Not Available | ||
| 5 | 402100930
TRIGGER RELEASE | Not Available | ||
| 6 | 404020001
PIN | Not Available | ||
| 7 | 402011192
CASING (LH) | Not Available | ||
| 8 | 402091124
TRIGGER | Not Available | ||
| 9 | 405020041
SWITCH | Low Stock | 3.99 | |
| 10 | 404030003
SPRING | Not Available | ||
| 11 | 601010001
LOCK SPRING | Not Available | ||
| 12 | 405080010
CAPACITOR | Not Available | ||
| 14 | 402100004
CABLE CLAMP | Not Available | ||
| 15 | 402100922
POWER CORD STRAIN RELIEF | Not Available | ||
| 16 | 405030219
POWER CORD (0.35M) | Low Stock | 3.99 | |
| 17 | 405010064
MOTOR - STATOR | Not Available | ||
| 18 | 403050001
MOTOR - BEARING | Not Available | ||
| 19 | 405010065
MOTOR - ROTOR | Not Available | ||
| 20 | 405090001
MOTOR - CARBON BRUSH | In Stock | 3.99 | |
| 21 | 405090021
MOTOR - BRUSH HOLDER INSERT | Not Available | ||
| 22 | 402100933
MOTOR - BRUSH HOLDER | Not Available | ||
| 23 | 403050002
MOTOR - BEARING | Not Available | ||
| 24 | 404060096
CIRCLIP | Not Available | ||
| 25 | 404020076
OUTPUT SHAFT | Not Available | ||
| 26 | 404060099
WOODRUFF KEY | Not Available | ||
| 27 | 404010050
BEVEL GEAR | Not Available | ||
| 28 | 403030013
CIRCLIP | Not Available | ||
| 29 | 402011193
CASING (RH) | Not Available | ||
| 32 | 402100932
BLADE BRACKET | Not Available | ||
| 34 | 302010020
BLADE ASSEMBLY | Low Stock | 17.49 | |
| 38 | 402030027
ACCESSORY - BLADE SCABBARD | Not Available | ||
| Manufacturer Model Number | PPB1176GHT |
| EAN | 5063022636904 |
| Brand | Performance Power |
| Description | HEDGE TRIMMER 450W 45CM |
