Performance Power PPI1197GGT GRASS TRIMMER - 18V - 23CM

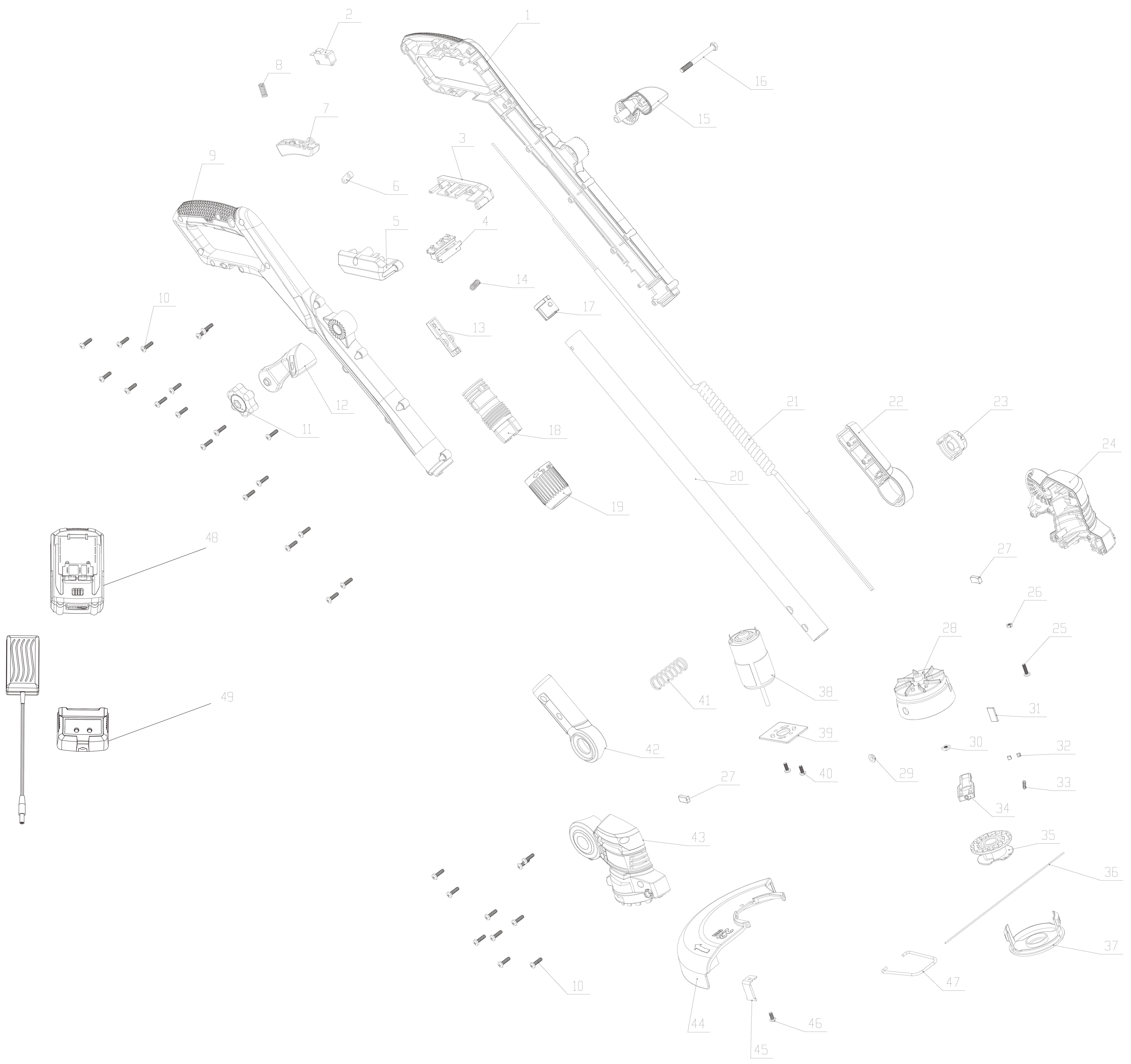

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 8.41.0191-G11
LEFT HANDLE | In Stock | 12.95 | |
| 2 | 8.63.0191
MICROSWITCH | In Stock | 8.14 | |
| 3 | 8.41.1592-G11
LEFT FIXED SEAT | Not Available | ||
| 4 | 7.41.1492-B
BATTERY SOCKET | Low Stock | 8.58 | |
| 5 | 8.41.1092-G11
RIGHT FIXED SEAT | Not Available | ||
| 6 | 8.41.5375-0
CRIMPING PLATE | Not Available | ||
| 7 | 8.41.0692-Y02
MAIN SWITCH | Not Available | ||
| 8 | 8.34.0192
TRIGGER SPRING | Not Available | ||
| 9 | 8.41.0291-G11
RIGHT HANDLE | In Stock | 12.81 | |
| 10 | 5.51.0101
SCREW $$$ | Not Available | ||
| 11 | 7.41.0191-Y02
KNOB | In Stock | 5.51 | |
| 12 | 8.41.0591-B
RIGHT AUXILIARY HANDLE | In Stock | 6.36 | |
| 13 | 8.41.0991-B
ROTARY TRIGGER | Low Stock | 5.82 | |
| 14 | 8.34.0291
SPRING OF ROTARY TRIGGER | Low Stock | 5.07 | |
| 15 | 8.41.0491-B
LEFT AUXILIARY HANDLE | Low Stock | 6.09 | |
| 16 | 5.51.0191
HEXAGON HEADED BOLT | Not Available | ||
| 17 | 8.41.1091-B
PROTECT SLEEVE | Not Available | ||
| 18 | 8.41.0791-0
SLEEVE OF POLS | Not Available | ||
| 19 | 8.41.0891-B
LOCKING SLEEVE | Not Available | ||
| 20 | 7.31.0191
ALUMINIUM POLE | Not Available | ||
| 21 | 8.64.0191
SPRING WIRE | Not Available | ||
| 22 | 8.41.1391-G11
LEFT ADJUST HANDLE | In Stock | 6.14 | |
| 23 | 8.41.1591-Y02
PUSH BUTTON | In Stock | 5.33 | |
| 24 | 8.41.1191-G11
LEFT HOUSING | Low Stock | 7.87 | |
| 25 | 5.51.0305
CROSS RECESS PAN HEAD SCREW | Not Available | ||
| 26 | 5.52.0191
M5 SQUARE NUT | Not Available | ||
| 27 | 8.42.0191
SHOCK ABSORPTION GASKET | Not Available | ||
| 28 | 8.41.1791-B
FAN | Not Available | ||
| 29 | 8.31.0291
ALUMINIUM WIRE HOLE | Not Available | ||
| 30 | 5.52.0191-1
M5 SQUARE NUT | Not Available | ||
| 31 | 8.33.0191
BALANCING WEIGHT 1 | Not Available | ||
| 32 | 8.33.0291
BALANCING WEIGHT 2 | Not Available | ||
| 33 | 8.34.0491
RELEASE WIRE SPRING | Not Available | ||
| 34 | 8.41.2091-B
RELEASE WIRE BUTTON | Not Available | ||
| 35 | 8.41.1891-B
SPOOL | In Stock | 6.14 | |
| 36 | 8.49.0391
1.5 ROUND WIRE | Not Available | ||
| 37 | 8.41.1991-G11
COVER OF SPOOL | Low Stock | 6.80 | |
| 38 | 8.12.0191
MOTOR | In Stock | 35.07 | |
| 39 | 8.41.2291-O
FIXED PLATE | Not Available | ||
| 40 | 5.51.0291
SCREW $$$ | Not Available | ||
| 41 | 8.34.0391
SPRING | Not Available | ||
| 42 | 8.41.1491-G11
RIGHT ADJUST HANDLE | In Stock | 6.36 | |
| 43 | 8.41.1291-G11
RIGHT HOUSING | Low Stock | 8.49 | |
| 44 | 8.41.1691-B
PROTECT COVER | Not Available | ||
| 45 | 8.33.0391
KNIFE | Not Available | ||
| 46 | 5.51.0601
SCREW | Not Available | ||
| 47 | 8.34.0591
PLANT WIRE | Not Available | ||
| Manufacturer Model Number | PPI1197GGT |
| EAN | 5063022638106 |
| Brand | Performance Power |
| Description | GRASS TRIMMER - 18V - 23CM |
