| Item# | Part Details | Availability | £ | |
|---|---|---|---|---|

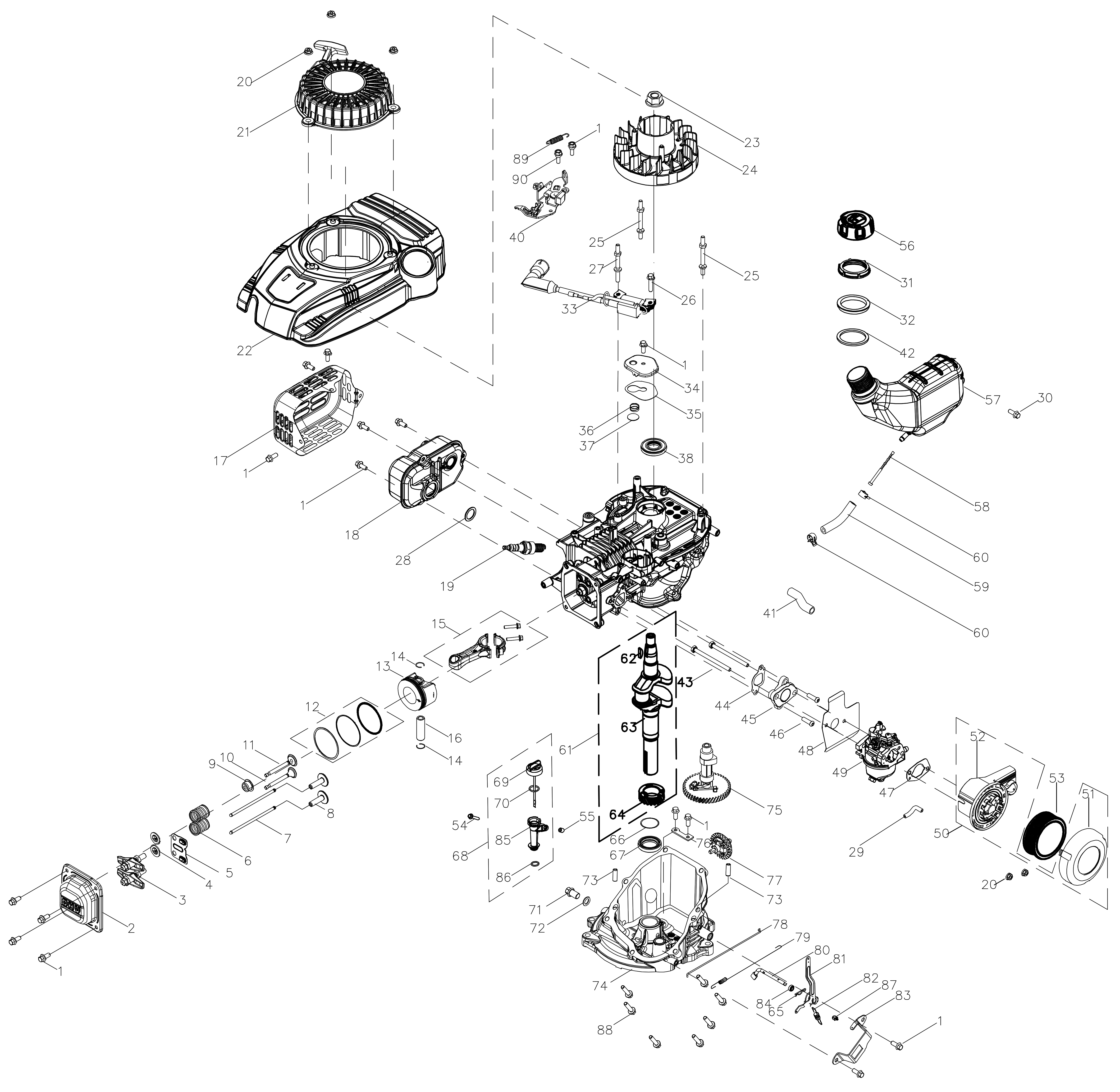

| Drawing 1 | ||||
| 1 | 100011571-0002
BOLT - M6X14 $$$ | Not Available | ||
| 2 | 100061713
VALVE COVER | Not Available | ||
| 3 | 100004421
ROCKER ARM ASSEMBLY | Low Stock | 4.99 | |
| 4 | 100004579
VALVE SPRING SEAT | Not Available | ||
| 5 | 100004467
ROCKER ARM BASE | Not Available | ||
| 6 | 100004564
VALVE SPRING | Low Stock | 0.99 | |
| 7 | 100050914
PUSH ROD | Not Available | ||
| 8 | 100004261
TAPPET | Not Available | ||
| 9 | 100004598
INTAKE VALVE SEAL | Not Available | ||
| 10 | 100004543
EXHAUST VALVE | Not Available | ||
| 11 | 100004520
INTAKE VALVE | Not Available | ||
| 12 | 100053892
PISTON RING SET | Not Available | ||
| 13 | 100053095
PISTON | Not Available | ||
| 14 | 100003220
GUDGEON PIN CIRCLIP | Not Available | ||
| 15 | 100003441
CON-ROD ASSEMBLY | Not Available | ||
| 16 | 100003118
GUDGEON PIN | Not Available | ||
| 17 | 100067172
EXHAUST GUARD | Not Available | ||
| 18 | 100711793
CATALYTIC CONVERTER | Not Available | ||
| 19 | TORCH F6RTC
SPARK PLUG - TORCH F6RTC | In Stock | 4.99 | |
| 20 | 100011463-0003
NUT | Not Available | ||
| 21 | 100007218-0001
RECOIL ASSEMBLY (NP130) | Low Stock | 19.99 | |
| 22 | 100762503
BLOWER HOUSING | Low Stock | 4.99 | |
| 23 | 100011462-0002
FLYWHEEL NUT | Low Stock | Contact Us | |
| 24 | 100152435
FLYWHEEL | Low Stock | 24.99 | |
| 25 | 100091441-0001
STUD | Low Stock | 1.99 | |
| 26 | 100011268-0009
BOLT | Not Available | ||
| 27 | 100091440-0001
STUD | Not Available | ||
| 28 | 100711792
GASKET | Low Stock | 3.99 | |
| 29 | 100759412
FUEL PIPE | Not Available | ||
| 30 | 100011570-0008
BOLT - M6X12 $$$ | Not Available | ||
| 31 | 100008880
RETAINING NUT | Not Available | ||
| 32 | 100008662
O-RING | Not Available | ||
| 33 | 100123549-0001
IGNITION COIL ASSEMBLY | Low Stock | 8.99 | |
| 34 | 100004049-0001
BREATHER COVER | Not Available | ||
| 35 | 100010256
GASKET | Not Available | ||
| 36 | 100008440
ONE-WAY VALVE SPRING | Not Available | ||
| 37 | 100140934
BREATHER VALVE | Not Available | ||
| 38 | 100017639
OIL SEAL | Not Available | ||
| 39 | 100053928
CRANKCASE | Not Available | ||
| 40 | 100123546
BRAKE ASSEMBLY | Low Stock | 21.99 | |
| 41 | 100002808-0001
BREATHER HOSE | Not Available | ||
| 42 | 100008936
O-RING | Not Available | ||
| 43 | 100011149-0002
BOLT | Not Available | ||
| 44 | 100005551
GASKET | Not Available | ||
| 45 | 100005646
INSULATOR | Not Available | ||
| 46 | 100055832-0001
BOLT | Not Available | ||
| 47 | 100005946
GASKET | Not Available | ||
| 48 | 100005911
GASKET | Not Available | ||
| 49 | 100757638
CARBURETTOR (NP130) (ALT GP0000001580) | Not Available | ||
| 50 | 100757157
AIR FILTER HOUSING ASSEMBLY | Low Stock | 3.99 | |
| 51 | 100004836
AIR FILTER HOUSING - COVER | Not Available | ||
| 52 | 100757159
AIR FILTER HOUSING - BASE | Not Available | ||
| 53 | 100004763
AIR FILTER | In Stock | 0.99 | |
| 54 | 100011224-0003
BOLT | Not Available | ||
| 55 | 100730934
BUSH | Not Available | ||
| 56 | 100008754-0006
FUEL FILLER CAP | Low Stock | 1.99 | |
| 57 | 100758188
FUEL TANK | Low Stock | 4.99 | |
| 58 | 100009020
FUEL FILTER | Low Stock | 1.99 | |
| 59 | 100757484
FUEL PIPE | Low Stock | 1.49 | |
| 60 | 100053739-0001
PIPE CLIP | Not Available | ||
| 61 | 100767572
CRANK SHAFT ASSEMBLY | Not Available | ||
| 62 | 100010577
WOODRUFF KEY | Not Available | ||
| 63 | 100767573
CRANK SHAFT $$$ | Not Available | ||
| 64 | 100003467
DRIVE TIMING GEAR | Not Available | ||
| 65 | 100007986
COTTER PIN | Not Available | ||
| 66 | 100010527-0001
WASHER | Not Available | ||
| 67 | 100017642
OIL SEAL | Not Available | ||
| 68 | 100725997-0002
DIPSTICK TUBE ASSEMBLY | Low Stock | 3.99 | |
| 69 | 100725998-0001
DIPSTICK | Not Available | ||
| 70 | 100004142
DIPSTICK O-RING | Not Available | ||
| 71 | 100010272-0001
GROUND BOLT | Not Available | ||
| 72 | 100010459
WASHER | Not Available | ||
| 73 | 100010546
LOCATING DOWEL | Not Available | ||
| 74 | 100726018
LOWER CRANK CASE | Not Available | ||
| 75 | 100063525
CAM SHAFT | Not Available | ||
| 76 | 100008451
GOVERNOR GEAR MOUNTING PLATE | Not Available | ||
| 77 | 100008293
GOVERNOR GEAR | Not Available | ||
| 78 | 100007937
THROTTLE LINKAGE | Low Stock | 0.99 | |
| 79 | 100007911
IDLE SPRING | Low Stock | 4.93 | |
| 80 | 100007966
GOVERNOR GEAR SHAFT | Not Available | ||
| 81 | 100008401-0001
GOVERNOR LEVER | Not Available | ||
| 82 | 100007833
GOVERNOR SPRING | Not Available | ||
| 83 | 100730935
GOVERNOR GEAR BRACKET | Not Available | ||
| 84 | 100017629
OIL SEAL | Not Available | ||
| 85 | 100726000
DIPSTICK SEAT | Not Available | ||
| 86 | 100064024
O-RING | Not Available | ||
| 87 | 100000671
CLIP | Not Available | ||
| 88 | 100033100-0008
BOLT - M6X25 | Not Available | ||
| 89 | 100091431
BRAKE SPRING | Low Stock | 0.99 | |
| 90 | 100031968-0003
BOLT - M6X20 | Not Available | ||
| Drawing 2 | ||||
| BLADE-ASM | 1005009000
BLADE ASSEMBLY (ALL FROM OUTPUT SHAFT) | Low Stock | 9.99 | |
| CHUTE-ASM | 1005622000
DISCHARGE CHUTE (COMPLETE ASSEMBLY) | Low Stock | 4.99 | |
| COLLECTOR-ASM | 1002745000
GRASS COLLECTOR (COMPLETE ASSEMBLY) | In Stock | 19.99 | |
| FRONT AXLE-ASM | 1005627000
COMPLETE FRONT AXLE ASSEMBLY (W.WHEELS) | Low Stock | 17.99 | |
| HANDLEBAR-ASM | 1005621000
COMPLETE HANDLEBAR ASSEMBLY | Not Available | ||
| LEVER-ASM | 1005000000
HEIGHT ADJUSTMENT HANDLE ASSEMBLY | Low Stock | 2.99 | |
| REAR AXLE-ASM | 1005626000
COMPLETE REAR AXLE ASSEMBLY (W.WHEELS) | Low Stock | 22.99 | |
| 1 | 1052270000
HANDLEBAR GRIP | Not Available | ||
| 2-ASM | 1005513000
UPPER HANDLEBAR (INC. PADDING AND CONTROL) | Low Stock | 14.99 | |
| 3 | 1255287000
SAFETY LEVER | Not Available | ||
| 4 | 1005515000
CONTROL CABLE | In Stock | 3.99 | |
| 5 | 1250470000
PULL CORD RETAINER | Not Available | ||
| 6 | 2600172000
NUT - M6 - LOCKING | Not Available | ||
| 7 | 1051123000
BAR CAP | Not Available | ||
| 8 | 2600127000
NUT - M8 | Low Stock | 0.50 | |
| 9 | 1054854000
KNOB | Low Stock | 0.99 | |
| 10 | 2601029000
BOLT - M8 - SQUARE CAP | Low Stock | 0.50 | |
| 11 | 1005514000
LOWER HANDLEBAR | Not Available | ||
| 12 | 1054771000
CABLE CLIP | Not Available | ||
| 13 | 2601027000
BOLT - M8 - SQUARE CAP | Low Stock | 0.50 | |
| 14 | 1005519000
ENGINE - NP130 | Not Available | ||
| 15 | 1250739000
COLLECTOR - FRAME $$$ | Not Available | ||
| 16 | 1410064000
COLLECTOR - MAIN BODY $$$ | Not Available | ||
| 17 | 1050992000
DISCHARGE CHUTE COVER | Not Available | ||
| 18 | 1350110000
RETAINING SPRING | Not Available | ||
| 19 | 1255259000
SHAFT | Not Available | ||
| 20 | 2600709000
RETAINING WASHER | Not Available | ||
| 21 | 1050776000
SPRING CAP $$$ | Not Available | ||
| 22 | 1255309000
HANDLEBAR BRACKET - RIGHT | Not Available | ||
| 23 | 2601503000
BOLT - M8X16 - FLANGED | Not Available | ||
| 24 | 2600141000
NUT - M8 | Not Available | ||
| 25 | 1255260000
HEIGHT ADJUSTMENT GAITER | Not Available | ||
| 26 | 2600309000
SCREW - M5X12 | Not Available | ||
| 27 | 2600139000
NUT - M5 | Not Available | ||
| 28 | 1255308000
HANDLEBAR BRACKET - LEFT | Not Available | ||
| 29 | 1005518000
CHASSIS | Not Available | ||
| 30 | 2600113000
BOLT - M8X25 | Not Available | ||
| 31 | 1250058000
WOODRUFF KEY | Low Stock | 0.50 | |
| 32 | 1004996000
BLADE SEAT | Not Available | ||
| 33 | 1255261000
ACCESSORY - BLADE - 41CM - SMV 1255261000 | In Stock | 5.99 | |
| 34 | 1251439000
ACCESSORY - BLADE RETAINING WASHER | Low Stock | 0.99 | |
| 35 | 1251056000
ACCESSORY - BLADE RETAINING BOLT - 3/8-24UNF | Low Stock | 0.99 | |
| 36 | 1052418000
WHEEL TRIM - 20CM | Not Available | ||
| 37 | 2600427000
WASHER $$$ | Not Available | ||
| 38 | 1200007000
SHAFT SLEEVE | Not Available | ||
| 39 | 1052415000
WHEEL - 20CM | Low Stock | 3.99 | |
| 40 | 1052672000
SHAFT BUSHING | Not Available | ||
| 41 | 1005517000
REAR AXLE ASSEMBLY | Not Available | ||
| 42 | 1250469000
HOOK | Not Available | ||
| 43 | 1255543000
HEIGHT ADJUSTMENT LINK ROD | Low Stock | 4.99 | |
| 44 | 1350589000
HEIGHT ADJUSTMENT LINK ROD SPRING | Low Stock | 0.99 | |
| 45 | 1004999000
HEIGHT ADJUSTMENT ROD | Not Available | ||
| 46 | 1056631000
HEIGHT ADJUSTMENT HANDLE | Not Available | ||
| 47 | 1052417000
WHEEL TRIM - 16.5CM | Not Available | ||
| 48 | 1052414000
WHEEL - 16.5CM | In Stock | 2.49 | |
| 49 | 1005516000
FRONT AXLE ASSEMBLY | Low Stock | Contact Us | |
| 50 | 2600140000
NUT - M6 | Not Available | ||
| Manufacturer Model Number | PPK1121LWM |
| EAN | 5063022591128 |
| Brand | Performance Power |
| Description | LAWN MOWER 130cc 41CM |
