Titan TT5MT36-LI 36V MULTI-TOOL

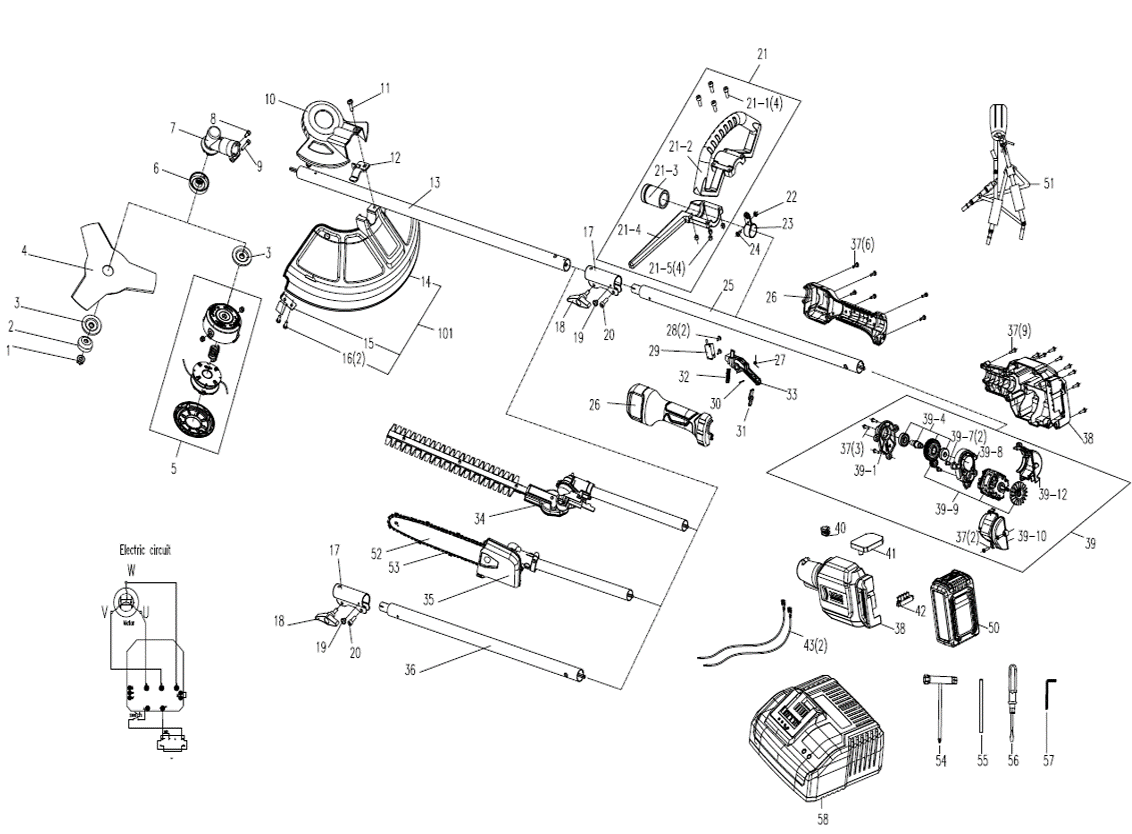

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 70072881
NUT | Low Stock | 0.50 | |
| 2 | 70072882
NUT SHIELD | Low Stock | 0.50 | |
| 3 | 70072883
FLANG SPINDLE | Low Stock | 1.49 | |
| 4 | 70072884
BLADE BRUSH 3 TOOTH | Low Stock | 14.99 | |
| 5 | 70072885
KIT | Low Stock | 17.99 | |
| 6 | 70072886
RING | Low Stock | 3.99 | |
| 7 | 70072887
HOLDER | Low Stock | 1.99 | |
| 8 | 70072888
SCREW M5X15 | Not Available | ||
| 9 | 70072889
SCREW M6X25 | Not Available | ||
| 10 | 70072890
GUARD | Not Available | ||
| 11 | 70072891
SCREW M6X20 | Not Available | ||
| 12 | 70072892
PRESS PLATE | Not Available | ||
| 13 | 70072893
PIPE FRONT | Not Available | ||
| 14 | 70072894
SHIELD | Not Available | ||
| 15 | 70072895
KIT | Low Stock | 9.99 | |
| 16 | 70072896
SELF TAPPING SCREW ST517 | Not Available | ||
| 17 | 70072897
CONNECT TUBE | Not Available | ||
| 18 | 70072898
KNOB | Low Stock | 1.99 | |
| 19 | 70072899
SCREW M6X6 | Not Available | ||
| 20 | 70072900
BOLT | Not Available | ||
| 21 | 70072934
HANDLE ASY | Low Stock | 8.99 | |
| 21-1 | 70072901
SCREW | Not Available | ||
| 21-2 | 70072902
UP HANDLE | Not Available | ||
| 21-3 | 70072903
P-HANDLE DAMPING RING | Not Available | ||
| 21-4 | 70072904
DOWN HANDLE | Not Available | ||
| 21-5 | 70072905
NUT | Low Stock | Contact Us | |
| 22 | 70072906
SCREW | Not Available | ||
| 23 | 70072907
HAMESS RING | Not Available | ||
| 24 | 70072908
SCREW M5X8 | Not Available | ||
| 25 | 70072909
PIPE BACK | Not Available | ||
| 26 | 70072935
HANDLE | Not Available | ||
| 27 | 70072910
SPRING | Low Stock | 0.50 | |
| 28 | 70072911
SELF TAPPING SCREW ST2.910 | Not Available | ||
| 29 | 70072912
SWITCH | Low Stock | 4.99 | |
| 30 | 70072936
PIN | Not Available | ||
| 31 | 70072937
LOCK-OFF SWITCH | Not Available | ||
| 32 | 70072913
SPRING | Low Stock | 0.50 | |
| 33 | 70072938
SWITCH TRIGGER | Low Stock | 1.49 | |
| 34 | 70072939
POLE HEDGE TRIMMER | Low Stock | 39.99 | |
| 35 | 70072914
POLE SAW | Low Stock | 19.99 | |
| 36 | 70072940
PIPE MIDDLE | Not Available | ||
| 37 | 70072915
SCREW ST3.9X16.2 | Not Available | ||
| 38 | 70072916
RIGHT COVER | Not Available | ||
| 39 | 70072941
MOTOR ASY | Low Stock | 32.99 | |
| 39-1 | 70072917
GEAR BOX LID | Not Available | ||
| 39-4 | 70072918
GEAR SET | Not Available | ||
| 39-7 | 70072919
BOLT | Not Available | ||
| 39-8 | 70072920
GEAR BOX | Not Available | ||
| 39-9 | 70072921
MOTOR SET | Not Available | ||
| 39-10 | 70072922
GUIDE FAN1 | Not Available | ||
| 39-12 | 70072923
GUIDE FAN2 | Not Available | ||
| 40 | 70072924
TERMINAL | Not Available | ||
| 41 | 70072925
CONTROL PANEL | Low Stock | 39.99 | |
| 42 | 70072926
ELECTRODE HOLDER | Not Available | ||
| 43 | 70072942
WIREWAY | Not Available | ||
| 50 | 70068800
BATTERY - 4000mAh 36V - TTB812BAT | Not Available | ||
| 51 | 70072927
SHOULDER GIRDLE | Low Stock | 9.99 | |
| 52 | 70072928
CHAIN BAR | Not Available | ||
| 53 | 70072929
CHAIN | Not Available | ||
| 54 | 70072930
WRENCH | Not Available | ||
| 55 | 70072931
ROD | Not Available | ||
| 56 | 70072932
SCREW DRIVER | Not Available | ||
| 57 | 70072933
ALLEN WRENCH | Not Available | ||
| 58 | 70068799
CHARGER - TTB815CHR | Not Available | ||
| 101 | 70072956
SHIELD ASSEMBLY | Low Stock | 3.99 | |
| Manufacturer Model Number | TT5MT36-LI |
| EAN | 5063022113955 |
| Brand | Titan |
| Description | 36V MULTI-TOOL |
