Titan TTB1166LWM LAWN MOWER 1700W 38CM

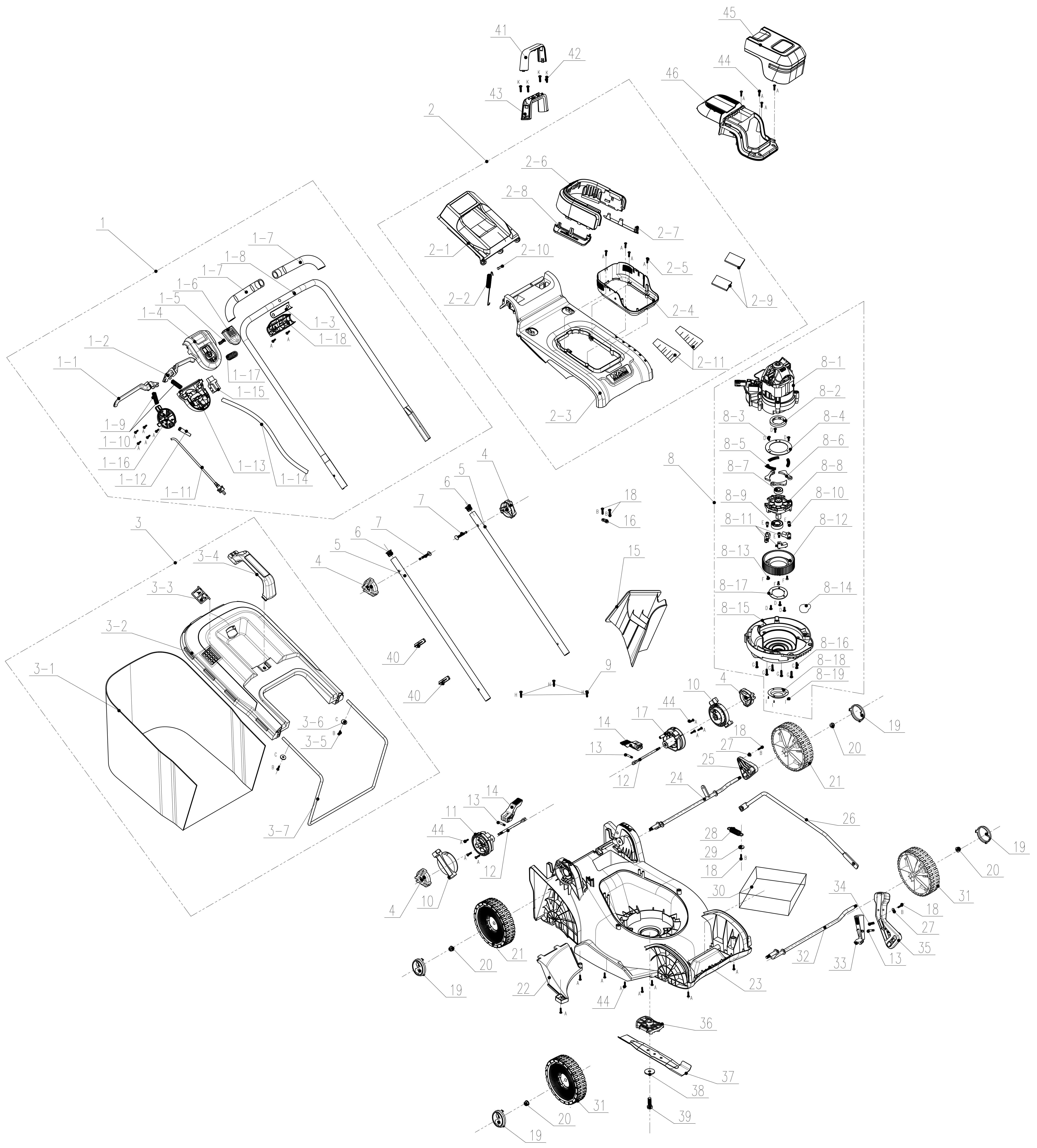

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 199075000604
SWITCH BOX ASSEMBLY + HANDLEBAR (ALT GP0000007777) | Low Stock | 34.99 | |
| 1-1 | 202004001513
TRIGGER $$$ | Not Available | ||
| 1-2 | 202004001534
TRIGGER $$$ | Not Available | ||
| 1-3 | 202015000494
PIPE SLEEVE $$$ | Not Available | ||
| 1-4 | 202113000115
SWITCH BOX UPPER COVER $$$ | Not Available | ||
| 1-5 | 202031001168
BRACKET $$$ | Not Available | ||
| 1-6 | 202003002539
BUTTON $$$ | Not Available | ||
| 1-7 | 202015000518
GRIP SLEEVE | Not Available | ||
| 1-8 | 207300100016
UPPER HANDLEBAR $$$ | Not Available | ||
| 1-9 | 8342-755101-0000000
TRIGGER SPRING $$$ | Not Available | ||
| 1-10 | 2073110000002
SCREW $$$ | Not Available | ||
| 1-11 | 207020800024
POWER CORD (TYPE G PLUG) | Low Stock | 19.99 | |
| 1-12 | 207090100002
POWER CORD STRAIN RELIEF | Not Available | ||
| 1-13 | 202113000116
SWITCH BOX LOWER COVER $$$ | Not Available | ||
| 1-14 | 207040200099
CONTROL CABLE (2 CORE) | Low Stock | 9.99 | |
| 1-15 | 8042-660102-0000011
SWITCH | Not Available | ||
| 1-16 | 202156000504
COVER $$$ | Not Available | ||
| 1-17 | 207010100054
COMPRESSION SPRING $$$ | Not Available | ||
| 1-18 | 202113000117
SWITCH BOX BRACKET $$$ | Not Available | ||
| 2 | 199002001235
MOTOR HOUSING ASSEMBLY | Not Available | ||
| 2-1 | 202030002335
REAR DISCHARGE CHUTE COVER | On Order | 9.99 | |
| 2-2 | 207010500043
SPRING | Not Available | ||
| 2-3 | 202138001010
UPPER COVER $$$ | Not Available | ||
| 2-4 | 202031001357
BRACKET $$$ | Not Available | ||
| 2-5 | 2073110000002
SCREW $$$ | Not Available | ||
| 2-6 | 202033000733
COVER $$$ | Not Available | ||
| 2-7 | 202033000784
DECORATIVE COVER $$$ | Not Available | ||
| 2-8 | 202033000783
DECORATIVE COVER $$$ | Not Available | ||
| 2-9 | 299005000221
SPONGE | Not Available | ||
| 2-10 | 207190400017
PIN SHAFT | Not Available | ||
| 3 | 199012000150
COLLECTOR ASSEMBLY (ALT GP0000007788) | Low Stock | 22.49 | |
| 3-1 | 199011000064
COLLECTOR BASE $$$ | Not Available | ||
| 3-2 | 202138000926
COLLECTOR LID $$$ | Not Available | ||
| 3-3 | 202999002445
COLLECTOR FILL LEVEL INDICATOR $$$ | Not Available | ||
| 3-4 | 202024003638
COLLECTOR HANDLE $$$ | Not Available | ||
| 3-5 | 207310101151
SCREW $$$ | Not Available | ||
| 3-6 | 207050100111
WASHER $$$ | Not Available | ||
| 3-7 | 201059000482
COLLECTOR FRAME $$$ | Not Available | ||
| 4 | 207250100058
LOCKING KNOB | In Stock | 3.99 | |
| 5 | 201061000152
LOWER HANDLEBAR | Not Available | ||
| 6 | 8371-513001-0100110
TUBE END CAP | Not Available | ||
| 7 | 207221100015
THROUGH-BOLT (SQUARE-SHOULDER) | In Stock | 2.99 | |
| 8 | 101001001331
MOTOR ASSEMBLY | Low Stock | 59.99 | |
| 8-1 | 101001001230
1700W MOTOR | Not Available | ||
| 8-2 | 202047000003
BRAKE LINING | Not Available | ||
| 8-3 | 8SNAB40-12D
FLANGE SCREWS | Not Available | ||
| 8-4 | 202006000144
BAFFLE $$$ | Not Available | ||
| 8-5 | 207010100180
SPRING $$$ | Not Available | ||
| 8-6 | 201028000017
BRAKE PAD | Not Available | ||
| 8-7 | 8BC-261008-SS03
BEARING | Not Available | ||
| 8-8 | 199013000003
BRAKE DISC | Not Available | ||
| 8-9 | 207390200094
BEARING $$$ | Not Available | ||
| 8-10 | 207190400023
PIN SHAFT $$$ | Not Available | ||
| 8-11 | 202031001222
BRACKET $$$ | Not Available | ||
| 8-12 | 201004000633
GEAR $$$ | Not Available | ||
| 8-13 | 207310500001
SCREW $$$ | Not Available | ||
| 8-14 | 306000048
LUBRICATING GREASE | Not Available | ||
| 8-15 | 202090000365
MOTOR BRACKET | Not Available | ||
| 8-16 | 8SNAB50-20D
SCREW $$$ | Not Available | ||
| 8-17 | 202006000155
BAFFLE $$$ | Not Available | ||
| 8-18 | 202006000163
BAFFLE $$$ | Not Available | ||
| 8-19 | 8SJAB30-08D
SELF TAPPING SCREWS | Not Available | ||
| 9 | 8SJAN50-25D
SCREW $$$ | Not Available | ||
| 10 | 202148000135
HANDLEBAR HEIGHT ADJUSTMENT OUTER | Low Stock | 3.99 | |
| 11 | 202087000215
HANDLEBAR HEIGHT ADJUSTMENT INNER LH | Low Stock | 3.99 | |
| 12 | 201135000003
THROUGH-BOLT ROD | Low Stock | 3.99 | |
| 13 | 207190100033
PIN | Not Available | ||
| 14 | 202116000007
LOCKING LEVER (ALT GP0000007603) | Low Stock | 3.99 | |
| 15 | 202072000033
ACCESSORY - MULCHING PLUG INSERT | Not Available | ||
| 16 | 8184-302201-0001720
CABLE CLAMP $$$ | In Stock | 3.99 | |
| 17 | 202087000216
HANDLEBAR HEIGHT ADJUSTMENT INNER RH | On Order | 3.99 | |
| 18 | 207310101151
SCREW $$$ | Not Available | ||
| 19 | 202121000770
WHEEL COVER | Not Available | ||
| 20 | 207320800007
NUT $$$ | Not Available | ||
| 21 | 199088000276
WHEEL (ALT GP0000007607) | Low Stock | 7.49 | |
| 22 | 202063000032
REAR DISCHARGE CHUTE | Not Available | ||
| 23 | 202016005510
CHASSIS $$$ | Not Available | ||
| 24 | 207460100012
REAR AXLE | Not Available | ||
| 25 | 202031001169
BRACKET | Not Available | ||
| 26 | 201053000156
HEIGHT ADJUSTMENT LINKAGE ROD | Not Available | ||
| 27 | 207330100097
WASHER $$$ | Not Available | ||
| 28 | 207010500031
SPRING | Not Available | ||
| 29 | 207050100111
WASHER $$$ | Not Available | ||
| 30 | 199094000006
BALLAST $$$ | Not Available | ||
| 31 | 199088000275
WHEEL (ALT GP0000007809) | Low Stock | 7.49 | |
| 32 | 207460100013
FRONT AXLE | Not Available | ||
| 33 | 202024003644
HEIGHT ADJUSTMENT LOCKING LEVER (ALT GP0000007618) | Low Stock | 3.99 | |
| 34 | 207010100174
SPRING | Not Available | ||
| 35 | 202024003339
HEIGHT ADJUSTMENT LEVER | On Order | 4.99 | |
| 36 | 202013000201
FIXING PLATE | Not Available | ||
| 37 | 201045000458
ACCESSORY - BLADE - 38CM | In Stock | 14.99 | |
| 38 | 201057000395
BLADE LOCKING WASHER | Low Stock | 1.49 | |
| 39 | 207220100044
BLADE RETAINING BOLT | Low Stock | 1.49 | |
| 40 | 202157000107
CABLE CLAMP $$$ | Not Available | ||
| 41 | 202024003595
HANDLE COVER $$$ | Not Available | ||
| 42 | 8SJGB40-25D
SCREW | Not Available | ||
| 43 | 202024003669
HANDLE $$$ | Not Available | ||
| 44 | 2073110000002
SCREW $$$ | Not Available | ||
| 45 | 202033000786
DECORATIVE COVER $$$ | Not Available | ||
| 46 | 202138001025
UPPER COVER $$$ | Not Available | ||
| Manufacturer Model Number | TTB1166LWM |
| EAN | 5063022637154 |
| Brand | Titan |
| Description | LAWN MOWER 1700W 38CM |
