Titan TTB1168LWM LAWN MOWER 1800W 46CM

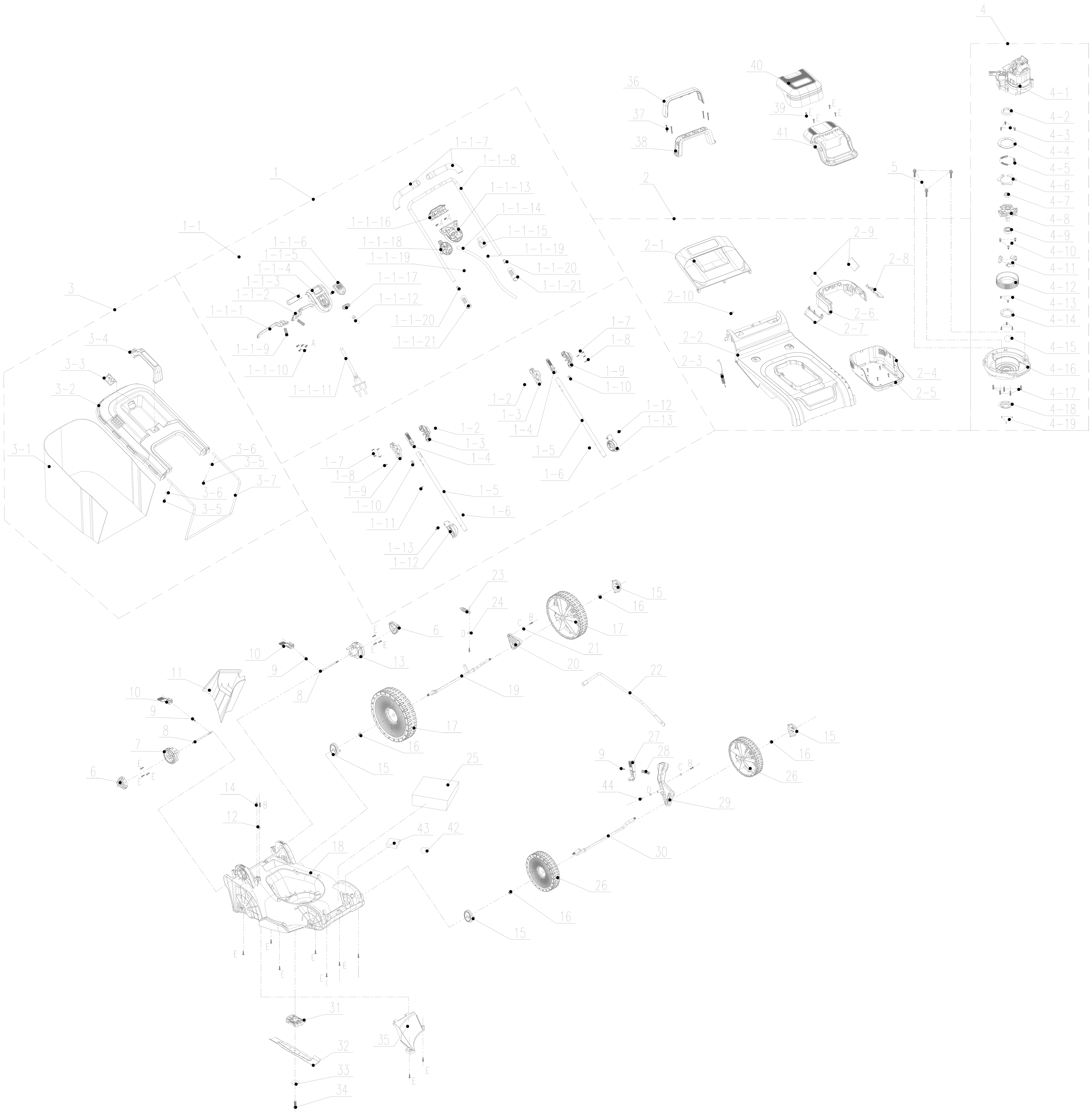

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 199075000606
SWITCH BOX ASSEMBLY + HANDLEBAR | Low Stock | 34.99 | |
| 1-1 | 199075000607
SWITCH BOX ASSEMBLY | Not Available | ||
| 1-2 | 8NH-04Q
NUT $$$ | Not Available | ||
| 1-3 | 201058000283
COVER | Low Stock | 3.99 | |
| 1-4 | 202024003639
LEVER | On Order | 3.99 | |
| 1-5 | 207300500025
LOWER HANDLEBAR | Not Available | ||
| 1-6 | 8NH-05Q
NUT $$$ | Not Available | ||
| 1-7 | 8SJAB40-20Q
SCREW $$$ | Not Available | ||
| 1-8 | 207420100032
SCREW $$$ | Not Available | ||
| 1-9 | 201058000284
COVER | Low Stock | 3.99 | |
| 1-10 | 202099000026
SLIDER | Low Stock | 1.99 | |
| 1-11 | 8007-517001-0000120
WIRE CLIP | Not Available | ||
| 1-12 | 202148000136
HANDLEBAR ADJUSTMENT GEAR | Low Stock | 3.99 | |
| 1-13 | 8SJAD05-40B
SCREW $$$ | Not Available | ||
| 1-1-1 | 202004001535
TRIGGER RH | Not Available | ||
| 1-1-2 | 202004001536
TRIGGER LH | Not Available | ||
| 1-1-3 | 202015000494
PIPE SLEEVE $$$ | Not Available | ||
| 1-1-4 | 202113000115
SWITCH BOX UPPER COVER $$$ | Not Available | ||
| 1-1-5 | 202031001168
BRACKET $$$ | Not Available | ||
| 1-1-6 | 202003002539
BUTTON $$$ | Not Available | ||
| 1-1-7 | 202015000495
SPONGE SHEATH $$$ | Not Available | ||
| 1-1-8 | 201061000157
UPPER HANDLEBAR | Not Available | ||
| 1-1-9 | 8342-755101-0000000
TRIGGER SPRING $$$ | Not Available | ||
| 1-1-10 | 2073110000002
SCREW $$$ | Not Available | ||
| 1-1-11 | 207020800024
POWER CORD (TYPE G PLUG) | Low Stock | 19.99 | |
| 1-1-12 | 8332-532101-0100020
POWER CORD STRAIN RELIEF | Not Available | ||
| 1-1-13 | 202113000116
SWITCH BOX LOWER COVER $$$ | Not Available | ||
| 1-1-14 | 207040200099
CONTROL CABLE (2 CORE) | Low Stock | 9.99 | |
| 1-1-15 | 8042-660102-0000011
SWITCH | Not Available | ||
| 1-1-16 | 202156000504
COVER $$$ | Not Available | ||
| 1-1-17 | 207010100054
COMPRESSION SPRING $$$ | Not Available | ||
| 1-1-18 | 202113000117
SWITCH BOX BRACKET $$$ | Not Available | ||
| 1-1-19 | 8PB40-20B
PIN $$$ | Not Available | ||
| 1-1-20 | 202023000106
BAR END CAP | Not Available | ||
| 1-1-21 | 202015000453
BAR SLEEVE | Not Available | ||
| 2 | 199127000296
TOP COVER ASSEMBLY | Not Available | ||
| 2-1 | 202030002325
REAR DISCHARGE CHUTE COVER | On Order | Contact Us | |
| 2-2 | 207010500043
SPRING | Not Available | ||
| 2-3 | 202138001007
SPRING | Not Available | ||
| 2-4 | 202031001357
BRACKET $$$ | Not Available | ||
| 2-5 | 2073110000002
SCREW $$$ | Not Available | ||
| 2-6 | 202033000733
COVER $$$ | Not Available | ||
| 2-7 | 202033000809
TRIM RH | Not Available | ||
| 2-8 | 202033000810
TRIM LH | Not Available | ||
| 2-9 | 299005000221
SPONGE | Not Available | ||
| 2-10 | 207190400017
PIN SHAFT | Not Available | ||
| 3 | 199012000151
COLLECTOR ASSEMBLY | Low Stock | 22.49 | |
| 3-1 | 199011000062
COLLECTOR BASE $$$ | Not Available | ||
| 3-2 | 202138000932
COLLECTOR LID $$$ | Not Available | ||
| 3-3 | 202999002445
COLLECTOR FILL LEVEL INDICATOR $$$ | Not Available | ||
| 3-4 | 202024003638
COLLECTOR HANDLE $$$ | Not Available | ||
| 3-5 | 207310101151
SCREW $$$ | Not Available | ||
| 3-6 | 207050100111
WASHER $$$ | Not Available | ||
| 3-7 | 201059000474
COLLECTOR FRAME $$$ | Not Available | ||
| 4 | 101001001318
MOTOR ASSEMBLY | Low Stock | 59.99 | |
| 4-1 | 101001001319
1800W MOTOR | Not Available | ||
| 4-2 | 202047000003
BRAKE LINING | Not Available | ||
| 4-3 | 8SNAB40-12D
FLANGE SCREWS | Not Available | ||
| 4-4 | 202006000144
BAFFLE $$$ | Not Available | ||
| 4-5 | 207010100180
SPRING $$$ | Not Available | ||
| 4-6 | 201028000017
BRAKE PAD | Not Available | ||
| 4-7 | 8BC-261008-SS03
BEARING | Not Available | ||
| 4-8 | 199013000003
BRAKE DISC | Not Available | ||
| 4-9 | 207390200094
BEARING $$$ | Not Available | ||
| 4-10 | 207190400023
PIN SHAFT $$$ | Not Available | ||
| 4-11 | 202031001222
BRACKET $$$ | Not Available | ||
| 4-12 | 201004000633
GEAR $$$ | Not Available | ||
| 4-13 | 8SEAB40-10D
SCREW $$$ | Not Available | ||
| 4-14 | 202006000155
BAFFLE $$$ | Not Available | ||
| 4-15 | 306000048
LUBRICATING GREASE | Not Available | ||
| 4-16 | 202090000365
MOTOR BRACKET | Not Available | ||
| 4-17 | 8SNAB50-20D
SCREW $$$ | Not Available | ||
| 4-18 | 202006000163
BAFFLE $$$ | Not Available | ||
| 4-19 | 8SJAB30-08D
SELF TAPPING SCREWS | Not Available | ||
| 5 | 8SJAN50-25D
SCREW $$$ | Not Available | ||
| 6 | 207250100043
LOCKING KNOB | In Stock | 3.99 | |
| 7 | 202087000215
HANDLEBAR HEIGHT ADJUSTMENT INNER LH | Low Stock | 3.99 | |
| 8 | 201135000004
THROUGH-BOLT | Low Stock | 1.49 | |
| 9 | 207190100033
PIN | Not Available | ||
| 10 | 202116000007
LOCKING LEVER (ALT GP0000007603) | Low Stock | 3.99 | |
| 11 | 202072000034
ACCESSORY - MULCHING PLUG INSERT | Not Available | ||
| 12 | 8184-302201-0001720
CABLE CLAMP $$$ | In Stock | 3.99 | |
| 13 | 202087000216
HANDLEBAR HEIGHT ADJUSTMENT INNER RH | On Order | 3.99 | |
| 14 | 207310101151
SCREW $$$ | Not Available | ||
| 15 | 202121000770
WHEEL COVER | Not Available | ||
| 16 | 207320800007
NUT $$$ | Not Available | ||
| 17 | 199088000277
WHEEL | Low Stock | 7.49 | |
| 18 | 202016005526
CHASSIS $$$ | Not Available | ||
| 19 | 199086000262
REAR AXLE | Not Available | ||
| 20 | 202031001171
BRACKET | Not Available | ||
| 21 | 207330100097
WASHER $$$ | Not Available | ||
| 22 | 201053000149
HEIGHT ADJUSTMENT LINKAGE ROD | Not Available | ||
| 23 | 207010500031
SPRING | Not Available | ||
| 24 | 207050100111
WASHER $$$ | Not Available | ||
| 25 | 199094000009
BALLAST $$$ | Not Available | ||
| 26 | 199088000276
WHEEL (ALT GP0000007607) | Low Stock | 7.49 | |
| 27 | 202024003668
HEIGHT ADJUSTMENT LOCKING LEVER | Not Available | ||
| 28 | 207010100174
SPRING | Not Available | ||
| 29 | 202024003350
HEIGHT ADJUSTMENT LEVER | Low Stock | 5.99 | |
| 30 | 199086000263
FRONT AXLE | Not Available | ||
| 31 | 202013000201
FIXING PLATE | Not Available | ||
| 32 | 201045000451
ACCESSORY - LAWN MOWER BLADE - 43CM | In Stock | 14.99 | |
| 33 | 201057000395
BLADE LOCKING WASHER | Low Stock | 1.49 | |
| 34 | 207220100044
BLADE RETAINING BOLT | Low Stock | 1.49 | |
| 35 | 202129000006
REAR DISCHARGE CHUTE | Not Available | ||
| 36 | 202024003595
HANDLE COVER $$$ | Not Available | ||
| 37 | 207310300025
SCREW $$$ | Not Available | ||
| 38 | 202024003669
HANDLE $$$ | Not Available | ||
| 39 | 2073110000002
SCREW $$$ | Not Available | ||
| 40 | 202138001006
DECORATIVE COVER $$$ | Not Available | ||
| 41 | 202138001025
UPPER COVER $$$ | Not Available | ||
| Manufacturer Model Number | TTB1168LWM |
| EAN | 5063022636881 |
| Brand | Titan |
| Description | LAWN MOWER 1800W 46CM |
